30" Free-Standing Double Oven Range - PB970TMWW

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Double Oven Range

Model: PB970TMWW

30" Free-Standing Double Oven Range PB970TMWW30" Free-Standing Double Oven Range PB970TMWW30" Free-Standing Double Oven Range PB970TMWW30" Free-Standing Double Oven Range PB970TMWW30" Free-Standing Double Oven Range PB970TMWW30" Free-Standing Double Oven Range PB970TMWW
30" Free-Standing Double Oven Range PB970TMWW
30" Free-Standing Double Oven Range PB970TMWW
30" Free-Standing Double Oven Range PB970TMWW
30" Free-Standing Double Oven Range PB970TMWW
30" Free-Standing Double Oven Range PB970TMWW
+1more

Color : White

30" Free-Standing Double Oven Range PB970TMWW
White

Type : Electric

Key Features

  • Upper oven

  • Large 4.4 cu. ft. lower oven capacity

  • Self-clean oven

  • Dual-size ribbon element

  • Warming zone (fifth element warming zone)

  • Double oven controls

  • Self-clean, heavy-duty oven racks

  • Eight-pass bake element

Read More

Description

Provides an impressively large oven interior to cook more dishes and to cook large meals at once.Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior.47 H x 29 7/8 W x 28 7/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Upper oven

Provides the ideal space for cooking pizzas and smaller items

Large 4.4 cu. ft. lower oven capacity

Provides an impressively large oven interior to cook more dishes and to cook large meals at once

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Dual-size ribbon element

Two heating elements in one allows you to choose a heating area for your cookware

Warming zone (fifth element warming zone)

Simplify meals by keeping foods fresh from the oven warm and ready to serve

Double oven controls

Glass touch controls are easy to clean and provide easy instruction

Self-clean, heavy-duty oven racks

Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning

Eight-pass bake element

Interior heating element loops eight times to distribute heat quickly and evenly for optimal baking results

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Certifications

California Prop 65 certification

California Prop 65

Specifications

FEATURES

6"/9" Dual Heating Element1 Ribbon (2,500W)
ConfigurationDouble Oven Range
Oven FeaturesDual-Element Bake
Cleaning TimeVariable
Interior Oven LightAuto
Oven InteriorHidden Bake (Lower)
Warming Zone1-6" Ribbon (120W)
Oven Control FeaturesWarm Mode
Cooktop Burner TypeSmoothtop
Oven Rack Features3 Self-Clean Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights5, Cooktop
StyleSmoothtop
Heating Element "ON" Indicator LightYes
9"/12" Dual Heating Element1 Ribbon (2,500/3,000W)
Cooktop SurfacePatterned True White Glass Ceramic
Control LocationBacksplash
Preheated Oven LightDisplay
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional
Control TypeTouchpads
Control TypeQuickSet VI
Control TypeDigiTemp Temperature Display
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light Display
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesVariable Broil
Oven Control FeaturesMis-Wire Detection

POWER / RATINGS

KW Rating at 240V13.9
Amp Rating at 208V40
KW Rating at 208V10.4
Amp Rating at 240V40

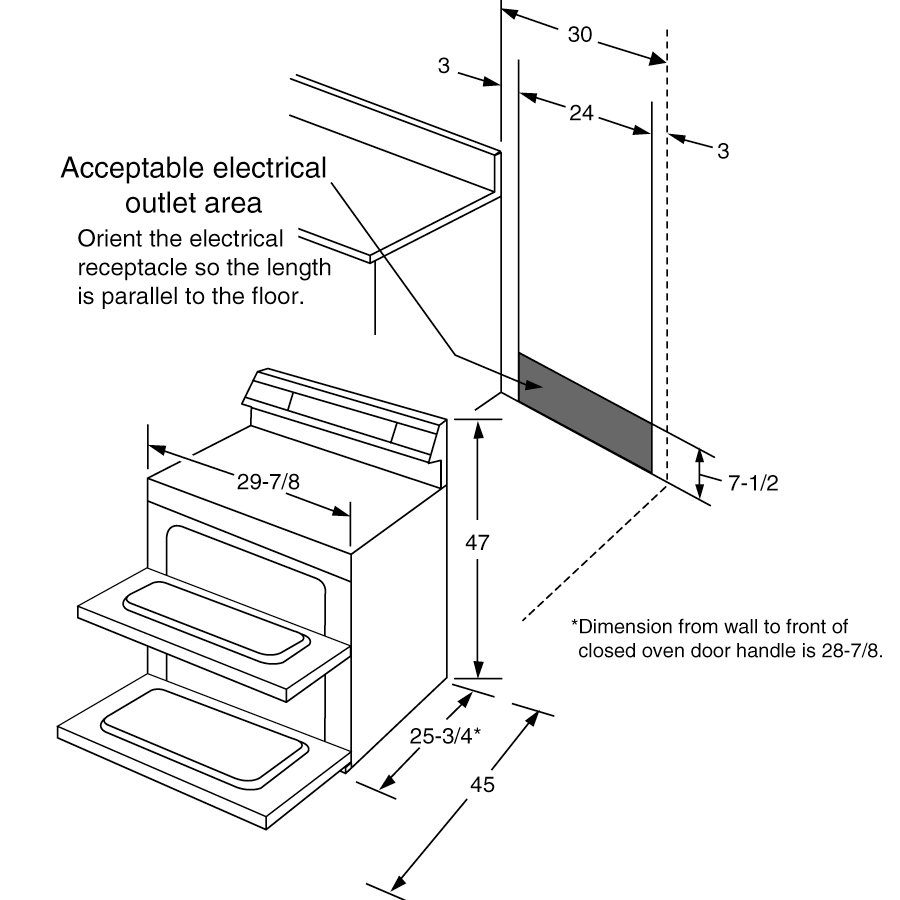

WEIGHTS & DIMENSIONS

Net Weight222 lb
Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Depth Without Handle25.75 in
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4
Depth with Door Open45 in
Cabinet Width30 in
Approximate Shipping Weight233 lb
Overall Height47 in
Overall Depth28 7/8 in
Overall Width29 7/8 in

APPEARANCE

Oven Door FeaturesWhite Frameless Glass Door
HandleHigh-Gloss Color-Matched Sculptured
Color AppearanceTrue White
Oven Door FeaturesBig Clear View Oven Window
Oven Door FeaturesFrameless Lift-off Oven Door

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 5-year glass cooktop/radiant surface units
Parts WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

CAPACITY

Capacity (Cu. Ft.)2.2 Upper / 4.4 Lower
Total Capacity (cubic feet)6.60 cu ft

ACCESSORIES

Cooktop CleaningSponge
Cooktop CleaningCream
Cooktop CleaningIncluded

Other

Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4

Dimensions & Weight

Width29.88 in.
Height47 in.
Length28.88 in.
Weight222 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52 in.
Shipping Length33.88 in.
Shipping Weight262 lbs.
Total of Shipping Weight262 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.46 ft³
Dimensional Weight291.68 lbs.
Total of Cubes23.46 ft³
Total of Dimensional Weight291.68 lbs.
