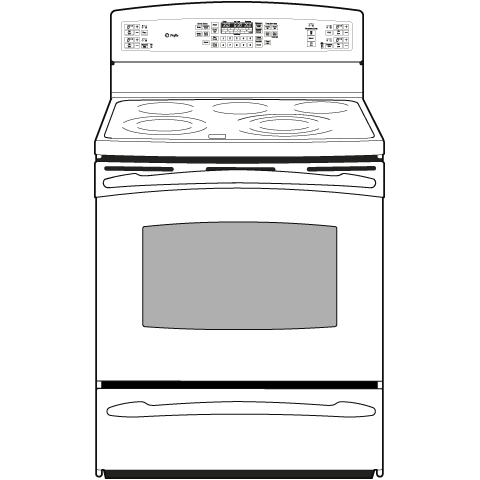

30" Free-Standing Electric Range with Warming Drawer - PB920DTBB

GE ProfileGE Profile brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range with Warming Drawer

Model: PB920DTBB

30" Free-Standing Electric Range with Warming Drawer PB920DTBB30" Free-Standing Electric Range with Warming Drawer PB920DTBB30" Free-Standing Electric Range with Warming Drawer PB920DTBB
30" Free-Standing Electric Range with Warming Drawer PB920DTBB
30" Free-Standing Electric Range with Warming Drawer PB920DTBB
30" Free-Standing Electric Range with Warming Drawer PB920DTBB

Product Video

GE Profile 30" Free-Standing Electric Range with Warming Drawer Black PB920DTBB Picture

Color : Black

30" Free-Standing Electric Range with Warming Drawer PB920DTBB
Black

Type : Electric

ElectricGas

Key Features

  • True European Convection with Precise Air

  • NextStep controls

  • 12"/9"/6" tri-ring element

  • 8"/5" dual element

  • Self-clean with Steam Clean option

  • Heavy-duty roller rack

  • Warming drawer

  • 5.3 cu. ft. oven capacity

Read More

Description

Illuminating controls simplify display operation.Three heating elements in one offer flexibility.47 H x 29 7/8 W x 28 7/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

True European Convection with Precise Air

Accurate heat circulation ensures evenly baked foods

NextStep controls

Illuminating controls simplify display operation

12"/9"/6" tri-ring element

Three heating elements in one offer flexibility

8"/5" dual element

Two heating elements in one offer flexibility

Self-clean with Steam Clean option

Gives the option of self-cleaning or steam cleaning

Heavy-duty roller rack

Provides easy access to oven interior

Warming drawer

Variable temperature control keeps foods warm

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

Hidden bake oven interior

Conceals the lower oven element to simplify cleaning

Black gloss oven interior

Adds a stylish touch to the kitchen

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

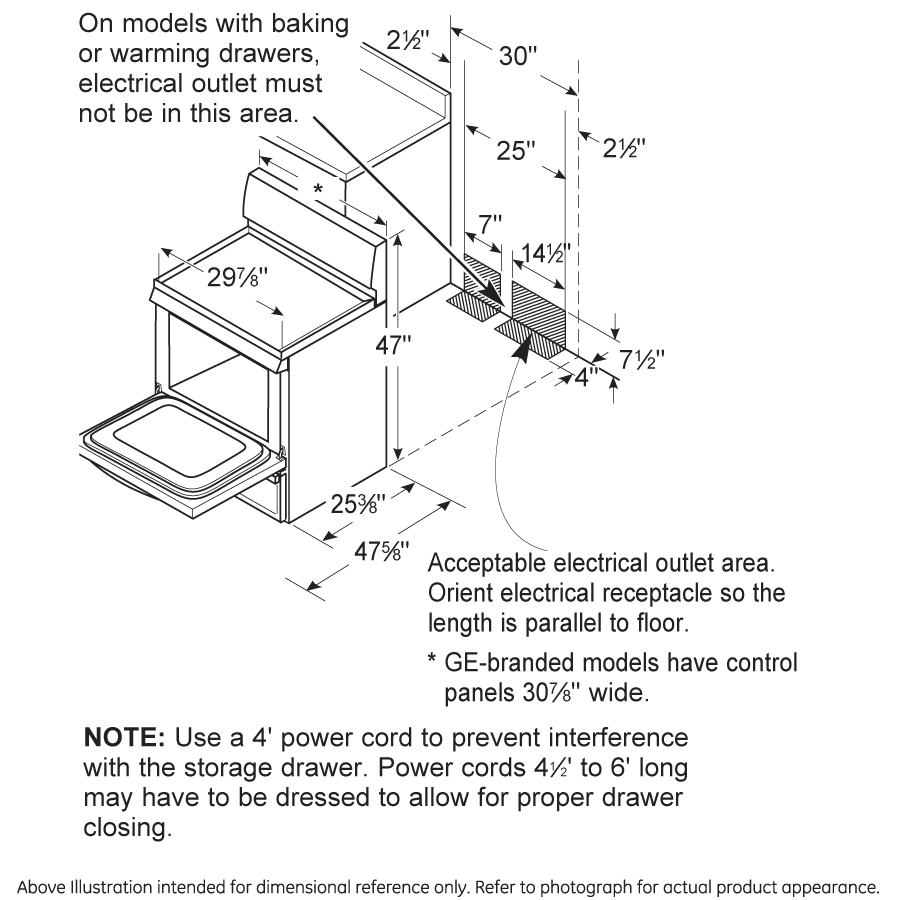

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Overall Height47 in
Net Weight205 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Approximate Shipping Weight225 lb
Overall Depth28 7/8 in
Overall Width29 7/8 in

FEATURES

ConfigurationRange with Warming Drawer
Oven Features6-Pass Broil Element
Cooking SystemTrue European Convection with Precise Air
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Melt SettingYes
Oven InteriorInterior Oven Light
5"/8" Dual Heating Element1 Ribbon (1,900W)
Warming Zone1-6" Ribbon (120W)
Oven Control FeaturesVariable Broil
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Heavy-Duty and 1 Roller Rack
Temperature Management SystemTrue Temp System
6" Heating Element(s)1 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Hot Surface Indicator Lights5, Cooktop
6"/9"/12" Tri-Ring Element1 Ribbon (3,600W Power Boil)
Heating Element "ON" Indicator Light5
Cooktop SurfacePatterned Graphite on Black Glass Ceramic
Control LocationBacksplash
8" Heating Element (s)1 Ribbon (2,000W)
Warming Drawer FeaturesRemovable Liner
Oven Rack Positions (Single or Upper/Lower)6
Control TypeNext Step
Self-Clean Oven Door LockAutomatic
Cooking TechnologyConvection
Control TypeDigiTemp Temperature Display
Control TypeElectronic Oven Controls
Control TypeGlass Touch
Cooktop Burner Type5 Ribbon
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesOven Function Icons
Oven Control FeaturesTemperature Probe
Oven Control FeaturesOven "ON" Light Display
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesStart Pad
Oven Features6-Pass Bake Element
Oven InteriorHidden Bake
Warming Drawer Features(3) levels

POWER / RATINGS

KW Rating at 240V13.8
Bake Wattage2850W
Amp Rating at 208V40
Broiler Wattage3800W
KW Rating at 208V10.4
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesBlack Glass Frameless Lift-off Oven Door
Textured Steel Side PanelsYes
Handle DesignSculptured
Handle ColorColor-Matched
Color AppearanceBlack on Black
Oven Door FeaturesBig Clear View Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 5-year glass cooktop/radiant surface units
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

ACCESSORIES

Cooktop CleaningSponge
Cooktop CleaningIncluded
Cooktop CleaningCream

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height47 in.
Length28.88 in.
Weight205 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52 in.
Shipping Length33.88 in.
Shipping Weight245 lbs.
Total of Shipping Weight245 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.46 ft³
Dimensional Weight291.68 lbs.
Total of Cubes23.46 ft³
Total of Dimensional Weight291.68 lbs.

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
