30" Free Standing Electric Range - PB909SPSS

This product has been discontinued by the manufacture and is no longer available.

30" Free Standing Electric Range

Model: PB909SPSS

30" Free Standing Electric Range PB909SPSS30" Free Standing Electric Range PB909SPSS30" Free Standing Electric Range PB909SPSS30" Free Standing Electric Range PB909SPSS
30" Free Standing Electric Range PB909SPSS
30" Free Standing Electric Range PB909SPSS
30" Free Standing Electric Range PB909SPSS
30" Free Standing Electric Range PB909SPSS

Color : Stainless Steel

30" Free Standing Electric Range PB909SPSS
Stainless Steel

Type : Electric

Key Features

  • True Convection with Precise Air

  • Single / multi-rack Convection Bake

  • Super-large oven capacity

  • Hidden bake oven interior

  • 12"/9" dual element

  • 9"/6" Power Boil element

  • Self-clean, heavy-duty oven racks

  • TrueTemp oven system

Read More

Description

Provides ideal airflow throughout the oven, ensuring optimal results on both racks.Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.46 1/2 H x 29 7/8 W x 27 3/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

True Convection with Precise Air

Delivers even air and heat circulation for superior baking and roasting results

Single / multi-rack Convection Bake

Provides ideal airflow throughout the oven, ensuring optimal results on both racks

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

12"/9" dual element

Choose a 12" or 9" heating element

9"/6" Power Boil element

Accommodates various-size pots or pans and 3,000 Watts of power speeds the boiling process

Self-clean, heavy-duty oven racks

Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

QuickSet V oven controls

Features an easy to use design that allows you to set precise cooking temperatures

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

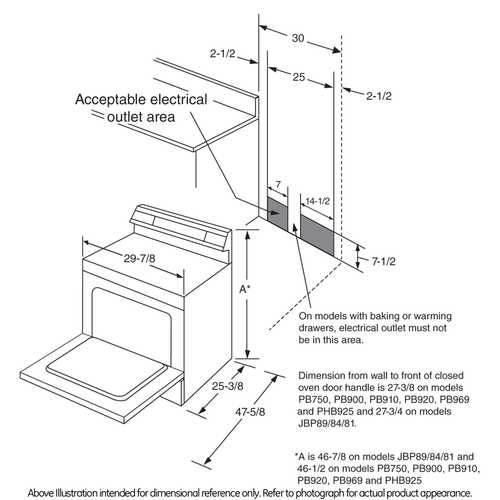

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Net Weight210 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Approximate Shipping Weight229 lb
Overall Depth27 3/8 in
Overall Height46 1/2 in
Overall Width29 7/8 in

FEATURES

6"/9" Dual Heating Element1 Ribbon (3,000W Power Boil)
ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Cooking SystemTrue European Convection with Precise Air
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Oven InteriorHidden Bake
Warming Zone1-6" Ribbon (120W)
Oven Control FeaturesVariable Broil
Oven Cooking ModesConvection Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features3 Self-Clean, Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights5, Cooktop
Heating Element "ON" Indicator LightYes
9"/12" Dual Heating Element1 Ribbon (3,000W)
Cooktop SurfaceOne-Piece Upswept
Control LocationBacksplash
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)6
Control TypeTouchpads
Self-Clean Oven Door LockAutomatic
Cooking TechnologyConvection
Control TypeDigiTemp Temperature Display
Control TypeQuickSet V
Cooktop Burner TypeRibbon
Cooktop SurfaceGraphite on Black Glass Ceramic
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Meat Thermometer
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesOven Function Icons
Oven Control FeaturesOven "ON" Light Display
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesStart Pad
Oven Control FeaturesTemperature Display
Oven Cooking ModesConvection Bake

POWER / RATINGS

KW Rating at 240V13.5
Bake Wattage2850W
Amp Rating at 208V40
Broiler Wattage3800W
KW Rating at 208V10.1
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesStainless Steel Frameless Lift-off Oven Door
HandleSculptured
Textured Steel Side PanelsYes
Color AppearanceStainless Steel
Oven Door FeaturesBig Clear View Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 5-year glass cooktop/radiant surface units
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

ACCESSORIES

Cooktop CleaningSponge
Cooktop CleaningIncluded
Cooktop CleaningCream

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.5 in.
Length27.38 in.
Weight210 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.5 in.
Shipping Length32.38 in.
Shipping Weight250 lbs.
Total of Shipping Weight250 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.01 ft³
Dimensional Weight273.59 lbs.
Total of Cubes22.01 ft³
Total of Dimensional Weight273.59 lbs.

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
