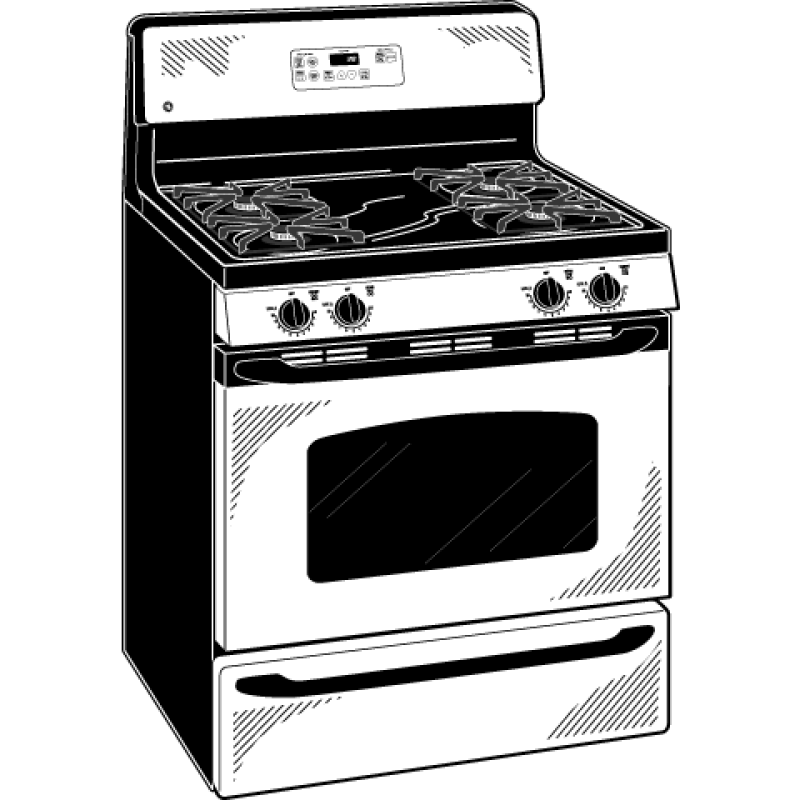

30" Free-Standing Gas Range - JGBP28MELBS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: JGBP28MELBS

30" Free-Standing Gas Range JGBP28MELBS30" Free-Standing Gas Range JGBP28MELBS30" Free-Standing Gas Range JGBP28MELBS
30" Free-Standing Gas Range JGBP28MELBS
30" Free-Standing Gas Range JGBP28MELBS
30" Free-Standing Gas Range JGBP28MELBS

Color : CleanSteel

30" Free-Standing Gas Range JGBP28MELBS
CleanSteel

Type : Gas

GasElectric

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • TrueTemp system

  • QuickSet III oven controls

  • All purpose burners

  • Sealed cooktop burners

  • Two oven racks

  • Big hearth window

Read More

Description

Provides a large oven interior ideal for cooking more items at once.Delivers even heat distribution and maximum oven control.46 7/8 H x 30 W x 26 1/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without need of scrubbing

Extra-large oven capacity

Provides a large oven interior ideal for cooking more items at once

TrueTemp system

Delivers even heat distribution and maximum oven control

QuickSet III oven controls

Feature an easy to use design that lets you set precise cooking temperatures

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Two oven racks

Feature a durable construction to help accommodate any size or type of cookware

Big hearth window

Features an enhanced shape to add an elegant appearance and make viewing trouble-free

Medium cast grates

Constructed from a durable cast iron material for long-lasting performance and reliability

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

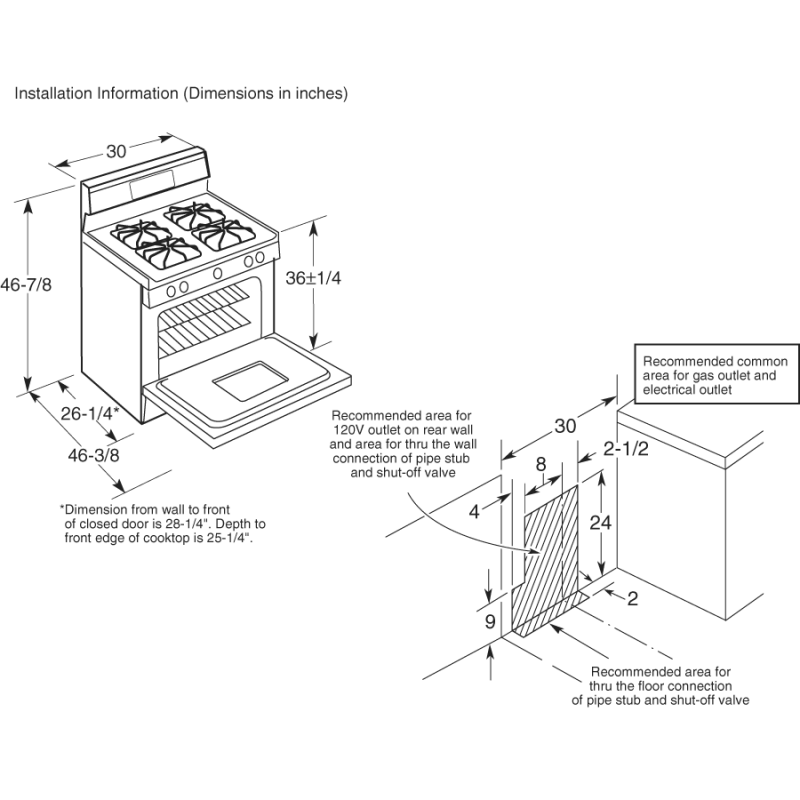

WEIGHTS & DIMENSIONS

Overall Width30 in
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Overall Depth26 1/4 in
Overall Height46 7/8 in
Height to Cooking Surface (in.)36 +/- .25

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.88 in.
Length26.25 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.88 in.
Shipping Length31.25 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.36 ft³
Dimensional Weight265.57 lbs.
Total of Cubes21.36 ft³
Total of Dimensional Weight265.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Interior Oven LightYes
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(2) 12,000/1,000 BTU
All-Purpose Burners(1) 9,500/850 BTU
Cooktop Burner Grate MaterialSquare
Valves (Degree of Turn)140
BackguardScratch-Resistant
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet III
Precise Simmer Burner(1) 5,000/600 BTU
One-Piece Drip PansOptional Accessory
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesSelf-Clean Cool Down Time Display
Control TypeDigital Temperature Display
Cooktop Burner Grate MaterialHeavy Cast
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesSabbath Mode
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Rack Features2 Oven Racks
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorBlack
Oven Door FeaturesBig Hearth Oven Window
HandleHigh-Gloss Color-Matched Sculptured
Frameless Oven Door(s)CleanSteel™
Control KnobsDesigner-Style
Color AppearanceCleanSteel™

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)4.80 cu ft

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(2) 12.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(2) 11.0; (1) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 12.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
