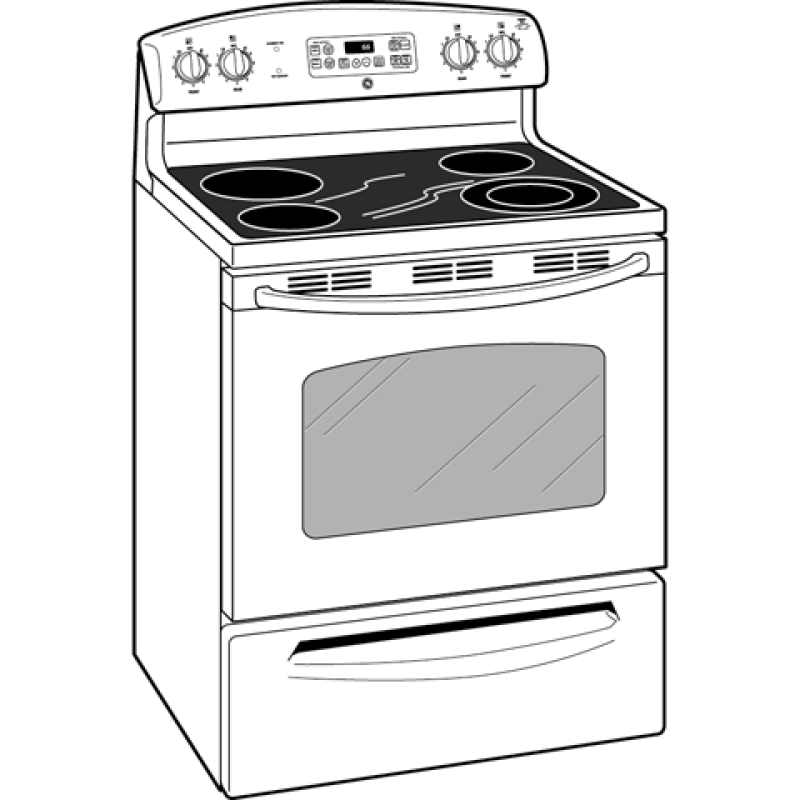

30" Free-Standing Electric Range - JBP66DMCC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JBP66DMCC

30" Free-Standing Electric Range JBP66DMCC30" Free-Standing Electric Range JBP66DMCC30" Free-Standing Electric Range JBP66DMCC
30" Free-Standing Electric Range JBP66DMCC
30" Free-Standing Electric Range JBP66DMCC
30" Free-Standing Electric Range JBP66DMCC

Product Video

GE 30" Free-Standing Electric Range Bisque JBP66DMCC Picture

Color : Bisque

30" Free-Standing Electric Range JBP66DMCC
Bisque

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • 5.3 cu. ft. oven capacity

  • TrueTemp oven system

  • 12"/9" dual element

Description

Enough room to cook an entire meal at once.Even heat distribution and maximum oven control.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

TrueTemp oven system

Even heat distribution and maximum oven control

12"/9" dual element

Choose a 12" or 9" heating element

Certifications

California Prop 65 certification

California Prop 65

Specifications

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight154 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight194 lbs.
Total of Shipping Weight194 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Oven InteriorInterior Oven Light
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1
Heating Element "ON" Indicator LightYes
9"/12" Dual Heating Element1 Ribbon (3,000W)
Cooktop SurfacePatterned Bisque on Black Glass Ceramic
Control LocationBacksplash
8" Heating Element (s)1 Ribbon (2,000 watt)
Dishwasher Safe KnobsYes
Control TypeTouchpads
Cooking TechnologyTraditional
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesVariable Broil
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Features6-Pass Power Bake Element

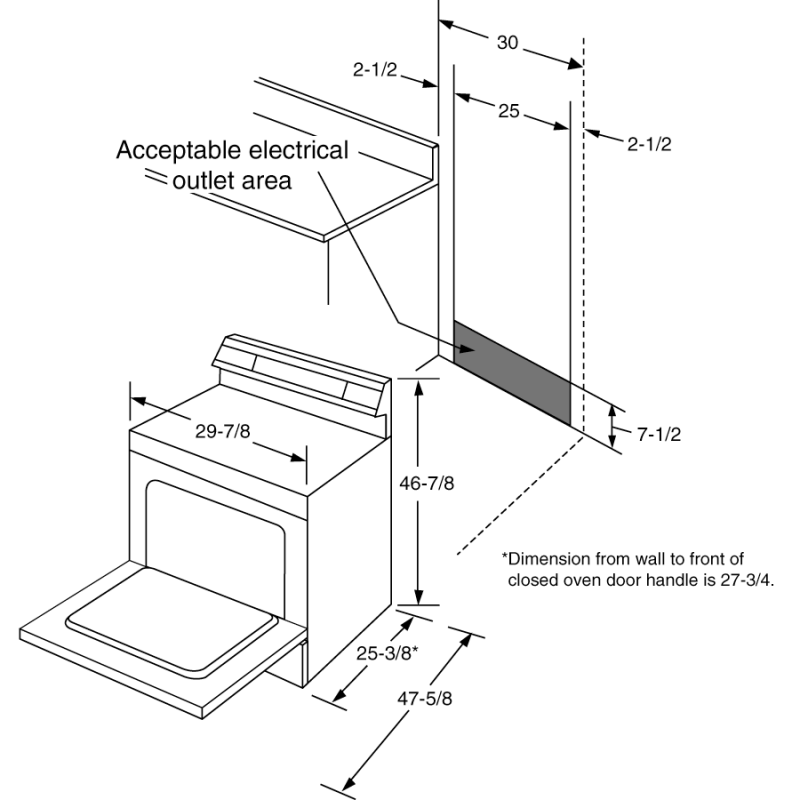

WEIGHTS & DIMENSIONS

Net Weight154 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight175 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V11.9
Amp Rating at 208V40
KW Rating at 208V8.9
Amp Rating at 240V40

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

APPEARANCE

Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBisque on Bisque
Oven Door FeaturesBisque Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBig Hearth Oven Window

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
