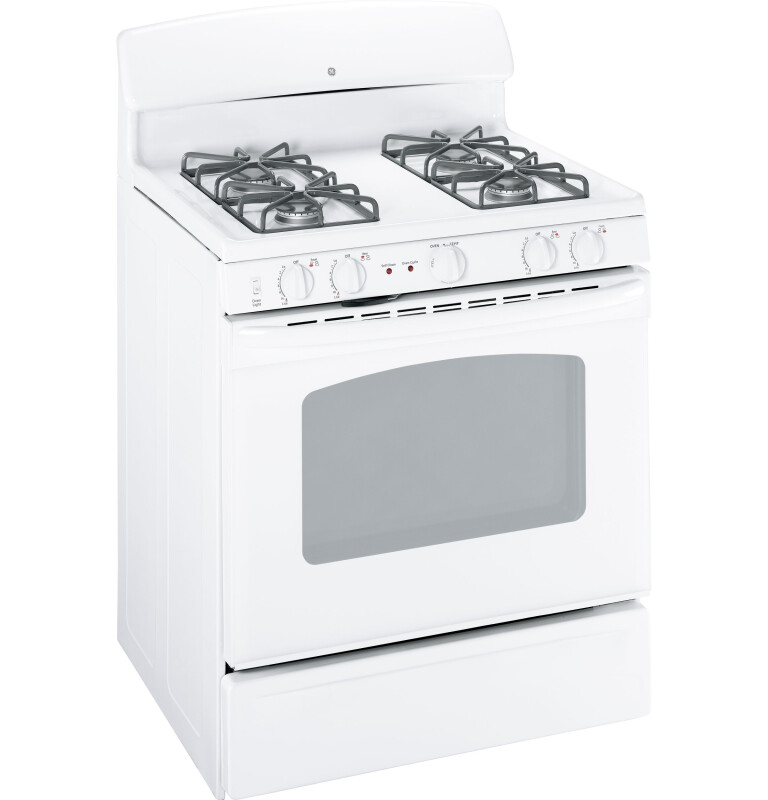

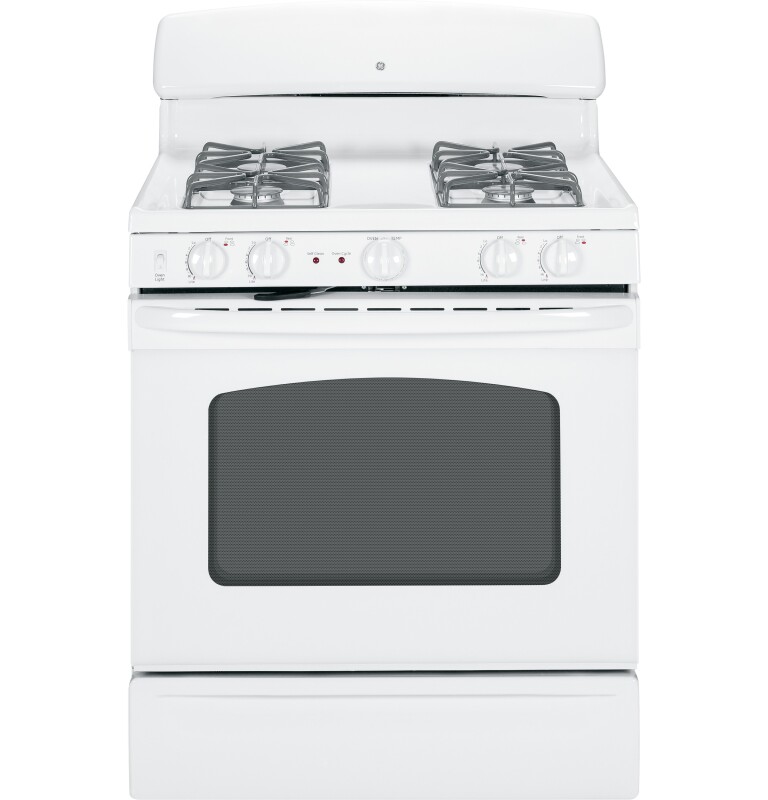

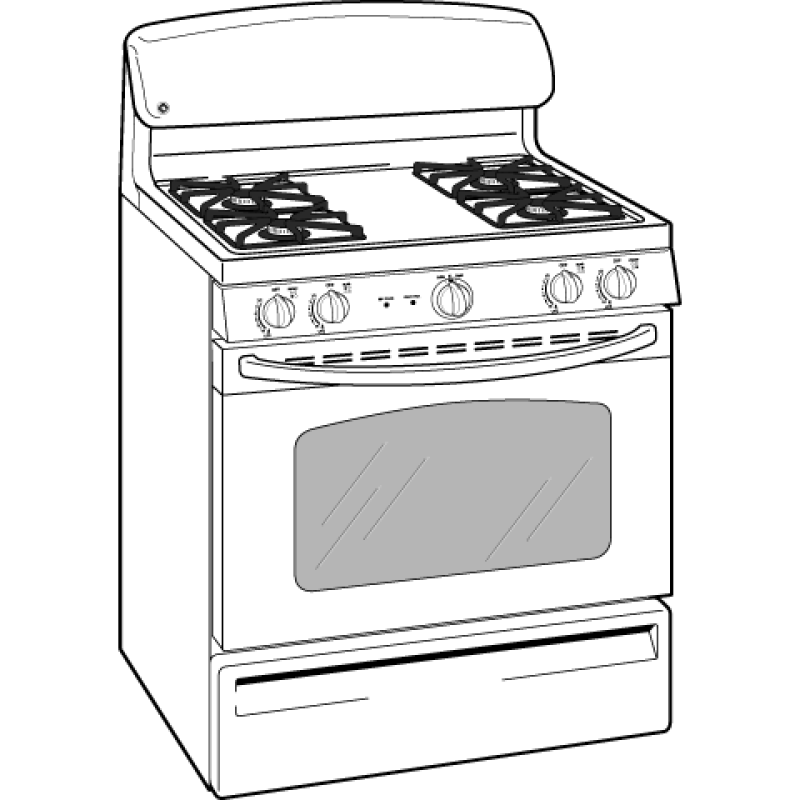

30" Free-Standing Gas Range - JGBP27DEMWW
30" Free-Standing Gas Range
Model: JGBP27DEMWW
















Product Video

30" Free-Standing Gas Range
Model: JGBP27DEMWW
Key Features
Self-clean oven
4.8 cu. ft. oven capacity
Upfront controls
All purpose burners
Sealed cooktop burners

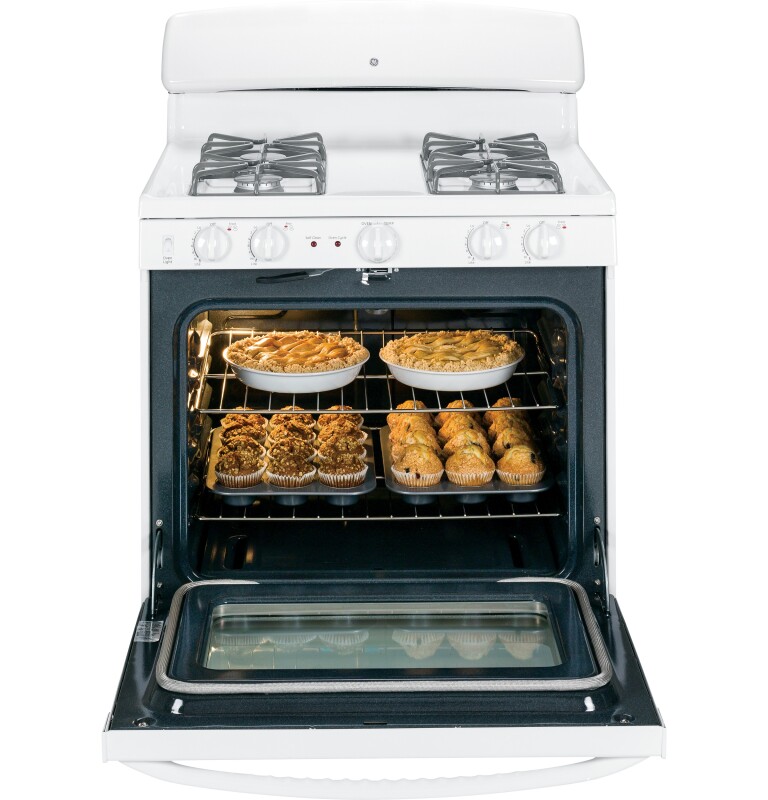

Big hearth window
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Self-clean oven
Cleans the oven cavity without the need for scrubbing

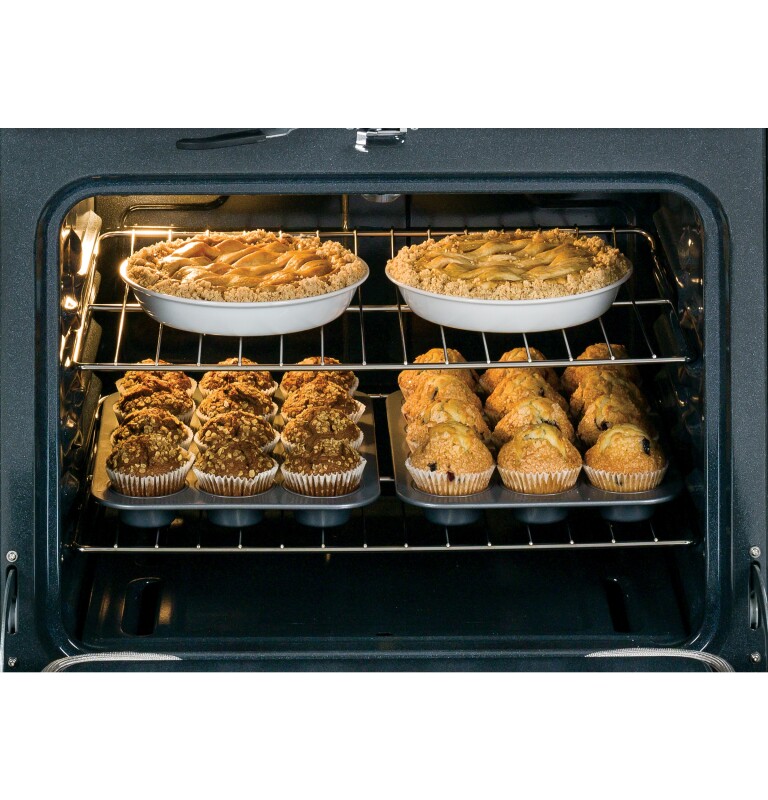

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once

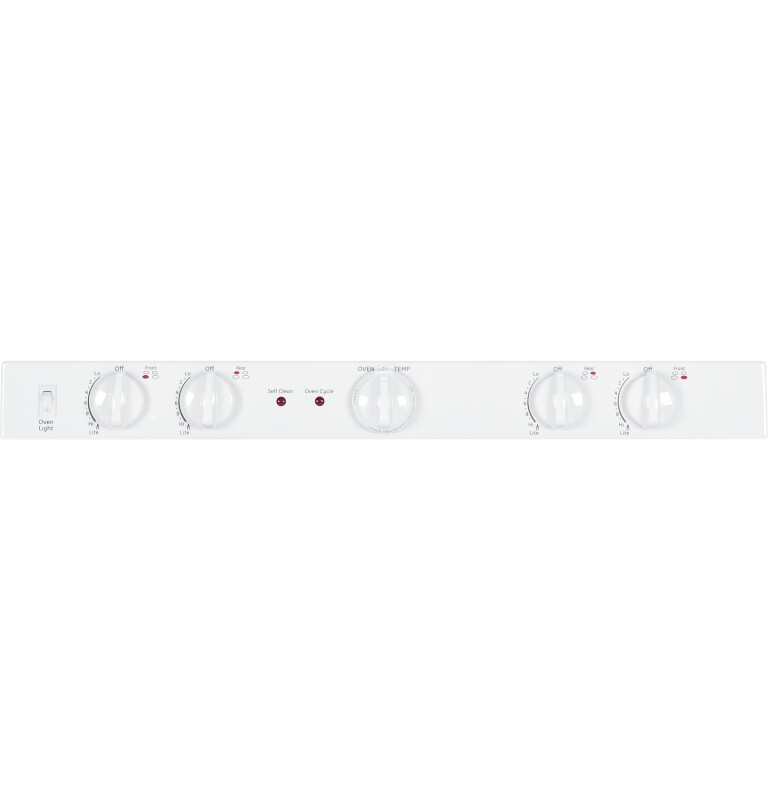

Upfront controls
Controls are within easy reach
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs

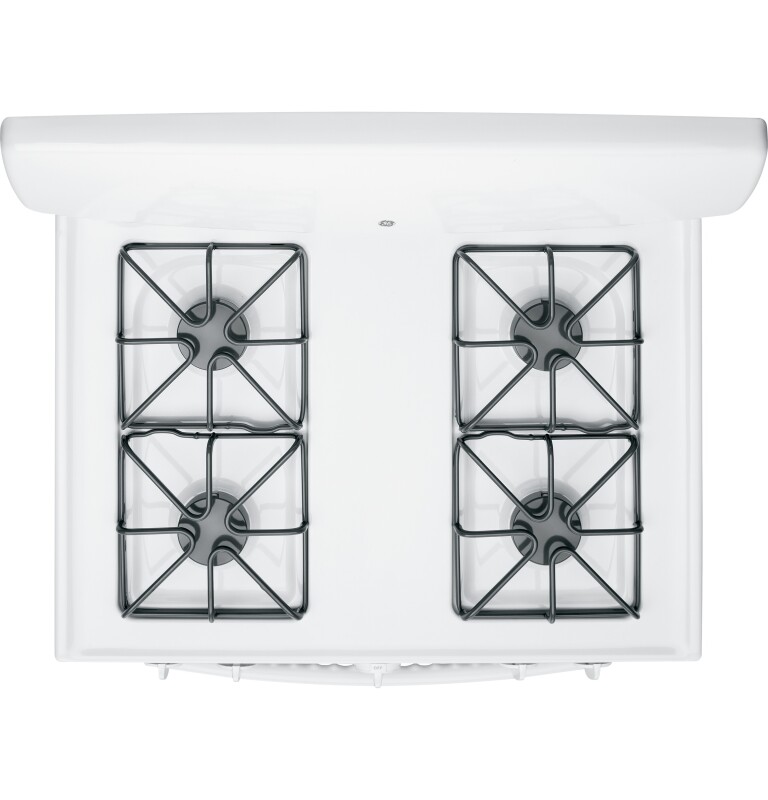

Sealed cooktop burners
Contains spills and make cleaning quick and easy
Big hearth window
Makes monitoring of foods easy
Certifications
ADA Compliant
California Prop 65
Specifications

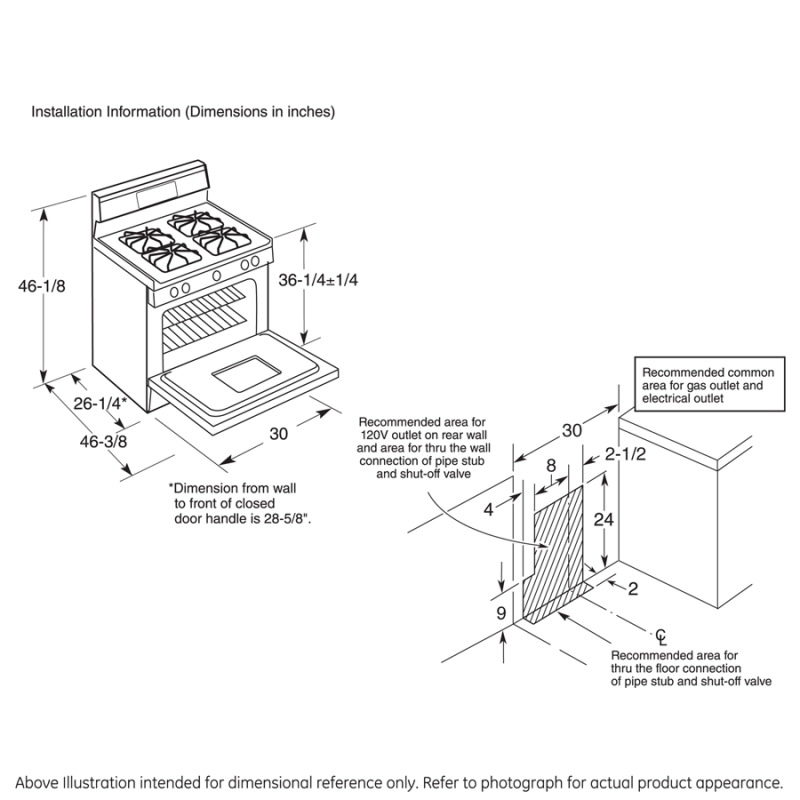

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 26.25 in |
| Overall Height | 46.125 in |
| Net Weight | 190 lb |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.25 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.02 ft³ |
| Dimensional Weight | 261.32 lbs. |
| Total of Cubes | 21.02 ft³ |
| Total of Dimensional Weight | 261.32 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Gray |
| Frameless Oven Door(s) | White Glass |
| Oven Door Features | Big Hearth Oven Window |
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Control Knobs | Designer-Style |
| Color Appearance | White on White |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 9,500 BTU |
| Oven Interior | Interior Oven Light |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | Embossed Rack Positions |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Square |
| Fuel Type | Natural Gas |
| Backguard | Scratch-Resistant |
| Control Type | Oven Control - Single Knob |
| Burner - Left Front | 9,500 BTU |

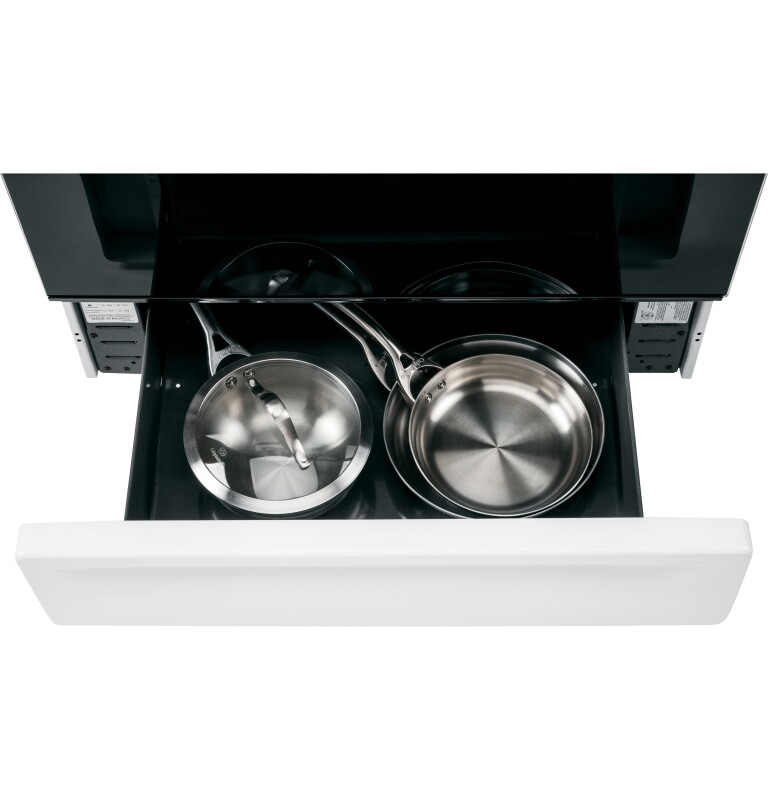

| Drawer Type | Storage |
| Leveling System | 4 Leveling Legs |
| Configuration | Range with Storage Drawer |
| Cooktop Burner Type | Sealed |
| Valves (Degree of Turn) | 140 |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Porcelain-Enamel |

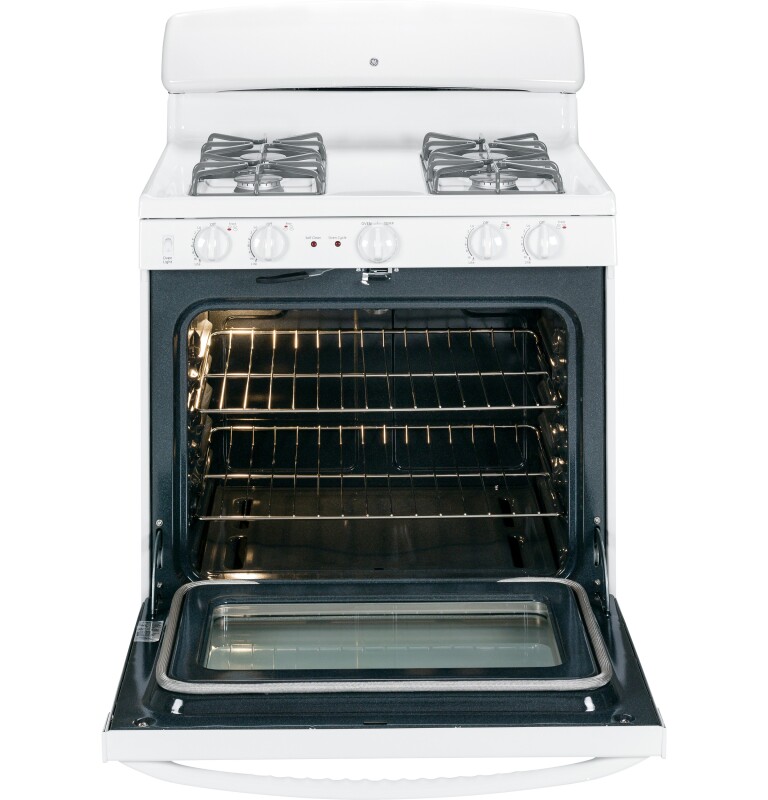

| Oven Rack Positions (Single or Upper/Lower) | 6 |
| One-Piece Drip Pans | Optional Accessory |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.5 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 9.5 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
FILTER
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Cooktop Type | Standard Grates |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| LP Conversion Kit | Included |
