30" Free-Standing Electric Range - JBS45DFWW
30" Free-Standing Electric Range
Model: JBS45DFWW
Product Video

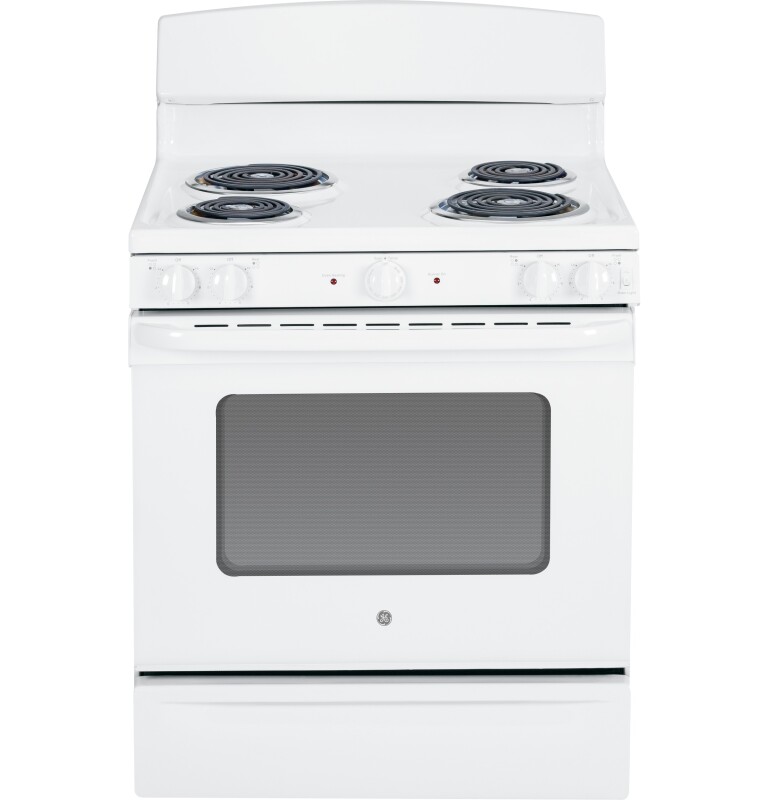

30" Free-Standing Electric Range
Model: JBS45DFWW
Color : White
Key Features
Upfront controls
5.0 cu. ft. oven capacity
Standard clean oven
Coil heating elements
Dual-element Bake
Removable full-width storage drawer
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features

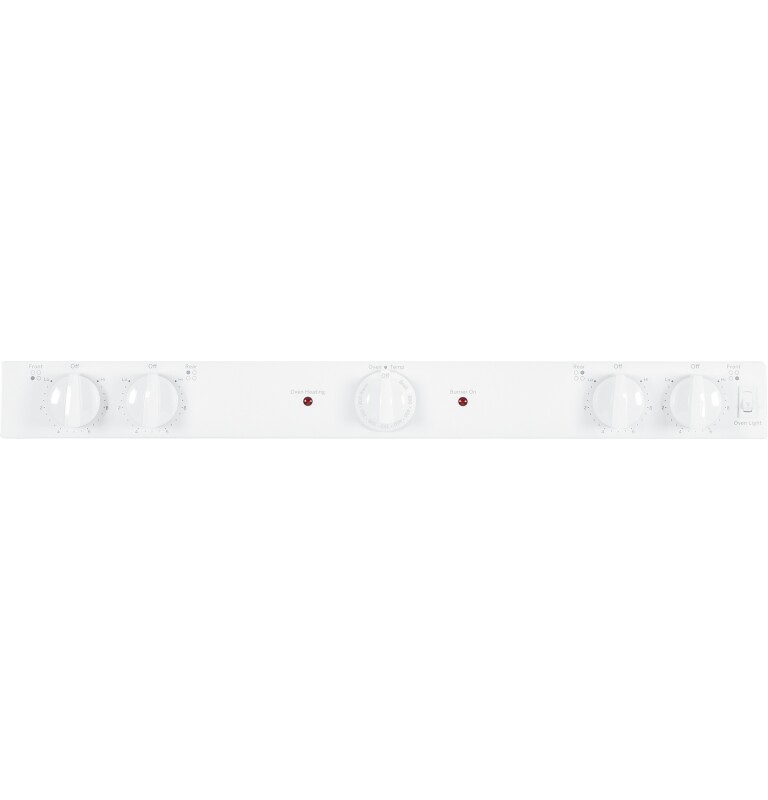

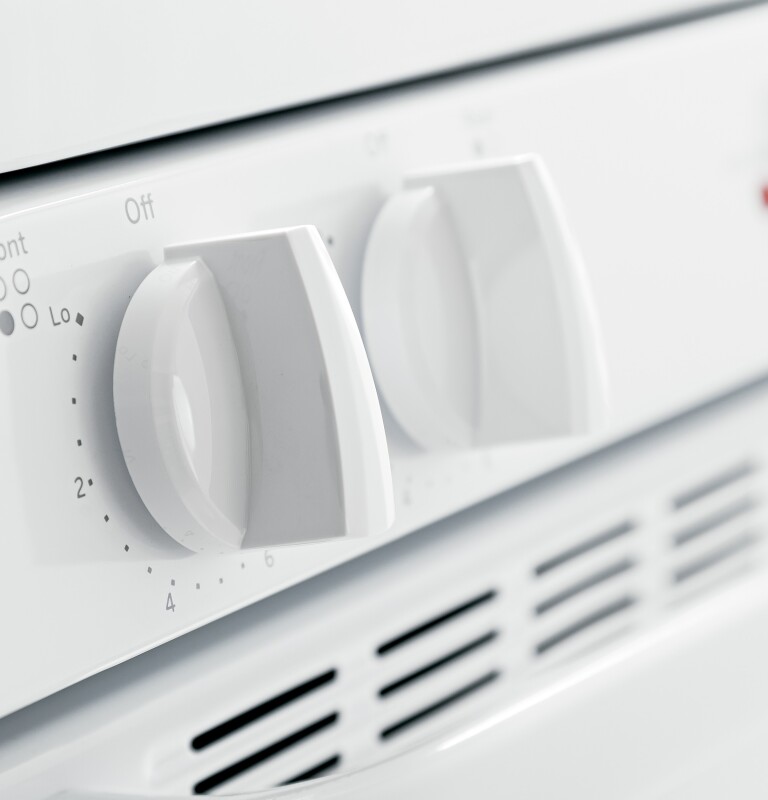

Upfront controls
Minimize need to reach

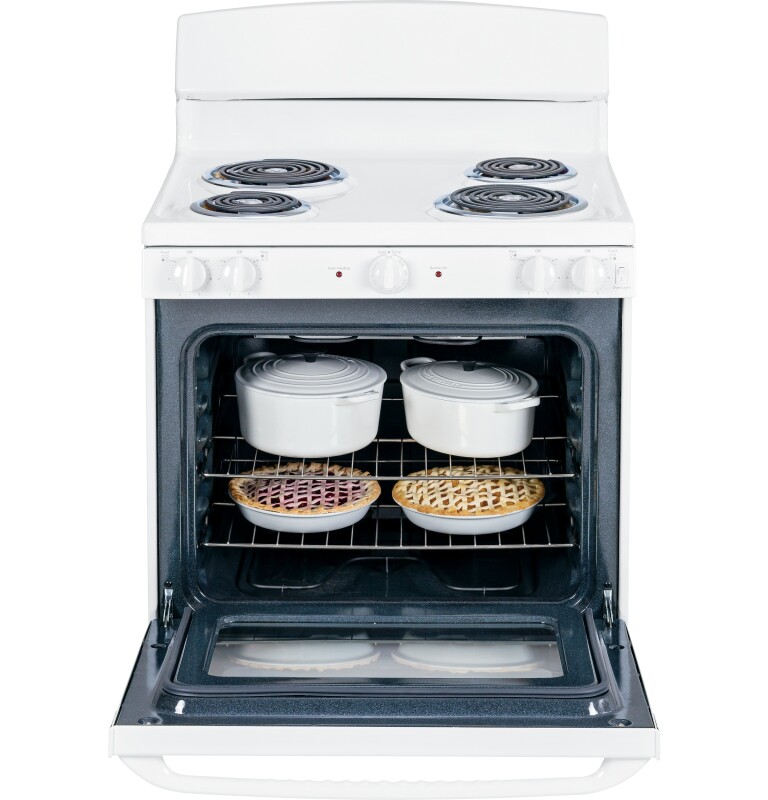

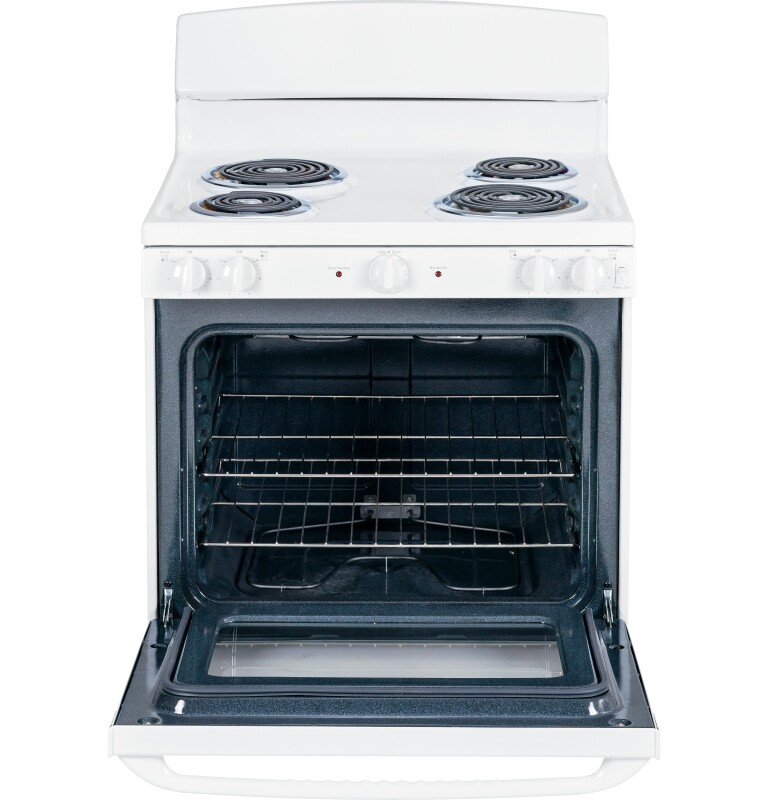

5.0 cu. ft. oven capacity
Cook more dishes at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

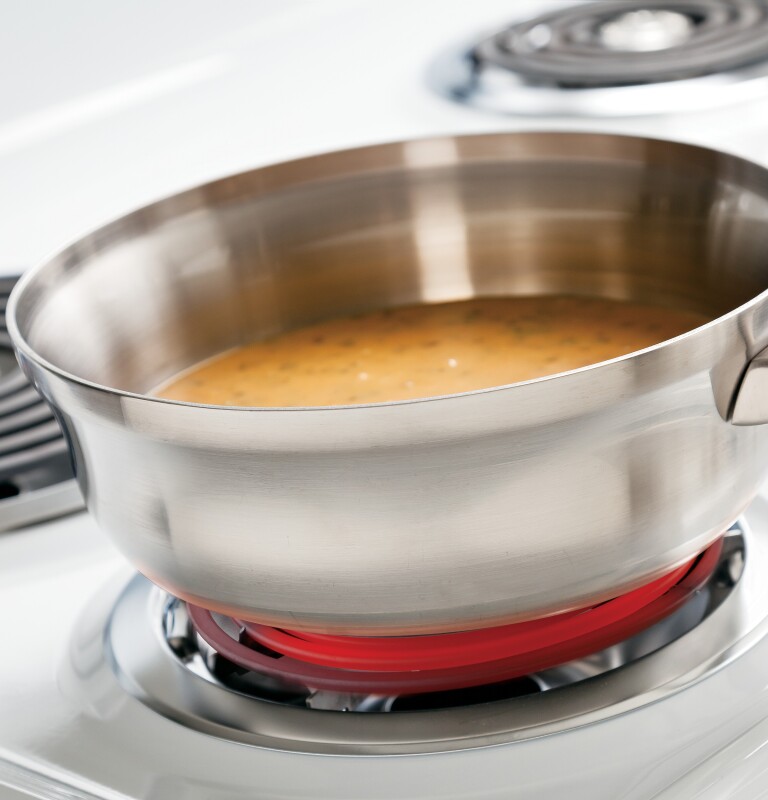

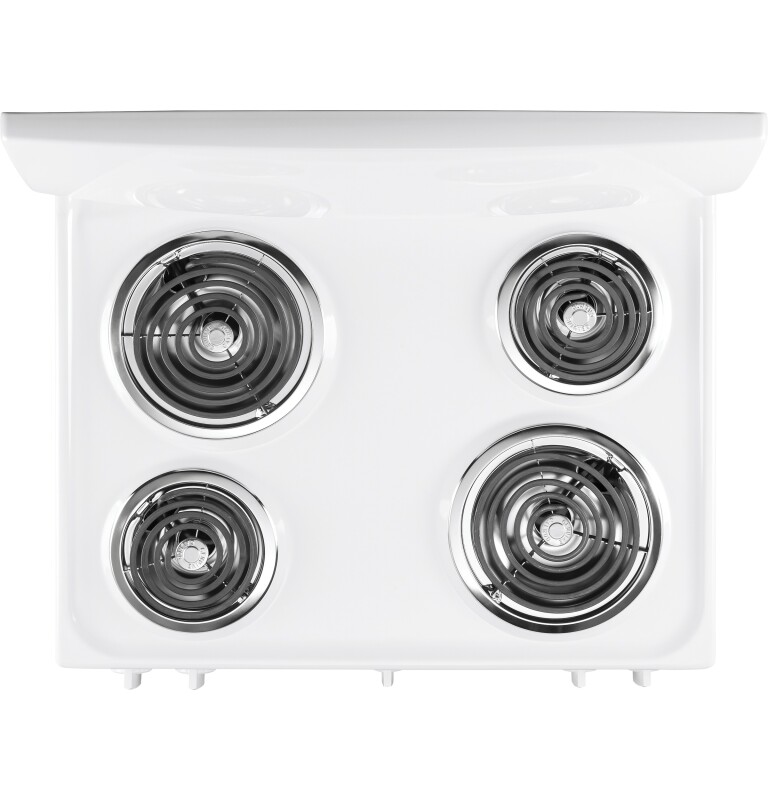

Coil heating elements
Provide even heat and easy cleanup

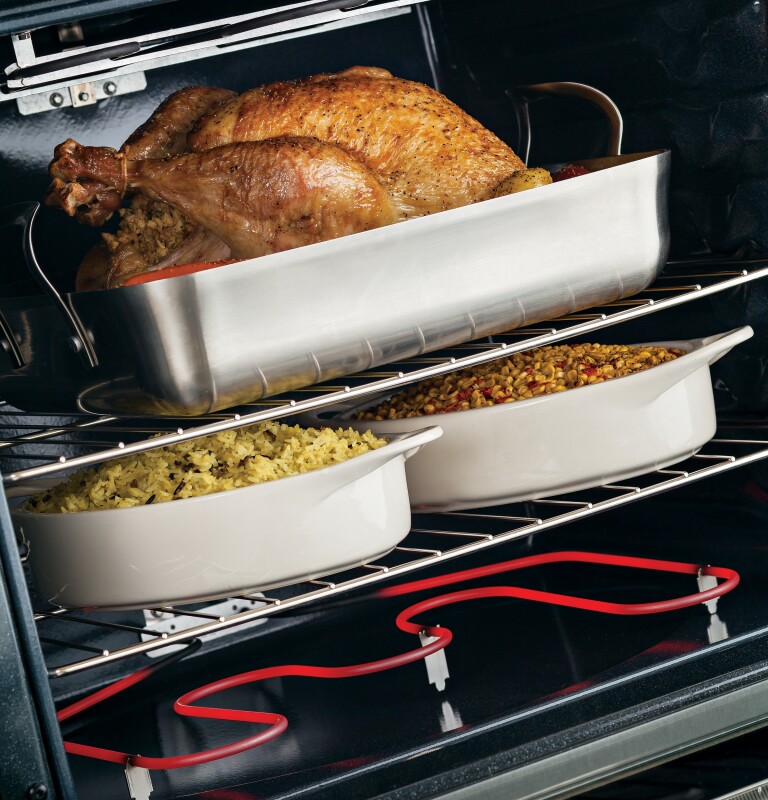

Dual-element Bake
Upper and lower elements produce even heat and great results

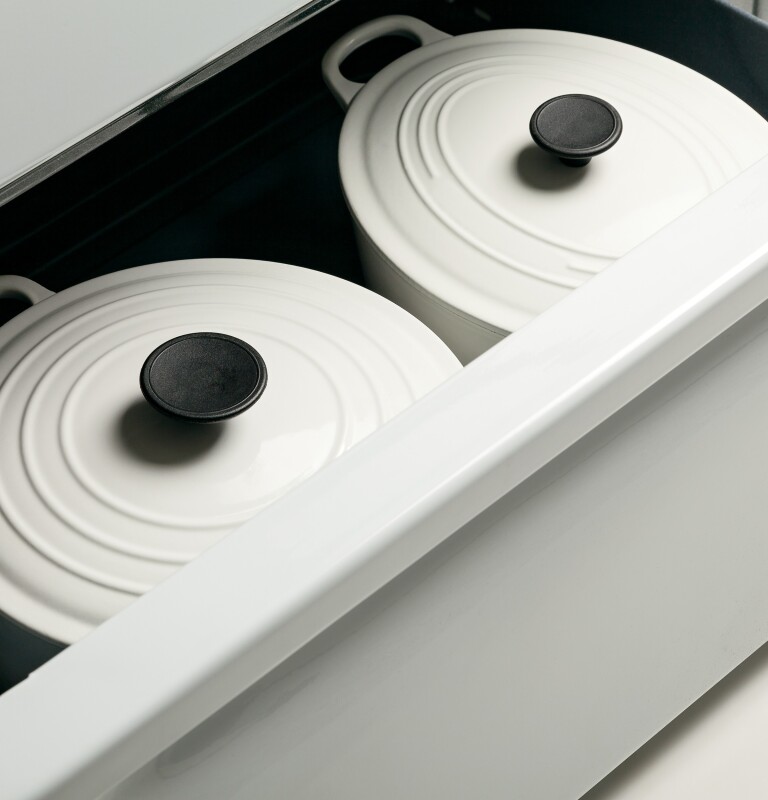

Removable full-width storage drawer
Store cookware or kitchen accessories
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

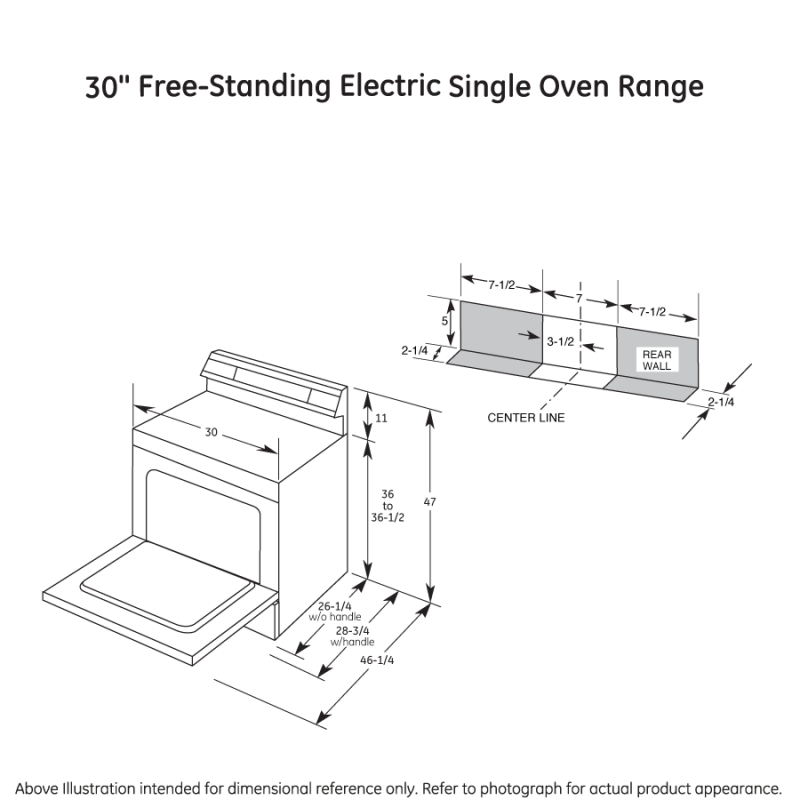

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 28.75 in |
| Overall Height | 47 in |
| Net Weight | 130 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 150 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 28.75 in. |
| Weight | 130 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 170 lbs. |
| Total of Shipping Weight | 170 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.46 ft³ |
| Dimensional Weight | 291.64 lbs. |
| Total of Cubes | 23.46 ft³ |
| Total of Dimensional Weight | 291.64 lbs. |
FEATURES
| Cooking System | Traditional |
| Storage Drawer Features | Removable Full-Width |
| Oven Control Features | Oven "ON" Light |
| Lift-Up Cooktop With Support Rods | Yes |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 4-turn 1500W |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |
| Element - Right Front | 8" 5-turn 2600W |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Drawer Type | Storage |
| Element - Left Rear | 8" 5-turn 2600W |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Oven Features | 4-Pass Broil Element |
| Removable One-Piece Drip Bowls | Chrome |
| Cooktop Burner Type | Coil |
| Element - Right Rear | 6" 4-turn 1500W |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
APPEARANCE
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Glass Door |
| Control Knobs | Color-Matched |
| Color Appearance | White |
FILTER
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Rotary knobs |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Electric |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Manual |
| App Filter - Cooktop Type | Coil |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
POWER / RATINGS
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 10.2 |
| Bake Wattage | 2585W |
| KW Rating at 208V | 7.7 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
