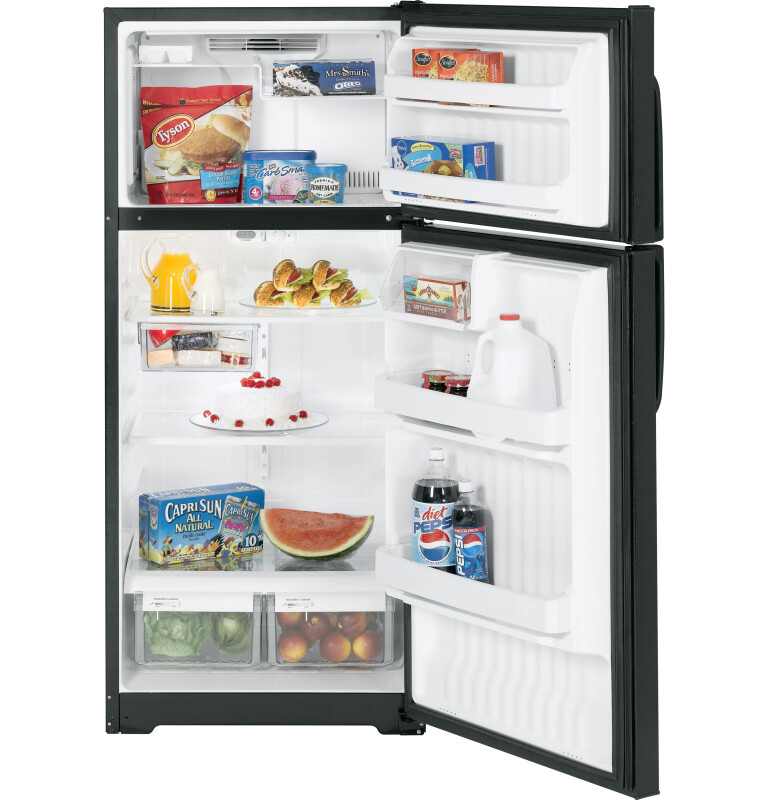

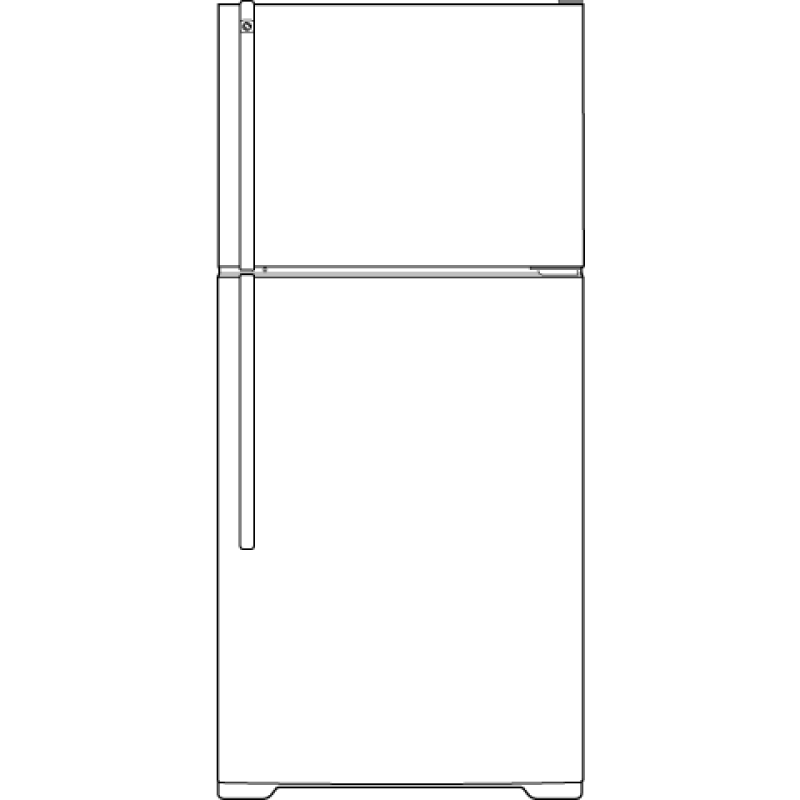

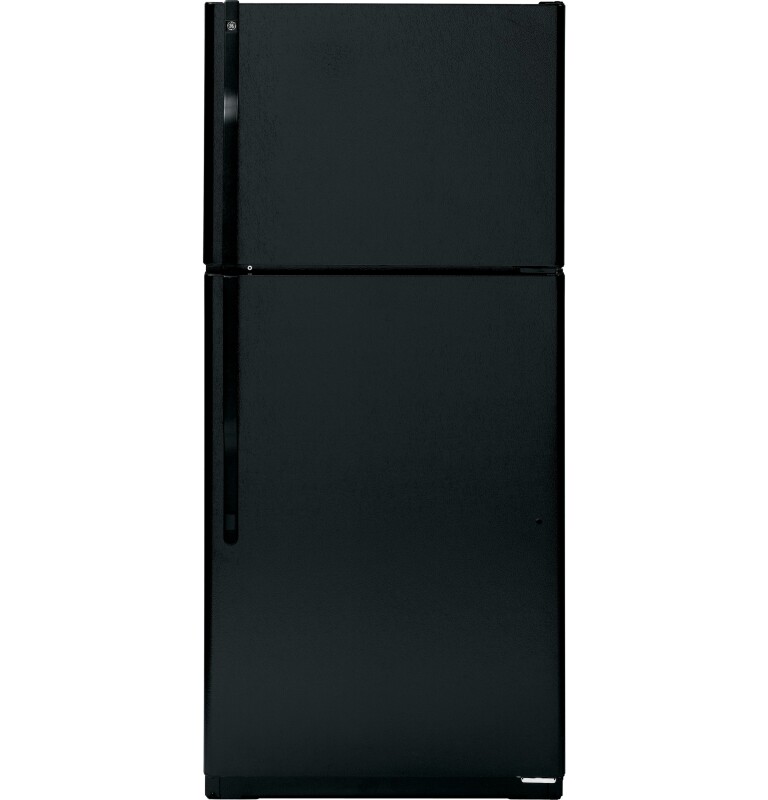

16.5 Cu. Ft. Top-Freezer Refrigerator - GTH17JBCBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

16.5 Cu. Ft. Top-Freezer Refrigerator

Model: GTH17JBCBB

16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB
16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB
16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB
16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB
16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB

Color : Black

16.5 Cu. Ft. Top-Freezer Refrigerator GTH17JBCBB
Black

Key Features

  • Adjustable spillproof glass shelves

  • Upfront temperature controls

  • Adjustable-humidity crisper drawers

  • Spillproof freezer floor

  • Large door storage

  • Never clean condenser

Description

Easy-to-use controls regulate both fresh food and freezer sections.Adjustable humidity controls keep fresh produce fresh.64 3/4 H x 28 W x 31 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Adjustable spillproof glass shelves

Raised edges keep small spills from becoming big messes

Upfront temperature controls

Easy-to-use controls regulate both fresh food and freezer sections

Adjustable-humidity crisper drawers

Adjustable humidity controls keep fresh produce fresh

Spillproof freezer floor

Seamless design of the freezer floor wipes up easily for quick cleanup

Large door storage

Offers ideal space for storing large containers in the door, freeing up valuable shelf space

Never clean condenser

Sealed compartment keeps coils clean and simplifies maintenance

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

Most Energy Efficient certification

Most Energy Efficient

Specifications

Warranty

Parts1 Year
Labor1 Year

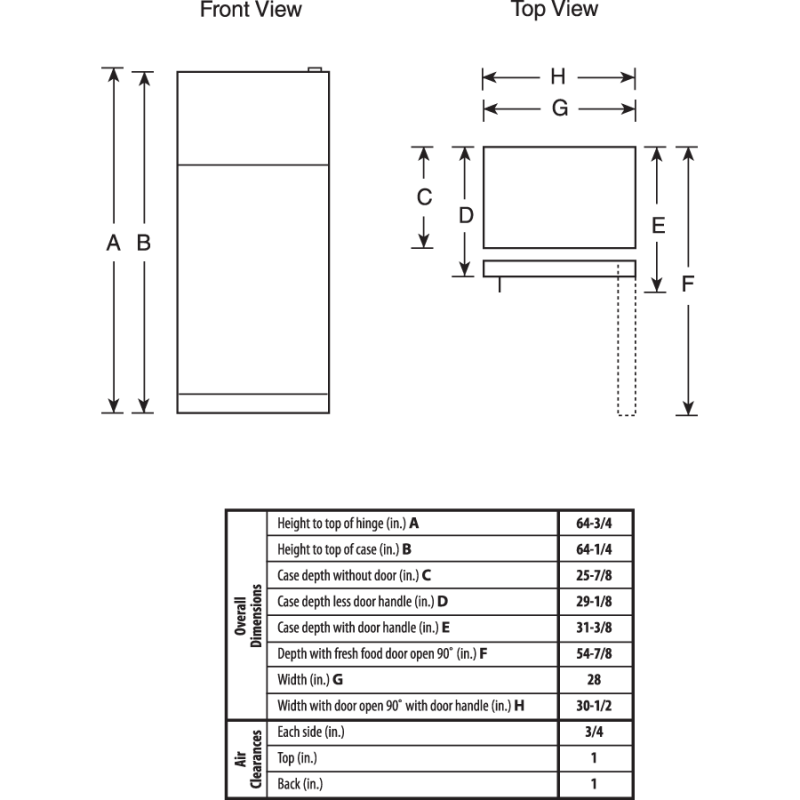

WEIGHTS & DIMENSIONS

Overall Width28 in
Overall Depth31 in
Height to Mid-Freezer54.375 in
Approximate Shipping Weight185 lb
Depth Without Handle29.125 in
Height to Top of Case64.25 in
Back Air Clearances2 in
Top Air Clearances1 in
Net Weight166 lb
Width w/Door Open 90 Degrees Less Handle28.625 in
Depth with Door Open 90Ā°54.875 in
Width w/Door Open 90 Degrees Incl. Handle30.5 in
Case Depth Without Door25.875 in
Overall Height64 3/4 in
Side Air Clearances3/4 in

Other

Side Air Clearances0.75 in
Back Air Clearances2 in
Top Air Clearances1 in

Dimensions & Weight

Width28 in.
Height64.75 in.
Length31 in.
Weight166 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width33 in.
Shipping Height69.75 in.
Shipping Length36 in.
Shipping Weight206 lbs.
Total of Shipping Weight206 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement32.52 ftĀ³
Dimensional Weight404.34 lbs.
Total of Cubes32.52 ftĀ³
Total of Dimensional Weight404.34 lbs.

FEATURES

Temperature Management FeaturesAir Tower
Fresh Food FeaturesInterior Lighting - Single Level
Control TypeUpfront Temperature Controls
Exterior StyleFree-Standing
IcemakerOptional (IM4A Ready)
Door LinerABS
Freezer Cabinet Shelves (Wire)Step Shelf
Freezer Door ShelvesFixed
Defrost TypeFrost Free
Fresh Food Door FeaturesGallon Storage
Leveling System2 Point Front Adjustable
Freezer Features1 Ice Tray
Fresh Food Door Shelves2 with Gallon Storage
Fresh Food Cabinet Drawers2 Adjustable Humidity Drawers
Fresh Food Cabinet Shelves2 Full-Width
Performance FeaturesEasily Removable Door Gaskets
Performance FeaturesNever Clean Condenser
Fresh Food Cabinet ShelvesGlass
Fresh Food Cabinet DrawersClear
Freezer Door Shelves2 Total
Fresh Food Cabinet Drawers3 Total
Fresh Food Cabinet Drawers1 Snack Drawer
Fresh Food Cabinet Shelves2 Total
Fresh Food Cabinet Shelves2 Adjustable
Fresh Food Cabinet Shelves2 Spill Proof
Fresh Food Door FeaturesDairy Compartment
Fresh Food Door Shelves2 Total
Performance FeaturesDeluxe Quiet Design

APPEARANCE

Textured Steel CaseGalvanized Door
HandleCustomer Installed Handles
Exterior DesignTextured Square Doors
Coil-Free BackYes
Door SwingReversible Hinges
Color AppearanceBlack
HandleColor-Matched

CAPACITY

Fresh Food Capacity12.43 cu ft
Freezer Capacity4.07 cu ft
Shelf Area21.70 sq ft
Total Capacity (cubic feet)16.50 cu ft

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

ECONOMICAL / QUIET

Cabinet LinerABS

ACCESSORIES

Optional Icemaker KitIM4A

POWER / RATINGS

Volts/Hertz/Amps120v; 60Hz; 15A
