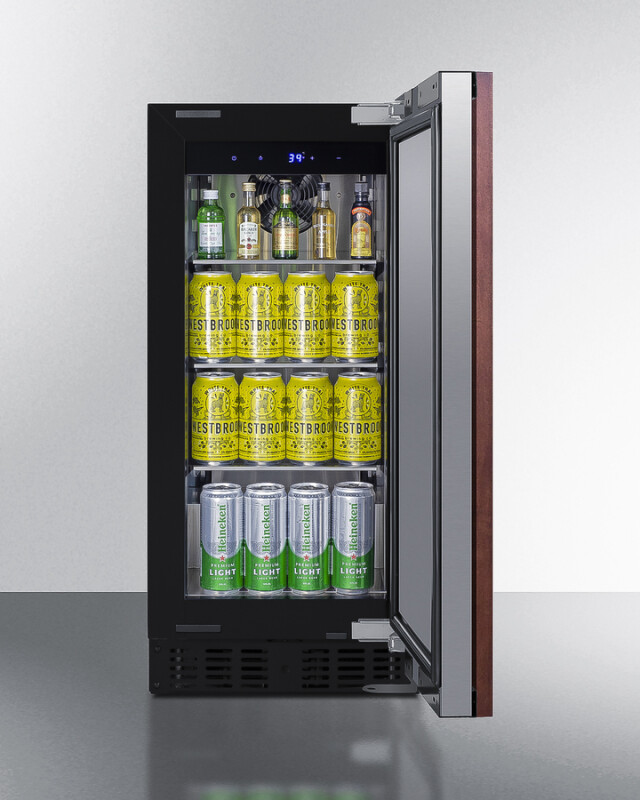

15" Wide Built-In All-Refrigerator, ADA Compliant - ASDS1523IF
Key Features
ADA compliant design
Less than 18" deep
Adjustable height
Panel-ready door
Factory-installed lock
Frost-free operation
Fan-forced cooling
Digital thermostat
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Less than 18" deep
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Adjustable height
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

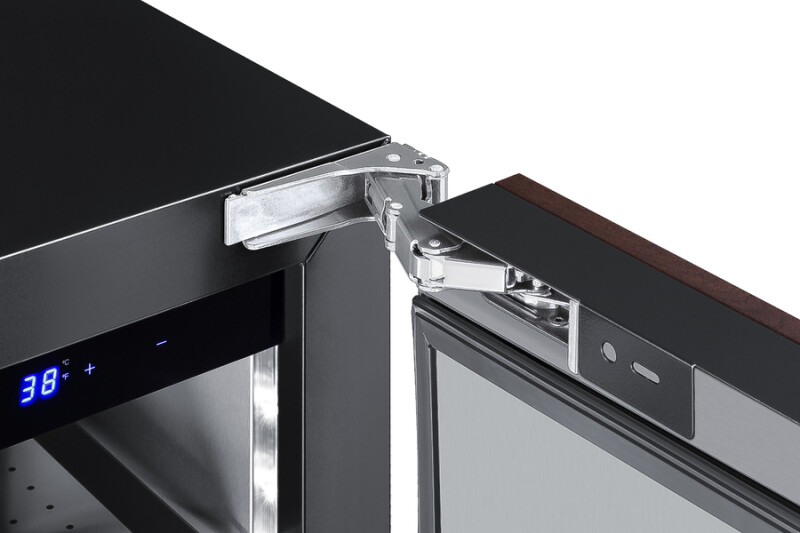

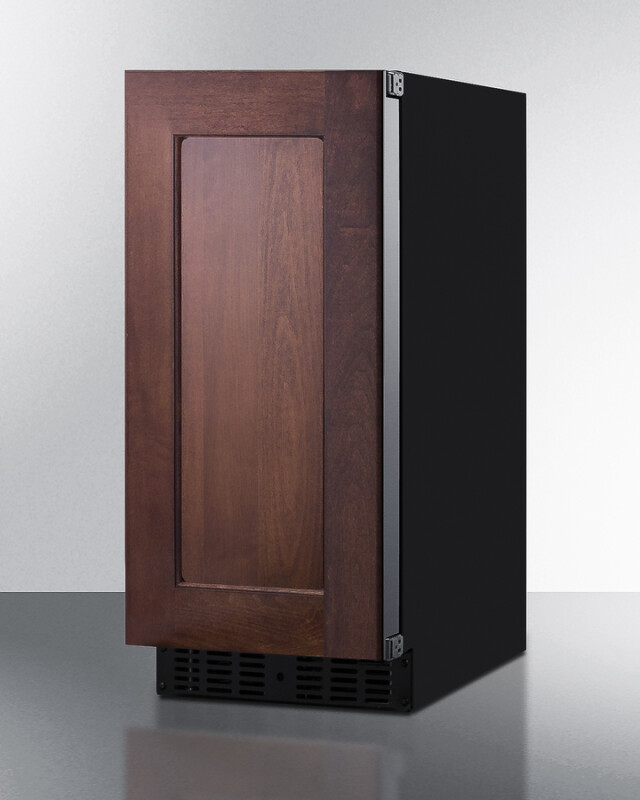

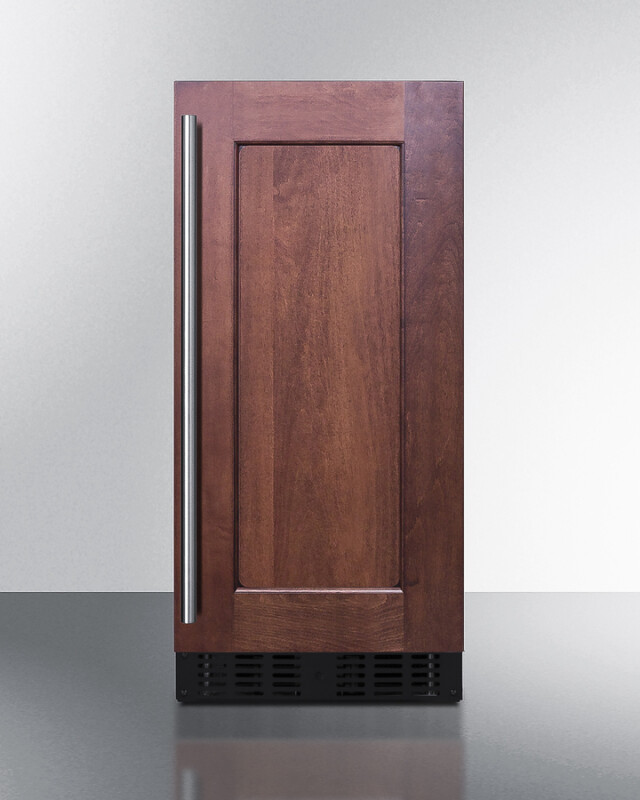

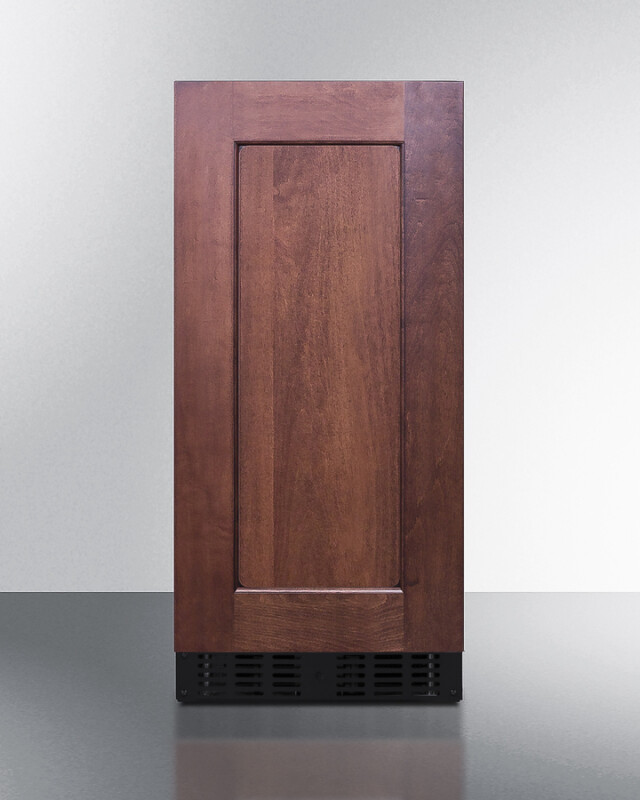

Panel-ready door
European style articulating door hinge allows you to add an overlay panel to match adjacent cabinetry for a custom look
Factory-installed lock
Keyed lock for a secure interior (2 keys included)
Frost-free operation
No-frost operation for minimal user maintenance

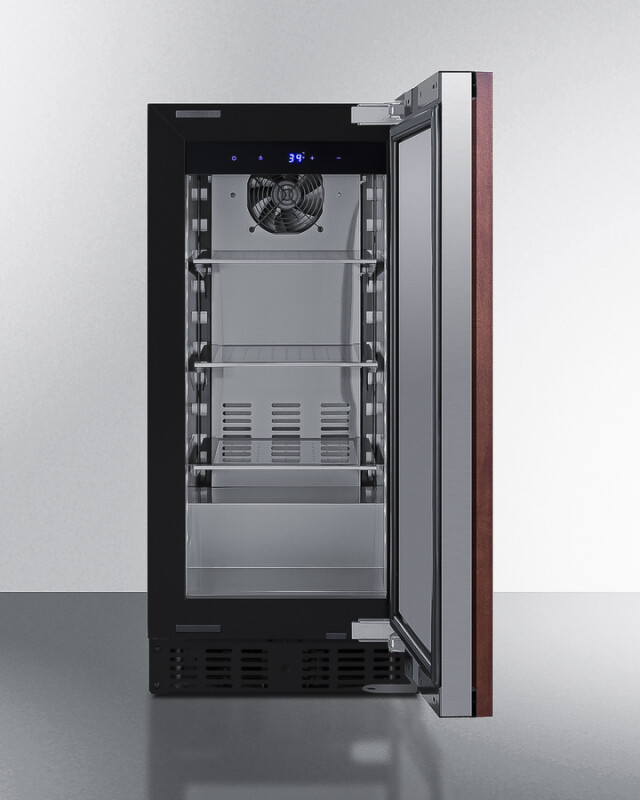

Fan-forced cooling
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Digital thermostat
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Dimmable LED lighting
Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

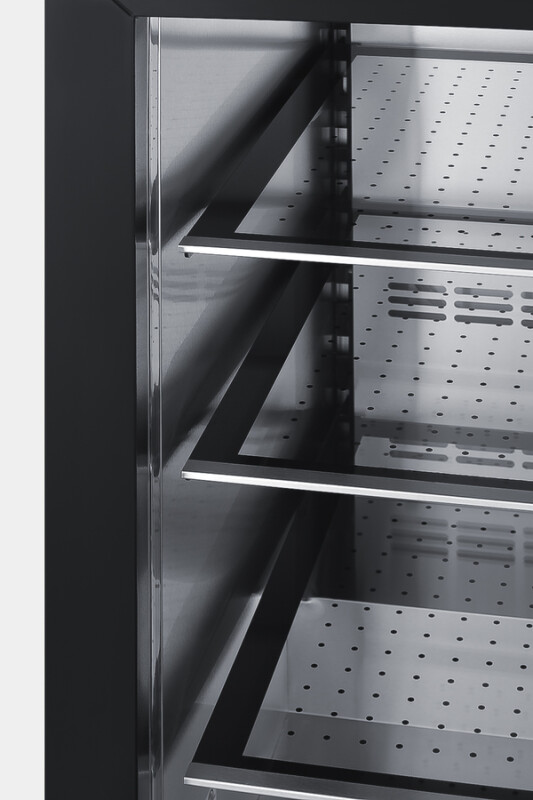

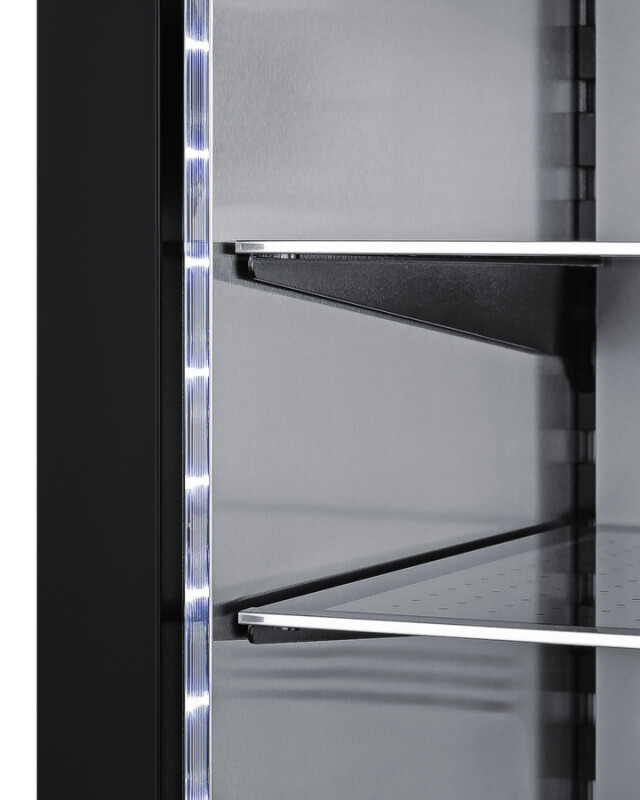

Cantilevered shelving
Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Reversible door
User-reversible door swing for added flexibility
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
15" Wide Shallow Depth All-Refrigerator
1.7 cu.ft. interior for residential cold storage
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Stainless steel door
Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel
Stainless steel interior
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Integrated hinge
Flat hinge ensures no added height is needed when installing under a counter
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

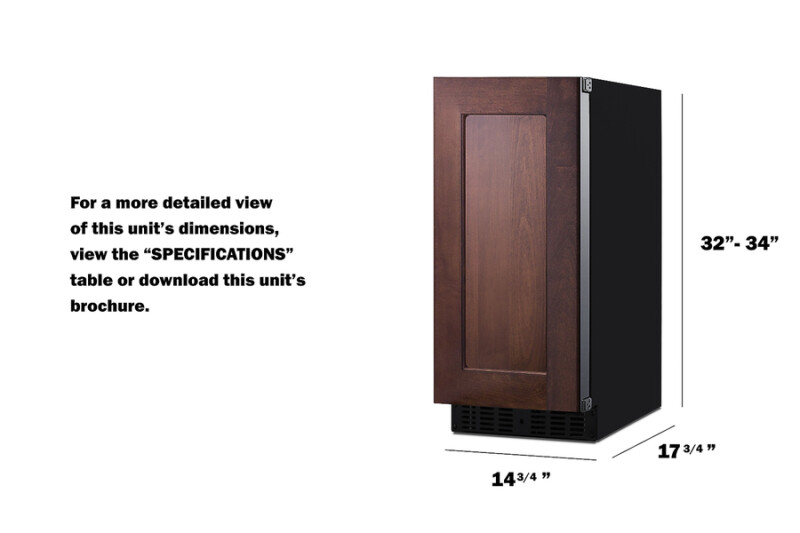

Dimensions & Weight
| Width | 14.75 in. |
| Height | 32 in. |
| Length | 17.75 in. |
| Weight | 59 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.85 ft³ |
| Dimensional Weight | 60.27 lbs. |
| Total of Cubes | 4.85 ft³ |
| Total of Dimensional Weight | 60.27 lbs. |
Overview Refrigerator Features Dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.25" (79 cm) |
| Capacity | 1.72 cu.ft. (49 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 235.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 59.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088815 |
| Sabbath Mode | Yes |
| Door Swing | Reversible |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33 dB |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 10.75" (27 cm) |
| Interior Depth | 12.38" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
