19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator - PDS20MBSWW

GE ProfileGE Profile brand logo
This product has been discontinued by the manufacture and is no longer available.

19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator

Model: PDS20MBSWW

19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW
19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW
19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW
19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW
19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW

Color : White

19.5 Cu. Ft. Bottom-Freezer Drawer Refrigerator PDS20MBSWW
White

Key Features

  • Upfront, electronic touch temperature controls with digital temperature display

  • Temperature management

  • Multi-level Slide 'n Store basket system

  • Interior lighting

  • ShelfSaver rack

  • Adjustable humidity vegetable / fruit crispers

  • Quick Space shelf

  • Self-closing drawer

Read More

Description

Enjoy even cooling throughout the fresh food section.Includes three full-extension baskets for tremendous storage flexibility and keeps contents perfectly in place.68 H x 29 7/8 W x 33 7/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Upfront, electronic touch temperature controls with digital temperature display

Clearly displays the exact temperature for the fresh food and freezer compartments

Temperature management

Enjoy even cooling throughout the fresh food section

Multi-level Slide 'n Store basket system

Includes three full-extension baskets for tremendous storage flexibility and keeps contents perfectly in place

Interior lighting

Itā€™s easy to find your favorite foods under bright, clear lighting

ShelfSaver rack

Provides convenient storage for a 12-pack, two egg cartons or a 9" by 13" casserole dish

Adjustable humidity vegetable / fruit crispers

Provide easy storage and help foods stay fresh

Quick Space shelf

Quickly slides out of the way to make room for tall items

Self-closing drawer

Self-closing hinges automatically pull the drawer shut when it's within one inch of the closed position

Multi-level Slide 'n Storeā„¢ basket system

Includes three full-extension baskets for tremendous storage flexibility and keeps contents perfectly in place

ShelfSaverā„¢ rack

Provides convenient storage for a 12-pack, two egg cartons or a 9" by 13" casserole dish

Certifications

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

Specifications

Warranty

Parts1 Year
Labor1 Year

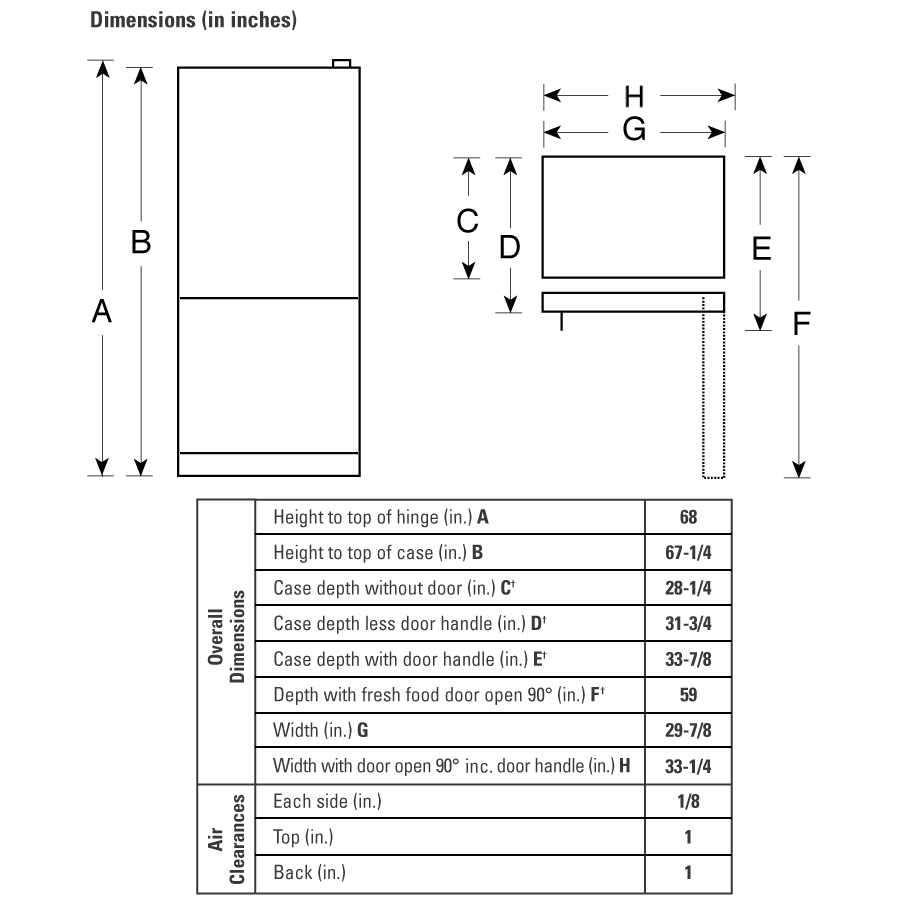

WEIGHTS & DIMENSIONS

Overall Height68 in
Approximate Shipping Weight265 lb
Depth Without Handle31.75 in
Height to Top of Case67.25 in
Back Air Clearances1 in
Top Air Clearances1 in
Net Weight239 lb
Width w/Door Open 90 Degrees Less Handle31.125 in
Depth with Door Open 90Ā°59 in
Width w/Door Open 90 Degrees Incl. Handle33.25 in
Case Depth Without Door28.25 in
Overall Depth33 7/8 in
Overall Width29 7/8 in
Side Air Clearances1/8 in

FEATURES

Temperature Management FeaturesTurbo Cool setting
Fresh Food FeaturesSnugger Clips - 1
Sweet Spot ShelfYes
Dispenser FeaturesDoor Alarm
Control TypeUpfront Electronic Digital Temperature Display
Freezer Storage Baskets3 Wire, Slide-Out (2 Full-Width/1 Split)
Meat PanAdjustable Temperature
Exterior StyleFree-Standing
Vegetable / Fruit Crisper(s)2 Adjustable Humidity
IcemakerNon-Icemaker
Door LinerABS
Fresh Food Cabinet Shelves4 Total
Interior LightingGE RevealĀ®
Filter LocationUpper right corner
Easy-Out CrispersDrawer glides
DispenserNon-Dispenser
Fresh Food Cabinet Shelf FeaturesGlass
Defrost TypeFrost Guard
Fresh Food Door FeaturesGallon Storage
Leveling SystemYes
Fresh Food Door Bins5 (4 Adjustable Split; 1 Full-Width Fixed)
Freezer FeaturesInterior Lighting
Freezer FeaturesFreezer Drawer
Freezer FeaturesIntegrated Ice Storage Bin
Fresh Food Cabinet Shelf Features4 Split Adjustable
Fresh Food Cabinet Shelf Features1 Quick Space Shelf
Fresh Food Cabinet Shelf Features2 Slide-Out
Fresh Food Cabinet Shelf Features3 Spill Proof
Fresh Food FeaturesDairy Compartment
Temperature Management Features3 Electronic Sensors
Temperature Management FeaturesMultiflow Air Tower

APPEARANCE

HandleColor-Matched
Easy to Remove Door GasketsYes
Door SwingReversible Hinges
Door StopsYes
Color AppearanceWhite on White

CAPACITY

Fresh Food Capacity13.21 cu ft
Shelf Area24.44 sq ft
Freezer Capacity6.31 cu ft
Total Capacity (cubic feet)19.50 cu ft

WARRANTY

Labor WarrantyLimited 5-year sealed refrigerating system
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 5-year sealed refrigerating system
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

ECONOMICAL / QUIET

NeverCleanā„¢ CondensorYes
Cabinet LinerABS

ACCESSORIES

Optional Icemaker KitIM4A

POWER / RATINGS

Volts/Hertz/Amps120v; 60Hz; 15A

Other

Side Air Clearances0.125 in
Back Air Clearances1 in

Dimensions & Weight

Width29.88 in.
Height68 in.
Length33.88 in.
Weight239 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height73 in.
Shipping Length38.88 in.
Shipping Weight279 lbs.
Total of Shipping Weight279 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement39.82 ftĀ³
Dimensional Weight495.09 lbs.
Total of Cubes39.82 ftĀ³
Total of Dimensional Weight495.09 lbs.
