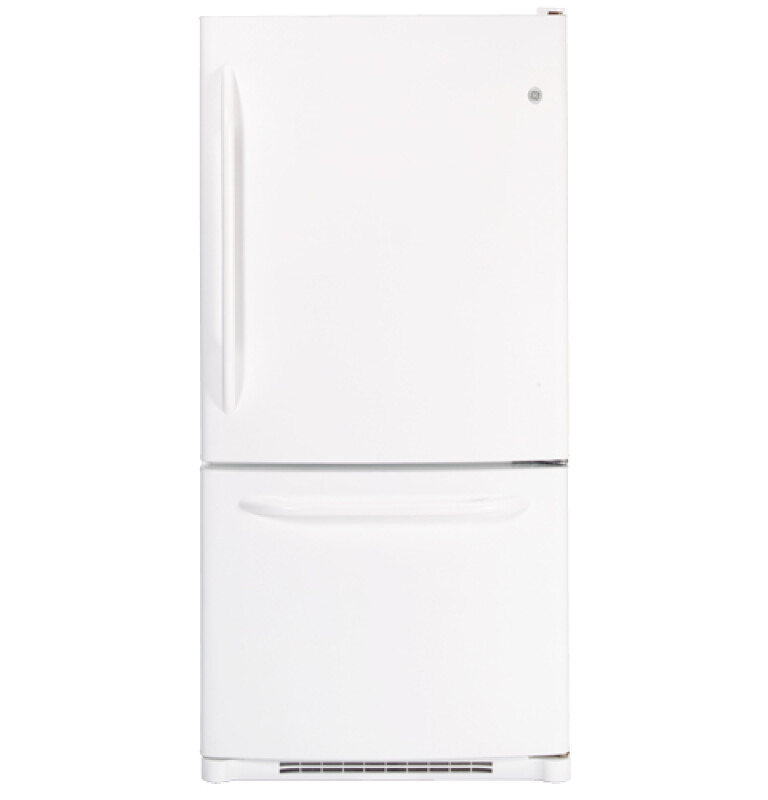

22.3 Cu. Ft. Bottom-Freezer Door Refrigerator - GBS22HBRWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

22.3 Cu. Ft. Bottom-Freezer Door Refrigerator

Model: GBS22HBRWW

22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW
22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW
22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW
22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW
22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW

Color : White

22.3 Cu. Ft. Bottom-Freezer Door Refrigerator GBS22HBRWW
White

Key Features

  • Upfront illuminated controls

  • Large door storage

  • Interior lighting

  • Adjustable glass shelves

  • Snack pan

  • Never clean condenser

Description

Offers ideal space for storing large containers in the door, freeing up valuable shelf space.Itā€™s easy to find your favorite foods under bright, clear lighting.68 5/8 H x 32 7/8 W x 34 1/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

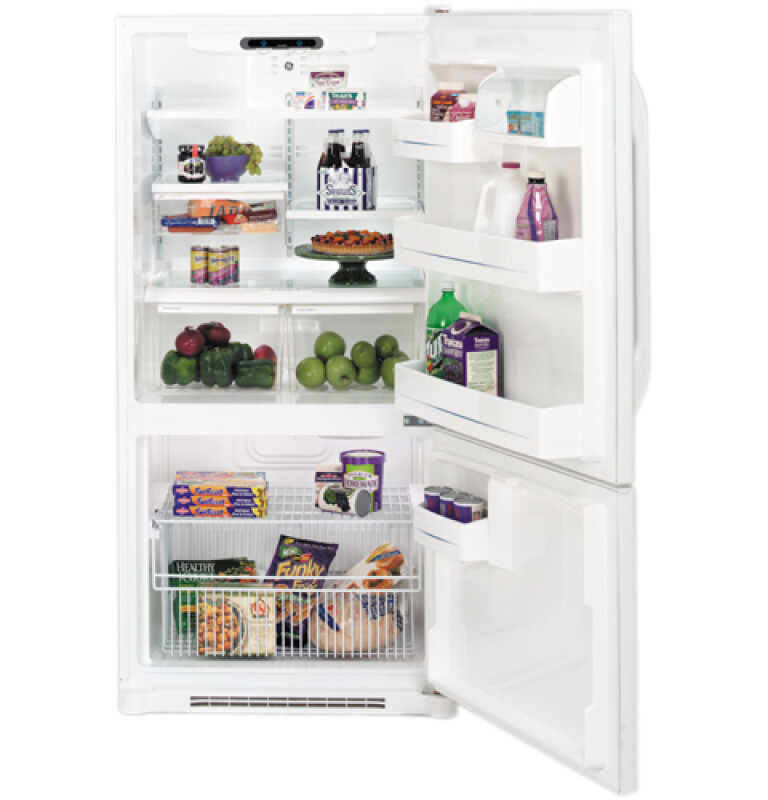

Upfront illuminated controls

Easy to see and set

Large door storage

Offers ideal space for storing large containers in the door, freeing up valuable shelf space

Interior lighting

Itā€™s easy to find your favorite foods under bright, clear lighting

Adjustable glass shelves

Lets consumers maximize usable storage space

Snack pan

Helps keep everyday foods like muffins and carrot sticks fresh

Never clean condenser

Condenser coils are encased, so they don't require cleaning in normal operating environments

Certifications

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

Specifications

Other

Side Air Clearances0.125 in
Back Air Clearances1 in

Dimensions & Weight

Width32.88 in.
Height68.63 in.
Length34.13 in.
Weight256 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width37.88 in.
Shipping Height73.63 in.
Shipping Length39.13 in.
Shipping Weight296 lbs.
Total of Shipping Weight296 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement44.55 ftĀ³
Dimensional Weight553.87 lbs.
Total of Cubes44.55 ftĀ³
Total of Dimensional Weight553.87 lbs.

FEATURES

Fresh Food FeaturesDairy Compartment
Control TypeUpfront Electronic Temperature Controls
Exterior StyleFree-Standing
Vegetable / Fruit Crisper(s)2
IcemakerNon-Icemaker
Snack DrawerYes
Fresh Food Cabinet Shelves3
Interior LightingGE RevealĀ®
Easy-Out CrispersDrawer glides
DispenserNon-Dispenser
Freezer Cabinet Shelves (Wire)1 Full-Width
Fresh Food Cabinet Shelf FeaturesGlass
Freezer Door Shelves1 Split
Defrost TypeFrost Guard
Fresh Food Door FeaturesGallon Storage
Fresh Food Door Bins2 Total
Freezer FeaturesInterior Lighting
Freezer Storage Baskets1 Slide-Out
Freezer Storage Baskets1 Total
Control TypeIlluminated
Freezer Features2 Ice N' Easy Trays
Freezer Storage Baskets1 Full-Width
Fresh Food Cabinet Shelf Features1 Full-Width, 2 Split, Adjustable
Fresh Food Door FeaturesFull-Width

APPEARANCE

Textured Steel CaseYes
Adjustable RollersFront
HandleCustomer Installed Handles
Exterior DesignContoured
Door SwingReversible Hinges
Color AppearanceWhite on White
Door StopsYes
HandleColor-Matched

CAPACITY

Fresh Food Capacity15.22 cu ft
Shelf Area24.27 sq ft
Freezer Capacity7.09 cu ft
Total Capacity (cubic feet)22.30 cu ft

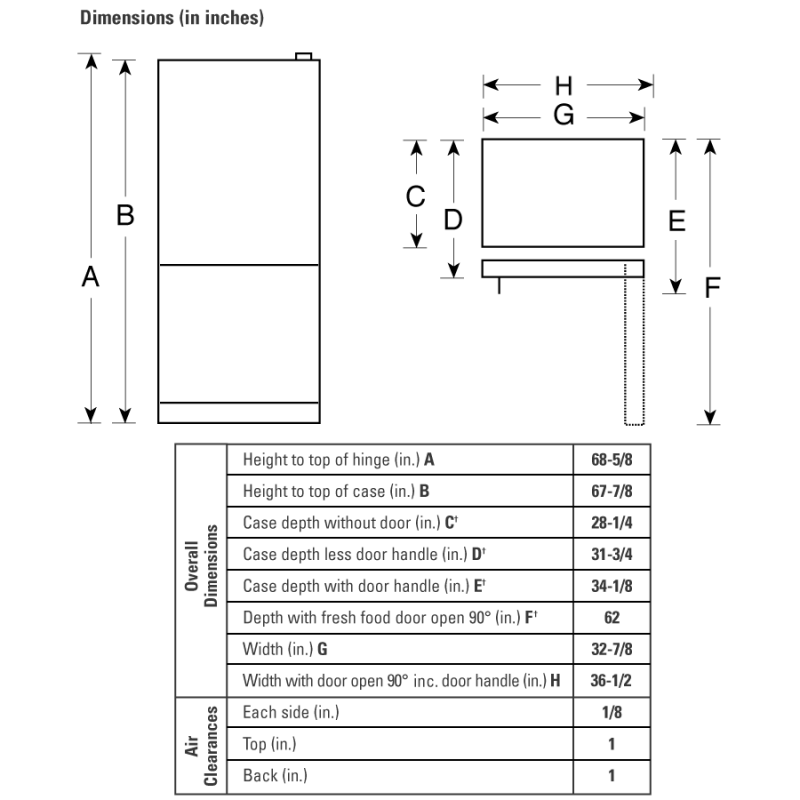

WEIGHTS & DIMENSIONS

Approximate Shipping Weight287 lb
Depth Without Handle31.75 in
Height to Top of Case67.875 in
Back Air Clearances1 in
Top Air Clearances1 in
Net Weight256 lb
Width w/Door Open 90 Degrees Less Handle34.125 in
Depth with Door Open 90Ā°62 in
Width w/Door Open 90 Degrees Incl. Handle36.5 in
Case Depth Without Door28.25 in
Overall Depth34 1/8 in
Overall Height68 5/8 in
Overall Width32 7/8 in
Side Air Clearances1/8 in

WARRANTY

Labor WarrantyLimited 5-year sealed refrigerating system
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 5-year sealed refrigerating system
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance

ECONOMICAL / QUIET

NeverCleanā„¢ CondensorYes

ACCESSORIES

Optional Icemaker KitIM4A

POWER / RATINGS

Volts/Hertz/Amps120v; 60Hz; 15A
