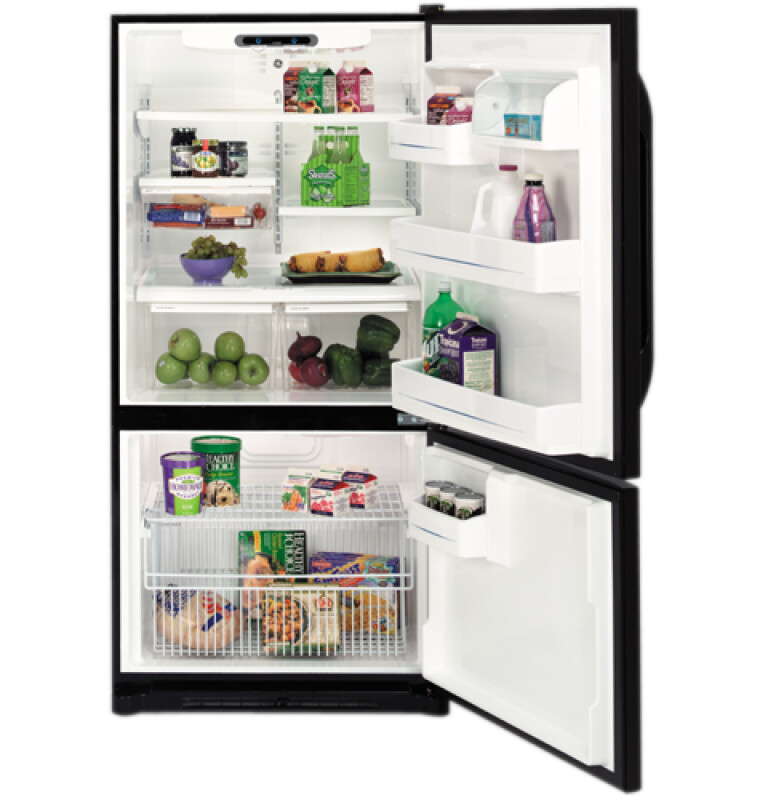

Name: 22.3 Cu. Ft. Bottom-Freezer Door Refrigerator
Brand: GE
SKU: GBS22HBPBB
Availability: BackOrder

22.3 Cu. Ft. Bottom-Freezer Door Refrigerator

Model : #GBS22HBPBB

This product has been discontinued by the manufacture and is no longer available.

22.3 Cu. Ft. Bottom-Freezer Door Refrigerator

Model: GBS22HBPBB

This product has been discontinued by the manufacture and is no longer available.

22.3 Cu. Ft. Bottom-Freezer Door Refrigerator

Model: GBS22HBPBB

Color : Black

Type : Electric

Electric Gas

Key Features

Full width sliding freezer basket
Large door storage
Vegetable / fruit crispers
Clear snack pan
Contoured doors

Description

Offers ideal space for storing large containers in the door, freeing up valuable shelf space.For easy storage of your fruits and vegetables.68 5/8 H x 32 7/8 W x 34 1/8 D

Documents

Installation Instructions

View | Download

PDF, 300.04 KB

Energy Guide

View | Download

PDF, 909.46 KB

Quick Specs

View | Download

PDF, 34.69 KB

Literature

View | Download

PDF, 6.98 MB

Use and Care Manual

View | Download

PDF, 3.02 MB

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features

Specifications

Certifications

Features

Full width sliding freezer basket

Makes the most of usable freezer space allowing for easy loading and unloading

Large door storage

Offers ideal space for storing large containers in the door, freeing up valuable shelf space

Vegetable / fruit crispers

For easy storage of your fruits and vegetables

Clear snack pan

Helps keep everyday foods like cheese slices and carrot sticks fresh

Contoured doors

Create a high-fashion look with gently rounded doors and edges

Certifications

California Prop 65

ENERGY STAR® Qualified

Specifications

Other

Side Air Clearances	0.125 in
Back Air Clearances	1 in

Dimensions & Weight

Width	32.88 in.
Height	68.63 in.
Length	34.13 in.
Weight	256 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	37.88 in.
Shipping Height	73.63 in.
Shipping Length	39.13 in.
Shipping Weight	296 lbs.
Total of Shipping Weight	296 lbs.
Source	Calculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	44.55 ft³
Dimensional Weight	553.87 lbs.
Total of Cubes	44.55 ft³
Total of Dimensional Weight	553.87 lbs.

FEATURES

Fresh Food Features	Dairy Compartment
Control Type	Upfront Electronic Temperature Controls
Exterior Style	Free-Standing
Vegetable / Fruit Crisper(s)	2
Icemaker	Non-Icemaker
Snack Drawer	Yes
Fresh Food Cabinet Shelves	3
Interior Lighting	Yes
Easy-Out Crispers	Drawer glides
Dispenser	Non-Dispenser
Freezer Cabinet Shelves (Wire)	1 Full-Width
Fresh Food Cabinet Shelf Features	Glass
Freezer Door Shelves	1 Split
Defrost Type	Frost Guard
Fresh Food Door Features	Gallon Storage
Fresh Food Door Bins	2 Total
Freezer Features	Interior Light
Freezer Storage Baskets	1 Slide-Out
Freezer Storage Baskets	1 Total
Control Type	Illuminated
Freezer Features	2 Ice N' Easy Trays
Freezer Storage Baskets	1 Full-Width
Fresh Food Cabinet Shelf Features	1 Full-Width, 2 Split, Adjustable
Fresh Food Door Features	Full-Width

APPEARANCE

Adjustable Rollers	Front
Handle	Customer Installed Handles
Exterior Design	Contoured
Door Swing	Reversible Hinges
Color Appearance	Black on Black
Door Stops	Yes
Handle	Color-Matched

CAPACITY

Fresh Food Capacity	15.22 cu ft
Shelf Area	24.27 sq ft
Freezer Capacity	7.09 cu ft
Total Capacity (cubic feet)	22.30 cu ft

WEIGHTS & DIMENSIONS

Approximate Shipping Weight	287 lb
Depth Without Handle	31.75 in
Height to Top of Case	67.875 in
Back Air Clearances	1 in
Top Air Clearances	1 in
Net Weight	256 lb
Width w/Door Open 90 Degrees Less Handle	34.125 in
Depth with Door Open 90°	62 in
Width w/Door Open 90 Degrees Incl. Handle	36.5 in
Case Depth Without Door	28.25 in
Overall Depth	34 1/8 in
Overall Height	68 5/8 in
Overall Width	32 7/8 in
Side Air Clearances	1/8 in

WARRANTY

Labor Warranty	Limited 5-year sealed refrigerating system
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 5-year sealed refrigerating system
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance

ECONOMICAL / QUIET

NeverClean™ Condensor

Yes

ACCESSORIES

Optional Icemaker Kit

IM4A

POWER / RATINGS

Volts/Hertz/Amps

120v; 60Hz; 15A
