21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) - ALFZ36IF

This product has been discontinued by the manufacture and is no longer available.

21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included)

Model: ALFZ36IF

21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF
21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF
21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF
21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF
21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF
21" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ36IF
+1more

Color : Panel-Ready

product image
Panel-Ready

Key Features

  • ADA compliant design

  • Built-in capable

  • Panel-ready door

  • Adjustable thermostat

  • Door shelves

  • Adjustable shelves

  • 3" thick door

  • Temperature alarms

Read More

Description

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ36IF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ36IF features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALFZ36IF is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR46WIF all-refrigerator. Additional choices are available in complete stainless steel and white exterior finishes.
Read More

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

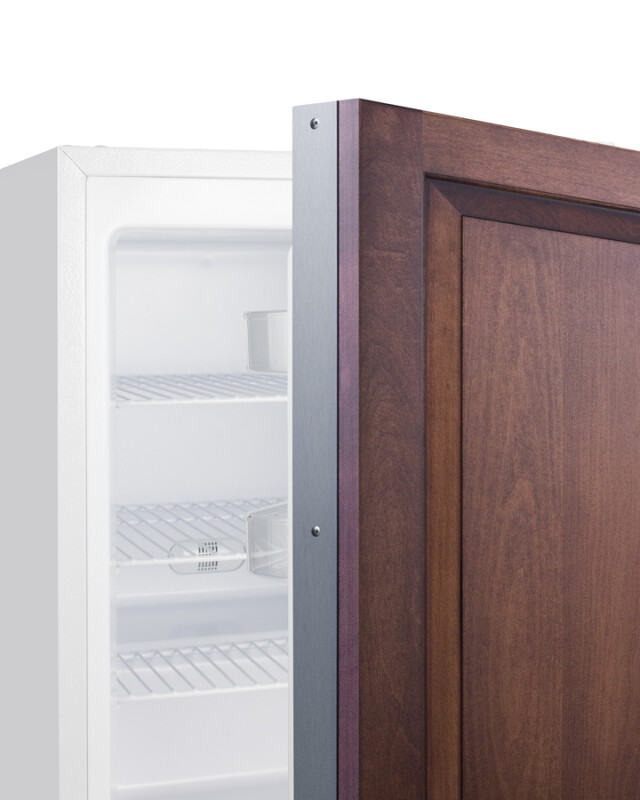

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles

Adjustable thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

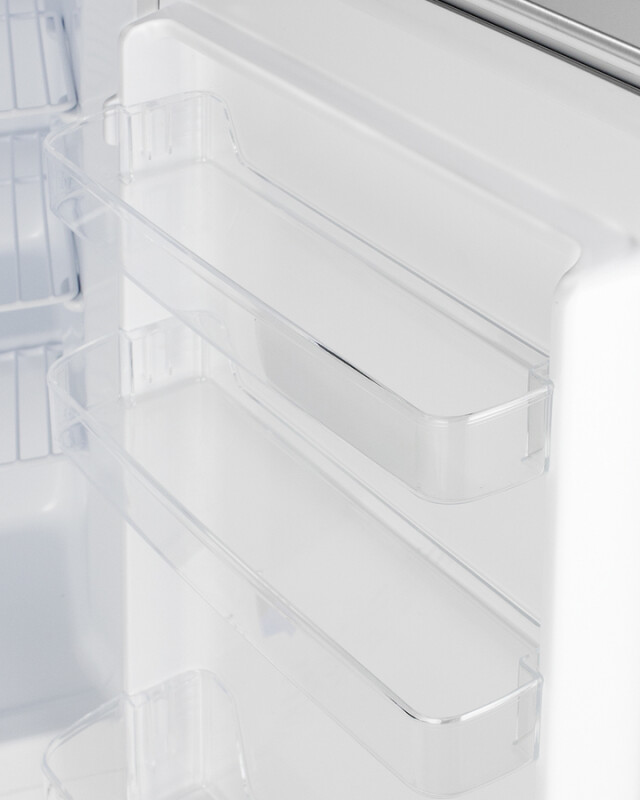

Door shelves

Three removable door racks for additional storage of larger items

Adjustable shelves

Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior

3" thick door

Improved insulation for an efficient performance

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost

More temperature stability with an energy efficient manual defrost system

Matching all-refrigerator

This unit can be paired with the ALR46WIF all-refrigerator for a complete set

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width20.25 in.
Height31.75 in.
Length23 in.
Weight75 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.56 ft³
Dimensional Weight106.39 lbs.
Total of Cubes8.56 ft³
Total of Dimensional Weight106.39 lbs.

Overview Freezer

Nominal Height32.0" (81 cm)
Height of Cabinet31.75" (81 cm)
Height to Hinge Cap32.0" (81 cm)
Nominal Width21.0" (53 cm)
Width20.25" (51 cm)
Nominal Depth23.0" (58 cm)
Depth23.0" (58 cm)
Depth with Handle24.38" (62 cm)
Depth with door at 90°40.25" (102 cm)
Capacity2.68 cu.ft. (76 L)
Defrost TypeManual
DoorPanel-Ready
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Energy Usage/Year266.0kWh/year
Amps0.6
Voltage/Frequency115 V AC/60 Hz
Weight75.0 lbs. (34 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101076720
Door SwingRHD
ReversibleFactory Reversible
Interior Height23.75" (60 cm)
Interior Width14.5" (37 cm)
Interior Depth17.0" (43 cm)
Shelf TypeWire
Shelf Qty3
Full Door Shelves3
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeExterior
Refrigerant TypeR600a
Refrigerant Amount1.83 oz.
High Side PSI180.0
Low Side PSI80.0
Level Legs2
Wheels2
Compressor Step Height5.75" (15 cm)
Compressor Step Width14.5" (37 cm)
Compressor Step Depth6.0" (15 cm)
Temperature Range-13 to 5ºF
Sound Level33.1 dBa
