20" Wide Built-In Vaccine All-Freezer, ADA Compliant - ADA305AF

This product has been discontinued by the manufacture and is no longer available.

20" Wide Built-In Vaccine All-Freezer, ADA Compliant

Model: ADA305AF

20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF
20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF
20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF
20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF
20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF
20" Wide Built-In Vaccine All-Freezer, ADA Compliant ADA305AF
+2more

Color : White

product image
White

Key Features

  • ADA compliant design

  • -25°C capable

  • Factory-installed lock

  • Adjustable digital thermostat

  • Basket shelves

  • Built-in capable

  • 3" thick door

  • Access port

Read More

Description

Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions. The ADA305AF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal. Inside, the ADA305AF can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA305AF makes an ideal choice for various facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REF all-refrigerator. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
Read More

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

-25°C capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

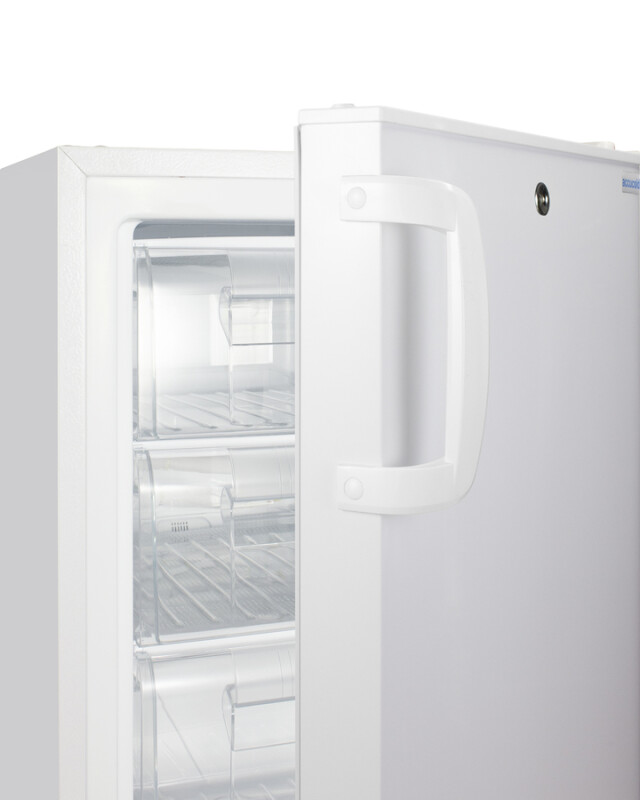

Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

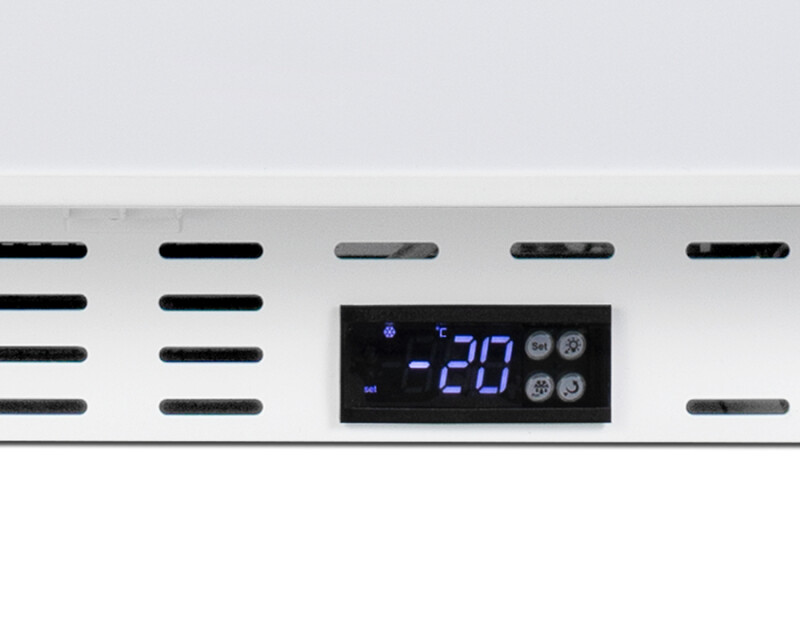

Adjustable digital thermostat

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

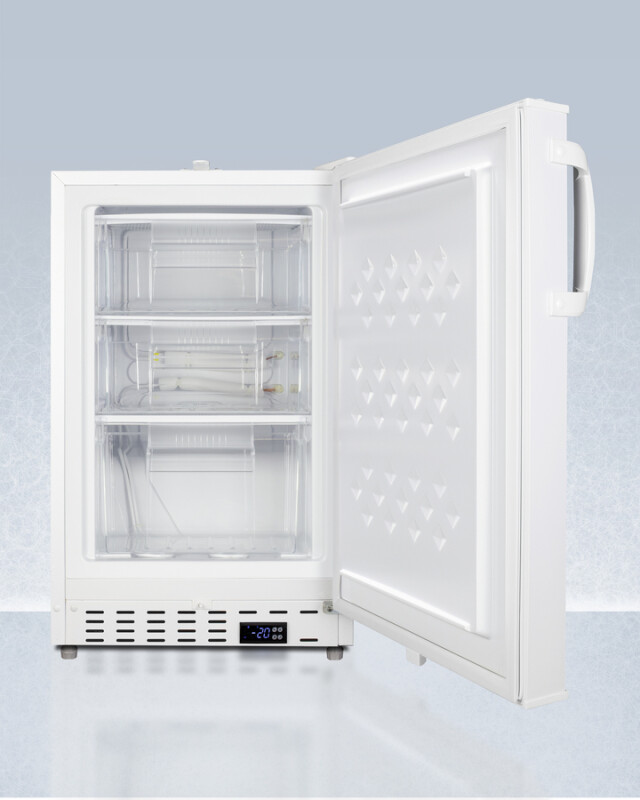

Basket shelves

Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

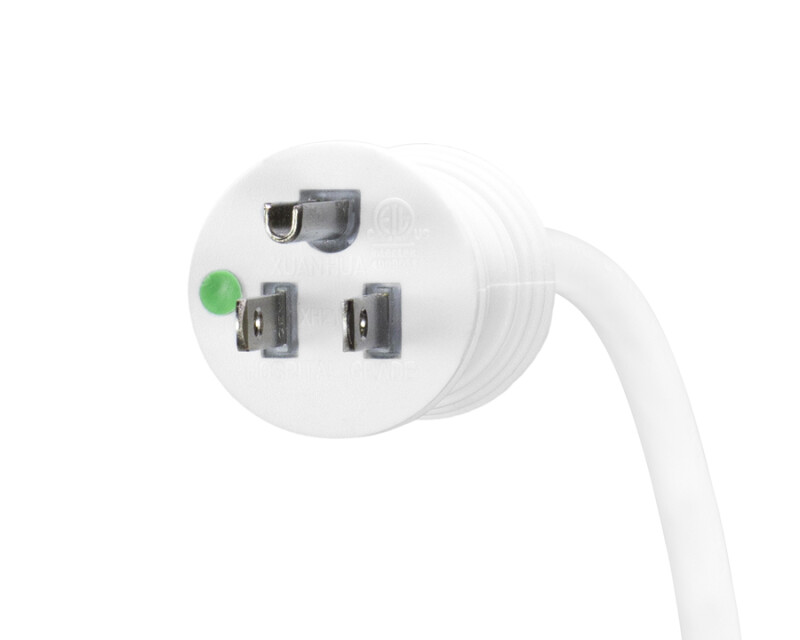

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Manual defrost

More temperature stability with an energy efficient manual defrost system

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

No internal fans

Temperature remains more stable with a static cooling system

Sealed back

Space-saving design that offers easier cleanability

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching all-refrigerator

This unit can be paired with the ADA404REF all-refrigerator for a complete set

Fully finished white cabinet

Allows the unit to be freestanding

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Dimensions & Weight

Width19.75 in.
Height31.75 in.
Length22.5 in.
Weight65 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.16 ft³
Dimensional Weight101.5 lbs.
Total of Cubes8.16 ft³
Total of Dimensional Weight101.5 lbs.

Overview Freezer

Nominal Height32.0" (81 cm)
Height of Cabinet31.75" (81 cm)
Height to Hinge Cap32.0" (81 cm)
Nominal Width20.0" (51 cm)
Width19.75" (50 cm)
Width with Door Open20.25" (51 cm)
Nominal Depth23.0" (58 cm)
Depth22.5" (57 cm)
Depth with Handle24.38" (62 cm)
Depth with door at 90°40.25" (102 cm)
Capacity2.47 cu.ft. (70 L)
Defrost TypeManual
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.1
Voltage/Frequency115 V AC/60 Hz
Weight65.0 lbs. (29 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101063065
Door SwingRHD
ReversibleYes
Interior Height23.75" (60 cm)
Interior Width14.5" (37 cm)
Interior Depth17.0" (43 cm)
Shelf TypeDrawers
Shelf Qty3
Thermostat TypeDigital
Fan TypeExterior
Refrigerant TypeR600a
Refrigerant Amount1.34 oz.
High Side PSI180.0
Low Side PSI80.0
Level Legs2
Interior DrawersYes
Drawers Qty3
Compressor Step Height5.75" (15 cm)
Compressor Step Width14.5" (37 cm)
Compressor Step Depth6.0" (15 cm)
Temperature Range-25° to -15°C
Sound Level33 dB
