Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt - AH11H07D3B

This product has been discontinued by the manufacture and is no longer available.

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt

Model: AH11H07D3B

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3B
+10more

Color : White

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 20 amps, 230/208 Volt AH11H07D3B

$831.00

White

Key Features

  • 3-speed fan

  • 4-temperature limiting options

  • Freeze and frost protection

  • Auto power recovery

  • Self diagnostics

  • Automatic emergency heat

  • Backed by an industry leader

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Read More

Description

Hotpoint Wall Mount PTAC with 3-speed Fan and Automatic Emergency Heat in White

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

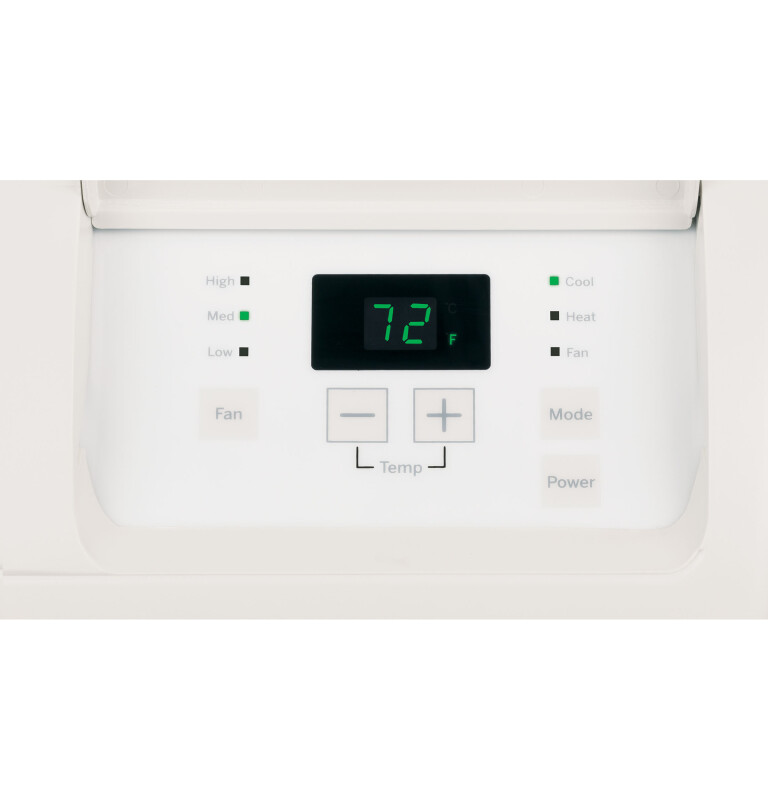

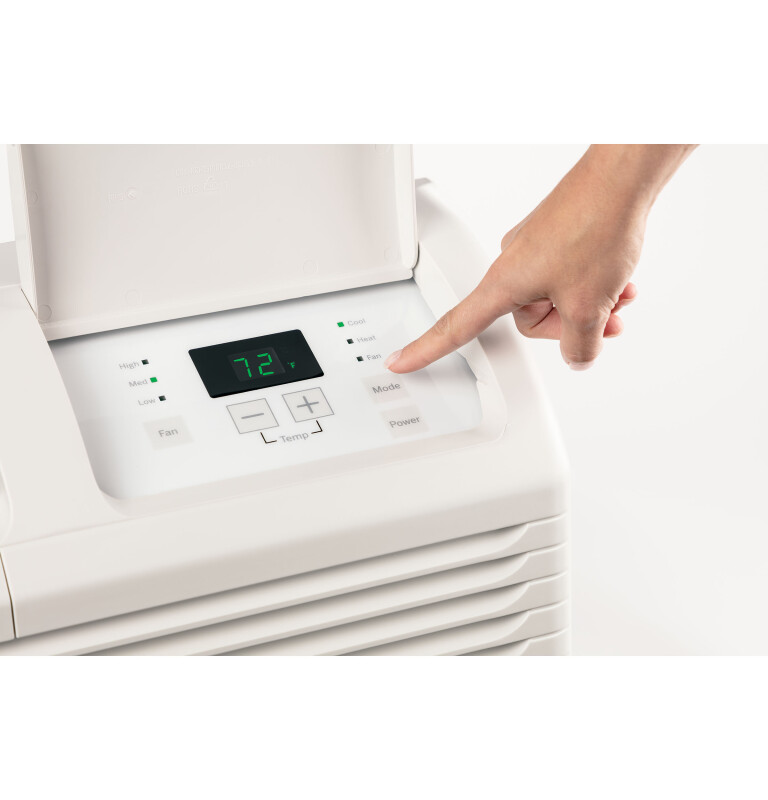

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available

Certifications

AHRI certification

AHRI

CUL certification

CUL

UL certification

UL

Specifications

CAPACITY

Cooling BTUH (MAX)7200 Btu
CFM Indoor Fan Low240
CFM Indoor Fan Medium281
CFM Indoor Fan High350
Cooling EER (BTUH / Watt)11.9
Heating - Reverse Cycle - BTUH6000/5800
Cooling BTUH (MIN)6800 Btu

FEATURES

Control TypeElectronic
Fan Speed Selections3 Heating
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR410A
Manual Vent ControlHidden
"SmartFan" Fan CycleYes

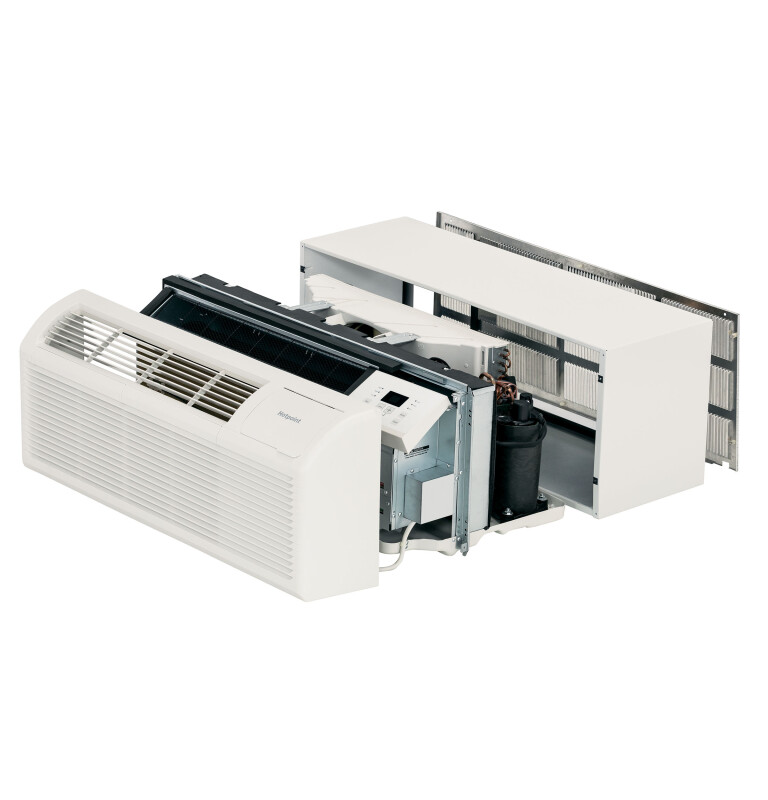

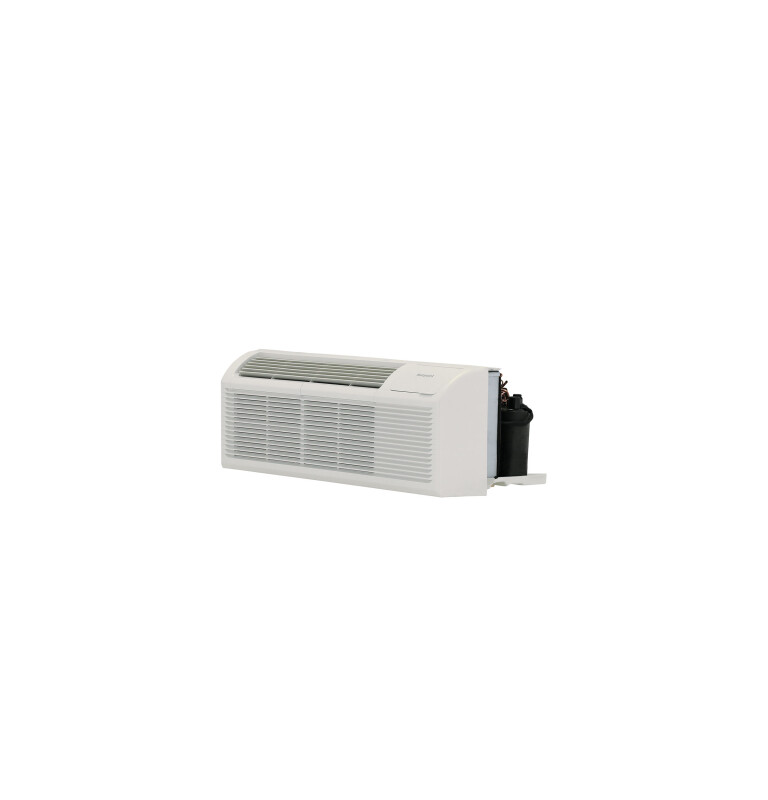

Chassis TypeSlide-In
Fan Motor2
Heat PumpYes
Unit FeaturesRemote Thermostat Compatibility
Temperature Range62 - 86 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Heating - Reverse Cycle - COP3.4
Outdoor Vent / ExhaustYes

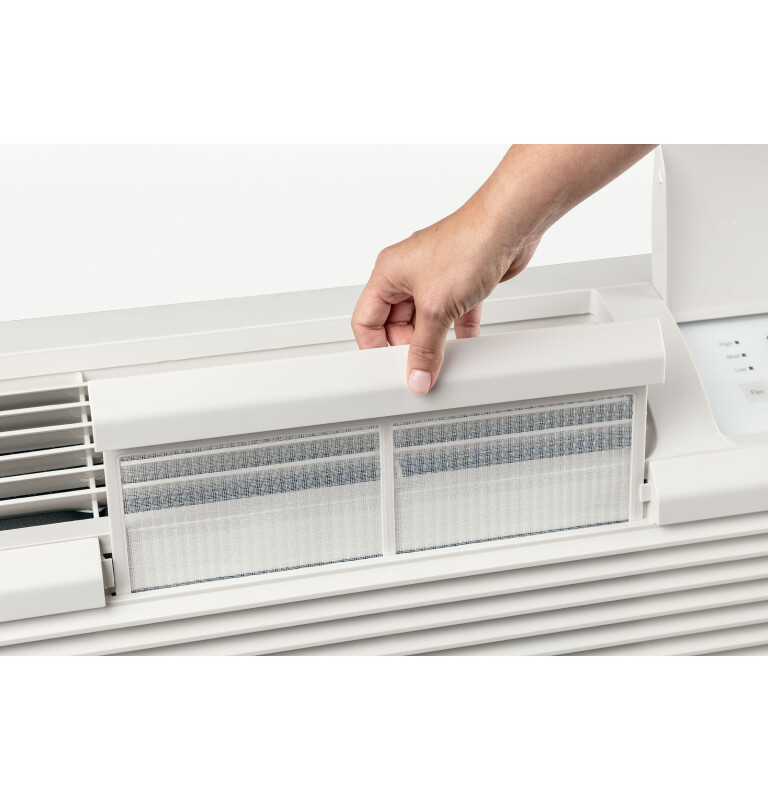

Venting FeaturesConcealed Manual Vent Control • Vent Air Filter
Heating SystemHeat Pump with Resistance Backup

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system

POWER / RATINGS

Heating - Reverse Cycle - Watts517/500
Cooling - Amperes; F.L. - Cooling2.7/2.8
Cooling - Amperes2.4/2.6
Heating - Reverse Cycle - Amps2.22/2.38
Cooling - Watts605/570
Voltage (MIN)208 V
Heating - Electric - Heater Watts3535/2935
Voltage (MAX)230 V
Heating - Electric - Heater Amps15.3/13.7

APPEARANCE

InstallationThrough-the-Wall
Color AppearanceWhite

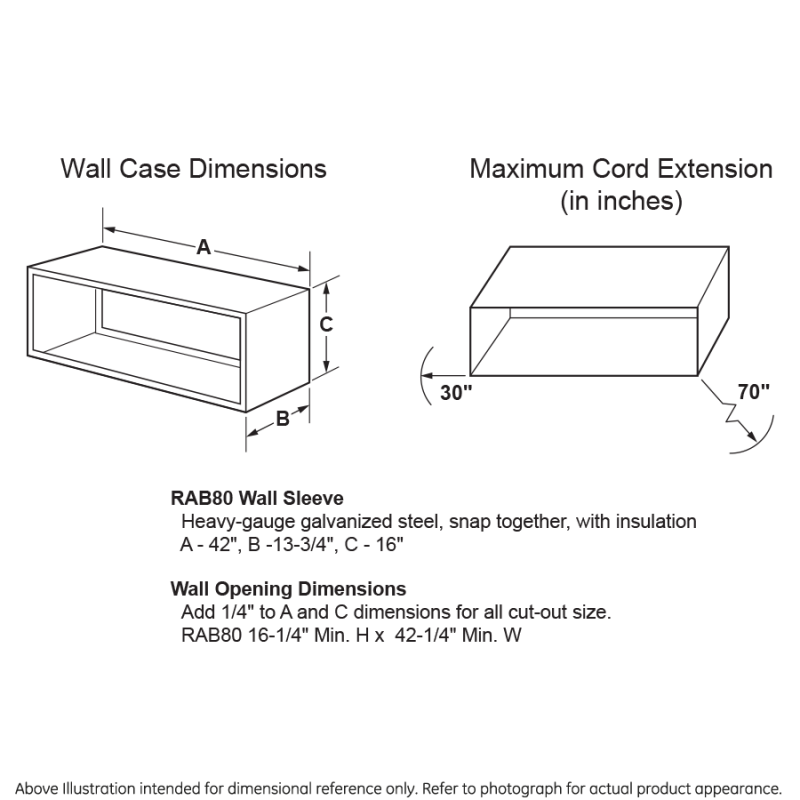

Dimensions & Weight

Width42 in.
Height16 in.
Length21 in.
Weight101.4 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47 in.
Shipping Height21 in.
Shipping Length26 in.
Shipping Weight141.4 lbs.
Total of Shipping Weight141.4 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.17 ft³
Dimensional Weight101.53 lbs.
Total of Cubes8.17 ft³
Total of Dimensional Weight101.53 lbs.
