Quiet-Aire Ductless Heat Pump Split System Component - AS1RD12AA0

This product has been discontinued by the manufacture and is no longer available.

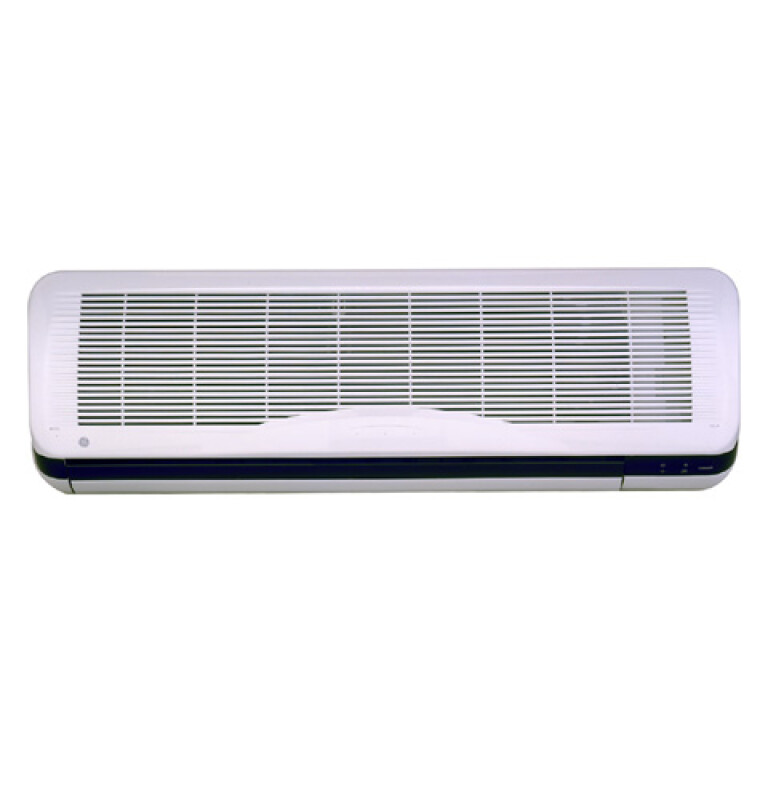

Quiet-Aire Ductless Heat Pump Split System Component

Model: AS1RD12AA0

Quiet-Aire Ductless Heat Pump Split System Component AS1RD12AA0
Quiet-Aire Ductless Heat Pump Split System Component AS1RD12AA0

Color : White

Quiet-Aire Ductless Heat Pump Split System Component AS1RD12AA0
White

Key Features

  • Slim and compact indoor unit with dove white case

  • Split system design for quiet operation and flexible installation (both indoor and outdoor components must be purchased to complete the system)

  • 12,000 BTU cooling and heating vapacity, 9.3 E.E.R., 115 Volts

  • Auto operation - automatic temperature and fan speed mode reduces energy consumption

  • LCD wireless remote control

  • 3 cooling / 3 heating / 3 fan only speeds

  • Appropriate tubing kit required to connect units

  • Washable air filter

Read More

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Slim and compact indoor unit with dove white case

Split system design for quiet operation and flexible installation (both indoor and outdoor components must be purchased to complete the system)

12,000 BTU cooling and heating vapacity, 9.3 E.E.R., 115 Volts

Auto operation - automatic temperature and fan speed mode reduces energy consumption

LCD wireless remote control

3 cooling / 3 heating / 3 fan only speeds

Appropriate tubing kit required to connect units

Washable air filter

24-hour timer (delay start / pre-set stop)

Sleep mode

Temperature sensor

Certifications

California Prop 65 certification

California Prop 65

Specifications

Dimensions & Weight

Width35.4 in.
Height11.4 in.
Length7.2 in.
Weight22 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width40.4 in.
Shipping Height16.4 in.
Shipping Length12.2 in.
Shipping Weight62 lbs.
Total of Shipping Weight62 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.68 ft³
Dimensional Weight20.9 lbs.
Total of Cubes1.68 ft³
Total of Dimensional Weight20.9 lbs.

CAPACITY

Dehumidification (pts./hr.)3.5
Cooling EER (BTUH / Watt)9.3
Heating - Reverse Cycle - BTUH12000
Cooling BTUH (MAX)12,000 Btu

WEIGHTS & DIMENSIONS

Net Weight22 lb
Approximate Shipping Weight31 lb
Overall Depth7.20 in
Overall Height11.40 in
Overall Width35.40 in

ACCESSORIES

Optional Tube KitTUS1542(15')/TUS2542(25')

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM11.7
Heating - Reverse Cycle - Watts1290
Cooling - Watts1290
Voltage (MAX)115 V

FEATURES

Heating - Reverse Cycle - Rated Heating Amps - AHAM11.7
Heating - Reverse Cycle - COP2.75
Split System Configuration - Indoor ComponentAS1RD12AA0
Filter TypeQuick Clean
Split System Configuration - Outdoor ComponentAS0RD12AA0
Fan Speed Selections3 Fan Only
Indoor Product FeaturesAir Flow Left and Right - Manual
Fan Speed Selections3 Heating
Indoor Product FeaturesWashable Air Filter
Fan Speed Selections3 Cooling
Indoor Product FeaturesAir Flow Up and Down - Auto
Indoor Product FeaturesAuto Operation
Indoor Product FeaturesLCD Wireless Remote
Indoor Product FeaturesSleep Mode
Indoor Product Features2 Temperature Increments (°F)
Indoor Product FeaturesTemperature Range - Cool (°F) 64-86
Indoor Product FeaturesTemperature Range - Heat (°F) 60-86

APPEARANCE

Color AppearanceDove White

WARRANTY

Parts WarrantyLimited 5-year sealed refrigerating system
Labor WarrantyLimited 5-year sealed refrigerating system
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
