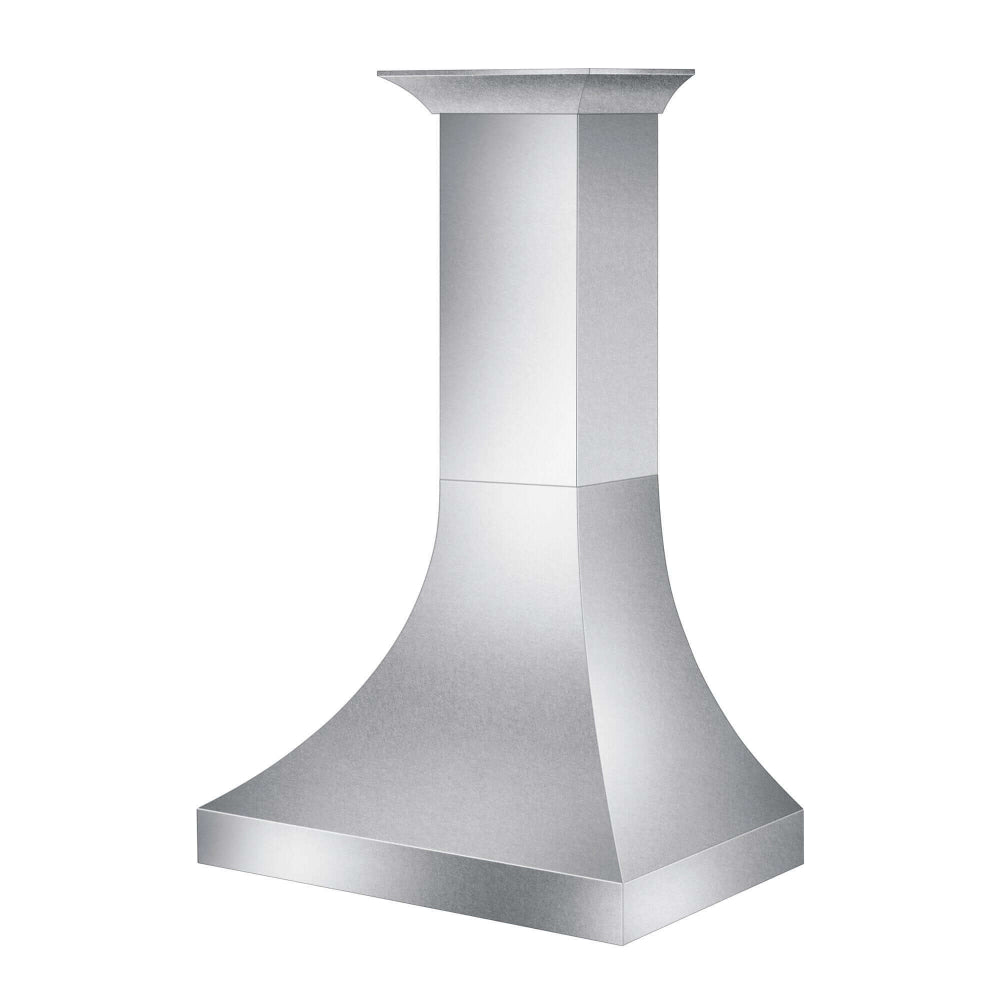

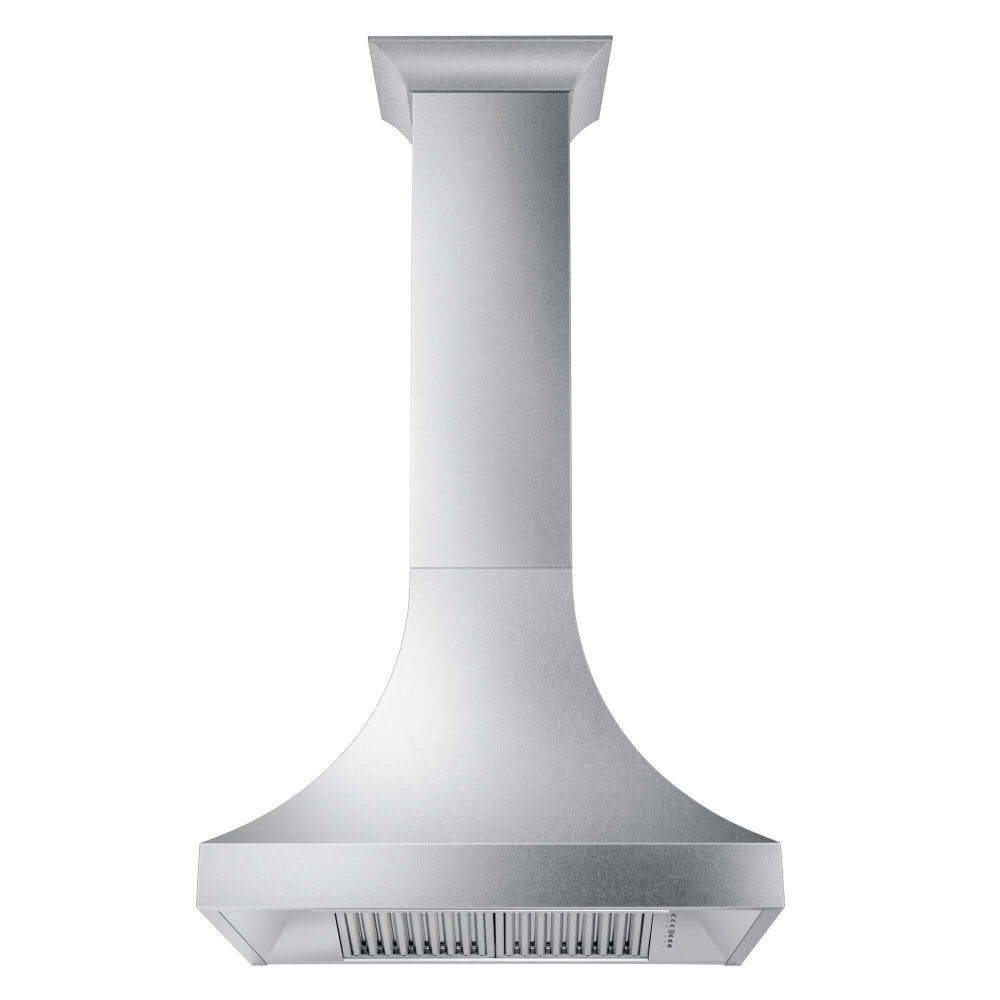

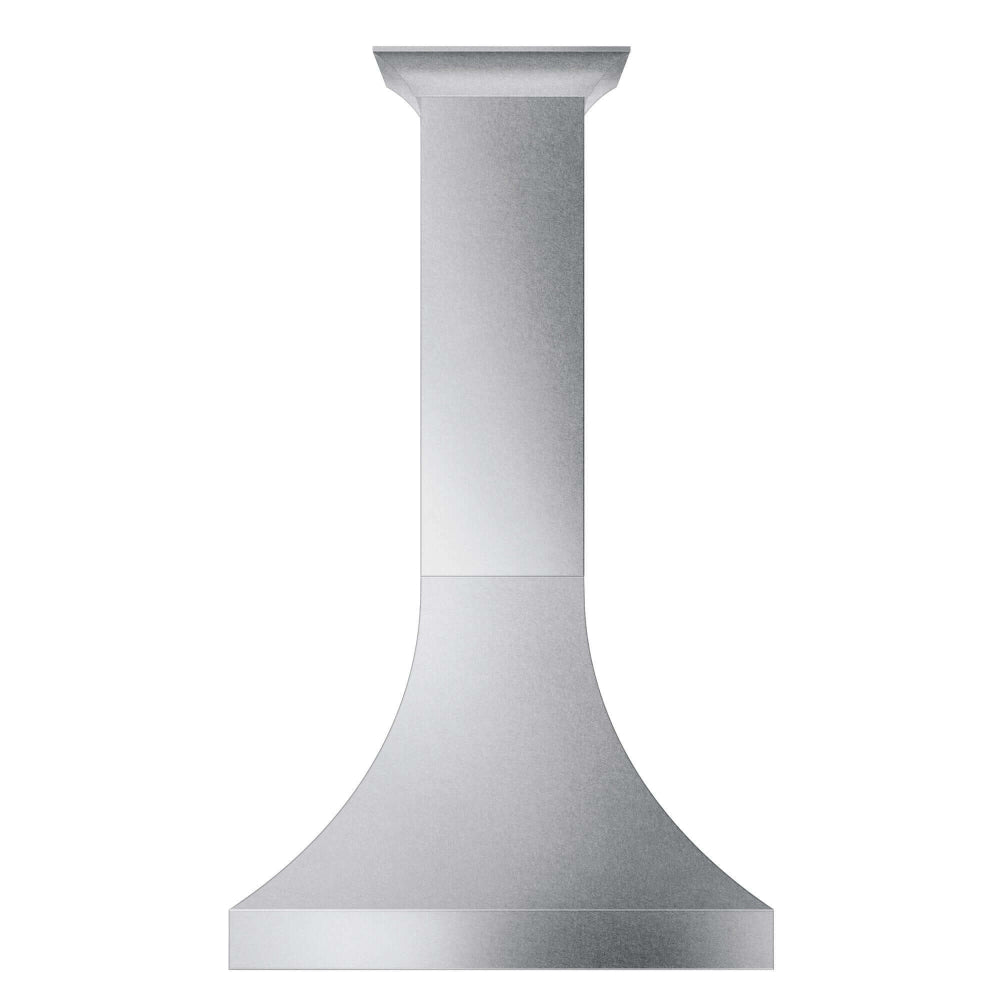

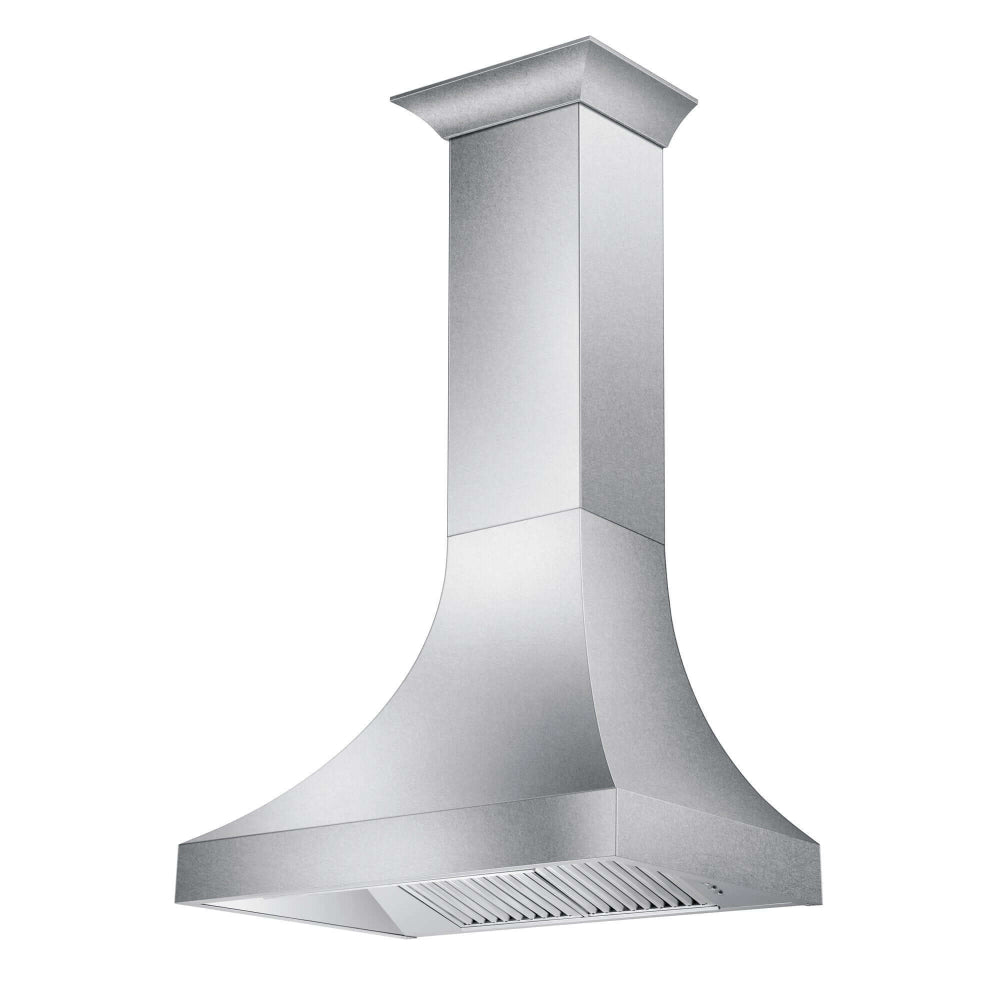

48 In. Designer Series Satin Stainless Steel Ducted Wall Range Hood - 8632S48
$2,464.99
Was$2,699.95Save $234.96 (9%)
Color : Satin Stainless Steel
$2,464.99
Key Features
Convenient Control Panel
4-Speed Fan Control
Powerful Ventilation
Satin Stainless Steel Finish
A Revolutionary Design
Minimal Cleaning
LED Lighting
Easy Installation
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Convenient Control Panel
Easy-to-use push button controls let you easily adjust fan speeds and lighting options
4-Speed Fan Control
Choose the appropriate air flow among 280/420/560/700 CFM for your cooking situation
Powerful Ventilation
The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area
Satin Stainless Steel Finish
ZLINE's Satin Stainless Steel finish is a circular, non-directional, professionally styled stainless steel that is rust, scratch, and fingerprint-resistant
A Revolutionary Design
Created to combat the ongoing problem of stainless steel smudging, Satin Stainless Steel has a deeper, metallic gray hue that elevates your kitchen’s potential
Minimal Cleaning

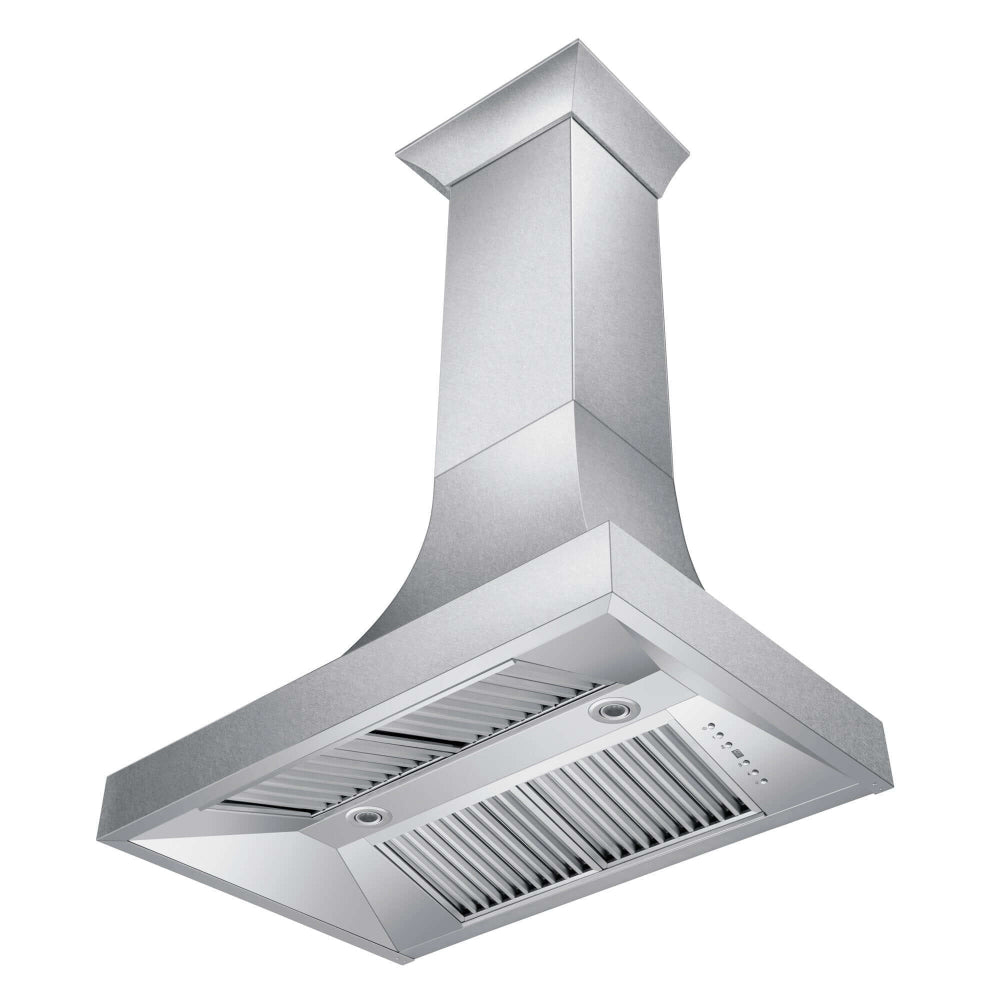

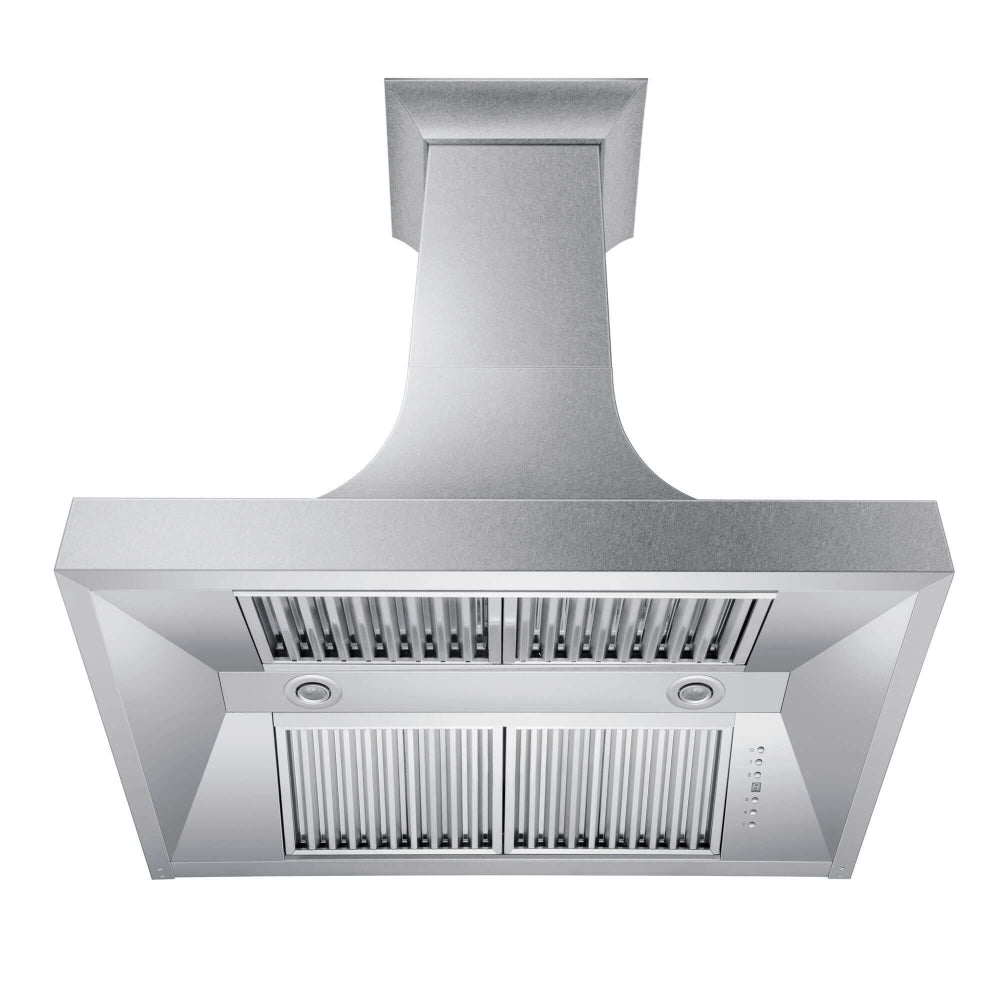

This range hood includes dishwasher-safe stainless steel baffle filters that are simple to clean
LED Lighting
This ZLINE range hood comes equipped with 4 energy-efficient LED lights to illuminate the cooking surface below
Easy Installation
ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
Warranty
ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
Additional Assembly Required
This product ships in multiple boxes and will require minimal assembly upon arrival
Lifetime Motor Warranty
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
Dishwasher Safe Baffle Filters
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
Built-in Led Lighting
Easily illuminate your cooking space with bright built-in LED lights
Specifications
Other
| Venting Size | 8632S-30: 6" Outlet (Transition piece to round ducting included); 8632S-36: 6" Outlet (Transition piece to round ducting included); 8632S-42: 8" Outlet (Transition piece to round ducting in |
| Airflow (Q/L/M/H) | 8632S-30: 260/340/420/500; 8632S-36: 260/340/420/500; 8632S-42: 280/420/560/700; 8632S-48: 280/420/560/700; |
| Lighting | 8632S-30: 2 Directional LED Lights (3-Watt); 8632S-36: 2 Directional LED Lights (3-Watt); 8632S-42: 2 Directional LED Lights (3-Watt); 8632S-48: 4 Directional LED Lights (3-Watt); |
| Noise Level | 8632S-30: 20/29/34/41 (Decibels); 8632S-36: 20/29/34/41 (Decibels); 8632S-42: 30/41/49/52 (Decibels); 8632S-48: 30/41/49/52 (Decibels); |
| Voltage | 110V/60HZ |
| Motor | 8632S-30: High Performance 500 CFM/4-Speed Motor; 8632S-36: High Performance 500 CFM/4-Speed Motor; 8632S-42: High Performance 700 CFM/4-Speed Motor; 8632S-48: High Performance 700 CFM/ |
| Mount Type | Wall Mounted |
| Speeds | 4 Speeds |
| Material | DuraSnow® Stainless Steel |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Warranty | 3 Year Parts Warranty |
| Features | Model No. 8632S-30, 8632S-36, 8632S-42, 8632S-48; Chimney Extension: Model No. KBUU-E; |
| UPC | 8632S-30: 817299029922; 8632S-36: 817299029939; 8632S-42: 817299029946; 8632S-48: 817299029953; |
| Certifications | ETL Listed |
| Venting Size | 8632S-30: 6" Outlet (Transition piece to round ducting included); 8632S-36: 6" Outlet (Transition piece to round ducting included); 8632S-42: 8" Outlet (Transition piece to round ducting incl |
| Motor | 8632S-30: High Performance 500 CFM/4-Speed Motor; 8632S-36: High Performance 500 CFM/4-Speed Motor; 8632S-42: High Performance 700 CFM/4-Speed Motor; 8632S-48: High Performance 700 CFM/4-Spee |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | - |
| Width | 48 Inch |
| Height | 26.8 Inch |
| Weight | 52 lbs |
| Depth | 23.8 Inch |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
| Shipping Width | 53 Inch |
| Shipping Height | 31.8 Inch |
| Shipping Length | 28.8 Inch |
| Shipping Weight | 92 lbs |
| Total of Shipping Weight | 92 lbs |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
| Cubic Feet Measurement | 17.72 ft³ |
| Dimensional Weight | 220.26 Ibs |
| Total of Cubes | 17.72 ft³ |
| Total of Dimensional Weight | 220.26 Ibs |

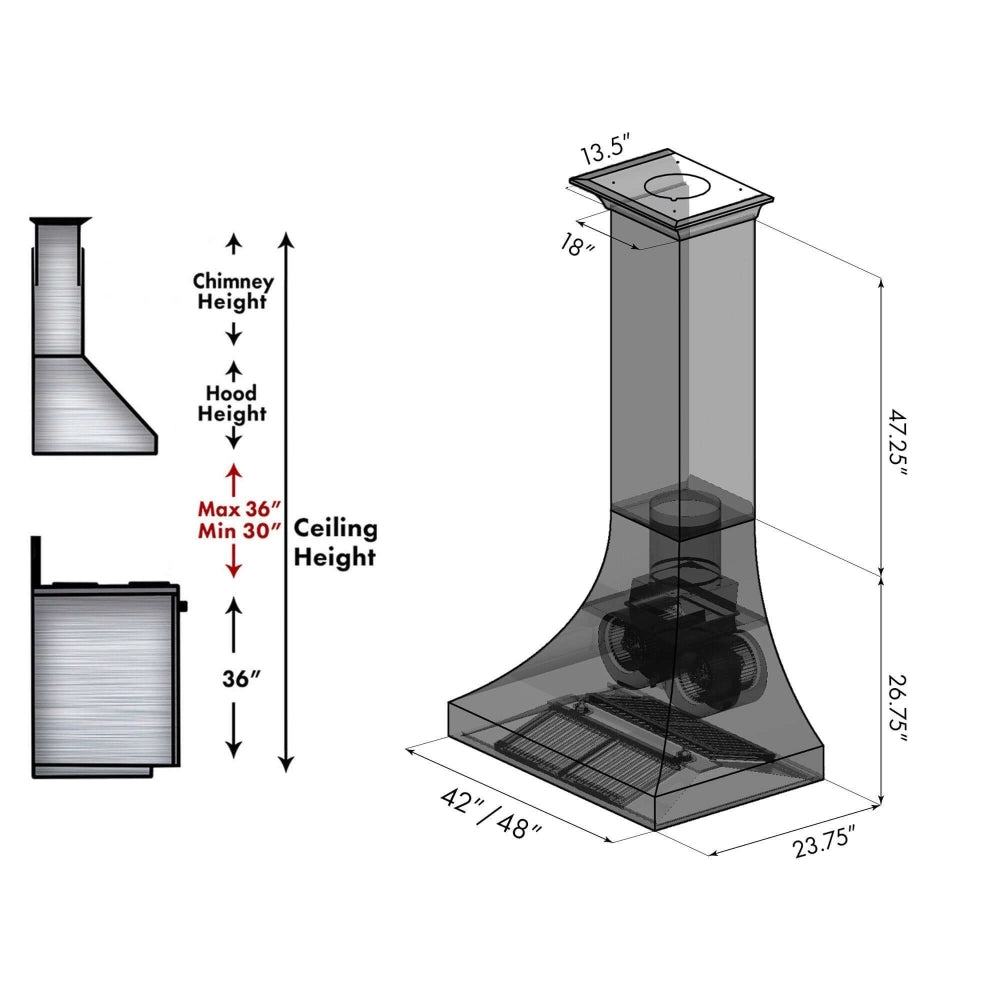

Dimensions
| Dimensions: | 48 in. W x 23.75 in. D x 26.75 in. H |
| Product Depth (in.): | 23.8 |
| Product Width (in.): | 48.0 |
| Product Height (in.): | 26.8 |
| Chimney Dimensions: | 11.75" W x 10.75" D x 47.25" H |
Details
| Appliance Category: | Wall Mount RH |
| Color/ Finish Family: | Satin Stainless Steel |
| Airflow (Q/L/M/H): | 280/420/560/700 |
| Motor: | High Performance 700 CFM/4-Speed Motor |
| Filters: | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type: | Wall Mount |
| Number of Lights: | 4 |
| Number of Speeds: | 4 |
| Control Type: | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel: | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.): | 52 |
| Decibels: | 30/41/49/52 |
| Duct Size: | 8 |
| Voltage: | 120 |
| Amps: | 5 |
Warranties & Certifications
| Certifications and Listings: | ETL Listed |
| Manufacturer Warranty: | 3 year parts, life-time motor warranty |
