$239.00
24" Under The Cabinet Hood - JVX3240DJWW
$239.00
Key Features
Two-speed, 200-CFM venting system
Front controls
Cooktop lighting
Convertible venting options
Vertical and rear exhaust
Appearance (Partially enclosed bottom)
Easy installation
Optional power cord kit
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture
Front controls
Conveniently located on the front of the canopy, the simple switches let you adjust fan speed and lighting with ease
Cooktop lighting
Illuminate cooking space and surrounding surface - bulbs included
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchen’s specific ventilation
Vertical and rear exhaust
Exhausts from the top or rear of the hood

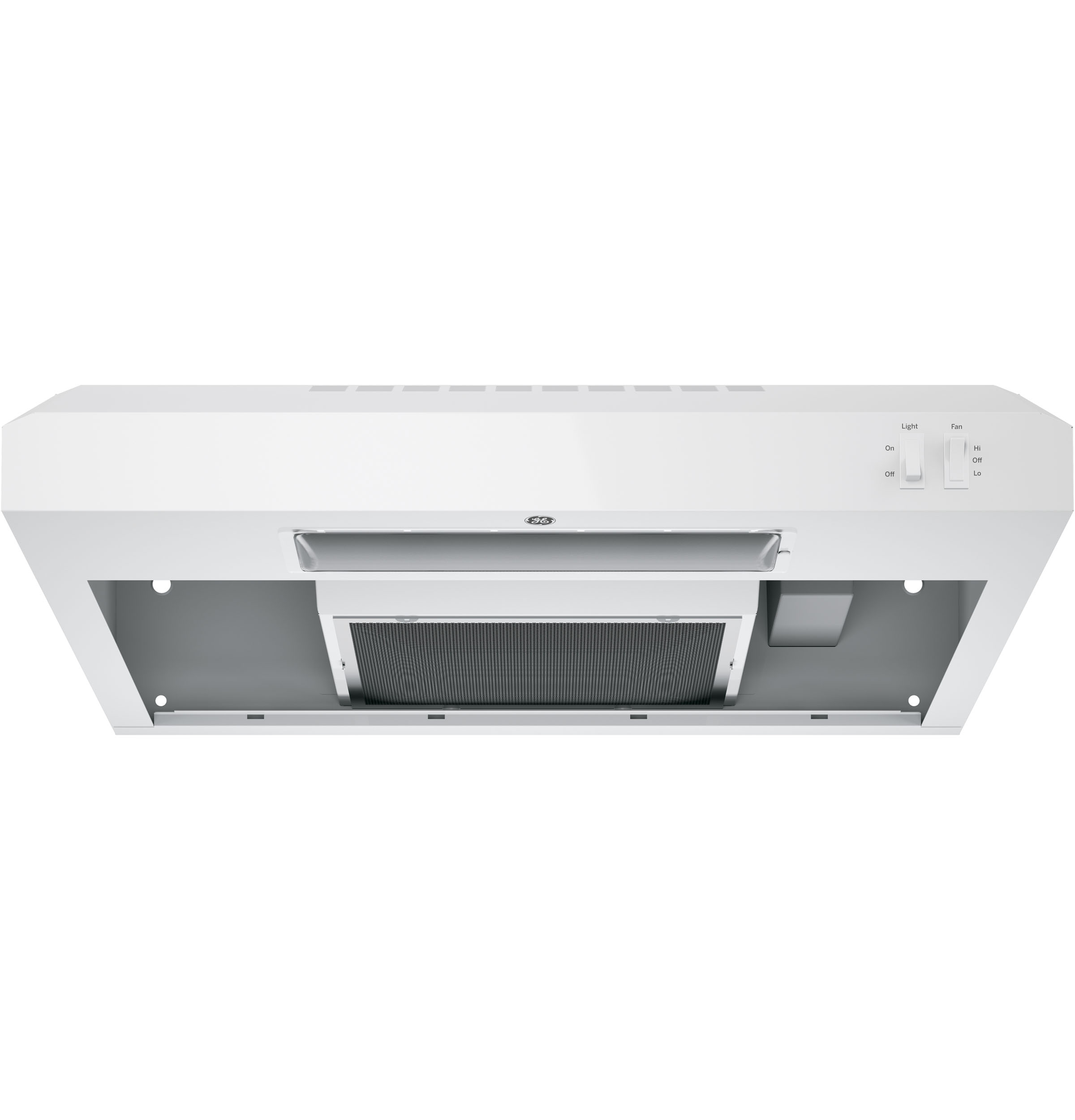

Appearance (Partially enclosed bottom)
Enjoy easy access to hood interior
Easy installation
10 minutes or less by one person
Optional power cord kit
Install your hood using a standard 3-prong, grounded outlet with the optional Power Cord Connection Kit (JXHC1, sold separately).
Perfect fit
Designed for a 24-inch wide space, this hood is ideal for smaller kitchens
Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Wall Switch Option
Can be converted for operation with a wall switch, offering added flexibility and ADA-compliant convenience
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

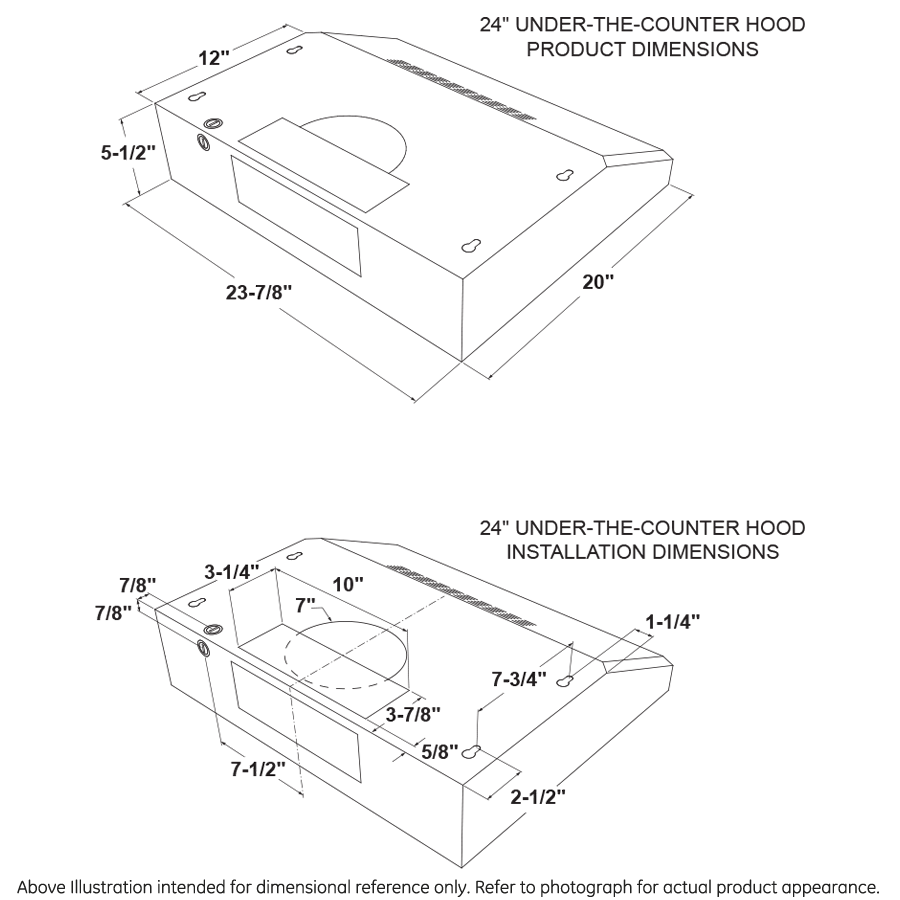

WEIGHTS & DIMENSIONS
| Overall Depth | 20 in |
| Overall Height | 5.5 in |
| Overall Width | 23.875 in |
| Cabinet Width | 24 in |
| Net Weight | 15 lb |
| Approximate Shipping Weight | 23 lb |
FEATURES
| Cooktop Lighting | Incandescent |
| Fan Speed Control | 2-Speed |
| Max CFM | 200 |
| Ducting | Vertical or Horizontal; 7" Round |
| Light Controls | On/Off |
| Filter Cleaning | Dishwasher Safe |
| Fan Controls | Rocker |
| CFM/ Sones Rating | 200/6.5 (High Speed) |
| Exhaust Options | Vented to Outside |
| Product Type | Under Cabinet Hood |
| Control Type | Rocker Switch |
| Control Location | Front |
| Charcoal Filter | JXCF53 - Included |
| Removable Grease Filter(s) | Yes |
| Blower Type | Internal |
| CFM/ Sones Rating | 130/5.0 (Low Speed) |
| Exhaust Options | Recirculating |
| Cooktop Lighting | 1 |
APPEARANCE
| Blower / Light Switch Color | White |
| Material | Metal |
| Color Appearance | White |
POWER / RATINGS
| Electrical Requirements | 120V ; 60Hz ; 2.5A |
| Amp Rating at 120V | 2.5 |
| Watts | 81 |
| Hertz | 60 |
ACCESSORIES
| Optional Accessories | JXHC1 - Power Cord Kit |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET
| Venting Type | Convertible |
Dimensions & Weight
| Width | 23.88 in. |
| Height | 5.5 in. |
| Length | 20 in. |
| Weight | 15 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 55 lbs. |
| Total of Shipping Weight | 55 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.52 ft³ |
| Dimensional Weight | 18.89 lbs. |
| Total of Cubes | 1.52 ft³ |
| Total of Dimensional Weight | 18.89 lbs. |
