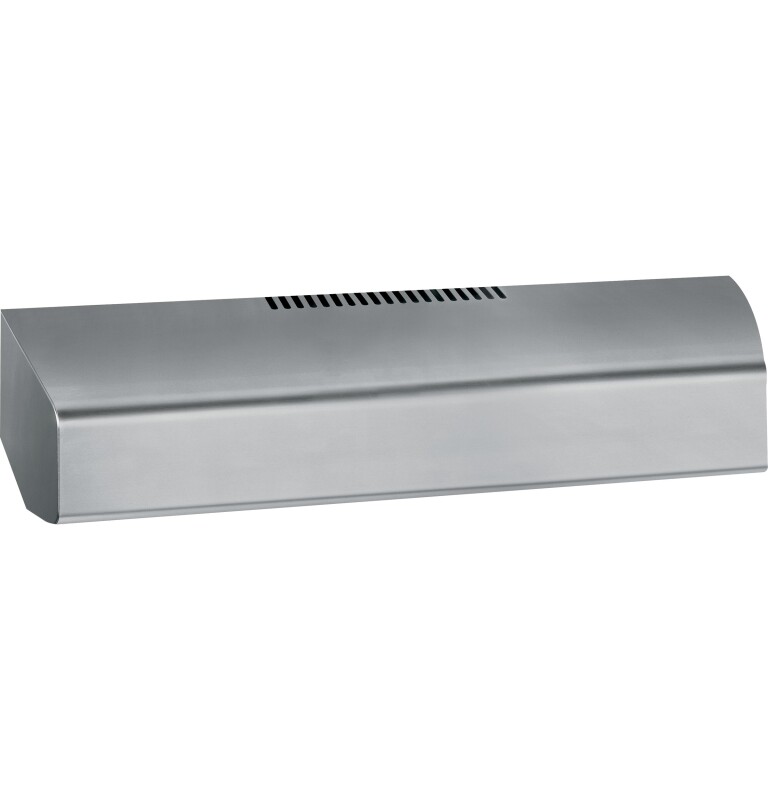

Series 30" High Performance Range Hood - JV536HSS

GE ProfileGE Profile brand logo
This product has been discontinued by the manufacture and is no longer available.

Series 30" High Performance Range Hood

Model: JV536HSS

Series 30" High Performance Range Hood JV536HSSSeries 30" High Performance Range Hood JV536HSSSeries 30" High Performance Range Hood JV536HSS
Series 30" High Performance Range Hood JV536HSS
Series 30" High Performance Range Hood JV536HSS
Series 30" High Performance Range Hood JV536HSS

Color : Stainless Steel

Series 30" High Performance Range Hood JV536HSS
Stainless Steel

Key Features

  • Convertible venting

  • Vertical and rear exhaust

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Convertible venting

Offers vented or non-vented installation options

Vertical and rear exhaust

Exhausts from the top or rear of the hood

Certifications

AHAM certification

AHAM

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Overall Depth20 in
Net Weight23 lb
Approximate Shipping Weight30 lb
Overall Height4 3/4 in
Overall Width29 7/8 in

FEATURES

Fan Speed Control2-Speed
Cooktop LightingDual Halogen
Max CFM240
Ducting4-Way; 7" Round

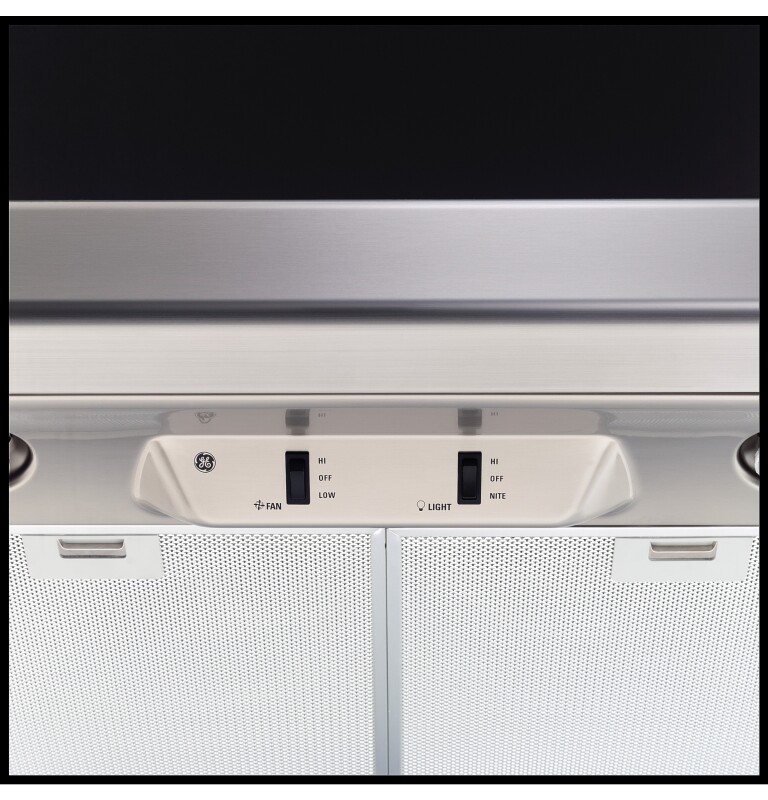

Light ControlsHi/Low
Filter CleaningDishwasher Safe
Fan ControlsRocker
CFM/ Sones Rating240/ 4.5 (Top Round High Speed)
Control LocationHidden
Removable Grease Filter(s)Micromesh
CFM/ Sones Rating150/ 1.5 (Back Rectangular Working Speed)
CFM/ Sones Rating220/ 4.5 (Back Rectangular High Speed)
CFM/ Sones Rating160/ 2.0 (Top Round Working Speed Speed)
CFM/ Sones Rating220/ 4.5 (Top Rectangular High Speed)
CFM/ Sones Rating140/ 1.5 (Top Rectangular Working Speed)

APPEARANCE

Blower / Light Switch ColorBlack
Color AppearanceStainless Steel

ACCESSORIES

Optional Damper Accessory (Round)JXDA22

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

POWER / RATINGS

Amp Rating at 120V1.4

ECONOMICAL / QUIET

Venting TypeConvertible

Dimensions & Weight

Width29.88 in.
Height4.75 in.
Length20 in.
Weight23 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height9.75 in.
Shipping Length25 in.
Shipping Weight63 lbs.
Total of Shipping Weight63 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.64 ft³
Dimensional Weight20.42 lbs.
Total of Cubes1.64 ft³
Total of Dimensional Weight20.42 lbs.
