Series 30" High Performance Range Hood - JV535HWW

GE ProfileGE Profile brand logo
This product has been discontinued by the manufacture and is no longer available.

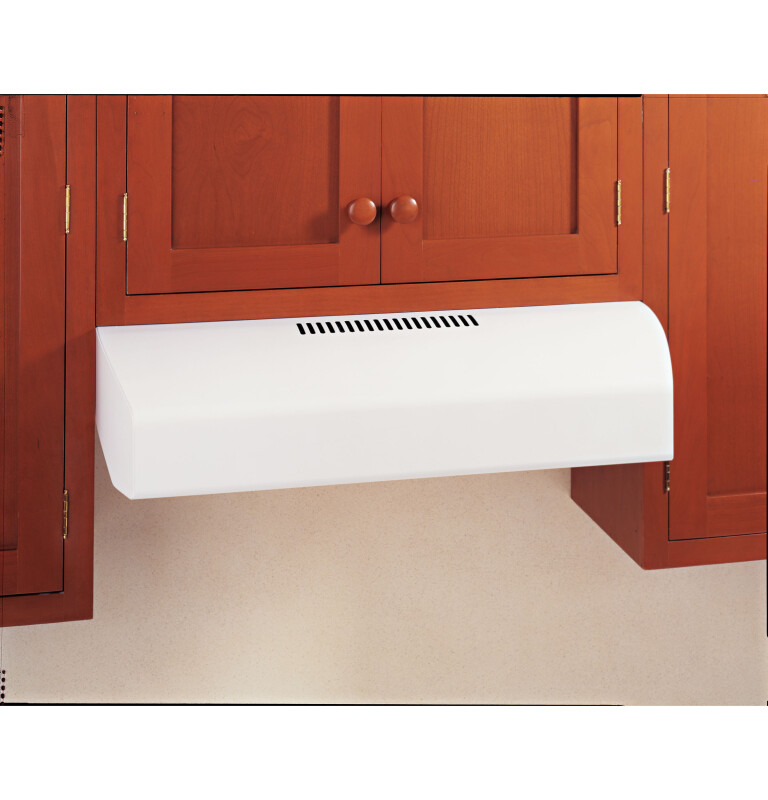

Series 30" High Performance Range Hood

Model: JV535HWW

Series 30" High Performance Range Hood JV535HWWSeries 30" High Performance Range Hood JV535HWW
Series 30" High Performance Range Hood JV535HWW
Series 30" High Performance Range Hood JV535HWW

Color : White

Series 30" High Performance Range Hood JV535HWW
White

Key Features

  • Convertible venting

  • Vertical and rear exhaust

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Convertible venting

Offers vented or non-vented installation options

Vertical and rear exhaust

Exhausts from the top or rear of the hood

Certifications

AHAM certification

AHAM

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Overall Depth20 in
Net Weight23 lb
Approximate Shipping Weight30 lb
Overall Height4 3/4 in
Overall Width29 7/8 in

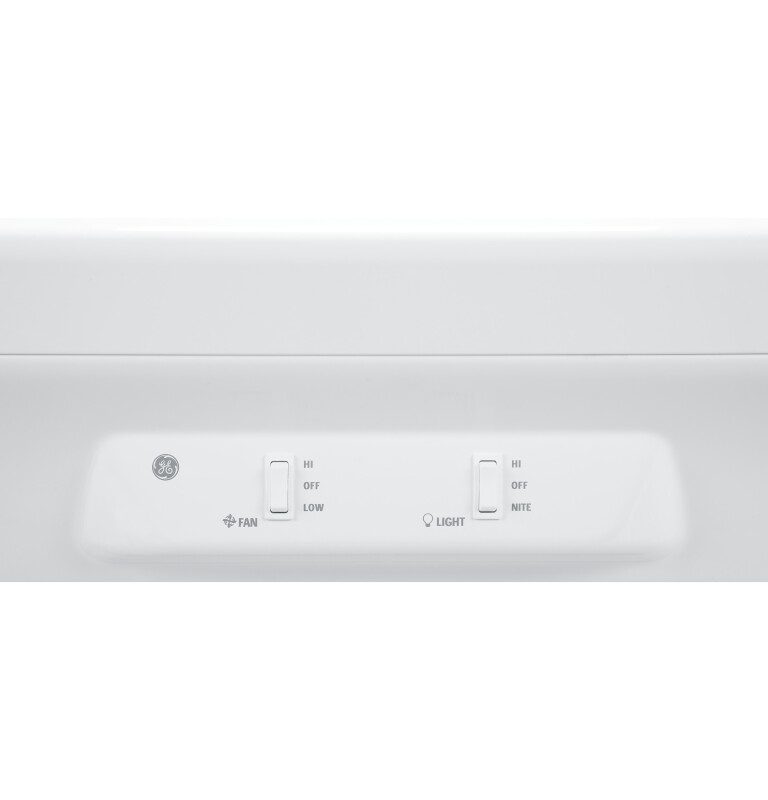

FEATURES

Fan Speed Control2-Speed
Cooktop LightingDual Halogen
Max CFM240
Ducting4-Way; 7" Round
Light ControlsHi/Low
Filter CleaningDishwasher Safe
Fan ControlsRocker
CFM/ Sones Rating240/ 4.5 (Top Round High Speed)
LED Indicators"On"
Control LocationHidden
Removable Grease Filter(s)Micromesh
CFM/ Sones Rating150/ 1.5 (Back Rectangular Working Speed)
CFM/ Sones Rating220/ 4.5 (Back Rectangular High Speed)
CFM/ Sones Rating160/ 2.0 (Top Round Working Speed Speed)
CFM/ Sones Rating220/ 4.5 (Top Rectangular High Speed)
CFM/ Sones Rating140/ 1.5 (Top Rectangular Working Speed)

APPEARANCE

Blower / Light Switch ColorWhite
Color AppearanceWhite on White

ACCESSORIES

Optional Damper Accessory (Round)JXDA22

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

POWER / RATINGS

Amp Rating at 120V1.4

ECONOMICAL / QUIET

Venting TypeConvertible

Dimensions & Weight

Width29.88 in.
Height4.75 in.
Length20 in.
Weight23 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height9.75 in.
Shipping Length25 in.
Shipping Weight63 lbs.
Total of Shipping Weight63 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.64 ft³
Dimensional Weight20.42 lbs.
Total of Cubes1.64 ft³
Total of Dimensional Weight20.42 lbs.
