300 Series Custom insert - HUI31451UC
This product has been discontinued by the manufacture and is no longer available.
300 Series Custom insert
Model: HUI31451UC
This product has been discontinued by the manufacture and is no longer available.
300 Series Custom insert
Model: HUI31451UC
Color : Stainless Steel
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Specifications
Specifications
General
| Design | Built-in |
| Venting | Ducted |
| Maximum CFM | 440 Cu Ft mi |
| Type of Control | Slide switch |
| Installation Type | Built-in |
| Grease Filter Material | Washable Aluminum |
| Material | Alu |
| Number of speed settings | 3-stages + intensive setting |
| Filter Type | Cassette with Aluminum Frame |
Connectivity
| Home Connect™ | no |
| Cooktop-Based Hood Control | no |
Construction type
| Color | Stainless Steel |
| Grease Filter Material | Washable Aluminum |
| Grease filter type | Multilayer cassette |
| Installation Type | Built-in |
| Material | Alu |
| Motor location | Integrated motor in hood body |
| Number of motors | 2 |
| Venting | Ducted |
| Typology | Built-in/Built-under |
Connection
| Watts | 40 W |
| Frequency | 60 Hz |
| Total power of the lamps | 40 W |
| Total output power of the motors | 270 W |
| Volts | 120 V |
Comfort and Convenience
| Clean Filter Reminders | No |
| Delay Shut Off Modes | no |
| Boost Speed | no |
| Remote Control | no |
| ADA Compliant (When Installed to ADA requirements) | no |
Light
| Light Type | Halogen |
| Number of Lights | 2 |
| Total Luminance | 360 lm |
| Color Temperature | Warm (<= 3.000 K) |
| Heat Lamps | no |

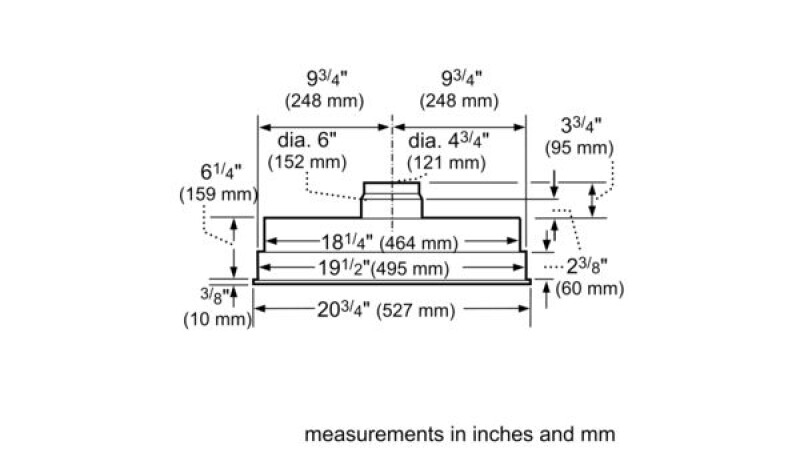

Dimensions & Weight
| Width | 20.75 in. |
| Height | 10 in. |
| Length | 15 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25.75 in. |
| Shipping Height | 15 in. |
| Shipping Length | 20 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.8 ft³ |
| Dimensional Weight | 22.39 lbs. |
| Total of Cubes | 1.8 ft³ |
| Total of Dimensional Weight | 22.39 lbs. |
