Universal 36" Telescopic Downdraft System - UVB36DKBB

This product has been discontinued by the manufacture and is no longer available.

Universal 36" Telescopic Downdraft System

Model: UVB36DKBB

Universal 36" Telescopic Downdraft System UVB36DKBBUniversal 36" Telescopic Downdraft System UVB36DKBBUniversal 36" Telescopic Downdraft System UVB36DKBB
Universal 36" Telescopic Downdraft System UVB36DKBB
Universal 36" Telescopic Downdraft System UVB36DKBB
Universal 36" Telescopic Downdraft System UVB36DKBB

Color : Black

Universal 36" Telescopic Downdraft System UVB36DKBB
Black

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Specifications
Certifications

Certifications

California Prop 65 certification

California Prop 65

Specifications

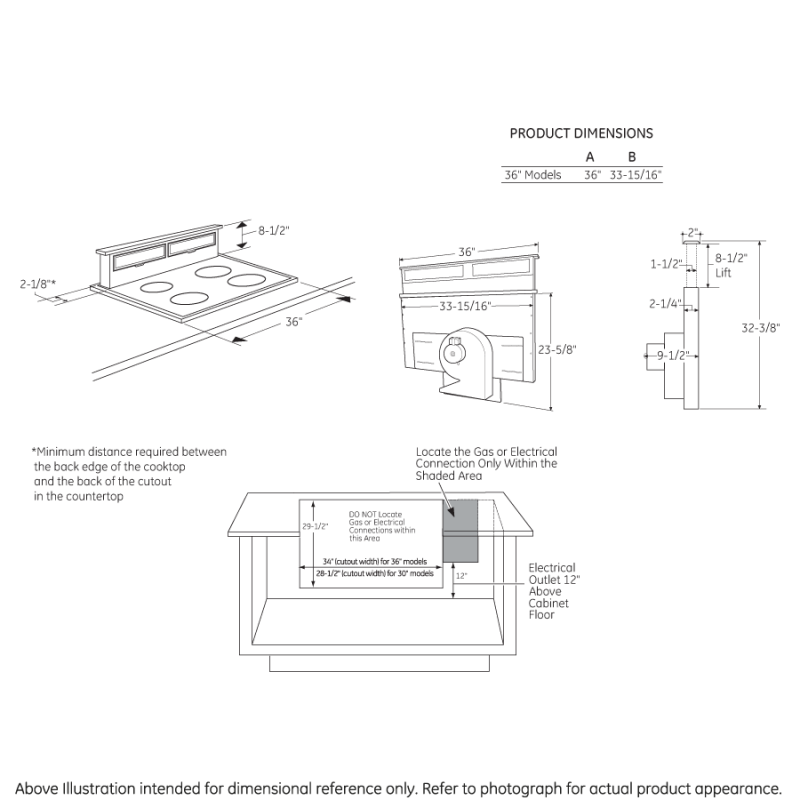

WEIGHTS & DIMENSIONS

Overall Depth9.5 in
Overall Height27 in
Overall Width36 in
Cabinet Width36 in
Net Weight59 lb
Approximate Shipping Weight74 lb
Telescoping Height8.5 in

Dimensions & Weight

Width36 in.
Height27 in.
Length9.5 in.
Weight59 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width41 in.
Shipping Height32 in.
Shipping Length14.5 in.
Shipping Weight99 lbs.
Total of Shipping Weight99 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.34 ft³
Dimensional Weight66.43 lbs.
Total of Cubes5.34 ft³
Total of Dimensional Weight66.43 lbs.

FEATURES

Fan Speed Control4-Speed
Max CFM370
Optional Blower Mount CapabilitiesYes
Separate Remote Raise/Lower SwitchYes
CFM/ Sones Rating370/9.0 (High Speed)
Product TypeTelescopic Downdraft
Control TypeRemote Control
Telescopic AssemblyStainless Steel
Cover PlateBlack
Blower TypeInternal
Removable Grease Filter(s)Yes
Exhaust OptionsDowndraft
Exhaust OptionsVented to Outside
CFM/ Sones Rating140/2.5 (Working Speed)
Control TypeElectronic
Exhaust Options3-1/4" x 10" Rectangular Duct
Exhaust OptionsMinimum 6" Round Duct Capability
Removable Grease Filter(s)Mesh

POWER / RATINGS

Hertz60
Amp Rating at 120V4.0

ACCESSORIES

Duct Extension100 ft.

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

APPEARANCE

Color AppearanceBlack

ECONOMICAL / QUIET

Venting TypeExternally Vented
