30" Slide-In Front-Control Convection Gas Range - JGS760EELES

This product has been discontinued by the manufacture and is no longer available.

30" Slide-In Front-Control Convection Gas Range

Model: JGS760EELES

30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES30" Slide-In Front-Control Convection Gas Range JGS760EELES
30" Slide-In Front-Control Convection Gas Range JGS760EELES
30" Slide-In Front-Control Convection Gas Range JGS760EELES
30" Slide-In Front-Control Convection Gas Range JGS760EELES
30" Slide-In Front-Control Convection Gas Range JGS760EELES
30" Slide-In Front-Control Convection Gas Range JGS760EELES
+11more

Product Video

GE 30" Slide-In Front-Control Convection Gas Range Slate JGS760EELES Picture
5 Videos

Color : Slate

30" Slide-In Front-Control Convection Gas Range JGS760EELES
Slate

Type : Gas

Key Features

  • Fit Guarantee

  • Edge-to-edge cooktop

  • Extra-large integrated griddle

  • 18,000 BTU Power Boil burner

  • Gas convection

  • Self-clean with Steam Clean option

  • 10,000 BTU oval burner

  • Heavy duty, dishwasher safe grates

Read More

Description

A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.Cook up to six grilled cheeses at once on the industry’s largest integrated griddle.36 1/4 H x 30 W x 29 1/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Fit Guarantee

Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

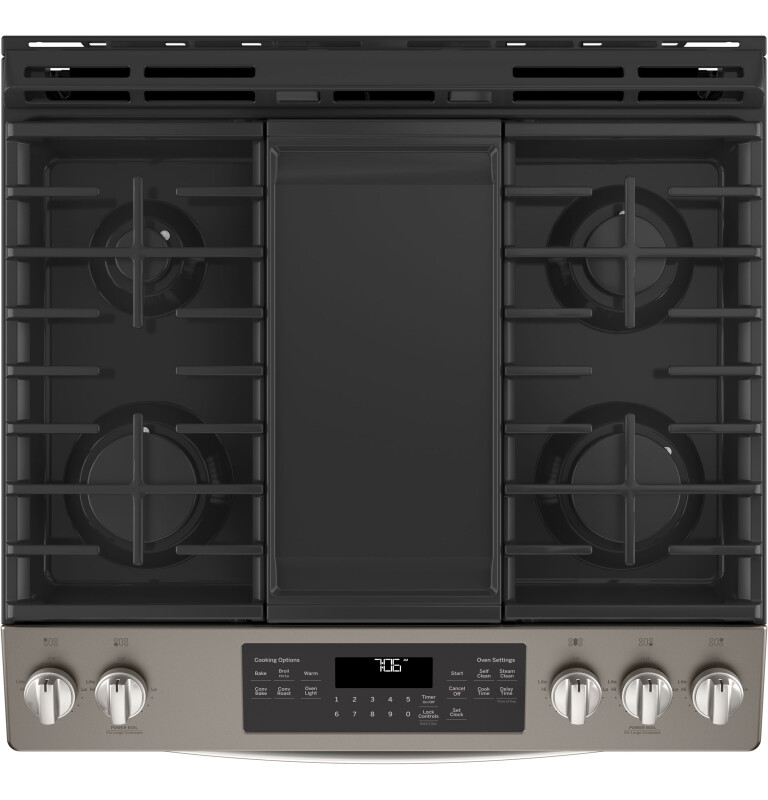

Edge-to-edge cooktop

A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

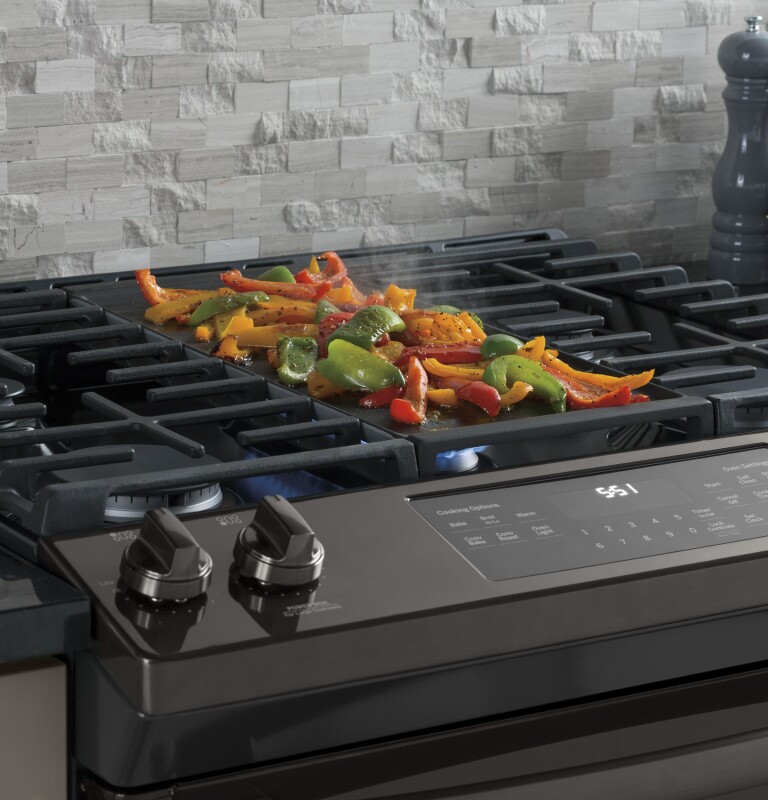

Extra-large integrated griddle

Cook up to six grilled cheeses at once on the industry’s largest integrated griddle

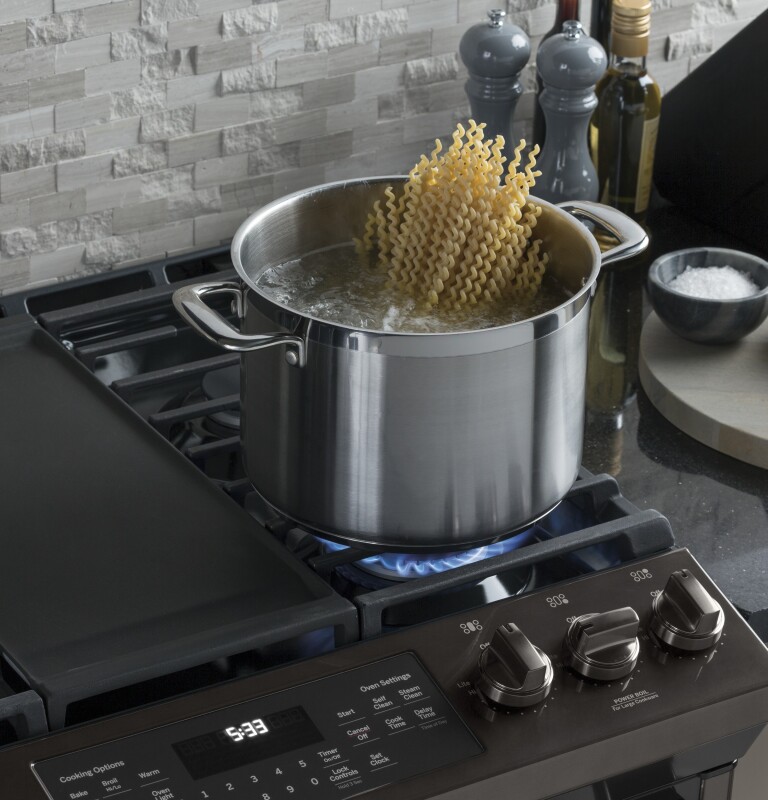

18,000 BTU Power Boil burner

Prepare your favorite pasta dishes faster by boiling water in less time

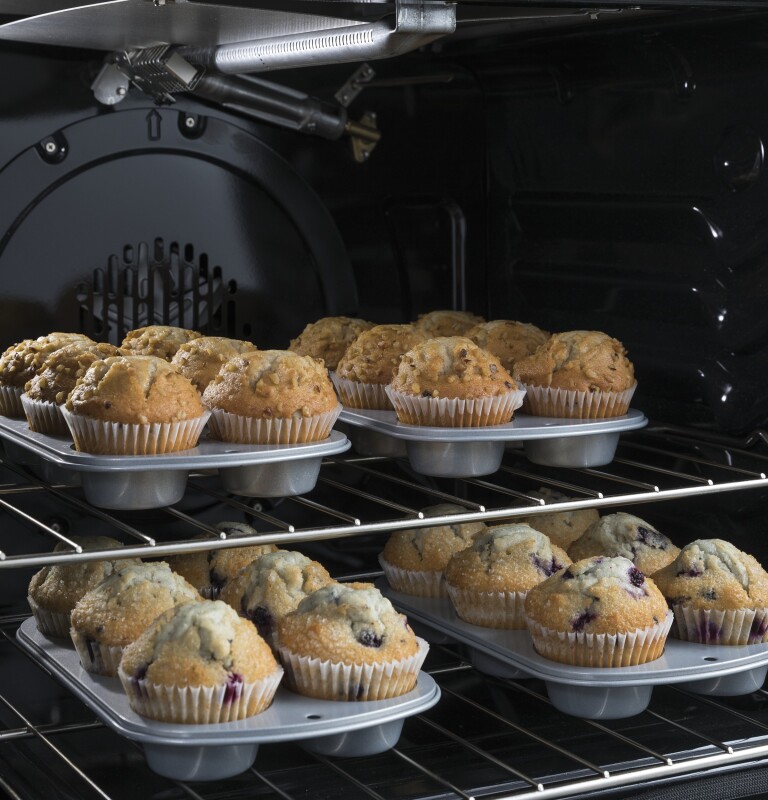

Gas convection

Evenly bake foods like roasts and cookies with this helpful feature that uses a fan to circulate heated air

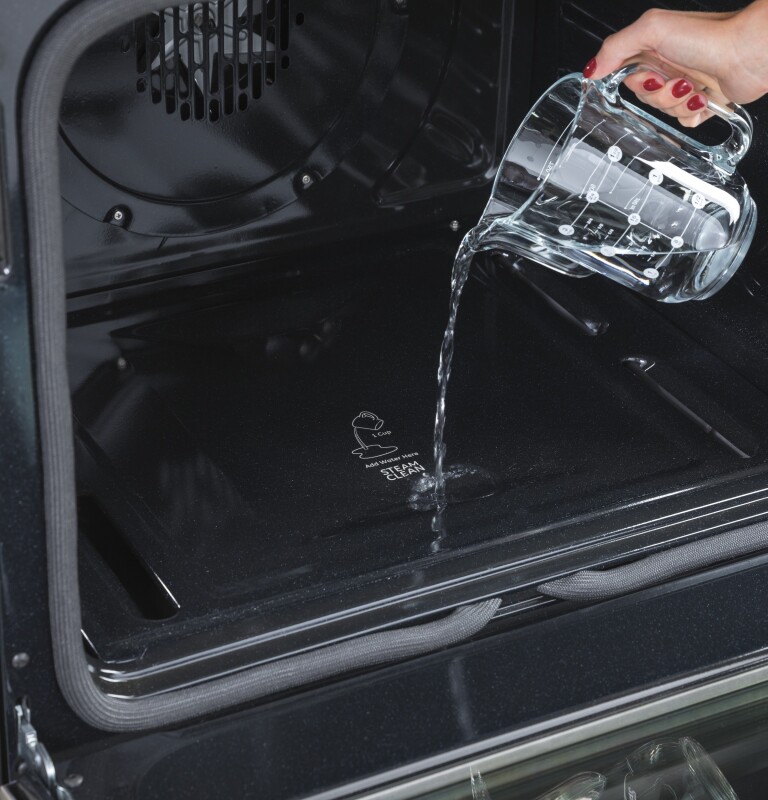

Self-clean with Steam Clean option

Clean your oven the way you want

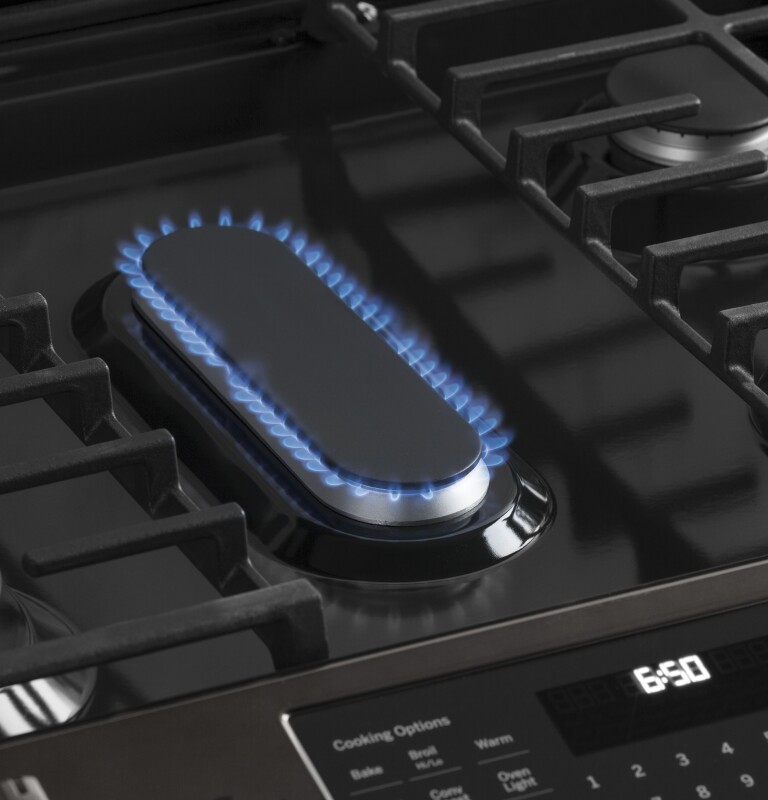

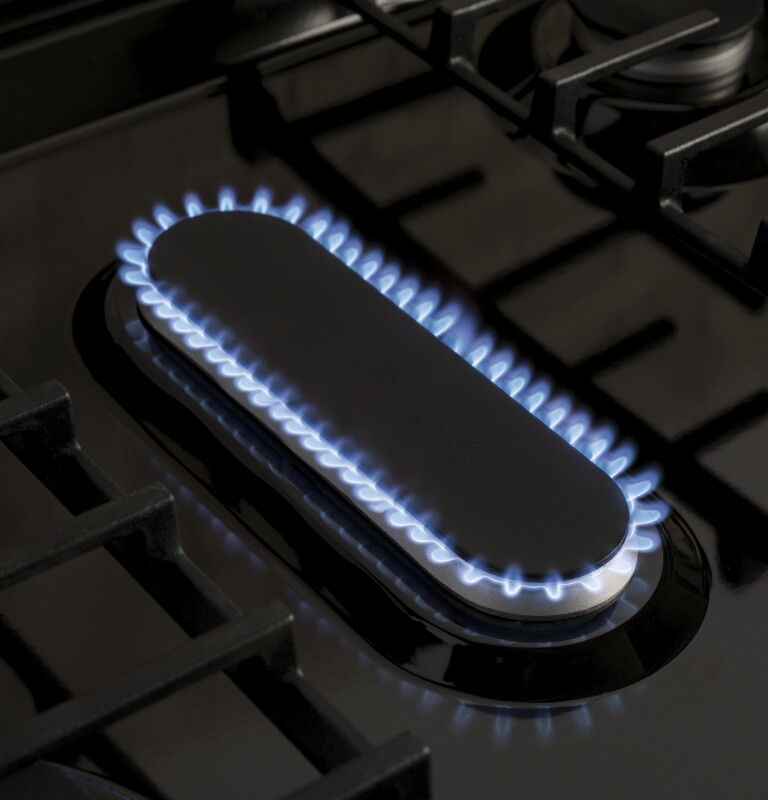

10,000 BTU oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Heavy duty, dishwasher safe grates

Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven

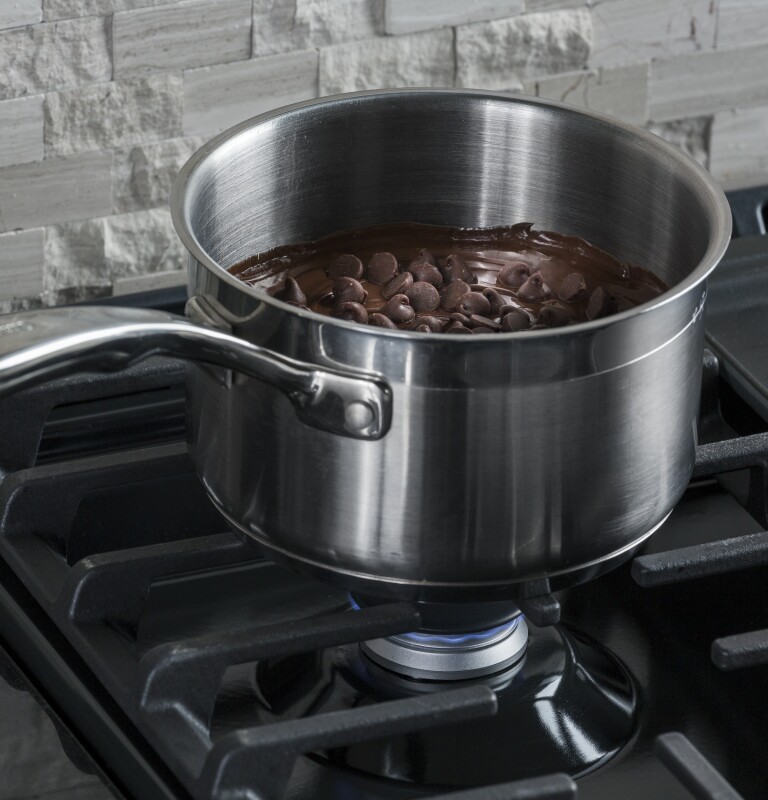

Precise Simmer burner

Delicate foods don’t burn with low, even heat

Smooth-glide storage drawer

Drawer opens and closes easily for instant access and extra storage

Certifications

ADA Compliant certification

ADA Compliant

CSA certification

CSA

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

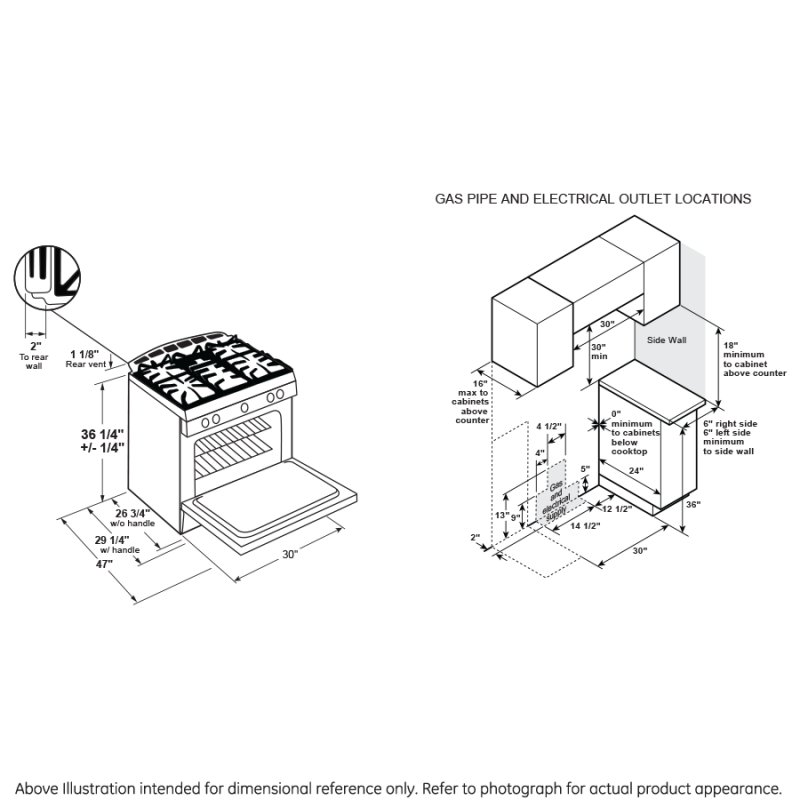

WEIGHTS & DIMENSIONS

Overall Width30 in
Depth Without Handle26.75 in
Net Weight224 lb
Cabinet Width30 in
Approximate Shipping Weight244 lb
Cabinet Opening30 in
Height to Top of Rear Vent Trim37.375 in
Depth with Door Open47.5 in
Oven Interior Dimensions (W x H x D) (in.)24 x 19-1/2 x 20-5/8
Overall Depth29 1/4 in
Overall Height36 1/4 in
Height to Cooking Surface (in.)36.25 +/- .25

Dimensions & Weight

Width30 in.
Height36.25 in.
Length29.25 in.
Weight224 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height41.25 in.
Shipping Length34.25 in.
Shipping Weight264 lbs.
Total of Shipping Weight264 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement18.41 ft³
Dimensional Weight228.84 lbs.
Total of Cubes18.41 ft³
Total of Dimensional Weight228.84 lbs.

APPEARANCE

Cooktop Burner Grate ColorMatte Black
InstallationFree-standing cut-out
Oven Door FeaturesBig View Oven Window
Handle ColorStainless Steel
Control KnobsStainless Steel
Color AppearanceFingerprint Resistant Slate
InstallationFlush Appearance

FEATURES

Burner - Right Rear9,500 BTU
Ignition SystemElectronic
Oven InteriorBlack

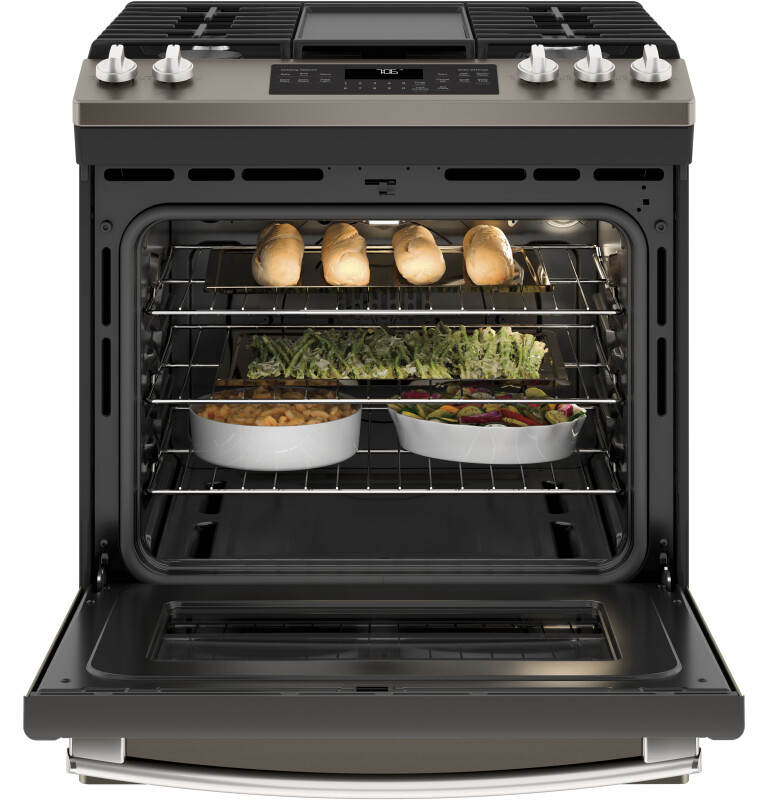

Oven Rack Features3 Oven Racks
Burner - Left Rear5,000 BTU Precise Simmer
Oven Cleaning TypeSelf-Clean with Steam Clean Option
GriddleIntegrated (Included)
Product TypeSlide-In Single Oven
Cooktop TypeContinuous Grates
Cooktop Burner Grate MaterialHeavy Cast Iron
Fuel TypeNatural Gas
Burner - Center10,000 BTU Oval

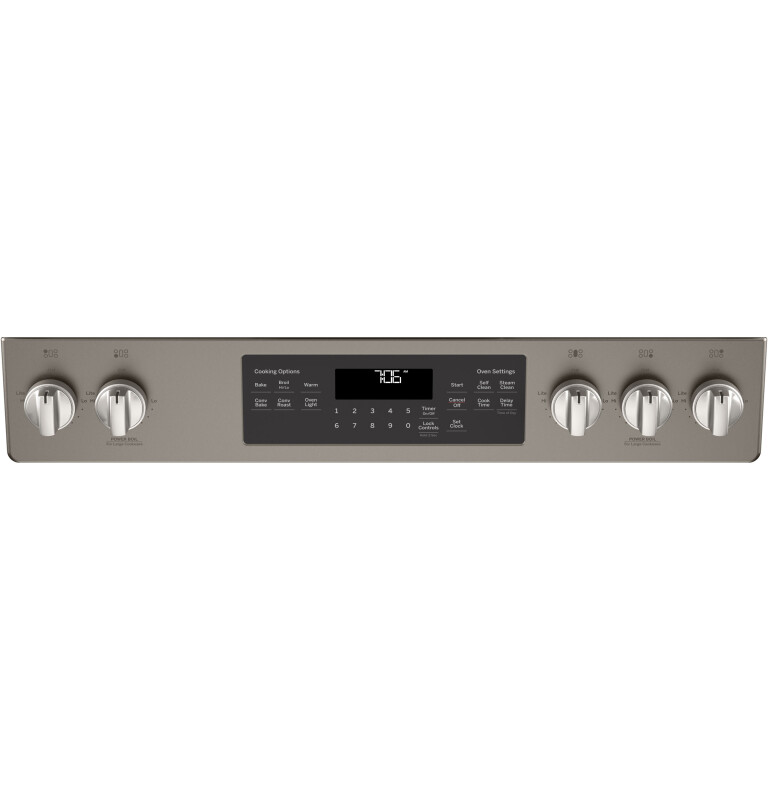

Control LocationFront
Cooktop Burner Grate FeaturesContinuous Grates
Control TypeElectronic Touch
Burner - Left Front18,000 BTU
Drawer TypeStorage
Cooking TechnologyConvection
ConfigurationRange with Smooth Glide Storage Drawer
Oven Cooking ModesConvection Roast
Cooktop Burner TypeSealed
Burner - Right Front15,000 BTU Power Boil
Self-Clean Oven Door LockAutomatic
Cooktop SurfaceEdge-to-Edge
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesSabbath Mode
Cooktop SurfaceGray
Cooktop SurfaceDeep Recessed
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesControl Lock Capability

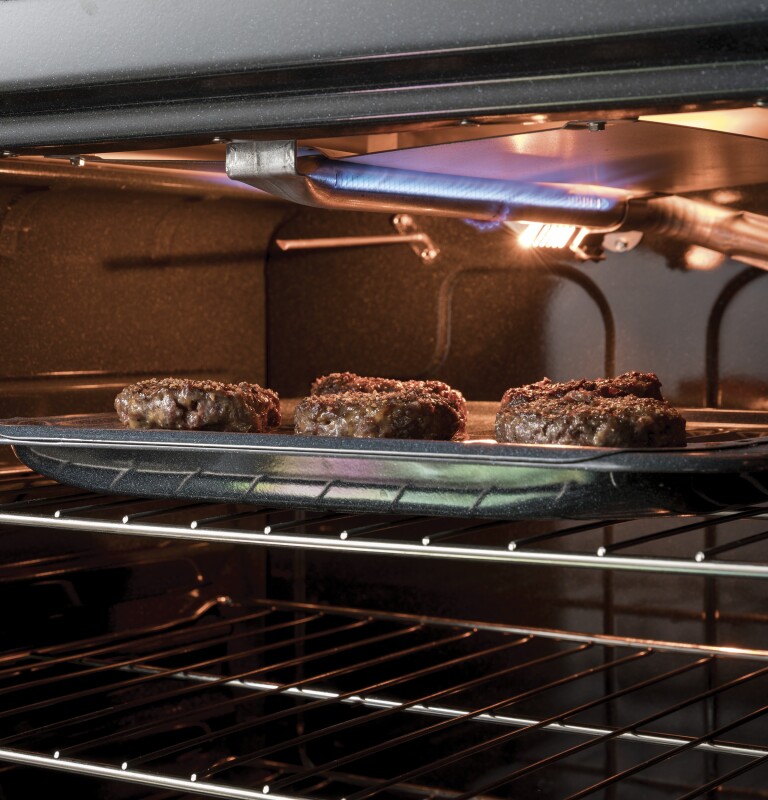

Oven Control FeaturesDual Broil
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesIn-Oven Broiling
Oven Cooking ModesConvection Bake
Oven Interior1 Auto Incandescent Light

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 16.5 Broiler

ACCESSORIES

Optional AccessoriesWB48X21543 Roller Rack
Griddle AccessoryIntegrated Griddle (Included)
LP Conversion KitIncluded
Trim KitOptional
Trim KitJXFILLR1DD

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)5.60 cu ft
