Home/Cooking/Ranges/Freestanding Ranges/RGB528PEAWW

30" Free-Standing Gas Range - RGB528PEAWW

HotpointHotpoint brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: RGB528PEAWW

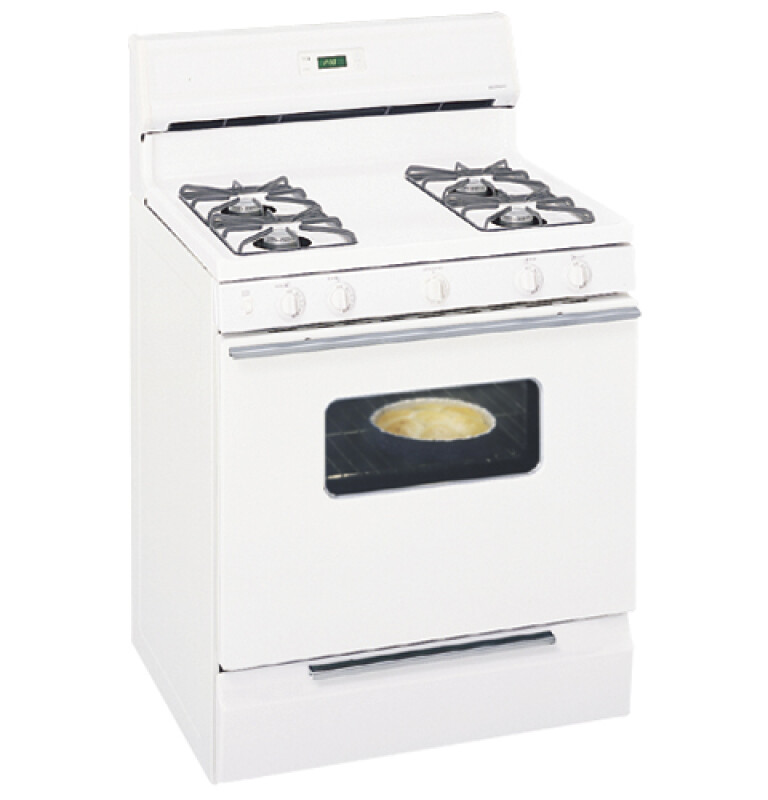

30" Free-Standing Gas Range RGB528PEAWW, product image 1 of 1
30" Free-Standing Gas Range RGB528PEAWW, thumbnail image 1 of 1

Color : White

30" Free-Standing Gas Range RGB528PEAWW
White

Type : Gas

GasElectric

Key Features

  • Super-large oven capacity

  • All purpose burners

  • Electronic clock and timer

  • Standard grates

  • Porcelain upswept cooktop

  • Lift-up cooktop

  • Easy clean subtop

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Super-large oven capacity

Provides an impressively large oven interior for cooking more dishes and large meals at once

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

Electronic clock and timer

Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen

Standard grates

Provide a sturdy and convenient cookware surface for everyday cooking

Porcelain upswept cooktop

Features raised edges to help contain spills and make clean-up easy

Lift-up cooktop

Cooktop lifts up for easy access to porcelain-enameled subtop

Easy clean subtop

Porcelain enameled subtop collects spills and messes for easy cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Oven Interior Dimensions (W x H x D) (in.)24 x 17 x 19
Overall Width30 in
Overall Depth26.5 in
Net Weight155 lb
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight157 lb
Height to Cooking Surface (in.)36 +/- .25

FEATURES

Slide - Out Broiler DrawerYes
Porcelain-Enameled SubtopYes
Ignition SystemElectronic
Interior Oven LightYes
Fuel TypeNatural Gas
Oven Control FeaturesOven "ON" Light
Cooktop Burner TypeStandard
Oven Rack FeaturesEmbossed Rack Positions
Clock and Minute TimerElectronic
Oven Cleaning TypeStandard Clean
Valves (Degree of Turn)140
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
One-Piece Drip PansOptional Accessory
Cooktop SurfaceOne-Piece Upswept

APPEARANCE

Cooktop Burner Grate ColorGray
Oven Door FeaturesOven Window
HandleVisor
Frameless Oven Door(s)White Porcelain-Enameled
Color AppearanceWhite on White

CAPACITY

Unit CapacityExtra Large Oven

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)9.0/8.0
Electrical Requirements120V; 60Hz; 5A
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0

Dimensions & Weight

Width30 in.
Height17 in.
Length26.5 in.
Weight155 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height22 in.
Shipping Length31.5 in.
Shipping Weight195 lbs.
Total of Shipping Weight195 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement7.82 ft³
Dimensional Weight97.23 lbs.
Total of Cubes7.82 ft³
Total of Dimensional Weight97.23 lbs.

Warranty

Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
