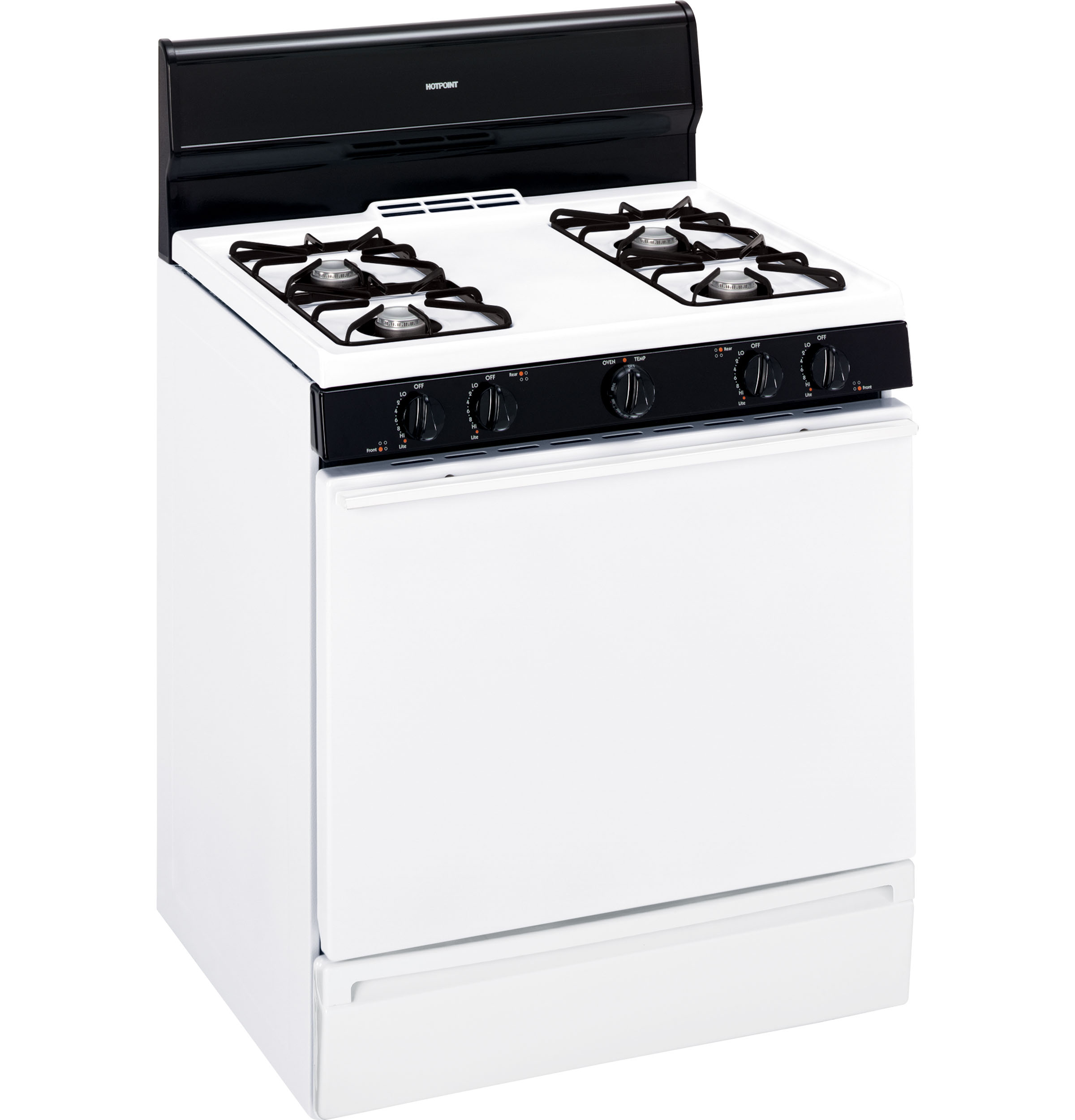

30" Free-Standing Gas Range - RGB524PPTWH

HotpointHotpoint brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: RGB524PPTWH

30" Free-Standing Gas Range RGB524PPTWH30" Free-Standing Gas Range RGB524PPTWH30" Free-Standing Gas Range RGB524PPTWH
30" Free-Standing Gas Range RGB524PPTWH
30" Free-Standing Gas Range RGB524PPTWH
30" Free-Standing Gas Range RGB524PPTWH

Color : White

product image
White

Type : Gas

GasElectric

Key Features

  • Extra-large oven capacity

  • All purpose burners

  • Standard grates

  • Porcelain upswept cooktop

  • Easy clean subtop

  • Lift-up cooktop

  • Porcelain oven door

  • Standard grates

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Extra-large oven capacity

Enough room to cook an entire meal at once

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Standard grates

Hold cookware securely over burners

Porcelain upswept cooktop

Raised edges and porcelain-enameled surface makes cleaning incredibly easy

Easy clean subtop

The subtop is porcelain enameled to make cleaning spills and messes quick and simple

Lift-up cooktop

Cooktop lifts up to give you access to the subtop, where spills and crumbs can collect, to make cleaning effortless

Porcelain oven door

Scratch-resistant porcelain coating makes the door more durable and easy to maintain

Standard grates

Hold cookware securely over burners

Certifications

California Prop 65 certification

California Prop 65

ADA Compliant certification

ADA Compliant

Specifications

Warranty

PartsYear
Labor1 Year

FEATURES

Slide - Out Broiler DrawerYes
Porcelain-Enameled SubtopYes
Ignition SystemElectronic
Fuel TypeNatural Gas
Cooktop Burner TypeStandard
Oven Rack FeaturesEmbossed Rack Positions
Oven Cleaning TypeStandard Clean
All-Purpose Burners(4) 9,100 BTU
Valves (Degree of Turn)140
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
One-Piece Drip PansOptional Accessory

APPEARANCE

Cooktop Burner Grate ColorBlack
HandleVisor
Frameless Oven Door(s)White Porcelain-Enameled
Color AppearanceWhite

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(4) 9.1
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(4) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.5
Bake/Broiler BTU Rating - LP (000's BTU's)16.5

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)4.8 cu ft

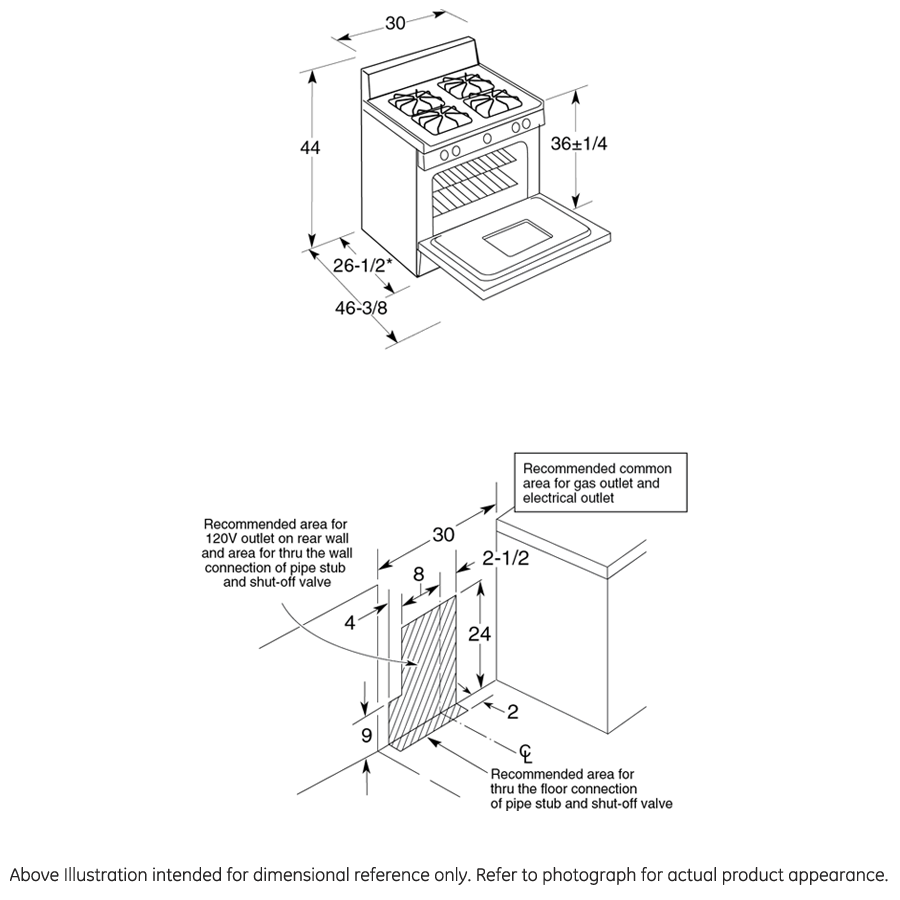

Dimensions & Weight

Width30 in.
Height44 in.
Length26.5 in.
Weight145 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height49 in.
Shipping Length31.5 in.
Shipping Weight185 lbs.
Total of Shipping Weight185 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement20.24 ft³
Dimensional Weight251.65 lbs.
Total of Cubes20.24 ft³
Total of Dimensional Weight251.65 lbs.
