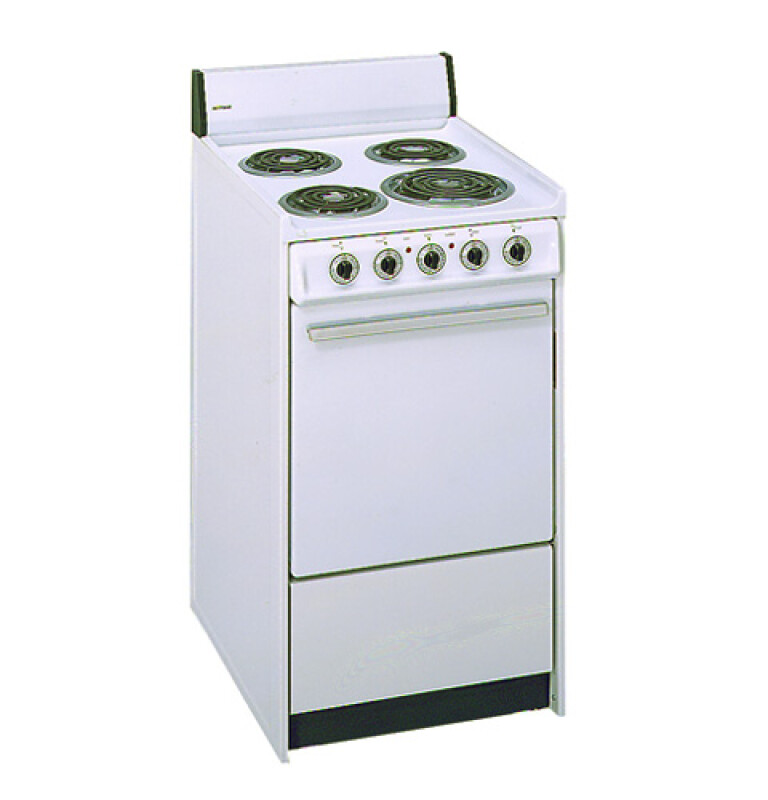

Hotpoint® 20" Compact Electric Range - RA520WWH
Hotpoint® 20" Compact Electric Range
Model: RA520WWH
Hotpoint® 20" Compact Electric Range
Model: RA520WWH
Color : White
Key Features
Compact range
Coil heating elements
Porcelain cooktop
Chrome drip bowls
Broiler pan with grid
Porcelain oven door
Two oven racks
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Compact range
Ideal for 24" or 20" free-standing installations
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Porcelain cooktop
Features a porcelain-coated cooktop that makes clean-up easy
Chrome drip bowls
Contain spills and remove for easy cleaning
Broiler pan with grid
Convenient broiler pan can be used when broiling for crisping and browning
Porcelain oven door
Offers a scratch-resistant porcelain coating for easy cleaning
Two oven racks
Feature a durable construction to help accommodate any size or type of cookware
Certifications
California Prop 65
Specifications
POWER / RATINGS
| KW Rating at 240V | 8.2 |
| KW Rating at 208V | 6.2 |
FEATURES
| Removable One-Piece Drip Bowls | Chrome |
| Broiler Pan and Grid | Yes |
| Oven Control Features | Oven "ON" Light Cycling |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| 6" Heating Element(s) | 3 Plug-In |
| Oven Cleaning Type | Standard Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Recessed |
| Control Location | Upfront |
| 8" Heating Element (s) | 1 Plug-In |
| Leveling System | Easy Level System |
| Cooking Technology | Traditional |
APPEARANCE
| Oven Door Features | Color-Matched Frameless Lift-off Oven Door |
| Handle | Visor |
| Color Appearance | White |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Dimensions & Weight
| Width | 20 in. |
| Height | 40.5 in. |
| Length | 25.5 in. |
| Weight | 94 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25 in. |
| Shipping Height | 45.5 in. |
| Shipping Length | 30.5 in. |
| Shipping Weight | 134 lbs. |
| Total of Shipping Weight | 134 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.95 ft³ |
| Dimensional Weight | 148.6 lbs. |
| Total of Cubes | 11.95 ft³ |
| Total of Dimensional Weight | 148.6 lbs. |
