30" Free-Standing Double Oven Range - PB970DPBB

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Double Oven Range

Model: PB970DPBB

30" Free-Standing Double Oven Range PB970DPBB30" Free-Standing Double Oven Range PB970DPBB30" Free-Standing Double Oven Range PB970DPBB
30" Free-Standing Double Oven Range PB970DPBB
30" Free-Standing Double Oven Range PB970DPBB
30" Free-Standing Double Oven Range PB970DPBB

Color : Black

30" Free-Standing Double Oven Range PB970DPBB
Black

Type : Electric

Key Features

  • 6.6 cu. ft. total oven capacity

  • Upper oven

  • 12"/9"/6" tri-ring element

  • 9"/6" Power Boil element

  • Warming zone

  • Hidden bake oven interior

  • Slow cook mode

  • Pizza mode

Read More

Description

Provides the ideal space for cooking pizzas and smaller items.Provides three cooking areas in one for the ultimate in cooking versatility.47 H x 29 7/8 W x 28 7/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

6.6 cu. ft. total oven capacity

Large capacity is ideal for big meals

Upper oven

Provides the ideal space for cooking pizzas and smaller items

12"/9"/6" tri-ring element

Provides three cooking areas in one for the ultimate in cooking versatility

9"/6" Power Boil element

Accommodates various-size pots or pans and 3,000 Watts of power speeds the boiling process

Warming zone

Provides low heat capability for foods, making meal coordination simple

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

Slow cook mode

Two slow cook options – beef and poultry – deliver ideal conditions for specific meals

Pizza mode

Provides ideal cooking conditions for preparing fresh or frozen pizzas at the touch of a button

Self-clean oven

Conveniently cleans the oven cavity without the need for scrubbing

Self-clean, heavy-duty oven racks

Double coated porcelain-enameled racks no longer require hand cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

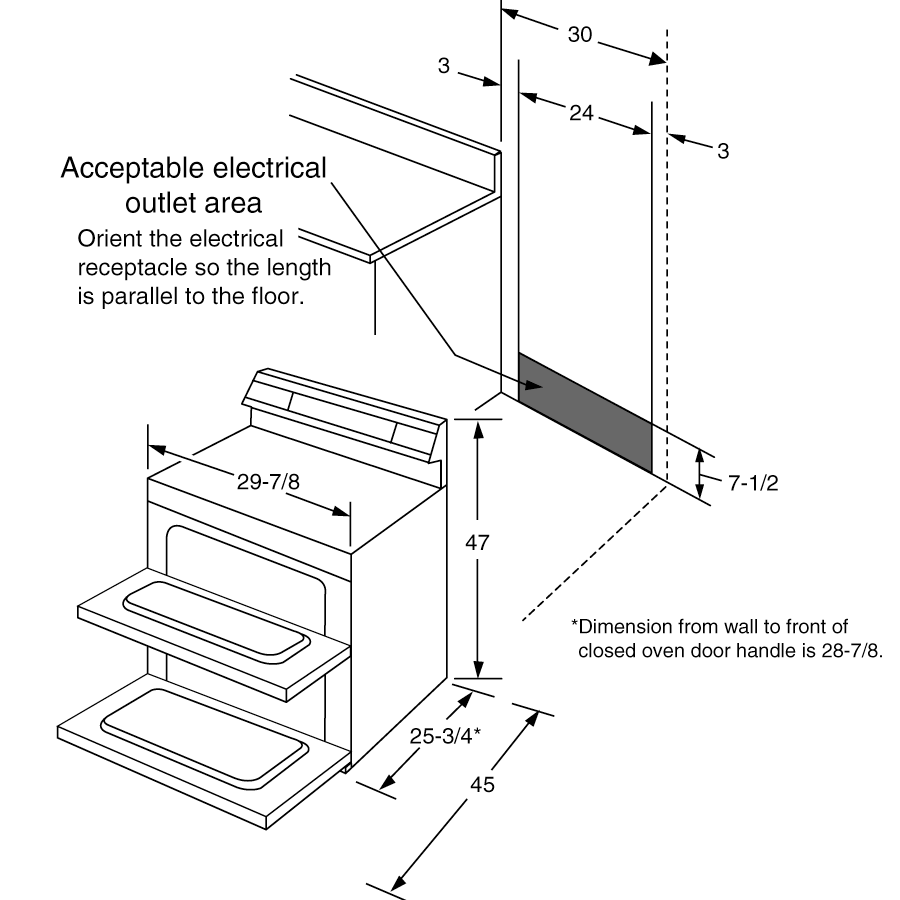

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Overall Height47 in
Net Weight222 lb
Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Depth Without Handle25.75 in
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4
Depth with Door Open45 in
Approximate Shipping Weight233 lb
Overall Depth28 7/8 in
Overall Width29 7/8 in

FEATURES

6"/9" Dual Heating Element1 Ribbon (3,000W Power Boil)
ConfigurationDouble Oven Range
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Oven InteriorHidden Bake (Lower)
Warming Zone1-6" Ribbon (120W)
Oven Control FeaturesWarm Mode
Cooktop Burner TypeSmoothtop
Oven Rack Features4 Self-Clean Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights5, Cooktop
6"/9"/12" Tri-Ring Element1 Ribbon (3,000W)
Heating Element "ON" Indicator LightYes
Cooktop SurfacePatterned Black on Black Glass Ceramic
Control LocationBacksplash
Control TypeTouchpads
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional
Control TypeDigiTemp Temperature Display
Control TypeElectronic
Control TypeGlass Touch
Cooktop Burner Type5 Ribbon
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOven "ON" Light Display
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesStart Pad
Oven Control FeaturesVariable Broil

POWER / RATINGS

KW Rating at 240V13.9
Bake Wattage2650W
Amp Rating at 208V40
Broiler Wattage3600W
KW Rating at 208V10.4
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesBlack Glass Frameless Lift-off Oven Door
HandleHigh-Gloss Color-Matched Sculptured
Color AppearanceBlack on Black
Oven Door FeaturesBig Clear View Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 5-year glass cooktop/radiant surface units
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

CAPACITY

Capacity (Cu. Ft.)2.2 Upper / 4.4 Lower
Total Capacity (cubic feet)6.60 cu ft

ACCESSORIES

Cooktop CleaningSponge
Cooktop CleaningIncluded
Cooktop CleaningCream

Other

Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4

Dimensions & Weight

Width29.88 in.
Height47 in.
Length28.88 in.
Weight222 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52 in.
Shipping Length33.88 in.
Shipping Weight262 lbs.
Total of Shipping Weight262 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.46 ft³
Dimensional Weight291.68 lbs.
Total of Cubes23.46 ft³
Total of Dimensional Weight291.68 lbs.
