30" Free-Standing Gas Range - JGBS23SEMSS

This product has been discontinued by the manufacture and is no longer available.

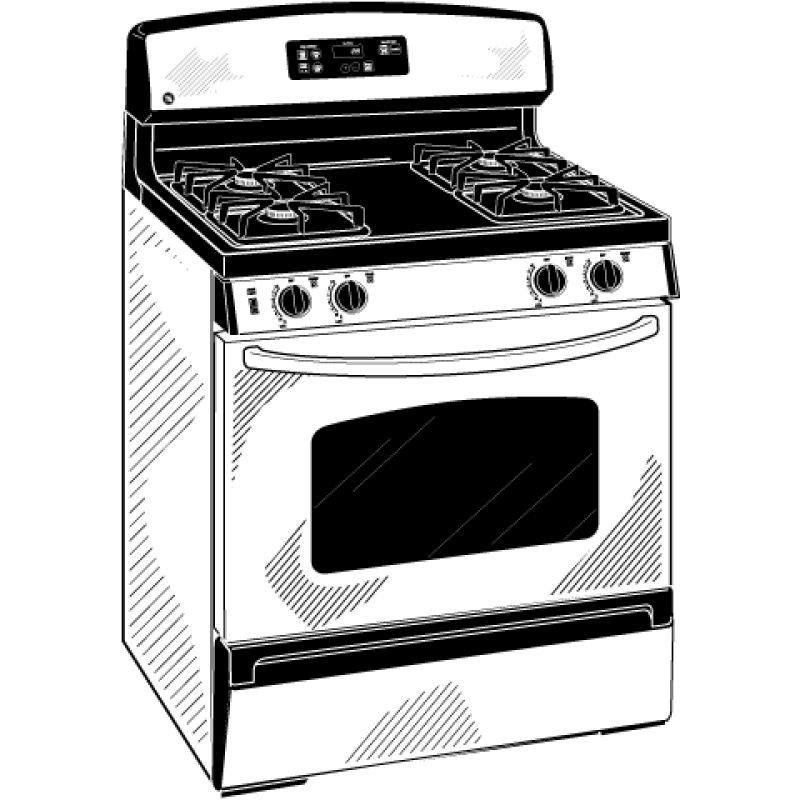

30" Free-Standing Gas Range

Model: JGBS23SEMSS

30" Free-Standing Gas Range JGBS23SEMSS30" Free-Standing Gas Range JGBS23SEMSS30" Free-Standing Gas Range JGBS23SEMSS
30" Free-Standing Gas Range JGBS23SEMSS
30" Free-Standing Gas Range JGBS23SEMSS
30" Free-Standing Gas Range JGBS23SEMSS

Color : Stainless Steel

30" Free-Standing Gas Range JGBS23SEMSS
Stainless Steel

Type : Gas

Key Features

  • Extra-large oven capacity

  • Standard clean oven

  • Precise Simmer burner

  • All purpose burners

  • Sealed cooktop burners

  • Electronic clock and timer

  • Two oven racks

  • Big hearth window

Read More

Description

Smooth surface and rounded corners make clean-up quick and easy.Allows for low, even heat distribution that is ideal for delicate foods and sauces.46 1/2 H x 30 W x 26 1/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Extra-large oven capacity

Enough room to cook an entire meal at once

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Sealed cooktop burners

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless

Electronic clock and timer

Convenient clock and timer helps you coordinate meal preparation and cooking

Two oven racks

Includes two oven racks that are sturdy and reliable

Big hearth window

Elegant shaped window makes it easy to monitor the progress of food

Frameless glass oven door

Simple and stylish frameless glass door creates an elegant look that blends into cabinetry, and is easy to wipe clean

Deluxe grates

Deluxe grates hold pots and pans over burners for everyday cooktop cooking

Certifications

California Prop 65 certification

California Prop 65

Specifications

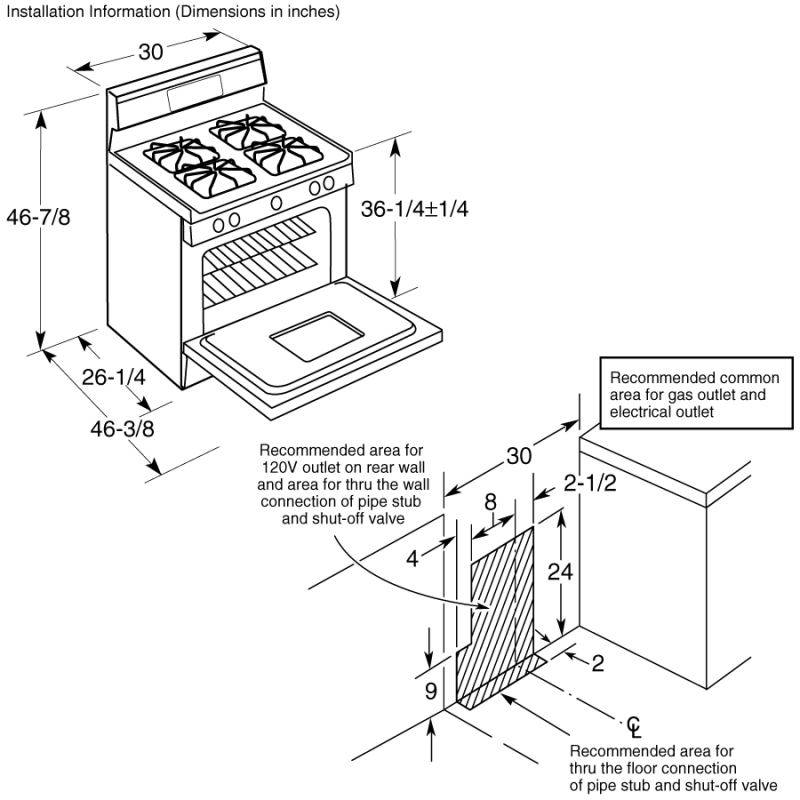

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight165 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Cabinet Width30 in
Approximate Shipping Weight185 lb
Overall Depth26 1/4 in
Overall Height46 1/2 in

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.5 in.
Length26.25 in.
Weight165 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.5 in.
Shipping Length31.25 in.
Shipping Weight205 lbs.
Total of Shipping Weight205 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.19 ft³
Dimensional Weight263.44 lbs.
Total of Cubes21.19 ft³
Total of Dimensional Weight263.44 lbs.

FEATURES

Slide - Out Broiler DrawerYes
Ignition SystemElectronic
Broiler Pan and GridYes
Fuel TypeNatural Gas
Oven InteriorInterior Oven Light
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Clock and Minute TimerElectronic
Oven Cleaning TypeStandard Clean
High Output Burner(1) 12,000/1,000 BTU
All-Purpose Burners(2) 9,500/850 BTU
Cooktop Burner Grate MaterialSquare
Valves (Degree of Turn)270
BackguardScratch-Resistant
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet III
Precise Simmer Burner(1) 5,000/600 BTU
One-Piece Drip PansBlack Porcelain-Enameled
Control TypeElectronic Oven Controls
Cooktop Burner Grate MaterialDeluxe Porcelain Steel
Cooktop SurfaceOne-Piece Upswept
Oven Rack Features2 Oven Racks
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorBlack
Oven Door FeaturesBig Hearth Oven Window
HandleStainless Steel Sculptured
Frameless Oven Door(s)Stainless Steel
Control KnobsDesigner-Style
Color AppearanceStainless Steel/Black

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 12.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0
Bake/Broiler BTU Rating - LP (000's BTU's)16.5

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)4.80 cu ft
