Home/Cooking/Ranges/Freestanding Ranges/JGBS23DETWW

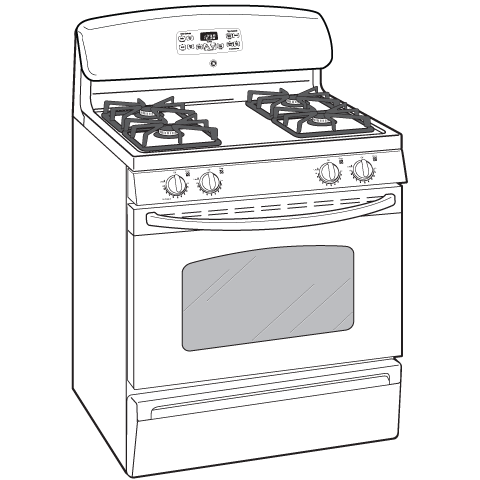

30" Free-Standing Gas Range with Steam Clean - JGBS23DETWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range with Steam Clean

Model: JGBS23DETWW

30" Free-Standing Gas Range with Steam Clean JGBS23DETWW30" Free-Standing Gas Range with Steam Clean JGBS23DETWW30" Free-Standing Gas Range with Steam Clean JGBS23DETWW
30" Free-Standing Gas Range with Steam Clean JGBS23DETWW
30" Free-Standing Gas Range with Steam Clean JGBS23DETWW
30" Free-Standing Gas Range with Steam Clean JGBS23DETWW

Color : White

30" Free-Standing Gas Range with Steam Clean JGBS23DETWW
White

Type : Gas

GasElectric

Key Features

  • 4.8 cu. ft. oven capacity

  • Steam clean

  • 12,500 BTU high-output burner

  • Precise Simmer burner

  • Big hearth window

Description

Helps to clean with the power of steam.Quickly produces high heat.46 1/2 H x 30 W x 26 1/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

4.8 cu. ft. oven capacity

More room for cooking more dishes at once

Steam clean

Helps to clean with the power of steam

12,500 BTU high-output burner

Quickly produces high heat

Precise Simmer burner

Delivers a low setting of 140 degrees

Big hearth window

Makes monitoring of foods easy

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

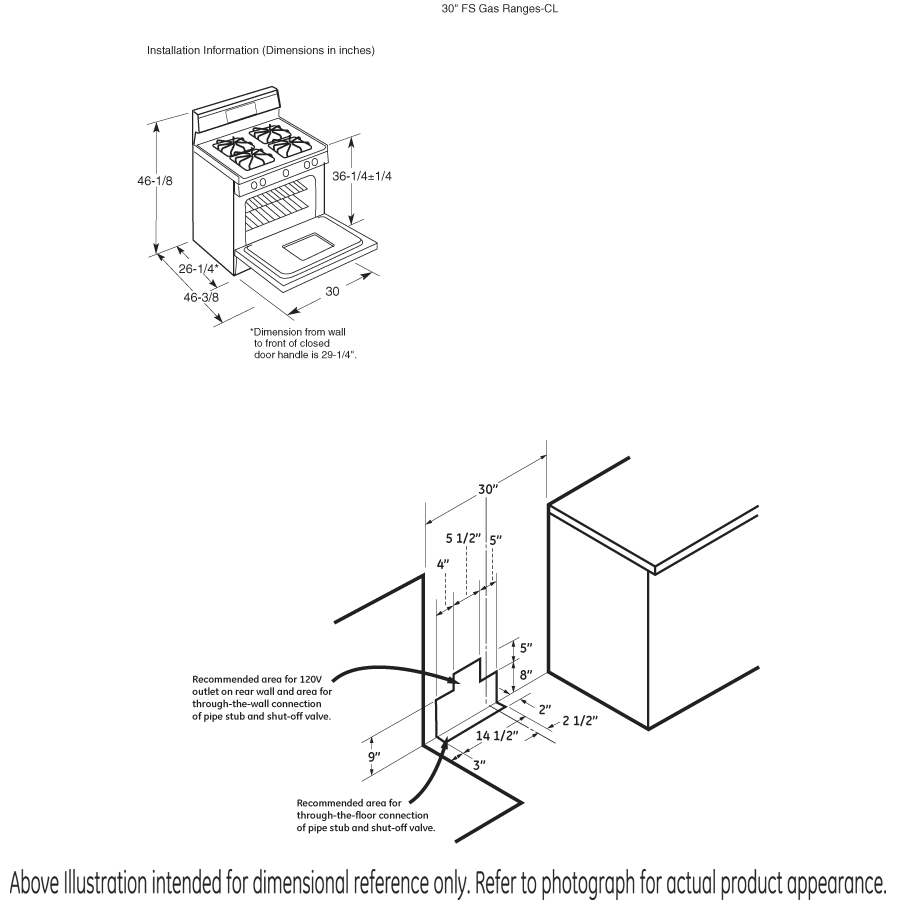

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight160 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Depth with Door Open 90°46.25 in
Cabinet Width30 in
Approximate Shipping Weight180 lb
Overall Depth26 1/4 in
Overall Height46 1/2 in
Height to Cooking Surface (in.)36.25 +/- .25

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.5 in.
Length26.25 in.
Weight160 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.5 in.
Shipping Length31.25 in.
Shipping Weight200 lbs.
Total of Shipping Weight200 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.19 ft³
Dimensional Weight263.44 lbs.
Total of Cubes21.19 ft³
Total of Dimensional Weight263.44 lbs.

FEATURES

Slide - Out Broiler DrawerYes
ConfigurationRange with Broiler Drawer
Ignition SystemElectronic
Broiler Pan and GridYes
Burner - Right Rear5,000 BTU Precise Simmer
Fuel TypeNatural Gas
Oven InteriorInterior Oven Light
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Temperature Management SystemTrue Temp System
Burner - Left Rear9,500 BTU
Oven Cleaning TypeStandard Clean with Steam Option
Cooktop Burner Grate MaterialSquare
Valves (Degree of Turn)270
BackguardScratch-Resistant
Cooktop SurfacePorcelain-Enamel
Burner - Left Front9,500 BTU
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeElectronic Oven Controls
One-Piece Drip PansOptional Accessory
Cooking TechnologyTraditional
Burner - Right Front12,500 BTU
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesSabbath Mode
Cooktop Burner Grate MaterialDeluxe Porcelain Steel
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesHi / Low Broil
Oven Rack Features2 Oven Racks
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorGray
Oven Door FeaturesBig Hearth Oven Window
Frameless Oven Door(s)White Glass
Control KnobsDesigner-Style
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceWhite on White

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 12.5; (2) 9.5, (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0
Bake/Broiler BTU Rating - LP (000's BTU's)16.5

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)4.80 cu ft
