30" Free-Standing Gas Range - JGBS22WEKWW

This product has been discontinued by the manufacture and is no longer available.

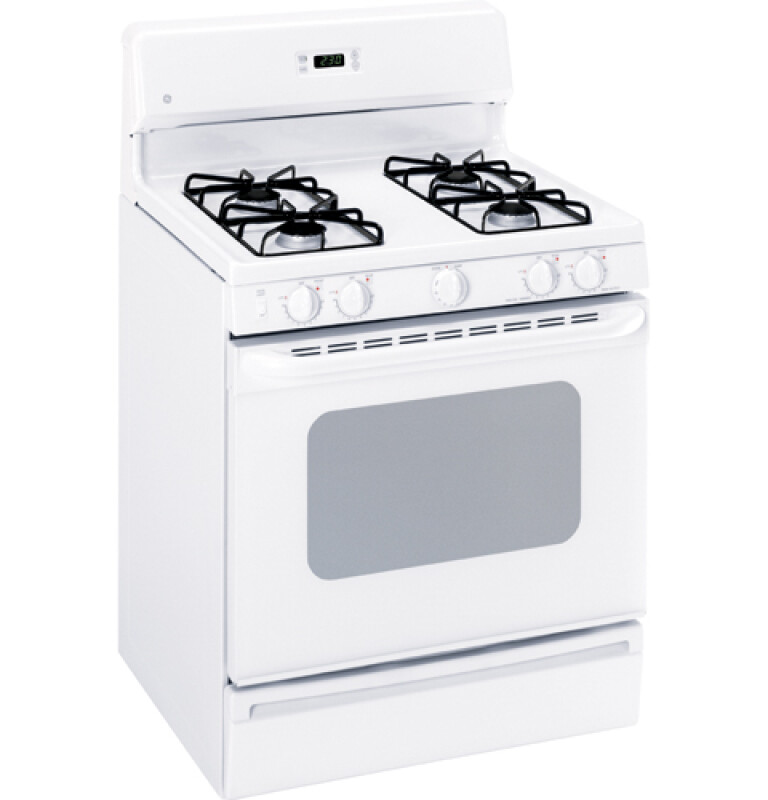

30" Free-Standing Gas Range

Model: JGBS22WEKWW

30" Free-Standing Gas Range JGBS22WEKWW30" Free-Standing Gas Range JGBS22WEKWW30" Free-Standing Gas Range JGBS22WEKWW
30" Free-Standing Gas Range JGBS22WEKWW
30" Free-Standing Gas Range JGBS22WEKWW
30" Free-Standing Gas Range JGBS22WEKWW

Color : White

30" Free-Standing Gas Range JGBS22WEKWW
White

Type : Gas

Key Features

  • Extra-large oven capacity

  • All purpose burners

  • Sealed cooktop burners

  • Electronic clock and timer

  • Standard grates

  • Frameless glass oven door

  • Designer-style handle

  • Broiler pan with grid

Read More

Description

Deliver a wide range of heat output ideal for most cooking needs.Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup.46 1/2 H x 30 W x 26 1/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Extra-large oven capacity

Provides a large oven interior ideal for cooking more items at once

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Electronic clock and timer

Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen

Standard grates

Provide a sturdy and convenient cookware surface for everyday cooking

Frameless glass oven door

Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry

Designer-style handle

Exudes a clean style that adds to the modern appearance of the range

Broiler pan with grid

Convenient broiler pan can be used when broiling for crisping and browning

Electronic pilotless ignition

Provides reliable burner ignition operation, eliminating the need for a standing pilot

Porcelain upswept cooktop

Features raised edges to help contain spills and make clean-up easy

Interior oven light

Supplies light to make viewing the progress of cooking easy and convenient

Six rack positions

Provides flexibility and allows consumers to make the most of available oven capacity

Two oven racks

Feature a durable construction to help accommodate any size or type of cookware

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

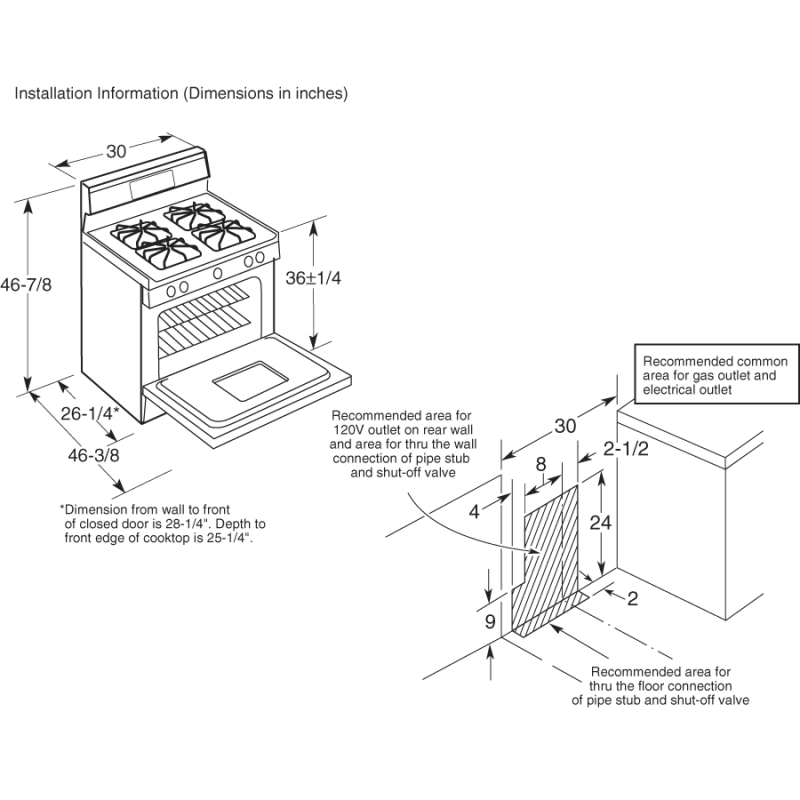

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth26.25 in
Overall Height46.5 in
Net Weight150 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Height to Cooking Surface (in.)36 +/- 1/4
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight172 lb

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.5 in.
Length26.25 in.
Weight150 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.5 in.
Shipping Length31.25 in.
Shipping Weight190 lbs.
Total of Shipping Weight190 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.19 ft³
Dimensional Weight263.44 lbs.
Total of Cubes21.19 ft³
Total of Dimensional Weight263.44 lbs.

FEATURES

Slide - Out Broiler DrawerYes
Ignition SystemElectronic
Broiler Pan and GridLarge
Interior Oven LightYes
Fuel TypeNatural Gas
Oven Control FeaturesElectronic Clock and Timer
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Oven Cleaning TypeStandard Clean
All-Purpose Burners(4) 9,500/850 BTU
Cooktop Burner Grate MaterialSquare
Valves (Degree of Turn)140
BackguardScratch-Resistant
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
One-Piece Drip PansOptional Accessory

APPEARANCE

Cooktop Burner Grate ColorBlack
Oven Door FeaturesBig Clear View Oven Window
HandleDesigner Style
Frameless Oven Door(s)White Glass
Control KnobsDesigner-Style
Color AppearanceWhite on White

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)4.8 cu ft

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(4) 9.5
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(4) 9.5
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0
Bake/Broiler BTU Rating - LP (000's BTU's)16.5

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
