30" Free-Standing Gas Range with Baking Drawer - JGB900SEPSS

This product has been discontinued by the manufacture and is no longer available.

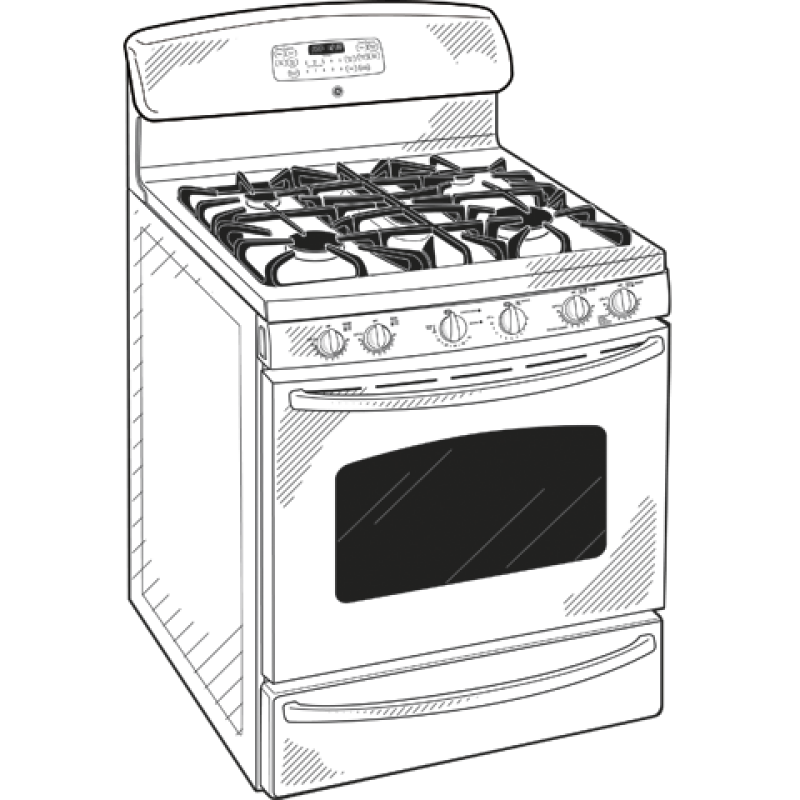

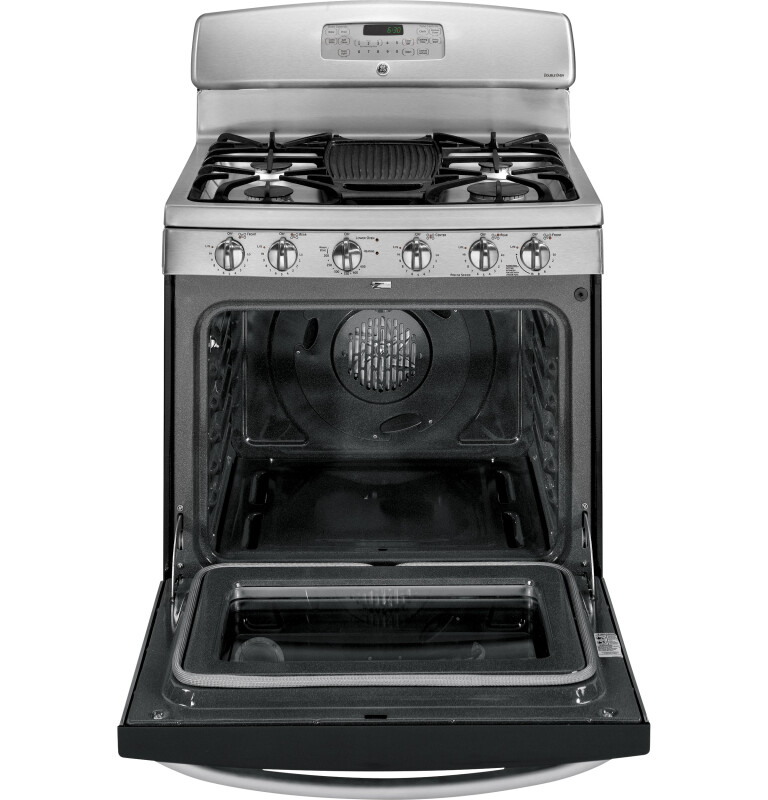

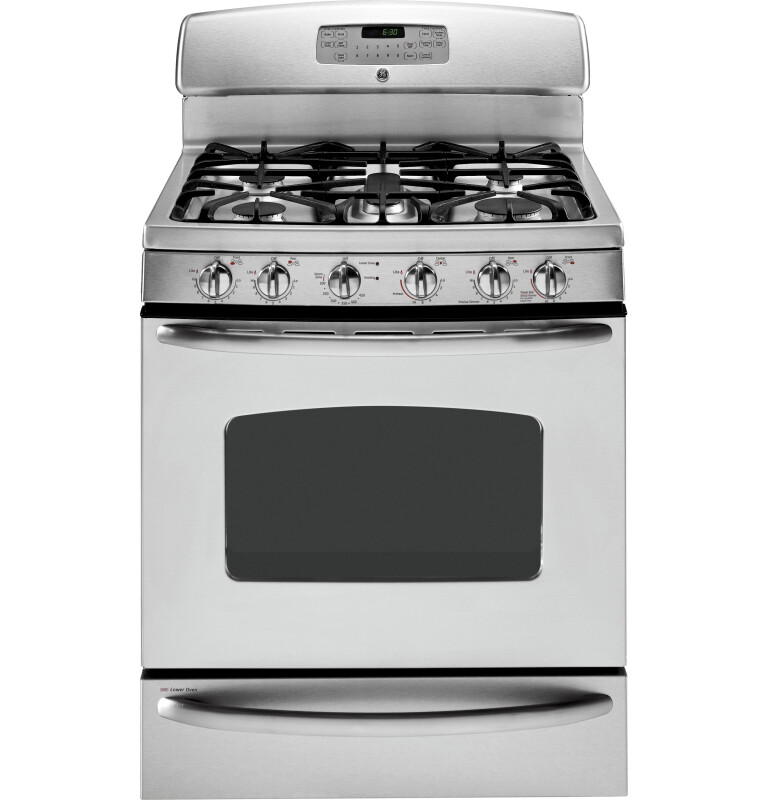

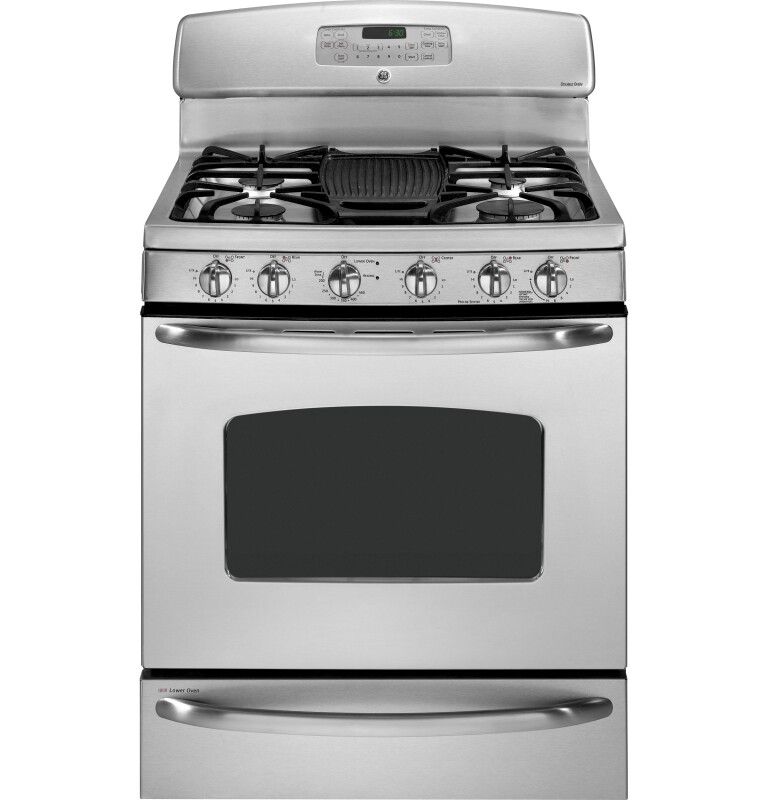

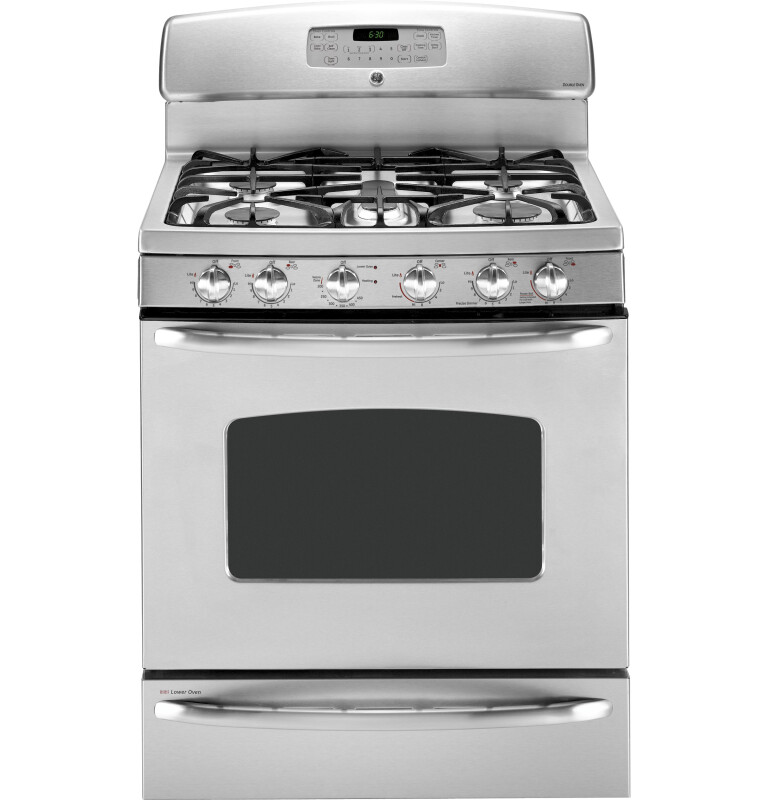

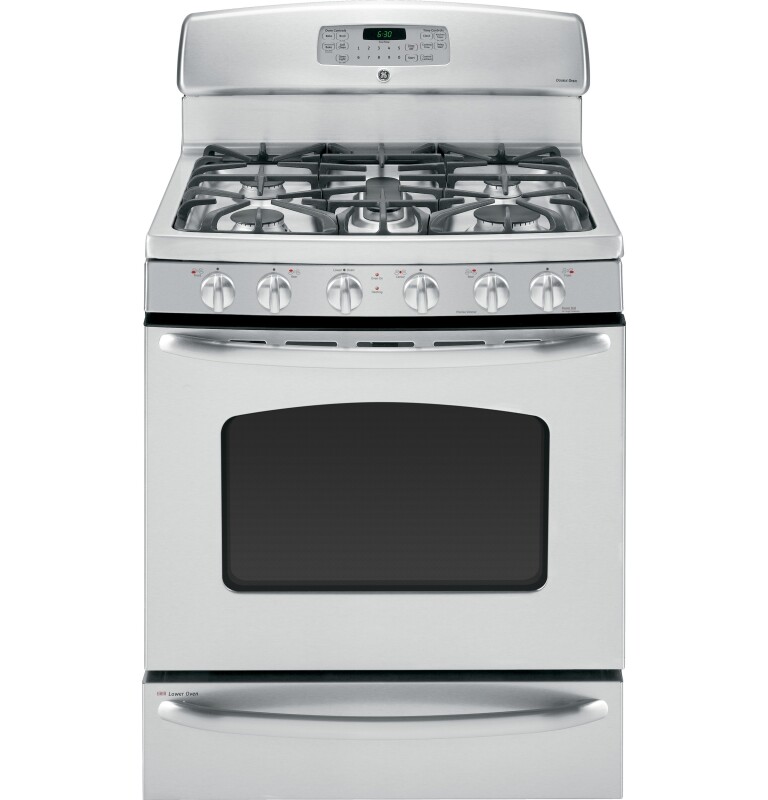

30" Free-Standing Gas Range with Baking Drawer

Model: JGB900SEPSS

30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS
30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS
30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS
30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS
30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS
30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS
+2more

Color : Stainless Steel

30" Free-Standing Gas Range with Baking Drawer JGB900SEPSS
Stainless Steel

Type : Gas

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • Gas convection oven

  • Baking drawer

  • Continuous grates

  • Reversible cast-iron griddle/grill

  • Power Boil 17,000 burner

  • Center oval burner

Read More

Description

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.Convection heating circulates the air to keep the heat consistent, enhancing the baking or roasting results.47 H x 30 W x 26 5/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

Gas convection oven

Convection heating circulates the air to keep the heat consistent, enhancing the baking or roasting results

Baking drawer

Lower oven with heating up 450° offers additional cooking space when you need it most

Continuous grates

Connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily

Reversible cast-iron griddle/grill

Provides the flexibility to sear meats on the grill and cook delicate meals on the griddle

Power Boil 17,000 burner

This powerful element instantly supplies the intense heat need for boiling, sautéing and stir frying

Center oval burner

Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

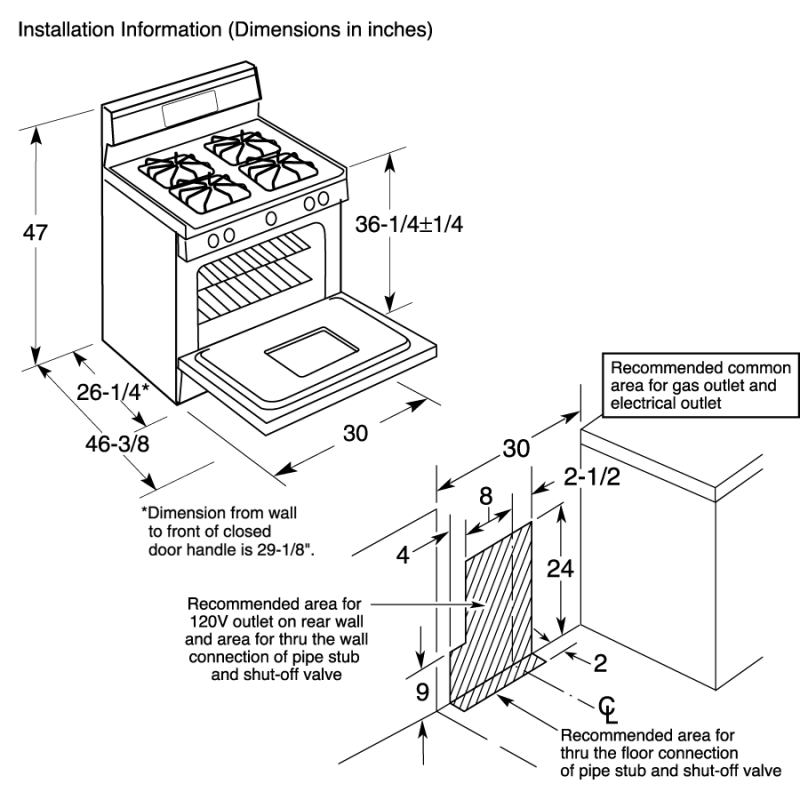

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Height47 in
Net Weight205 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight225 lb
Overall Depth26 5/8 in
Height to Cooking Surface (in.)36.25 +/- .25

Dimensions & Weight

Width30 in.
Height47 in.
Length26.63 in.
Weight205 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length31.63 in.
Shipping Weight245 lbs.
Total of Shipping Weight245 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.73 ft³
Dimensional Weight270.08 lbs.
Total of Cubes21.73 ft³
Total of Dimensional Weight270.08 lbs.

FEATURES

ConfigurationRange with Baking Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Fuel TypeNatural Gas
Oven InteriorInterior Oven Light
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 17,000 BTU
Clock and Minute TimerElectronic
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 12,000 BTU
GriddlePre-Seasoned Cast Iron
All-Purpose Burners(1) 9,500 BTU
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesDishwasher Safe
BackguardStainless Steel
Center Oval Burner(1) 10,000 BTU
Cooktop SurfaceStainless Steel
Baking Drawer FeaturesElectronic Control
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet VI
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Cooking TechnologyConvection
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Baking Drawer Features140-450 Degrees F Temperature Settings
Control TypeDigital Temperature Display
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Rack Features2 Oven Racks
BackguardScratch-Resistant

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig Hearth Oven Window
HandleStainless Steel Sculptured
Frameless Oven Door(s)Stainless Steel
Control KnobsStainless Steel Appearance
Color AppearanceStainless Steel
Control KnobsDesigner-Style

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (1) 10.0; (1) 9.5; (1) 8.0; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Capacity (Cu. Ft.)5.0 Upper / 1.0 Lower
Total Capacity (cubic feet)6.00 cu ft
