30" Free-Standing Gas Double Oven Range with Convection - JGB870SETSS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

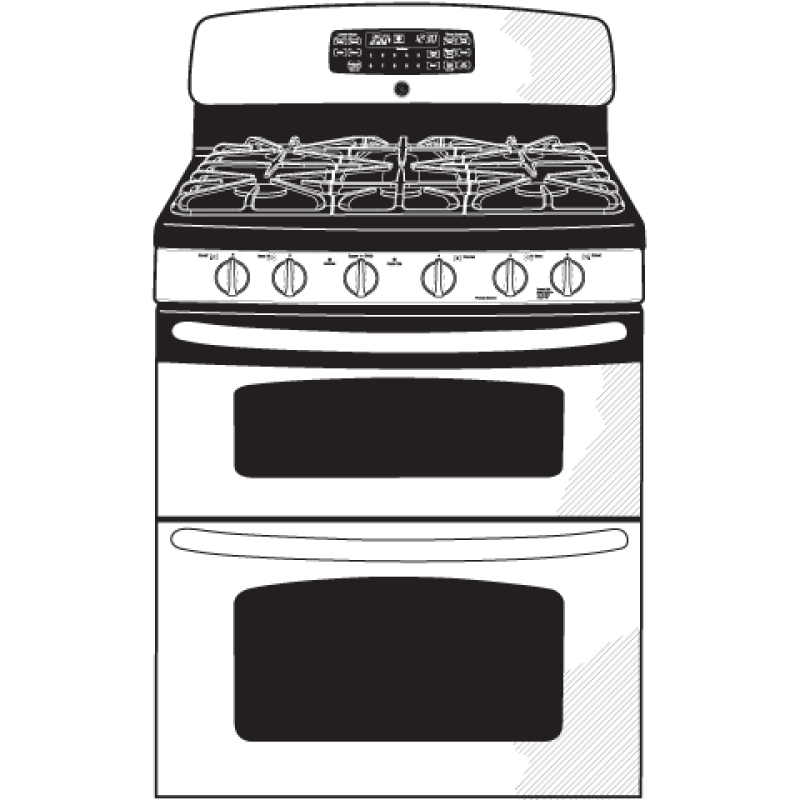

30" Free-Standing Gas Double Oven Range with Convection

Model: JGB870SETSS

30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS
30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS
30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS
30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS
30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS

Product Video

GE 30" Free-Standing Gas Double Oven Range with Convection Stainless Steel JGB870SETSS Picture
2 Videos

Color : Stainless Steel

30" Free-Standing Gas Double Oven Range with Convection JGB870SETSS
Stainless Steel

Type : Gas

GasElectric

Key Features

  • Double oven 6.7 cu. ft. total capacity

  • Gas convection oven

  • Self-clean oven

  • 17,000 BTU Power Boil burner

  • Non-stick griddle

  • Precise Simmer burner

Description

Circulates heat for high-quality results.Cleans the oven cavity without the need for scrubbing.47 7/16 H x 30 W x 29 11/16 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Double oven 6.7 cu. ft. total capacity

Largest capacity in the industry means cooking more at once and in less time

Gas convection oven

Circulates heat for high-quality results

Self-clean oven

Cleans the oven cavity without the need for scrubbing

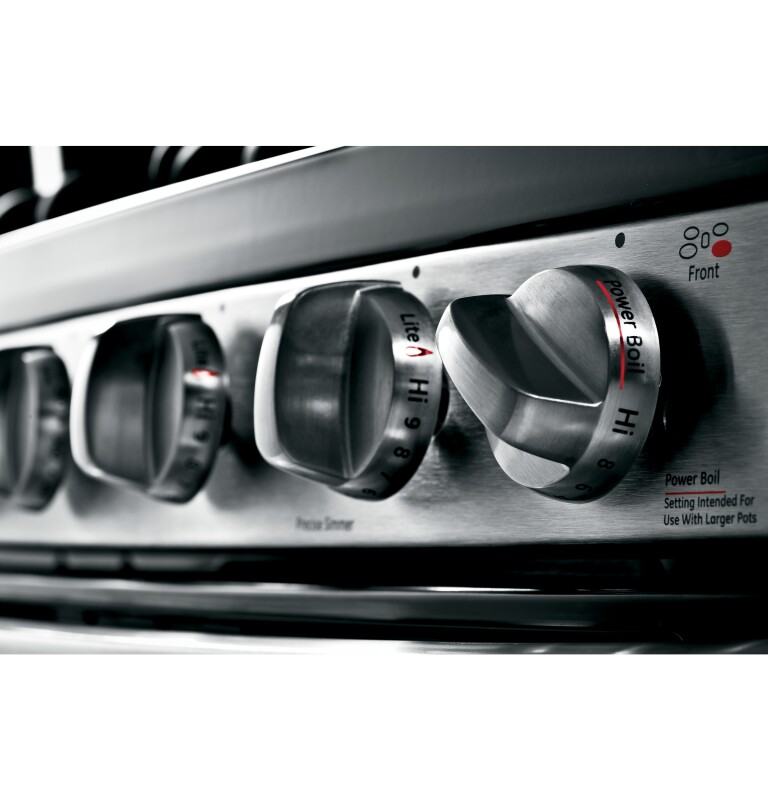

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

Non-stick griddle

Large non-stick surface perfect for griddle cooking

Precise Simmer burner

Delivers a low setting of 140 degrees

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

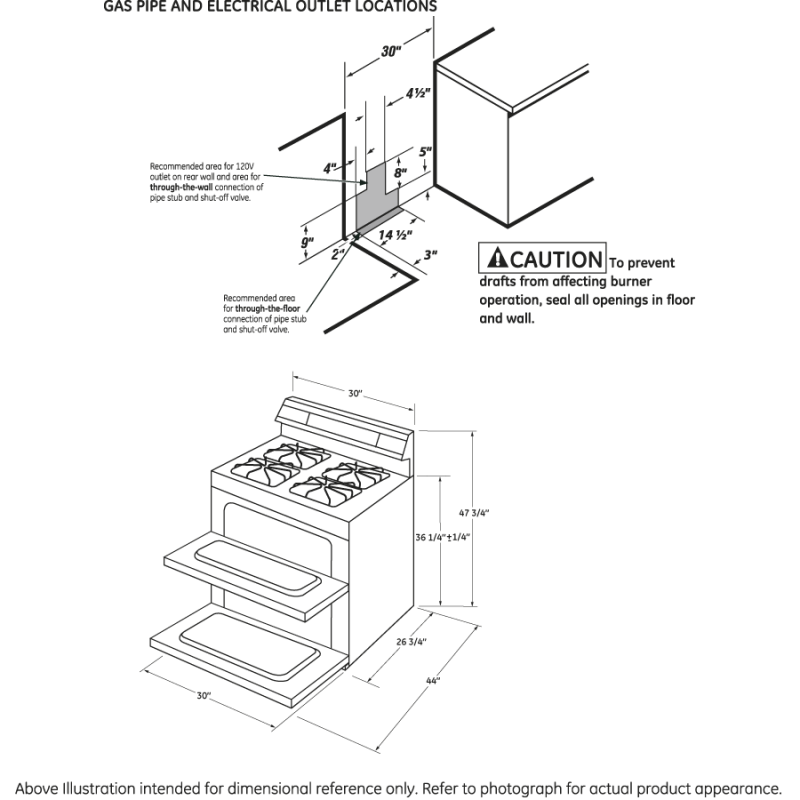

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight205 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/8 x 18-7/8 - Upper; 24 x 15 x 20-5/8 - Lower
Depth with Door Open 90°43.75 in
Cabinet Width30 in
Approximate Shipping Weight225 lb
Overall Depth29 11/16 in
Overall Height47 7/16 in
Height to Cooking Surface (in.)36.25

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/8 x 18-7/8 - Upper; 24 x 15 x 20-5/8 - Lower

Dimensions & Weight

Width30 in.
Height47.44 in.
Length29.69 in.
Weight205 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.44 in.
Shipping Length34.69 in.
Shipping Weight245 lbs.
Total of Shipping Weight245 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement24.45 ft³
Dimensional Weight303.95 lbs.
Total of Cubes24.45 ft³
Total of Dimensional Weight303.95 lbs.

FEATURES

ConfigurationDouble Oven Range
Cleaning TimeVariable
Ignition SystemElectronic
Fuel TypeNatural Gas
Oven InteriorOven Interior Light (Both Ovens)
Oven Cooking ModesConvection Roast
Cooktop Burner TypeSealed
Oven Rack Features3 Oven Racks
Power Boil Burner(1) 17,000 BTU
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean (Both Ovens)
High Output Burner(1) 11,000 BTU
GriddleNon-Stick
All-Purpose Burners(1) 9,100 BTU
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesContinuous Grates
BackguardStainless Steel
Center Oval Burner(1) 6,000 BTU
Dishwasher Safe KnobsYes
Leveling System4 Leveling Legs
Control TypeDigital Temperature Display
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional Upper; Convection Lower
Cooktop SurfaceDeep Recessed
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesSelf-Clean Cool Down Time Display
Cooktop SurfacePorcelain-Enamel
Cooktop SurfaceColor-Matched
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Cooking ModesConvection Bake
BackguardScratch-Resistant

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesEasy clean oven door
Frameless Oven Door(s)Stainless Steel
Control KnobsDeluxe Heavy-Duty
Handle DesignD-shaped
Handle ColorStainless Steel
Color AppearanceStainless Steel
Oven Door FeaturesBig Hearth Oven Windows

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 9A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (2) 9.1; (1) 5.0; (1) 6.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)12.0 / 10.0 Upper; 16.0 / 1150W Lower
Bake/Broiler BTU Rating - LP (000's BTU's)10.0 / 10.0 - Upper; 13.5 / 1150W - Lower

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Capacity (Cu. Ft.)2.4 Upper / 4.3 Lower
Total Capacity (cubic feet)6.70 cu ft
