30" Free-Standing Gas Double Oven Convection Range - JGB860FEJDS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Double Oven Convection Range

Model: JGB860FEJDS

30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS
30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS
30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS
30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS
30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS
30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS
+3more

Product Video

GE 30" Free-Standing Gas Double Oven Convection Range Black Slate JGB860FEJDS Picture
6 Videos

Color : Black Slate

30" Free-Standing Gas Double Oven Convection Range JGB860FEJDS
Black Slate

Type : Gas

GasElectric

Key Features

  • Edge-to-edge cooktop

  • Extra-large integrated non-stick griddle

  • Gas convection oven (lower oven)

  • Double oven 6.8 cu. ft. total capacity

  • 18,000 BTU Power Boil burner

  • Center oval burner

  • Self-clean with Steam Clean option

  • Precise Simmer burner

Read More

Description

Cook up to six grilled cheeses at once on the industry's largest integrated griddle.Circulates heat for high-quality results.47 1/4 H x 30 W x 29 1/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

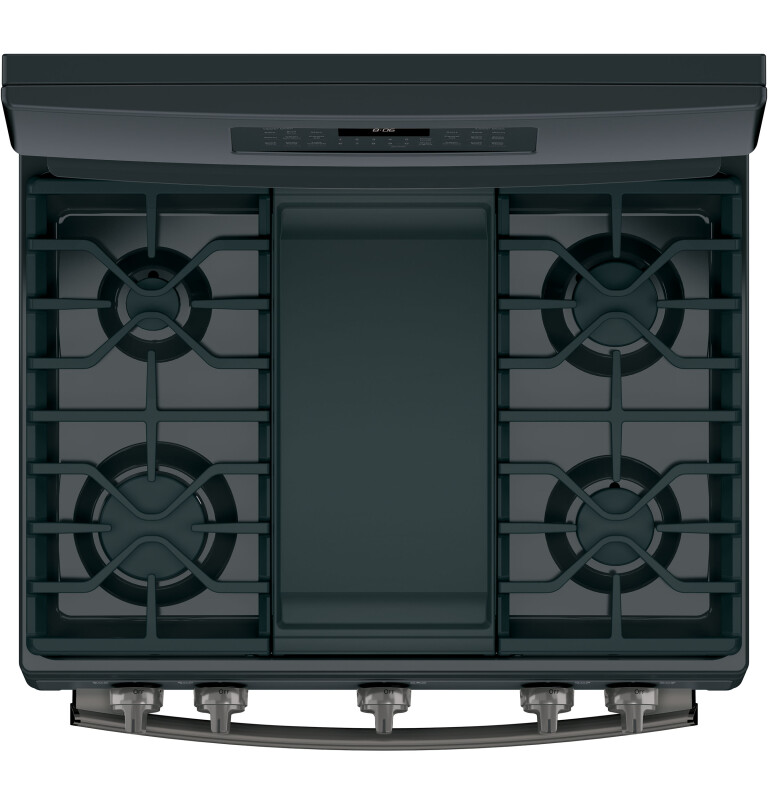

Edge-to-edge cooktop

A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

Extra-large integrated non-stick griddle

Cook up to six grilled cheeses at once on the industry's largest integrated griddle

Gas convection oven (lower oven)

Circulates heat for high-quality results

Double oven 6.8 cu. ft. total capacity

Large capacity is ideal for big meals

18,000 BTU Power Boil burner

Boil water fast with intense heat from this 18,000 BTU burner

Center oval burner

Large oval fifth burner is ideal for griddle cooking

Self-clean with Steam Clean option

Clean your oven the way you want

Precise Simmer burner

Delicate foods don’t burn with low, even heat

Heavy duty, dishwasher safe grates

Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven

Black gloss oven interior

Enjoy a clean and sleek appearance

Certifications

California Prop 65 certification

California Prop 65

Specifications

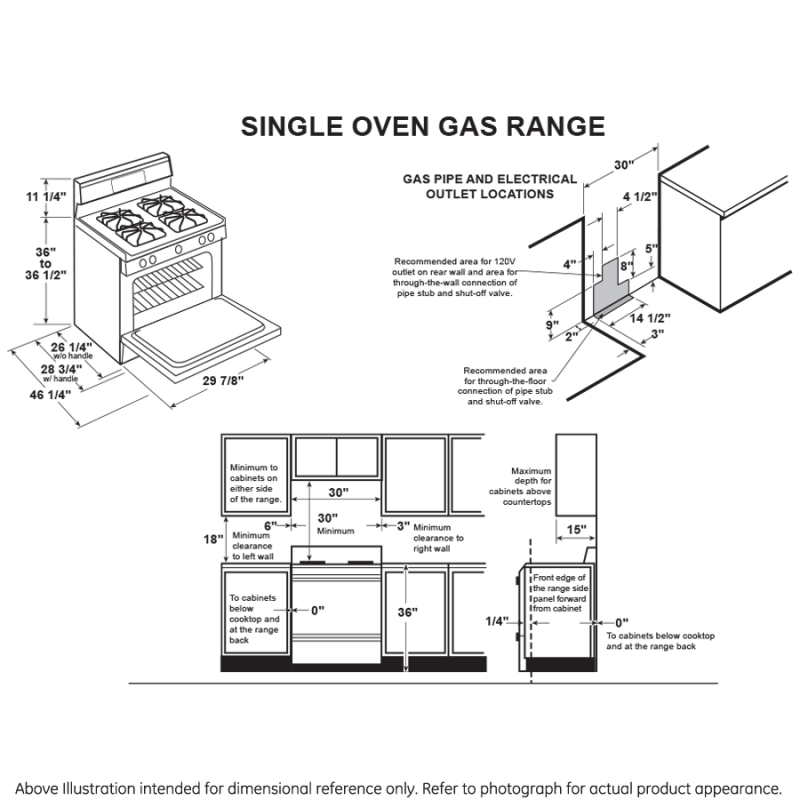

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight205 lb
Depth Without Handle26.75 in
Cabinet Width30 in
Approximate Shipping Weight225 lb
Depth with Door Open43.5 in
Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
Overall Depth29 1/4 in
Overall Height47 1/4 in
Height to Cooking Surface (in.)36 - 36.5

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower

Dimensions & Weight

Width30 in.
Height47.25 in.
Length29.25 in.
Weight205 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.25 in.
Shipping Length34.25 in.
Shipping Weight245 lbs.
Total of Shipping Weight245 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.99 ft³
Dimensional Weight298.29 lbs.
Total of Cubes23.99 ft³
Total of Dimensional Weight298.29 lbs.

APPEARANCE

Cooktop Burner Grate ColorMatte Black
HandleDesigner Style
Oven Door FeaturesBig View Oven Window
Control KnobsBlack Stainless
Color AppearanceFingerprint Resistant Black Slate
HandleBlack Stainless

FEATURES

Ignition SystemElectronic
Burner - Right Rear12,000 BTU
Oven Rack Features3 Oven Racks
Burner - Left Rear5,000 BTU Precise Simmer
Oven Cleaning TypeSelf-Clean with Steam Clean Option (Both Ovens)
GriddleIntegrated Non-Stick (Included)
Product TypeFree-Standing Double Oven
Cooktop TypeContinuous Grates with Griddle
Cooktop Burner Grate MaterialHeavy Cast Iron
Fuel TypeNatural Gas
Burner - Center10,000 BTU Oval
Interior Oven Light1 Auto Incandescent (Both Ovens)
Cooktop Burner Grate FeaturesDishwasher Safe
Control TypeElectronic Touch
Burner - Left Front18,000 BTU Power Boil
Cooking TechnologyTraditional Upper; Convection Lower
ConfigurationDouble Oven Range
Oven Cooking ModesConvection Roast
Cooktop Burner TypeSealed
Burner - Right Front9,500 BTU
Oven Rack Positions (Single or Upper/Lower)2 / 5
Cooktop SurfaceGray
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Cooktop SurfacePorcelain-Enamel
Cooktop SurfaceEdge-to-Edge
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesControl Lock Capability
Oven Cooking ModesConvection Bake

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 18.0; (1) 5.0; (1) 18.0; (1) 12.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)12.0 / 10.0 - Upper; 14.0 / 0.0 - Lower
Bake/Broiler BTU Rating - LP (000's BTU's)10.0 / 10.0 - Upper; 13.5 / 0.0 - Lower

ACCESSORIES

Optional AccessoriesWB48X21543 Roller Rack
Center GrateOptional
Griddle AccessoryIntegrated Non-Stick (Included)
LP Conversion KitIncluded

CAPACITY

Capacity (Cu. Ft.)2.5 Upper / 4.3 Lower
Total Capacity (cubic feet)6.80 cu ft

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
