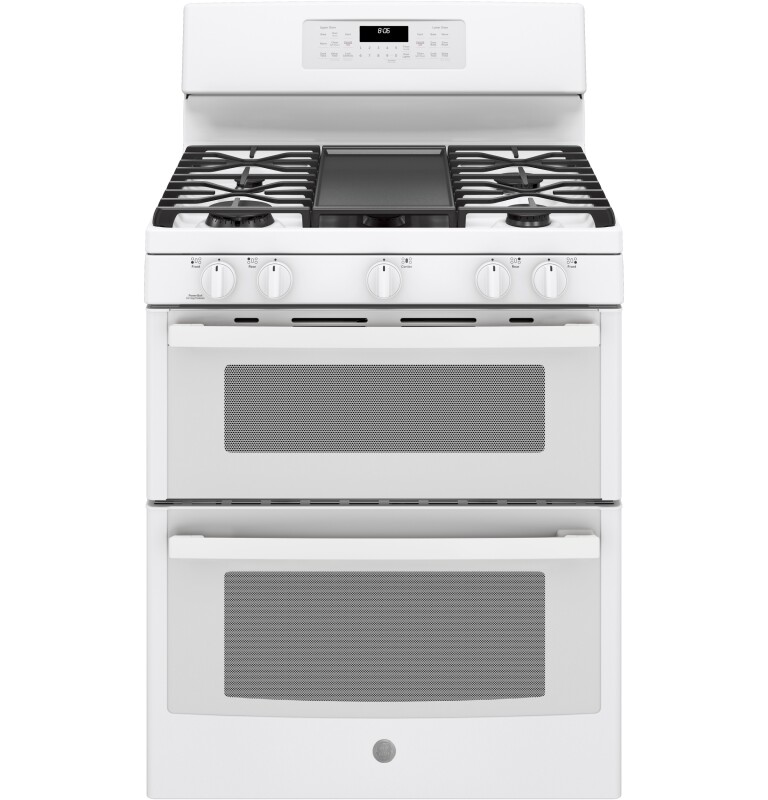

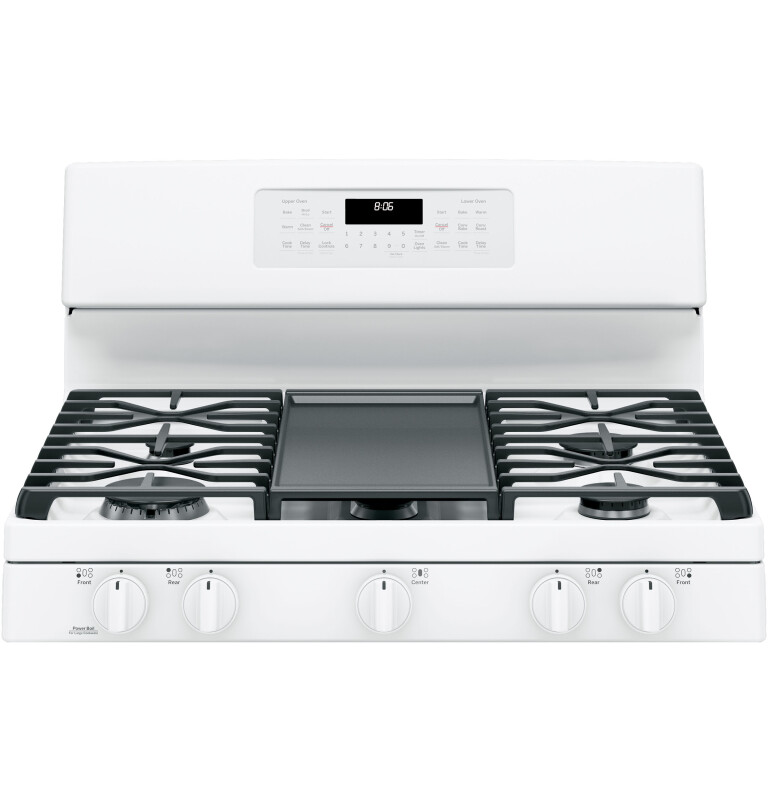

30" Free-Standing Gas Double Oven Convection Range - JGB860DEJWW
30" Free-Standing Gas Double Oven Convection Range
Model: JGB860DEJWW
Product Video
30" Free-Standing Gas Double Oven Convection Range
Model: JGB860DEJWW
Color : White
Key Features
Edge-to-edge cooktop
Extra-large integrated non-stick griddle
Gas convection oven (lower oven)
Double oven 6.8 cu. ft. total capacity
18,000 BTU Power Boil burner
Center oval burner
Self-clean with Steam Clean option
Precise Simmer burner
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features

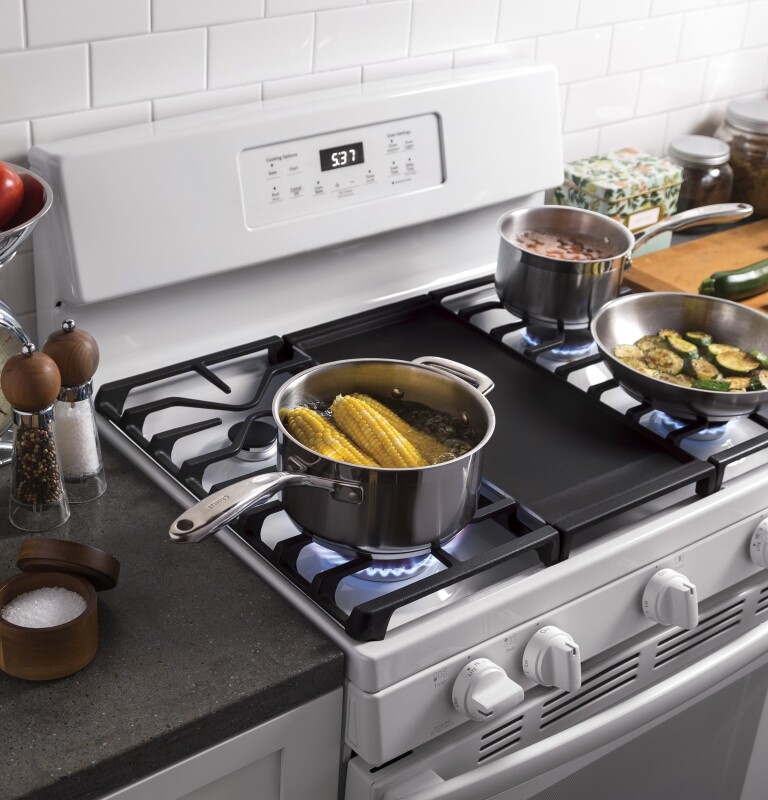

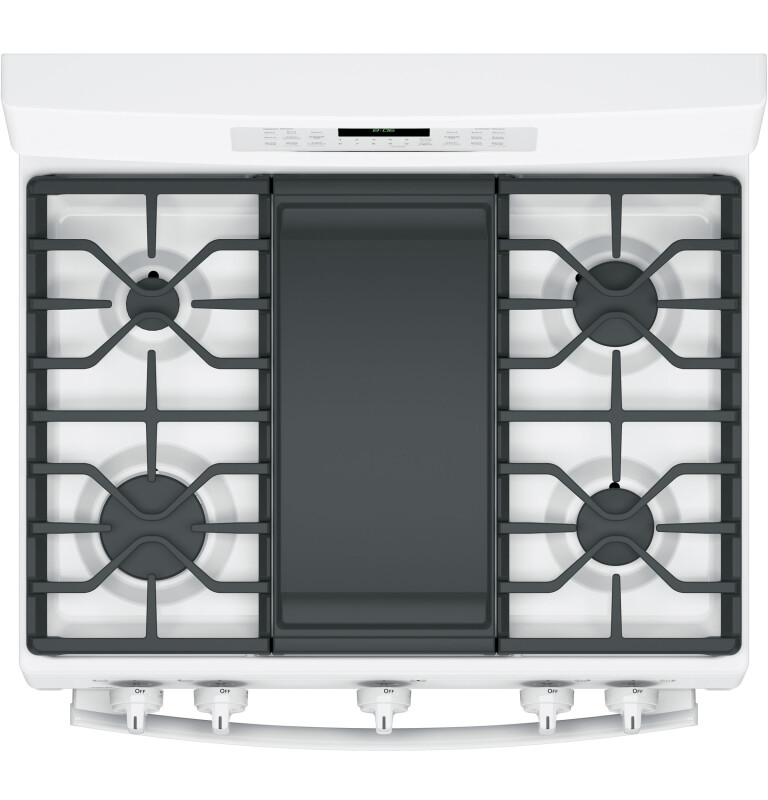

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

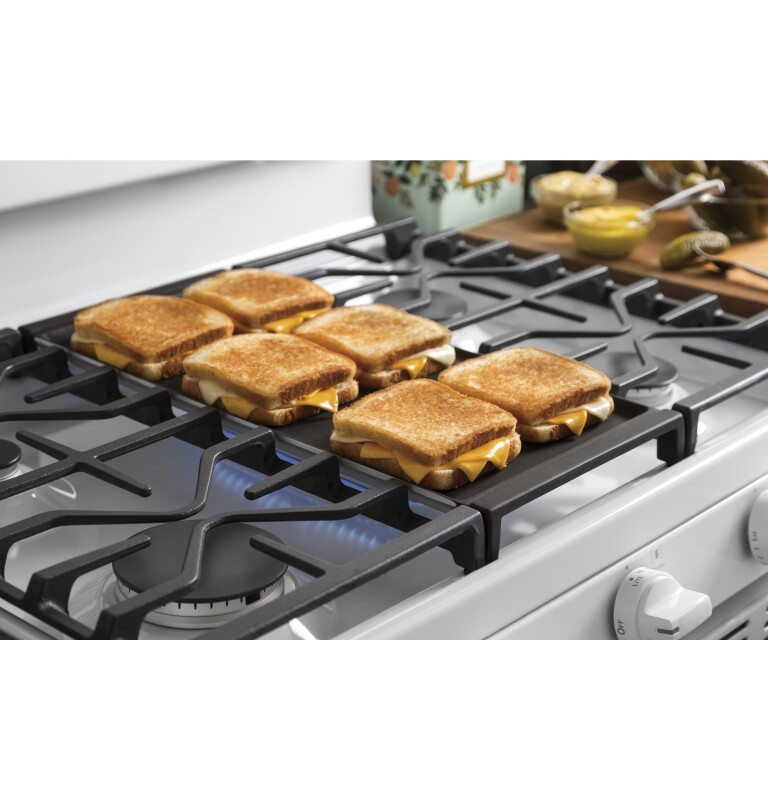

Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle

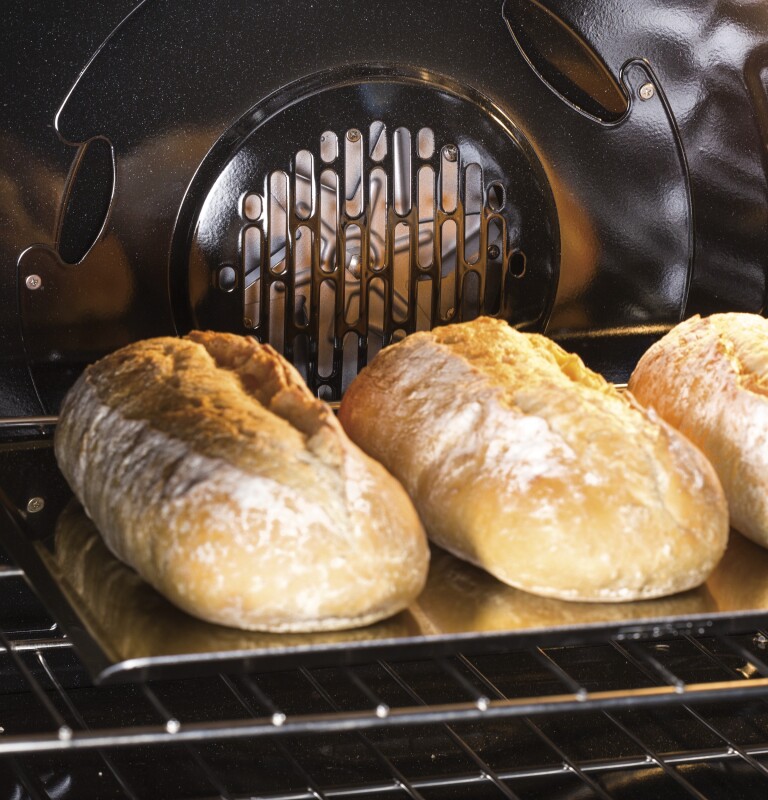

Gas convection oven (lower oven)
Circulates heat for high-quality results

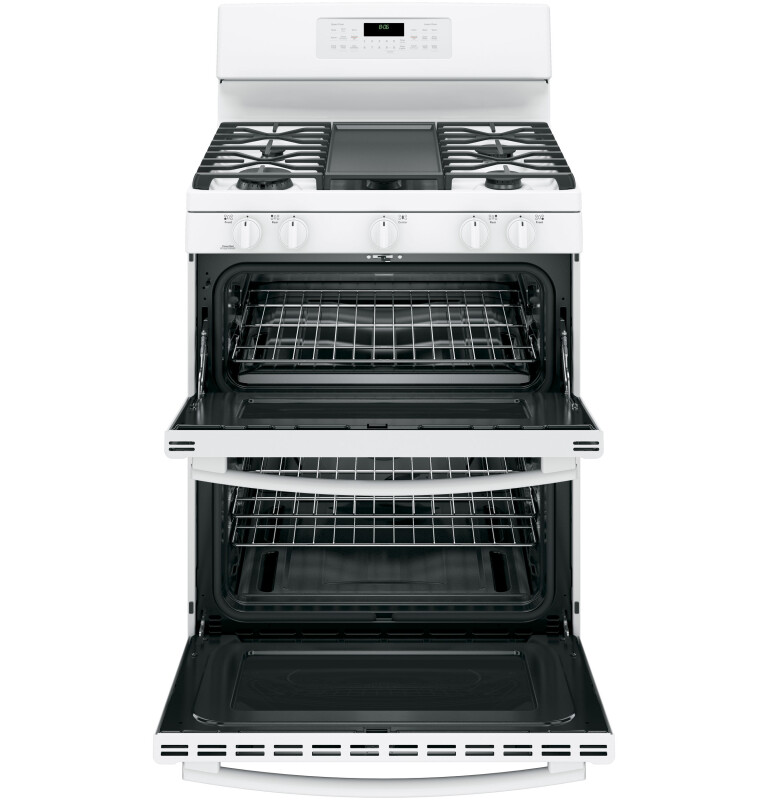

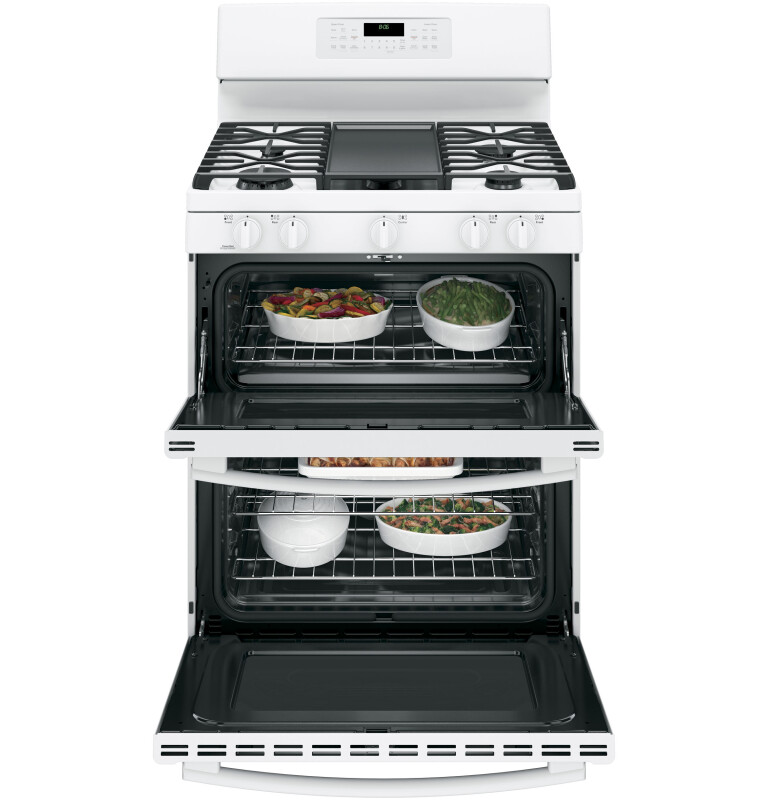

Double oven 6.8 cu. ft. total capacity
Large capacity is ideal for big meals
18,000 BTU Power Boil burner
Boil water fast with intense heat from this 18,000 BTU burner

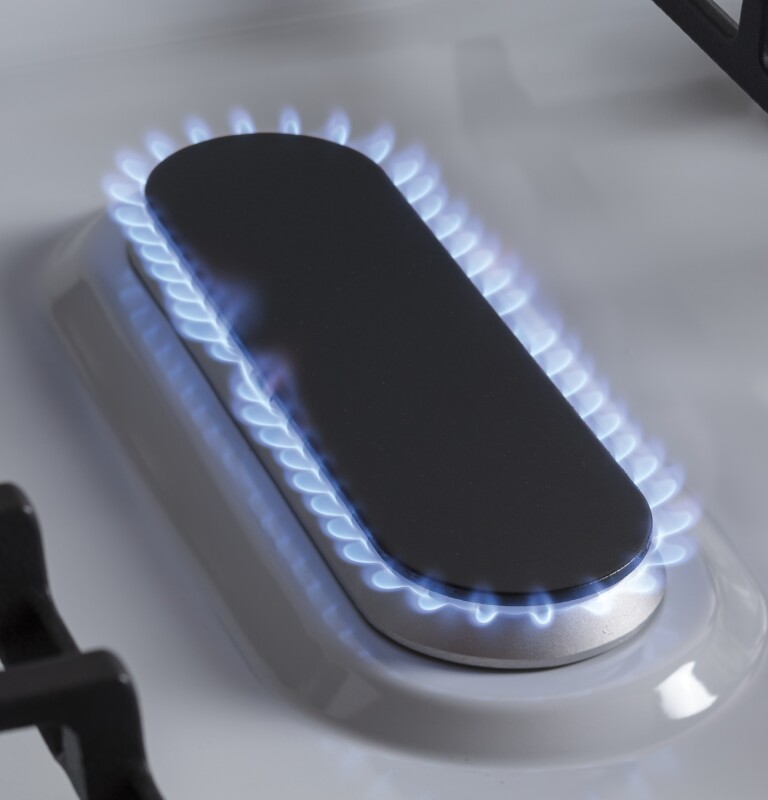

Center oval burner
Large oval fifth burner is ideal for griddle cooking

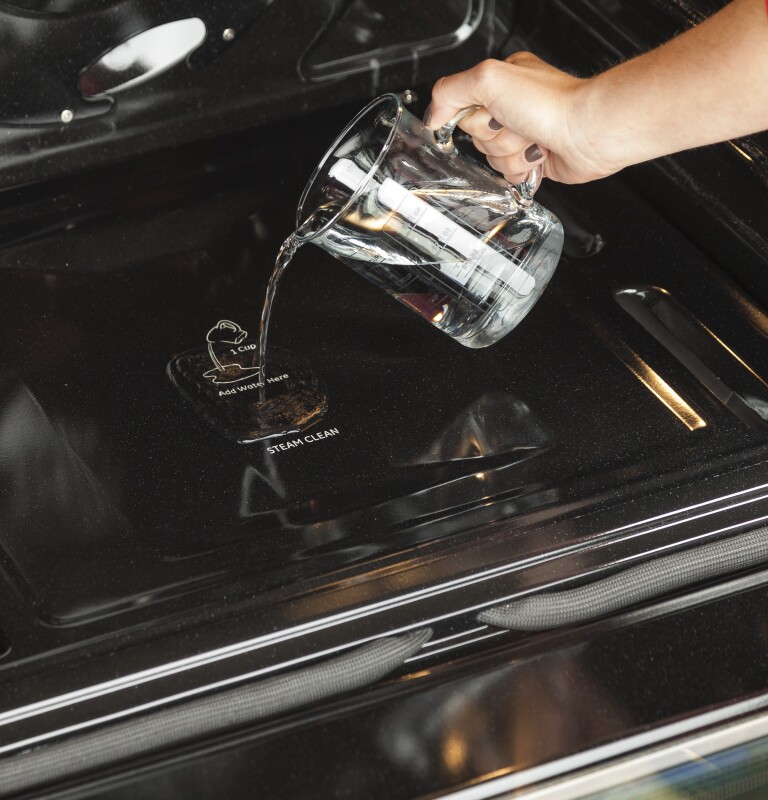

Self-clean with Steam Clean option
Clean your oven the way you want

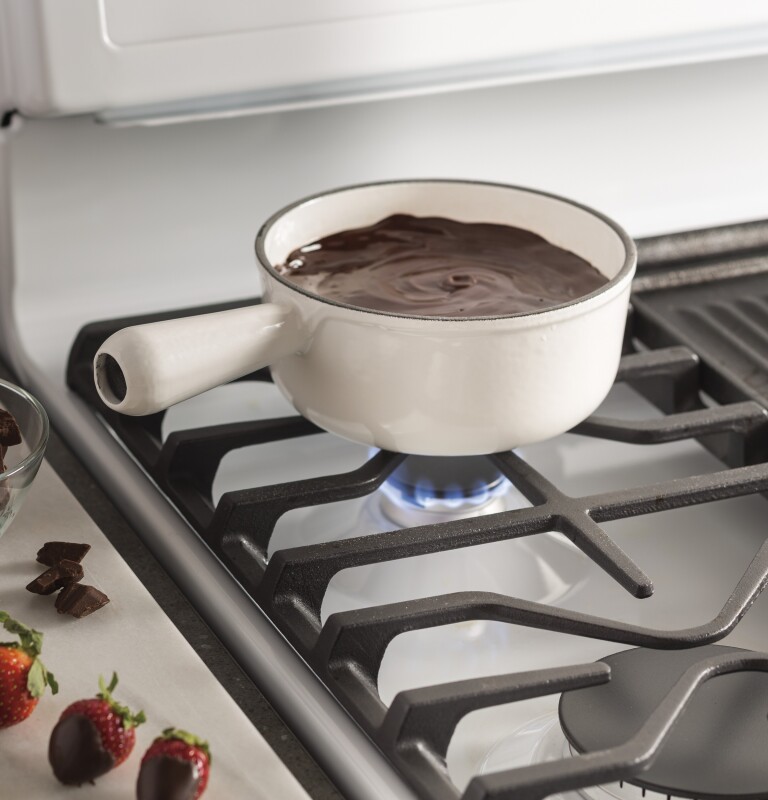

Precise Simmer burner
Delicate foods don’t burn with low, even heat

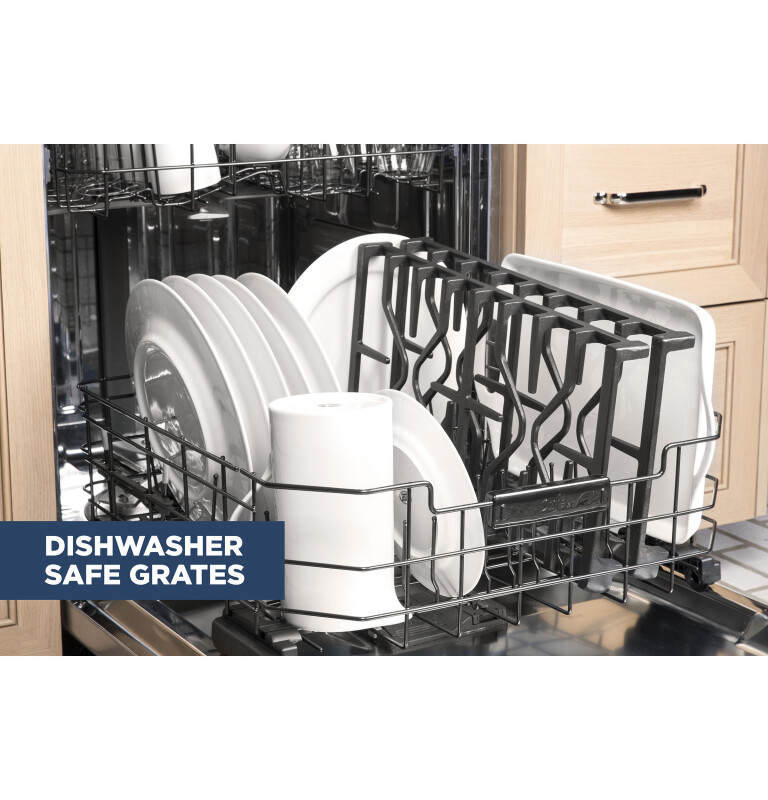

Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven

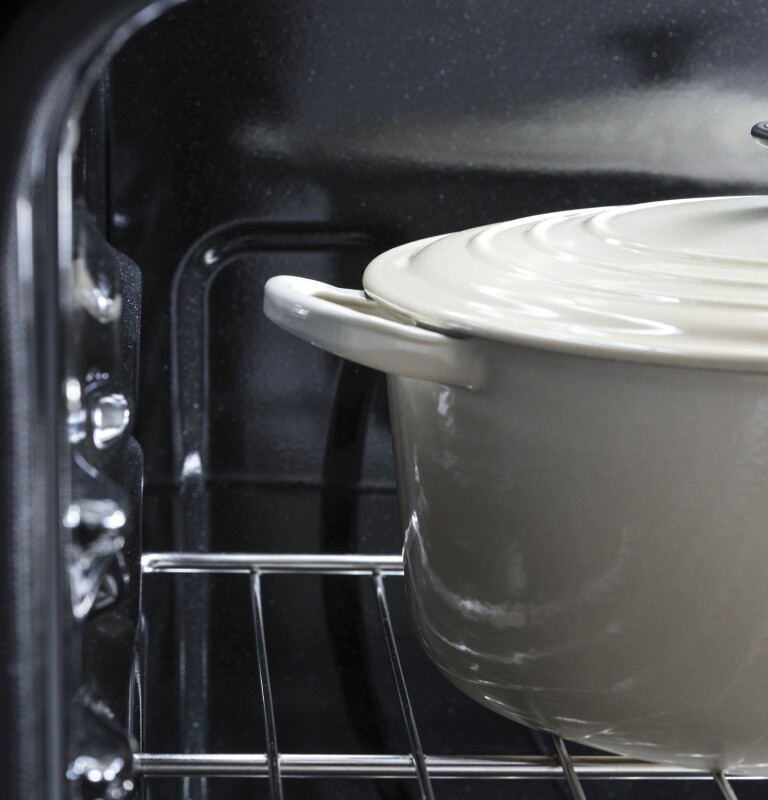

Black gloss oven interior
Enjoy a clean and sleek appearance
Certifications
California Prop 65
Specifications

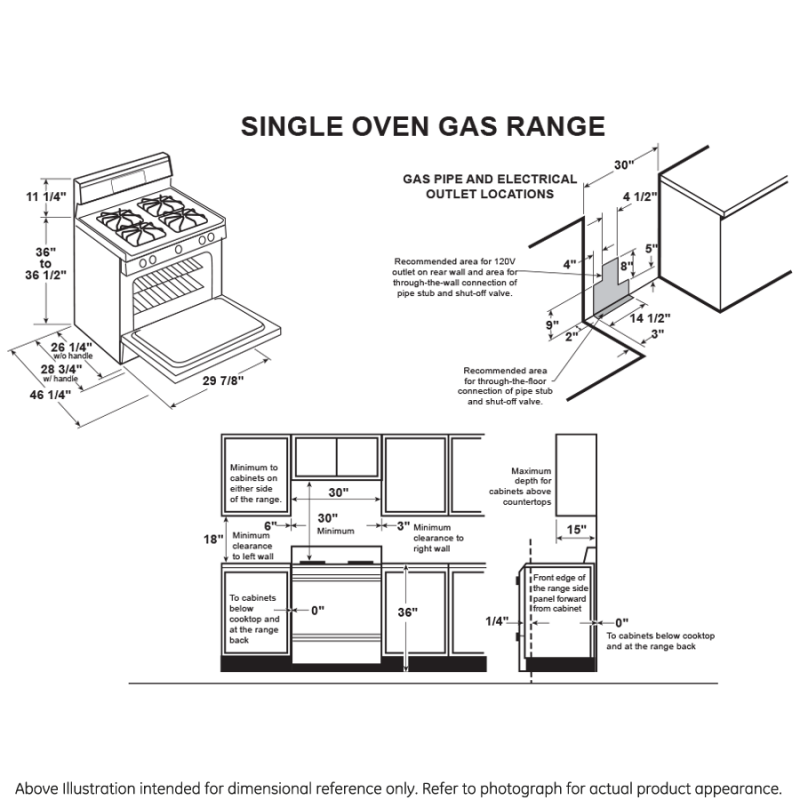

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 200 lb |
| Depth Without Handle | 26.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 220 lb |
| Depth with Door Open | 43.5 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
| Overall Depth | 29 1/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 29.25 in. |
| Weight | 200 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 34.25 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.99 ft³ |
| Dimensional Weight | 298.29 lbs. |
| Total of Cubes | 23.99 ft³ |
| Total of Dimensional Weight | 298.29 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Design | Designer Style |
| Handle Color | Color-Matched |
| Control Knobs | Weighted |
| Color Appearance | White |
| Control Knobs | Color-Matched |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Rack Features | 3 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option (Both Ovens) |
| Griddle | Integrated Non-Stick (Included) |
| Product Type | Free-Standing Double Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Auto Incandescent (Both Ovens) |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU Power Boil |
| Cooking Technology | Traditional Upper; Convection Lower |
| Configuration | Double Oven Range |
| Oven Cooking Modes | Convection Roast |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Oven Rack Positions (Single or Upper/Lower) | 2 / 5 |
| Cooktop Surface | Edge-to-Edge |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Color-Matched |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Control Lock Capability |
| Oven Cooking Modes | Convection Bake |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 18.0; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 12.0 / 10.0 - Upper; 14.0 / 0.0 - Lower |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 10.0 / 10.0 - Upper; 13.5 / 0.0 - Lower |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| Center Grate | Optional |
| Griddle Accessory | Integrated Non-Stick (Included) |
| LP Conversion Kit | Included |
CAPACITY
| Capacity (Cu. Ft.) | 2.5 Upper / 4.3 Lower |
| Total Capacity (cubic feet) | 6.80 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
