30" Free-Standing Gas Range - JGB660DPWW
30" Free-Standing Gas Range
Model: JGB660DPWW













360 View
30" Free-Standing Gas Range
Model: JGB660DPWW
Key Features

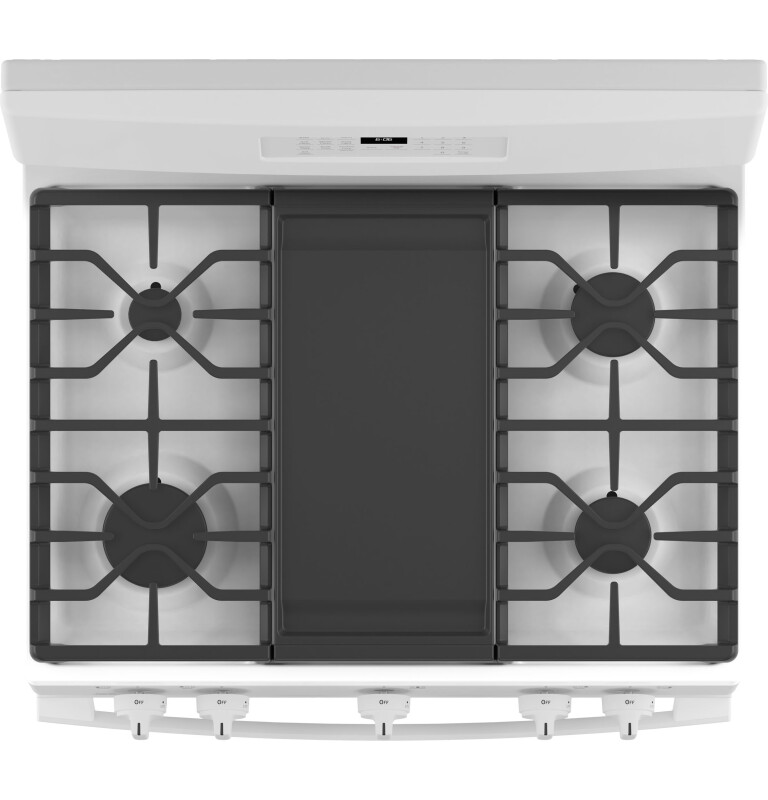

Edge-to-edge cooktop
Power boil burner
Center oval burner
Precise simmer burner
Self-clean oven
Large capacity oven
Heavy duty, dishwasher-safe grates
Removable storage drawer
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Power boil burner
This 18,000-BTU power boil element produces intense heat to boil water fast
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Precise simmer burner
This burner setting provides low, even heat so delicate dishes don't burn
Self-clean oven
This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners

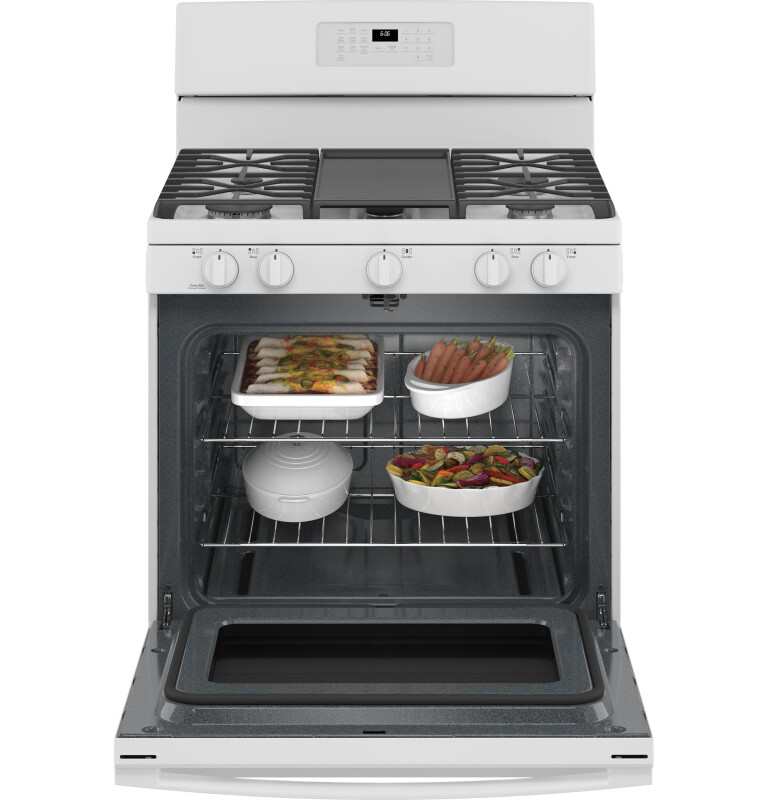

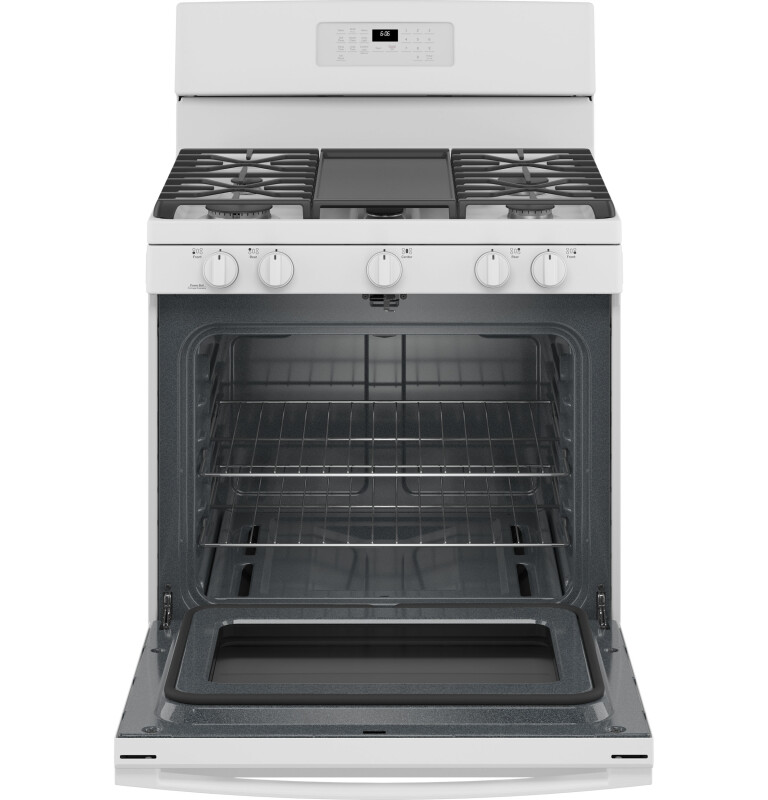

Large capacity oven
Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes
Heavy duty, dishwasher-safe grates
These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven
Removable storage drawer
A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen
Delay bake
Delay bake technology allows you to set up the oven to start preheating and baking at a later time
Enhanced Shabbos Mode
The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Design | Designer Style |
| Handle Color | White |
| Control Knobs | Color-Matched |
| Color Appearance | White |

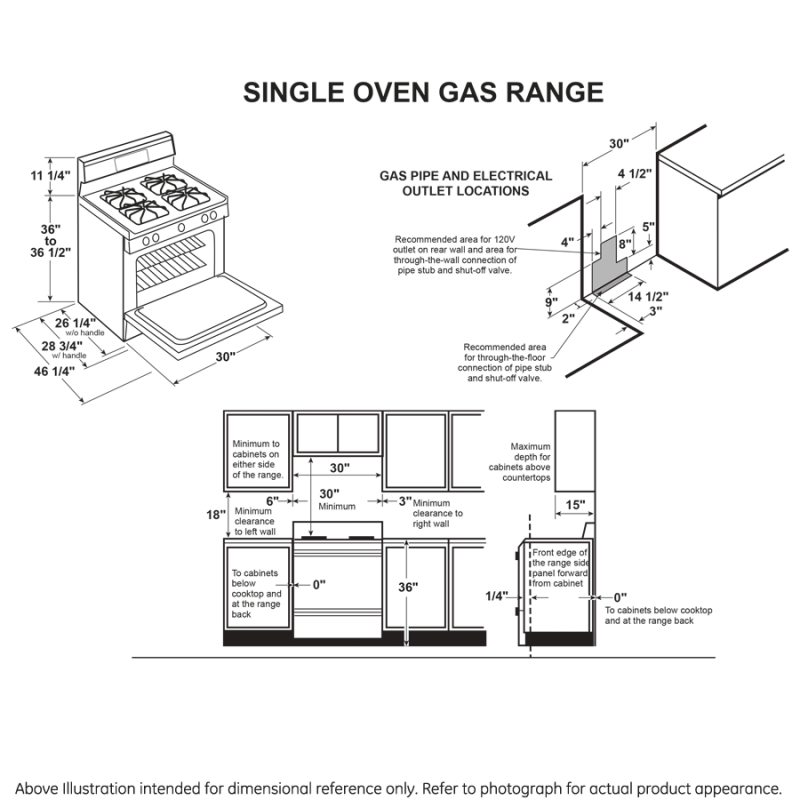

WEIGHTS & DIMENSIONS
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Width | 30 in |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Control Features | Sabbath Mode |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Griddle | WB31X24738 Integrated Non-Stick (Included) |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Incandescent |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU Power Boil |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Control Type | Digital Temperature Display |
| Control Type | Electronic Oven Controls |
| Cooktop Surface | Edge-to-Edge |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Color-Matched |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | JXGRILL1 Cast Iron Reversible Grill/Griddle (Optional) |
| Grates | JXGRATE1 (Optional) |
| LP Conversion Kit | Included |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
