30" Free-Standing Gas Range - JGB640DEFBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

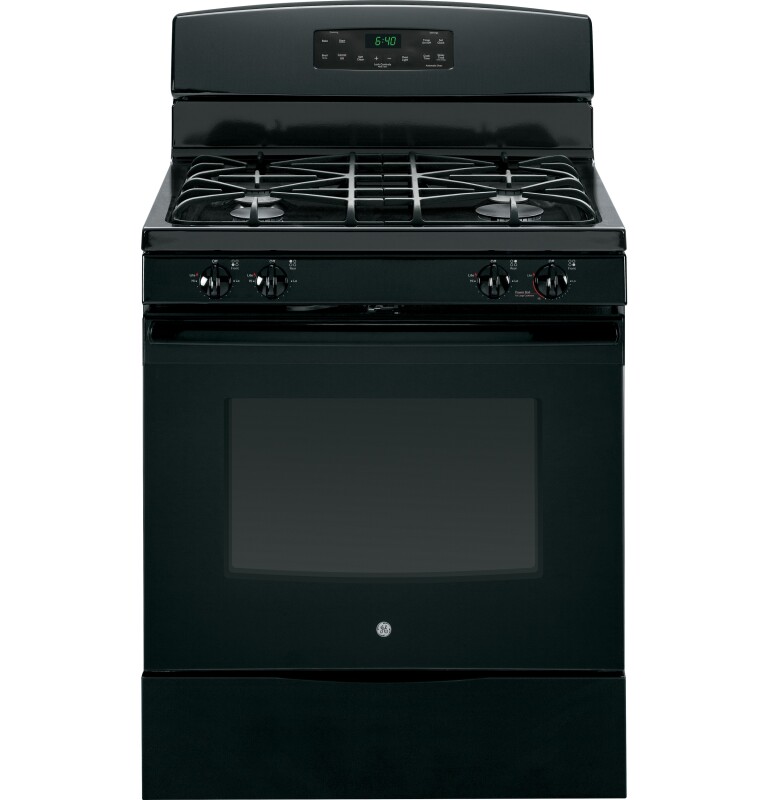

30" Free-Standing Gas Range

Model: JGB640DEFBB

30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB30" Free-Standing Gas Range JGB640DEFBB
30" Free-Standing Gas Range JGB640DEFBB
30" Free-Standing Gas Range JGB640DEFBB
30" Free-Standing Gas Range JGB640DEFBB
30" Free-Standing Gas Range JGB640DEFBB
30" Free-Standing Gas Range JGB640DEFBB
+6more

Product Video

GE 30" Free-Standing Gas Range Black JGB640DEFBB Picture
2 Videos

Color : Black

30" Free-Standing Gas Range JGB640DEFBB
Black

Type : Gas

GasElectric

Key Features

  • 15,000 BTU Power Boil Burner

  • Precise Simmer burner

  • Heavy-cast, continuous grates

  • Deep-recessed cooktop

  • Self-clean oven

  • 5.0 cu. ft. oven capacity

  • Sealed cooktop burners

Description

Delicate foods don’t burn with low, even heat.Allow for easy movement of pans between burners.47 1/4 H x 30 W x 28 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

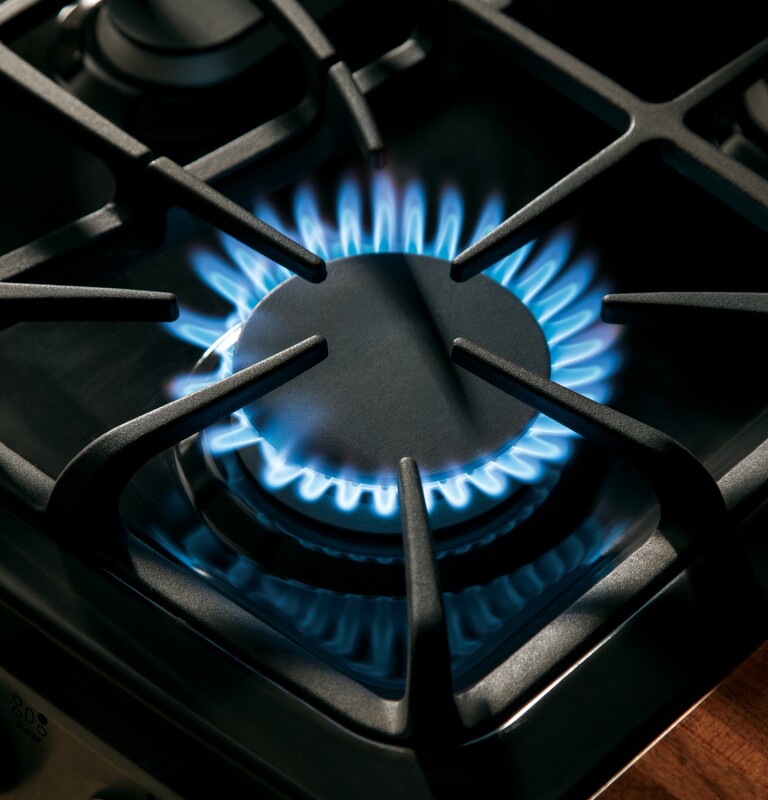

15,000 BTU Power Boil Burner

Delivers high heat for fast boiling

Precise Simmer burner

Delicate foods don’t burn with low, even heat

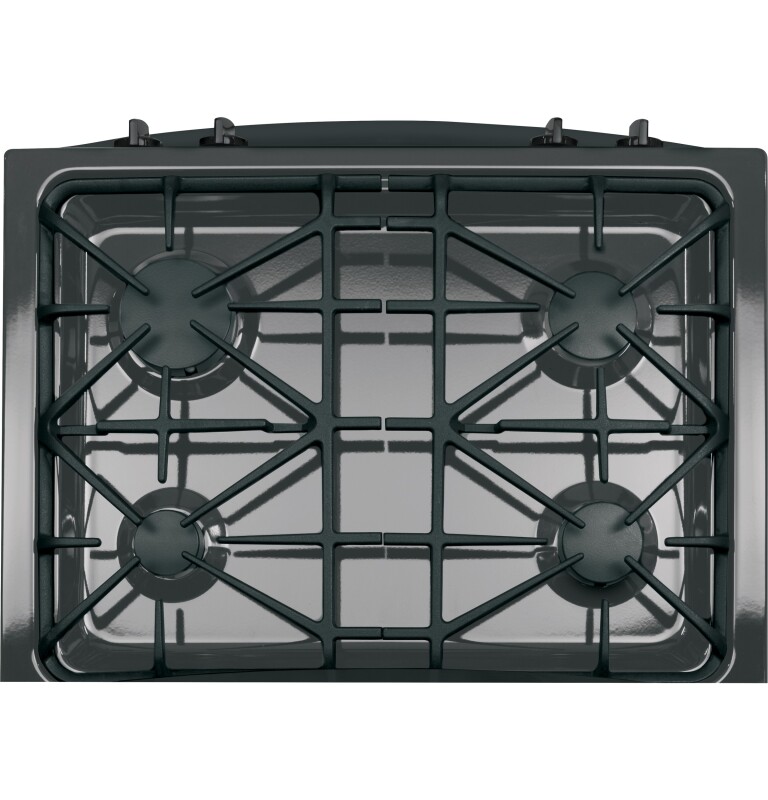

Heavy-cast, continuous grates

Allow for easy movement of pans between burners

Deep-recessed cooktop

Contains spills for quick and easy cleaning

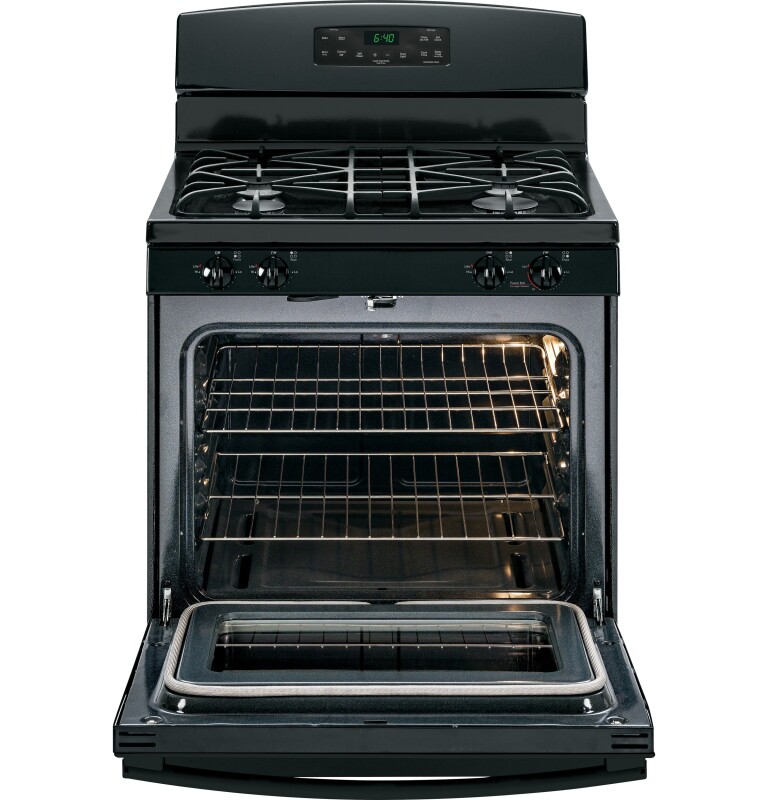

Self-clean oven

Cleans the oven cavity without the need for scrubbing

5.0 cu. ft. oven capacity

Cook more dishes at once

Sealed cooktop burners

Contains spills and make cleaning quick and easy

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

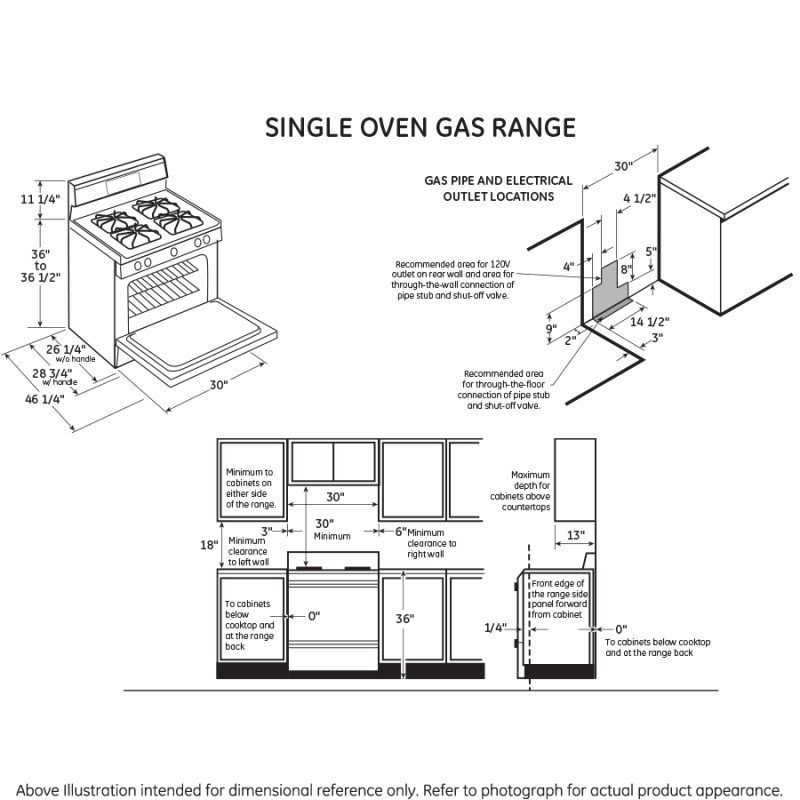

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight190 lb
Depth Without Handle26.25 in
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Depth with Door Open46.25 in
Cabinet Width30 in
Approximate Shipping Weight210 lb
Overall Depth28 3/4 in
Overall Height47 1/4 in
Height to Cooking Surface (in.)36 - 36.5

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47.25 in.
Length28.75 in.
Weight190 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.25 in.
Shipping Length33.75 in.
Shipping Weight230 lbs.
Total of Shipping Weight230 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.58 ft³
Dimensional Weight293.19 lbs.
Total of Cubes23.58 ft³
Total of Dimensional Weight293.19 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Ignition SystemElectronic
Burner - Right Rear5,000 BTU Precise Simmer
Interior Oven Light1 Incandescent
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack Features2 Oven Racks
Burner - Left Rear9,500 BTU
Oven Cleaning TypeSelf-Clean
Product TypeFree-Standing Single Oven
Cooktop TypeContinuous Grates
Cooktop Burner Grate MaterialHeavy Cast Iron
Cooktop Burner Grate FeaturesContinuous Grates
Burner - Right Front15,000 BTU Power Boil
Burner - Left Front11,000 BTU

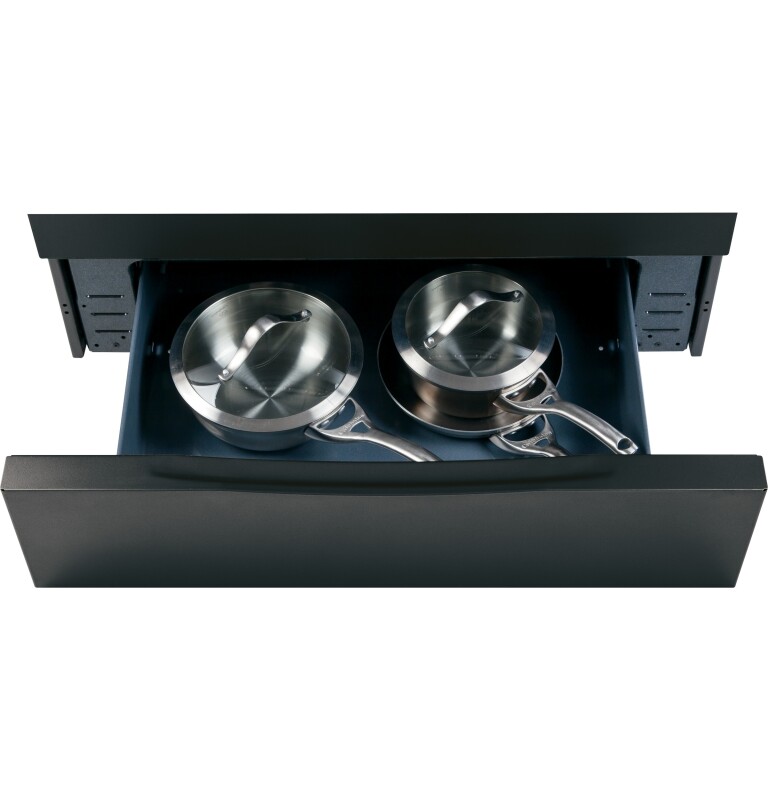

Drawer TypeStorage
Control TypeElectronic Touch
Cooking TechnologyTraditional
Cooktop SurfaceDeep Recessed
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Cooktop SurfacePorcelain-Enamel
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfaceBlack
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig View Oven Window
HandleDesigner Style
Control KnobsColor-Matched
Color AppearanceBlack on Black
HandleColor-Matched

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 15.0; (1) 11.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)5.00 cu ft
