30" Free-Standing Electric Range - JBP81DMBB

This product has been discontinued by the manufacture and is no longer available.

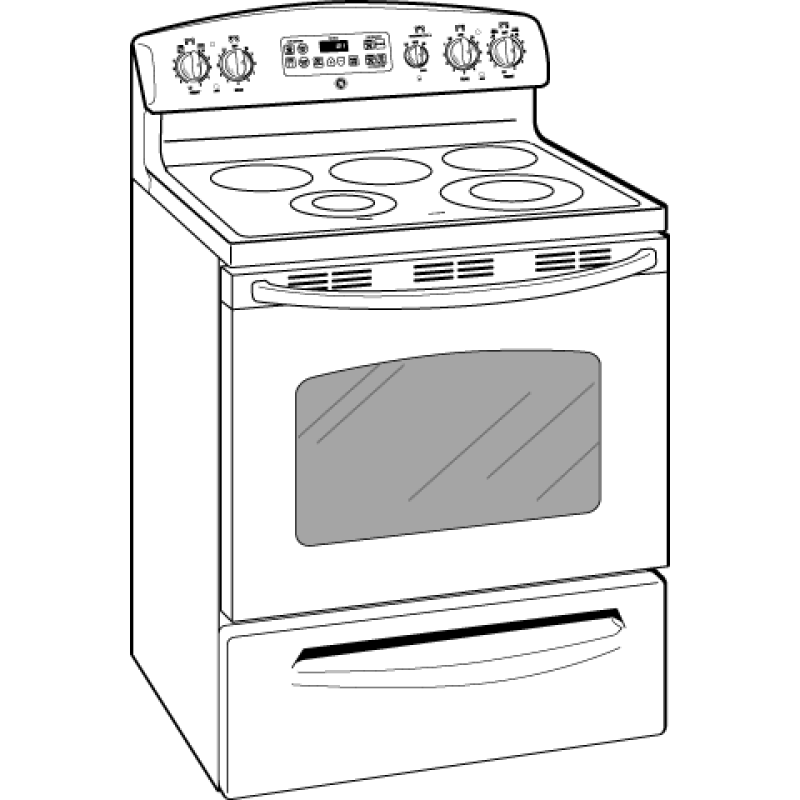

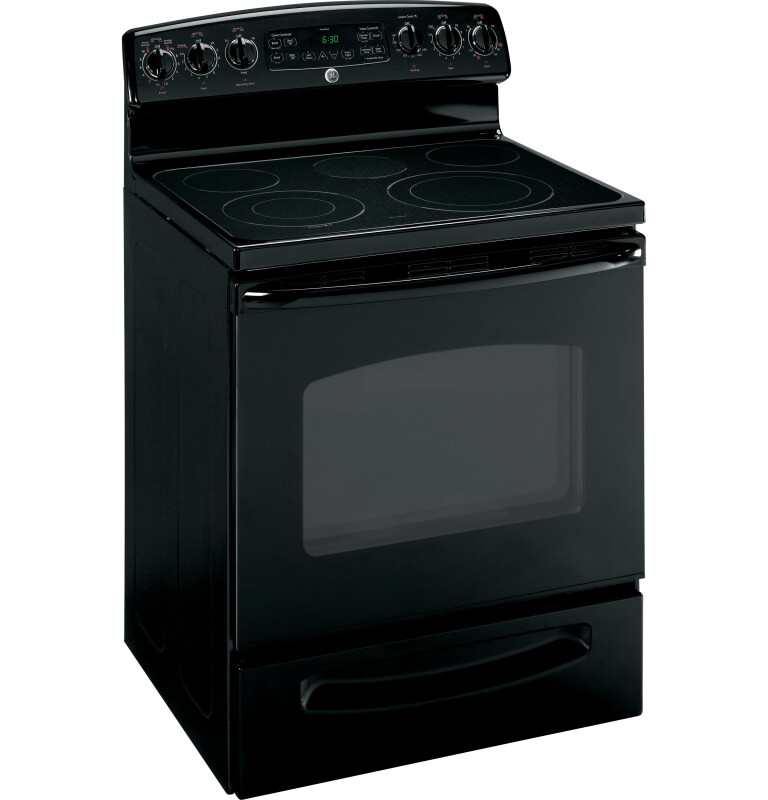

30" Free-Standing Electric Range

Model: JBP81DMBB

30" Free-Standing Electric Range JBP81DMBB30" Free-Standing Electric Range JBP81DMBB30" Free-Standing Electric Range JBP81DMBB
30" Free-Standing Electric Range JBP81DMBB
30" Free-Standing Electric Range JBP81DMBB
30" Free-Standing Electric Range JBP81DMBB

Color : Black

30" Free-Standing Electric Range JBP81DMBB
Black

Type : Electric

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • Hidden bake oven interior

  • TrueTemp oven system

  • Warming drawer

  • Dual-size ribbon element

  • Self-clean, heavy-duty oven racks

  • 6-pass broil element

Read More

Description

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Warming drawer

The convenient drawer keeps foods warm and ready to serve and helps makes meal coordination easier

Dual-size ribbon element

Two heating elements in one allows you to choose a heating area for your cookware

Self-clean, heavy-duty oven racks

Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning

6-pass broil element

Provides better and more even coverage of the food

Warming zone (fifth element warming zone)

Simplify meals by keeping foods fresh from the oven warm and ready to serve

9"/6" Power Boil element

Accommodates various-size pots or pans and 3,000 Watts of power speeds the boiling process

Certifications

California Prop 65 certification

California Prop 65

Specifications

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight181 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight221 lbs.
Total of Shipping Weight221 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

6"/9" Dual Heating Element1 Ribbon (3,000W Power Boil)
ConfigurationRange with Warming Drawer
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Interior Oven LightYes
Oven InteriorHidden Bake
Warming Zone1-6" Ribbon (120W)
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Self-Clean Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1, Cooktop
StyleSmoothtop
Heating Element "ON" Indicator LightYes
9"/12" Dual Heating Element1 Ribbon (3,000W)
Cooktop SurfacePatterned Graphite on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
Warming Drawer FeaturesInfinite Control Knob
Dishwasher Safe KnobsYes
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional
Control TypeQuickSet IV
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesVariable Broil
Control TypeTouchpads
Control TypeDigiTemp Temperature Display
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesStart Pad
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesMis-Wire Detection
Oven Features6-Pass Power Bake Element

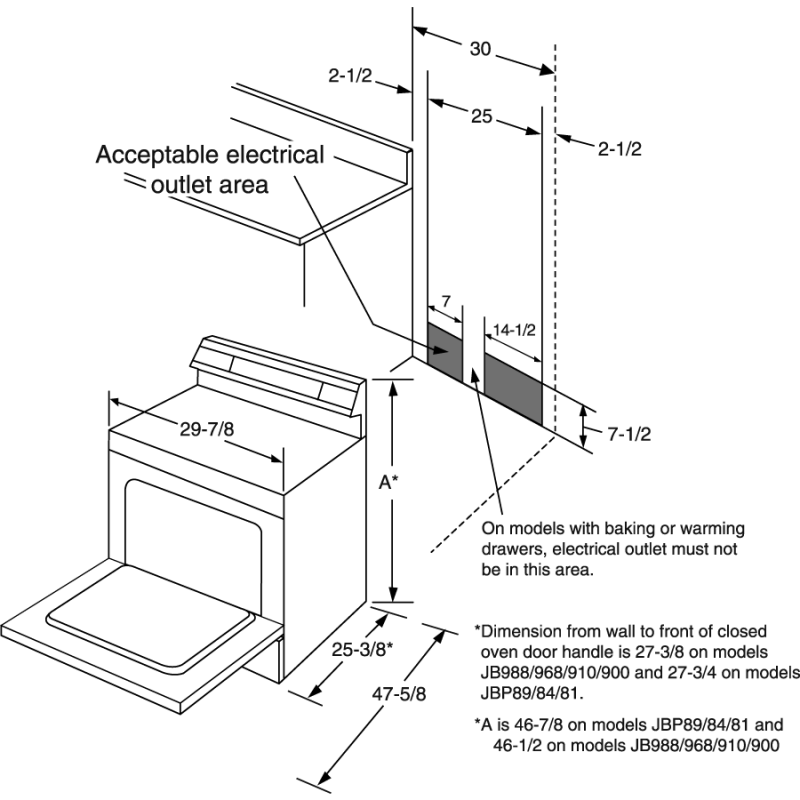

WEIGHTS & DIMENSIONS

Net Weight181 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight201 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V13.8
Amp Rating at 208V40
KW Rating at 208V10.4
Amp Rating at 240V40

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

APPEARANCE

HandleColor-Matched Sculptured
Textured Steel Side PanelsYes
Color AppearanceBlack on Black
Oven Door FeaturesBlack Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
