30" Free-Standing Electric Range - JBP66EKBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

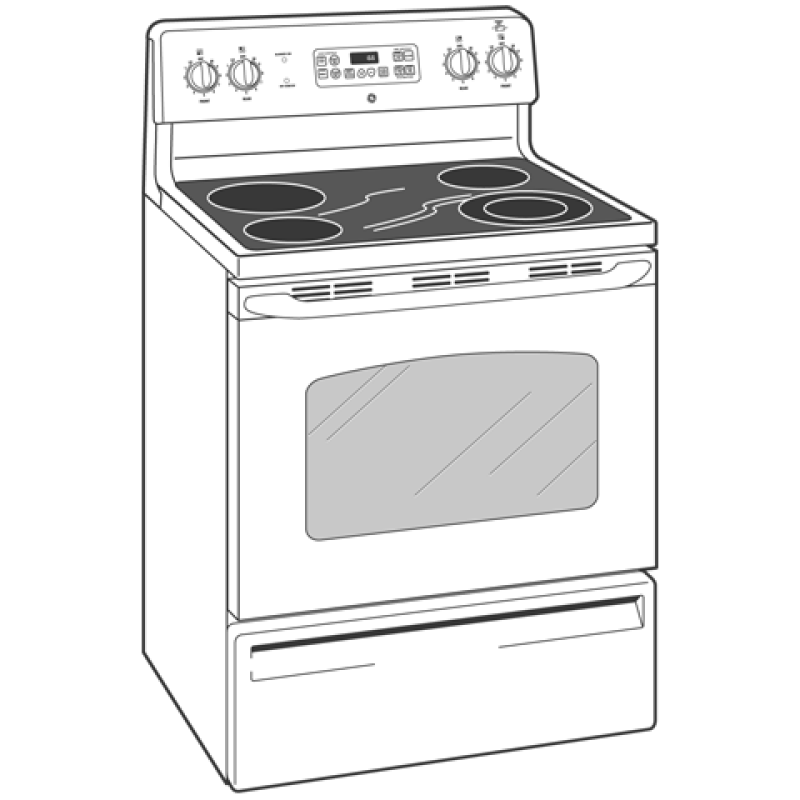

30" Free-Standing Electric Range

Model: JBP66EKBB

30" Free-Standing Electric Range JBP66EKBB30" Free-Standing Electric Range JBP66EKBB30" Free-Standing Electric Range JBP66EKBB
30" Free-Standing Electric Range JBP66EKBB
30" Free-Standing Electric Range JBP66EKBB
30" Free-Standing Electric Range JBP66EKBB

Color : Black

30" Free-Standing Electric Range JBP66EKBB
Black

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Super-large 5.3 cu. ft. oven capacity

  • TrueTemp system

  • Dual size ribbon element

  • Dual-element bake

  • Ceramic glass cooktop

  • Six-pass bake element

  • Big hearth window

Read More

Description

Provides an impressively large oven interior to cook more dishes and large meals at once.Delivers even heat distribution and maximum oven control.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without the need for scrubbing

Super-large 5.3 cu. ft. oven capacity

Provides an impressively large oven interior to cook more dishes and large meals at once

TrueTemp system

Delivers even heat distribution and maximum oven control

Dual size ribbon element

Offers a convenient choice of using a 9" or 6" heating element, depending on the size of the pan

Dual-element bake

Alternates the upper broiling element and the lower baking element for even heating and optimal baking results

Ceramic glass cooktop

A smooth cooktop surface makes cleaning quick and easy

Six-pass bake element

The powerful, continuous heating element loops throughout the oven, delivering evenly cooked foods

Big hearth window

Features an enhanced shape to add an elegant appearance and make viewing trouble-free

QuickSet IV oven controls

Feature an easy to use design which allows you to set precise cooking temperatures

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight154 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight194 lbs.
Total of Shipping Weight194 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

6"/9" Dual Heating Element1 Ribbon (2,500W)
ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Interior Oven LightYes
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1
Heating Element "ON" Indicator LightYes
Cooktop SurfacePatterned Black on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
8" Heating Element (s)1 Ribbon (2,000 watt)
Dishwasher Safe KnobsYes
Cooking TechnologyTraditional
Control TypeQuickSet IV
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesVariable Broil
Control TypeTouchpads
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesMis-Wire Detection
Oven Features6-Pass Power Bake Element

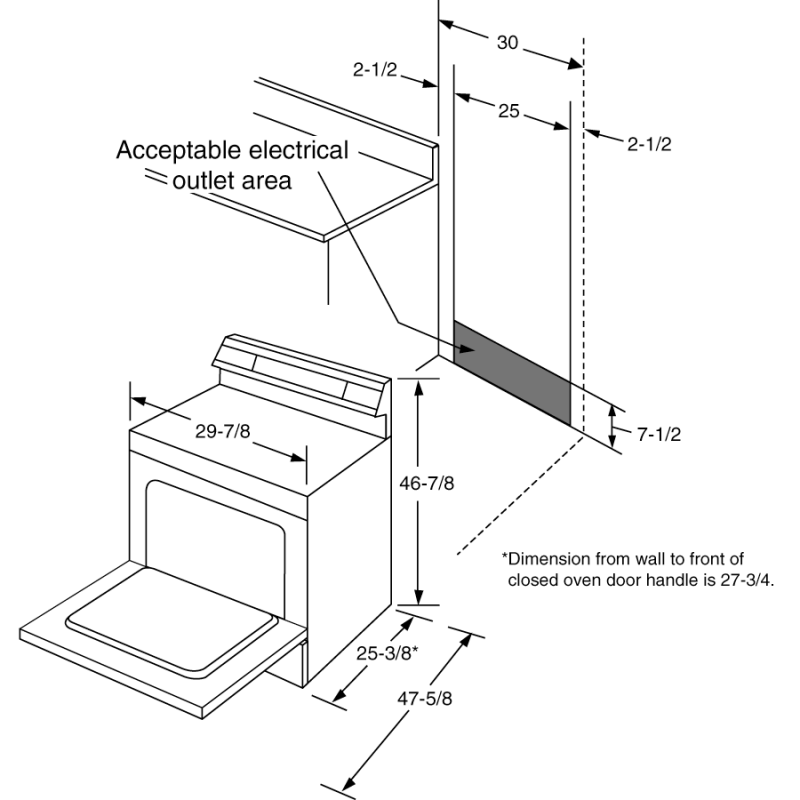

WEIGHTS & DIMENSIONS

Net Weight154 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight175 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V11.0
Amp Rating at 208V40
KW Rating at 208V8.3
Amp Rating at 240V40

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

APPEARANCE

HandleColor-Matched High-Gloss
Color AppearanceBlack on Black
Oven Door FeaturesBlack Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
