30" Free-Standing Electric Range - JBP23DNBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

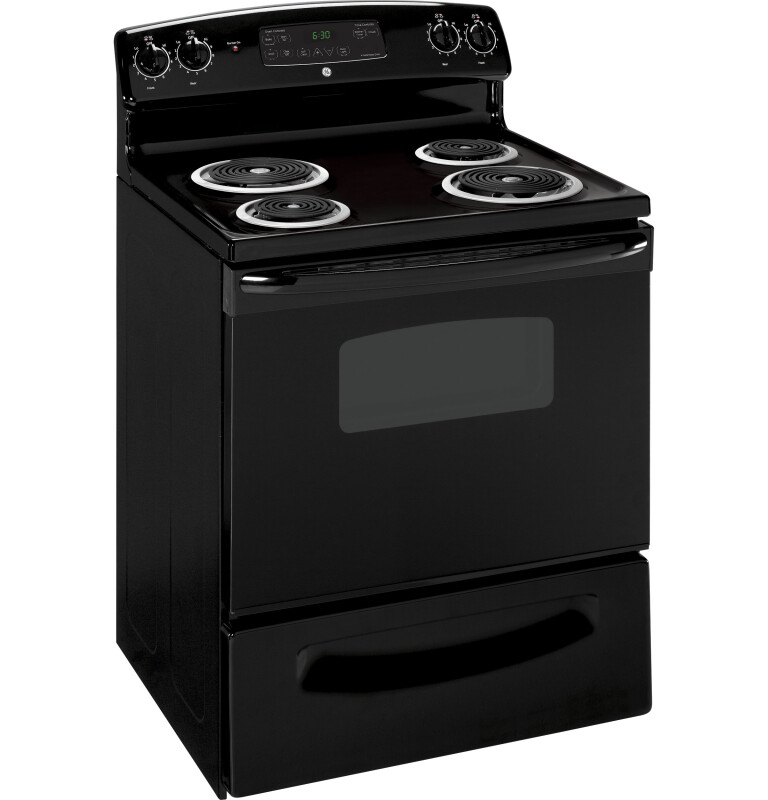

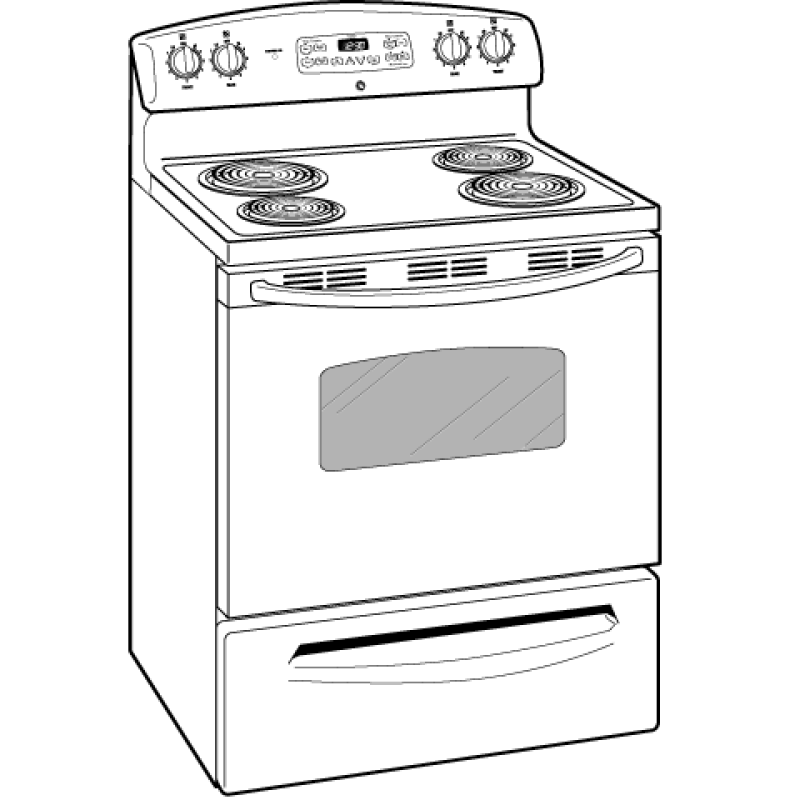

30" Free-Standing Electric Range

Model: JBP23DNBB

30" Free-Standing Electric Range JBP23DNBB30" Free-Standing Electric Range JBP23DNBB30" Free-Standing Electric Range JBP23DNBB
30" Free-Standing Electric Range JBP23DNBB
30" Free-Standing Electric Range JBP23DNBB
30" Free-Standing Electric Range JBP23DNBB

Color : Black

30" Free-Standing Electric Range JBP23DNBB
Black

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • QuickSet oven controls

  • Coil heating elements

  • Dual-element bake

  • Chrome drip bowls

  • Audible preheat signal

  • Removable full-width storage drawer

Read More

Description

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.Electronic touch pads on the control panel make controlling your oven effortless.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

Coil heating elements

Removable elements provide even heat and are easy to clean

Dual-element bake

This top-and-bottom heating produces uniform browning and fast oven preheating

Chrome drip bowls

Spills are easily contained and quickly cleaned thanks to removable bowls

Audible preheat signal

Convenient signal alerts when the oven reaches desired temperature

Removable full-width storage drawer

Additional storage area is ideal for cookware and kitchen accessories

Six rack positions

Provides flexibility and allows consumers to make the most of available oven capacity

Certifications

California Prop 65 certification

California Prop 65

Specifications

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight149 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight189 lbs.
Total of Shipping Weight189 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Removable One-Piece Drip BowlsChrome
Storage Drawer FeaturesRemovable
Interior Oven LightYes
Cooktop Burner TypeCoil
Oven Rack Features2 Oven Racks
6" Heating Element(s)2 Plug-In (1,500W)
Oven Cleaning TypeSelf-Clean
StyleCoil
Heating Element "ON" Indicator LightYes
Control LocationBacksplash
8" Heating Element (s)2 Plug-In (2,600W)
Cooking TechnologyTraditional
Control TypeElectronic
Cooktop SurfaceLift-Up
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven FeaturesDual-Element Bake
Oven FeaturesOven Interior Light
Oven Control FeaturesVariable Broil
Cooktop SurfacePorcelain-Enamel
Control TypeTouchpads
Control TypeDigital Temperature Display
Control TypeInfinite Heat Rotary
Control TypeQuickSet III
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfaceDual Support Rods
Oven Control FeaturesSabbath Mode
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesStart Pad
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesMis-Wire Detection
Oven FeaturesDishwasher-Safe Knobs
Storage Drawer FeaturesFull-Width

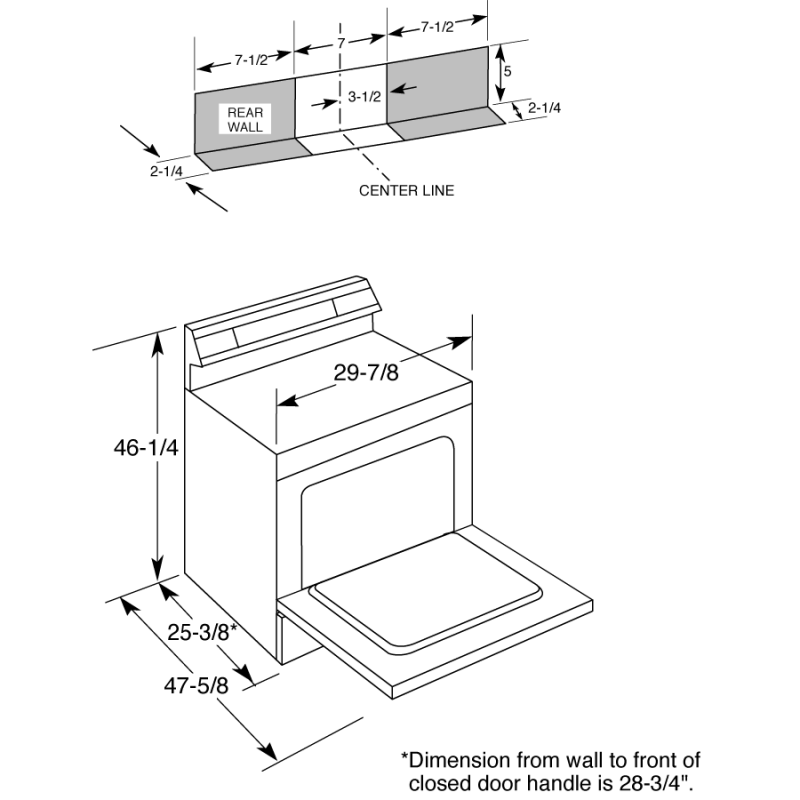

WEIGHTS & DIMENSIONS

Net Weight149 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Approximate Shipping Weight170 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V11.7
Amp Rating at 208V40
KW Rating at 208V8.8
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesSmall Hearth-Shaped Window
Color AppearanceBlack on Black
Oven Door FeaturesFrameless Lift-off Oven Door

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
