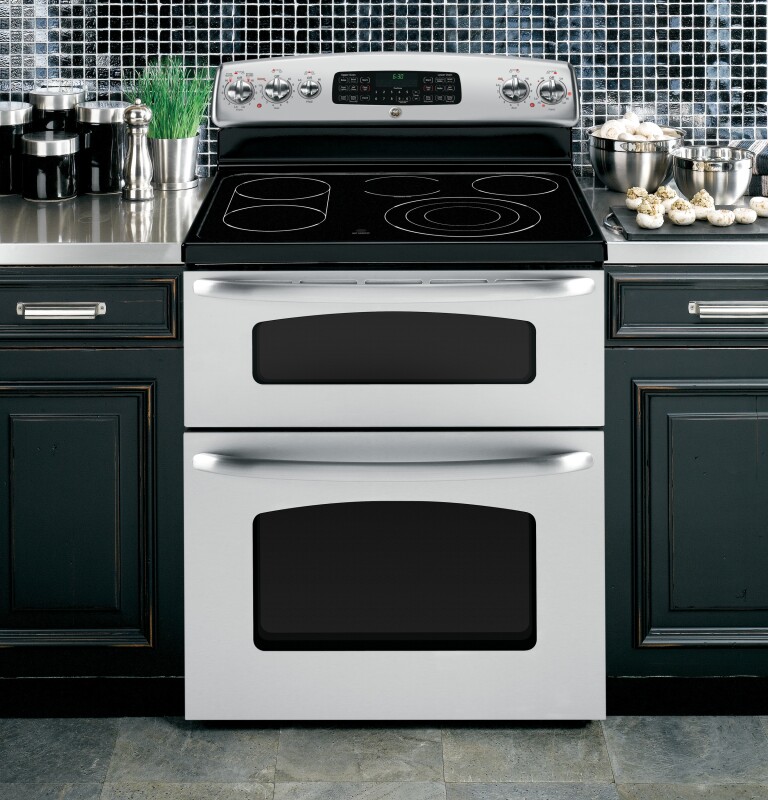

30" Free-Standing Electric Double Oven Convection Range - JB870STSS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Double Oven Convection Range

Model: JB870STSS

30" Free-Standing Electric Double Oven Convection Range JB870STSS30" Free-Standing Electric Double Oven Convection Range JB870STSS30" Free-Standing Electric Double Oven Convection Range JB870STSS30" Free-Standing Electric Double Oven Convection Range JB870STSS30" Free-Standing Electric Double Oven Convection Range JB870STSS30" Free-Standing Electric Double Oven Convection Range JB870STSS30" Free-Standing Electric Double Oven Convection Range JB870STSS30" Free-Standing Electric Double Oven Convection Range JB870STSS
30" Free-Standing Electric Double Oven Convection Range JB870STSS
30" Free-Standing Electric Double Oven Convection Range JB870STSS
30" Free-Standing Electric Double Oven Convection Range JB870STSS
30" Free-Standing Electric Double Oven Convection Range JB870STSS
30" Free-Standing Electric Double Oven Convection Range JB870STSS
+3more

Product Video

GE 30" Free-Standing Electric Double Oven Convection Range Stainless Steel JB870STSS Picture

Color : Stainless Steel

30" Free-Standing Electric Double Oven Convection Range JB870STSS
Stainless Steel

Type : Electric

ElectricGas

Key Features

  • 6.6 cu. ft. total oven capacity

  • Convection Bake

  • Self-clean oven

  • 12"/9"/6" tri-ring element

  • Bridge element

  • Fifth element warming zone

  • Hidden bake oven interior

Description

Optimal setting for baked goods and casseroles.Cleans the oven cavity without the need for scrubbing.47 H x 29 7/8 W x 28 7/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

6.6 cu. ft. total oven capacity

Large capacity is ideal for big meals

Convection Bake

Optimal setting for baked goods and casseroles

Self-clean oven

Cleans the oven cavity without the need for scrubbing

12"/9"/6" tri-ring element

Three heating elements in one offer flexibility

Bridge element

Combines cooking elements into one cooking area

Fifth element warming zone

Provides low-heat capability for foods

Hidden bake oven interior

Conceals the lower oven element to simplify cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

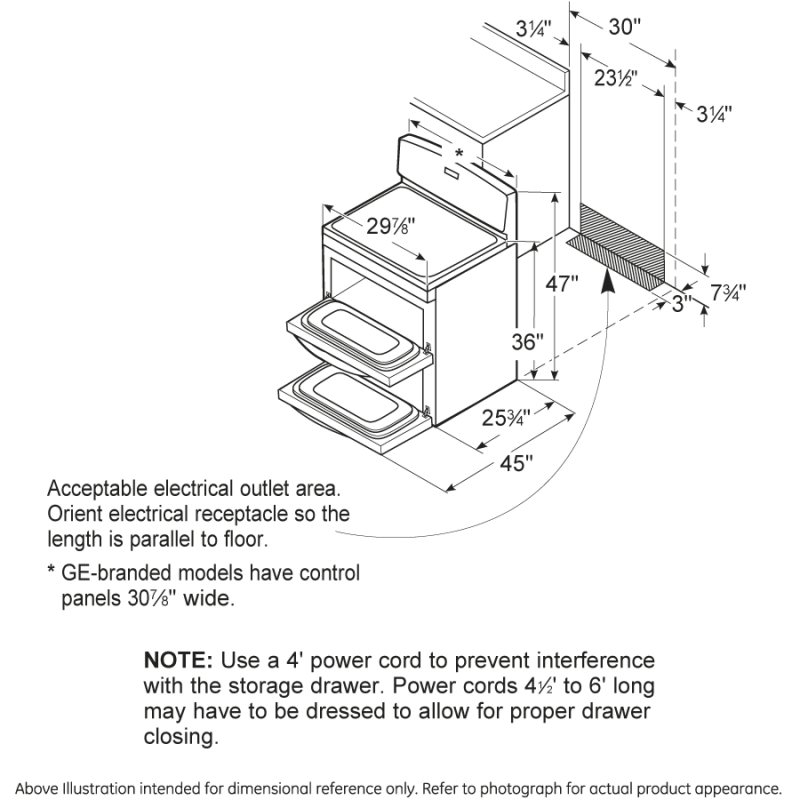

WEIGHTS & DIMENSIONS

Overall Height47 in
Net Weight219 lb
Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4
Cabinet Width30 in
Approximate Shipping Weight240 lb
Overall Depth28 7/8 in
Overall Width29 7/8 in

Other

Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4

Dimensions & Weight

Width29.88 in.
Height47 in.
Length28.88 in.
Weight219 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52 in.
Shipping Length33.88 in.
Shipping Weight259 lbs.
Total of Shipping Weight259 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.46 ft³
Dimensional Weight291.68 lbs.
Total of Cubes23.46 ft³
Total of Dimensional Weight291.68 lbs.

FEATURES

ConfigurationDouble Oven Range
Cleaning TimeVariable with Delay Clean Option
Oven InteriorInterior Oven Light
Warming Zone1 Ribbon (120W)
Oven Cooking ModesConvection Bake
Cooktop Burner TypeSmoothtop
Oven Rack Features3 Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)1 Ribbon (1,500 watt)
Oven Cleaning TypeSelf-Clean (Both Ovens)
Hot Surface Indicator Lights1, Cooktop
6"/9"/12" Tri-Ring Element1 Ribbon (3,000W)
Heating Element "ON" Indicator Light2

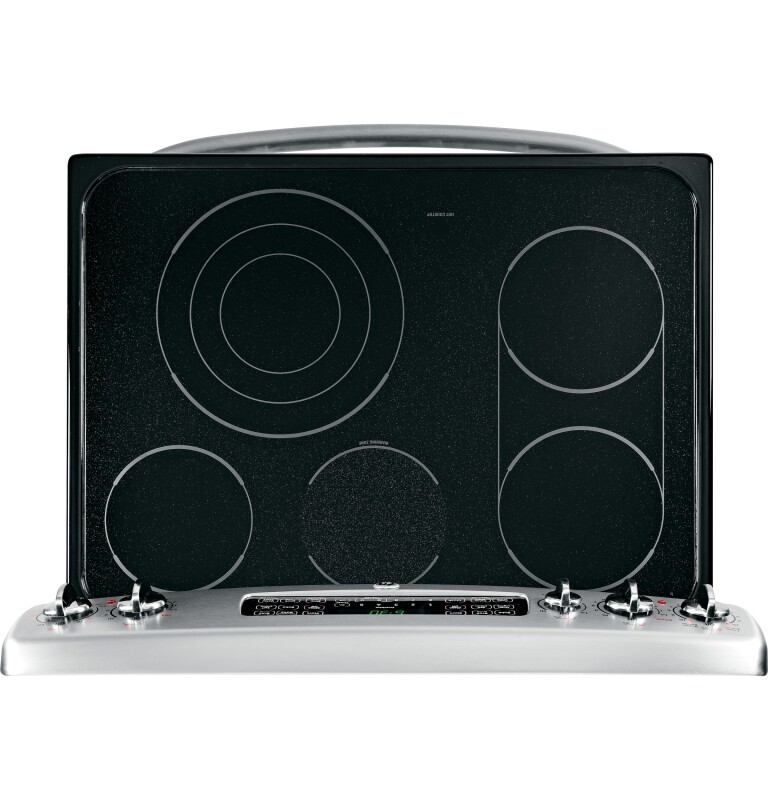

Cooktop SurfacePatterned Graphite on Black Glass Ceramic
Preheated Oven LightDisplay

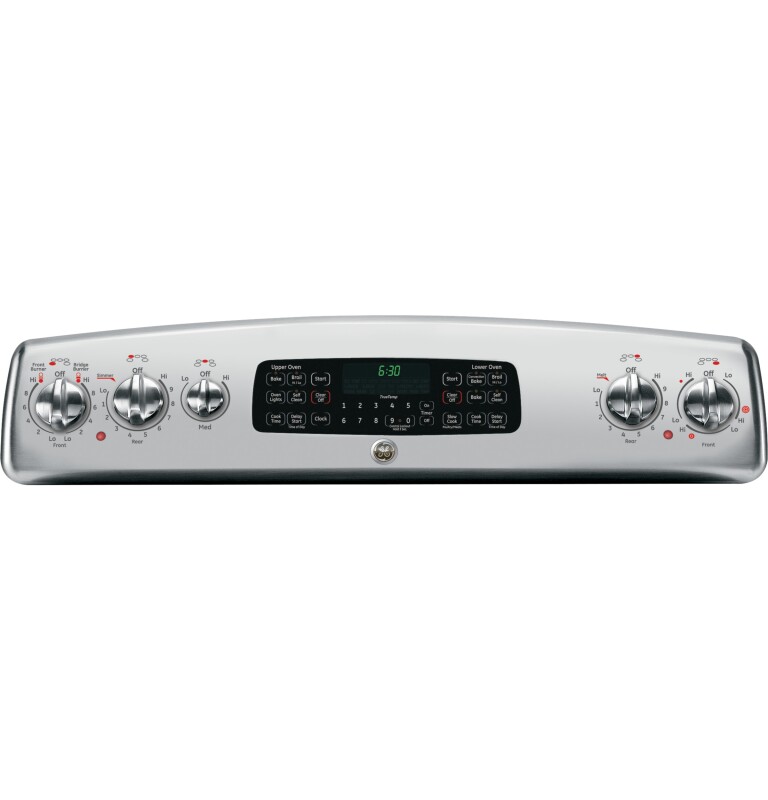

Control LocationBacksplash
Bridge Element1 (800W)
Melt/Simmer SettingYes
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)2 / 6
Control TypeElectronic
7" Heating Element(s)2 Ribbon (1,800W)
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional Upper; Convection Lower
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesTemperature Display in C or F
Control TypeDigiTemp Temperature Display
Cooktop Burner Type5 Ribbon
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDelay Start
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesOven Function Icons
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesSlow Cook
Oven Control FeaturesStart Pad
Oven Control FeaturesTemperature Display
Oven InteriorHidden Bake (Both Ovens)

POWER / RATINGS

KW Rating at 240V14.3
Bake Wattage2650W Upper / 2650W Lower
Amp Rating at 208V40
Broiler Wattage3000W Upper / 3600W Lower
KW Rating at 208V10.7
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesStainless Steel Frameless Lift-off Oven Door
Textured Steel Side PanelsYes
Handle DesignD-shaped
Handle ColorStainless Steel
Color AppearanceStainless Steel
Oven Door FeaturesClear View Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Capacity (Cu. Ft.)2.2 Upper / 4.4 Lower
Total Capacity (cubic feet)6.60 cu ft

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
