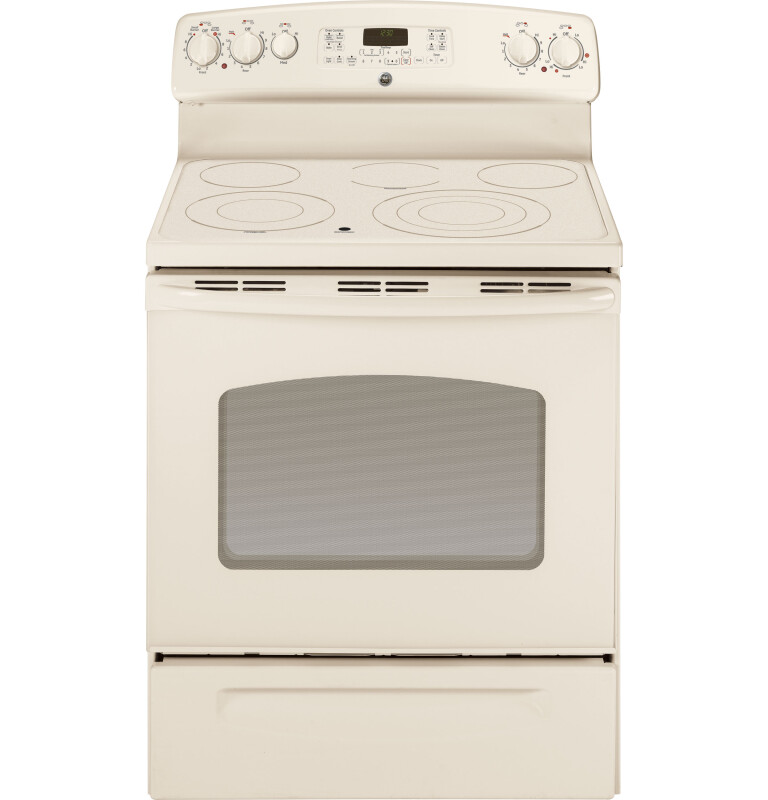

30" Free-Standing Electric Range with Warming Drawer - JB705TTCC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range with Warming Drawer

Model: JB705TTCC

30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC30" Free-Standing Electric Range with Warming Drawer JB705TTCC
30" Free-Standing Electric Range with Warming Drawer JB705TTCC
30" Free-Standing Electric Range with Warming Drawer JB705TTCC
30" Free-Standing Electric Range with Warming Drawer JB705TTCC
30" Free-Standing Electric Range with Warming Drawer JB705TTCC
30" Free-Standing Electric Range with Warming Drawer JB705TTCC
+4more

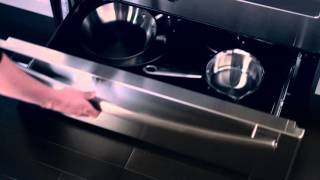

Product Video

GE 30" Free-Standing Electric Range with Warming Drawer Bisque JB705TTCC Picture

Color : Bisque

30" Free-Standing Electric Range with Warming Drawer JB705TTCC
Bisque

Key Features

  • True European Convection with Precise Air

  • Self-clean with Steam Clean option

  • 12"/9"/6" tri-ring element

  • 9"/6" Power Boil element

  • Self-clean, heavy-duty oven racks

Description

Gives the option of self-cleaning or steam cleaning.Three heating elements in one offer flexibility.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

True European Convection with Precise Air

Accurate heat circulation ensures evenly baked foods

Self-clean with Steam Clean option

Gives the option of self-cleaning or steam cleaning

12"/9"/6" tri-ring element

Three heating elements in one offer flexibility

9"/6" Power Boil element

Produces rapid, powerful heat

Self-clean, heavy-duty oven racks

Can stay in the oven during the self-clean cycle

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight160 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight200 lbs.
Total of Shipping Weight200 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

6"/9" Dual Heating Element1 Ribbon (3,000W Power Boil)
ConfigurationRange with Warming Drawer
Oven FeaturesDual-Element Bake
Cooking SystemTrue European Convection with Precise Air
Cleaning TimeVariable with Delay Clean Option
Melt SettingYes
Oven InteriorInterior Oven Light
Warming Zone1-6" Ribbon (120W)
Cooktop Burner TypeSmoothtop

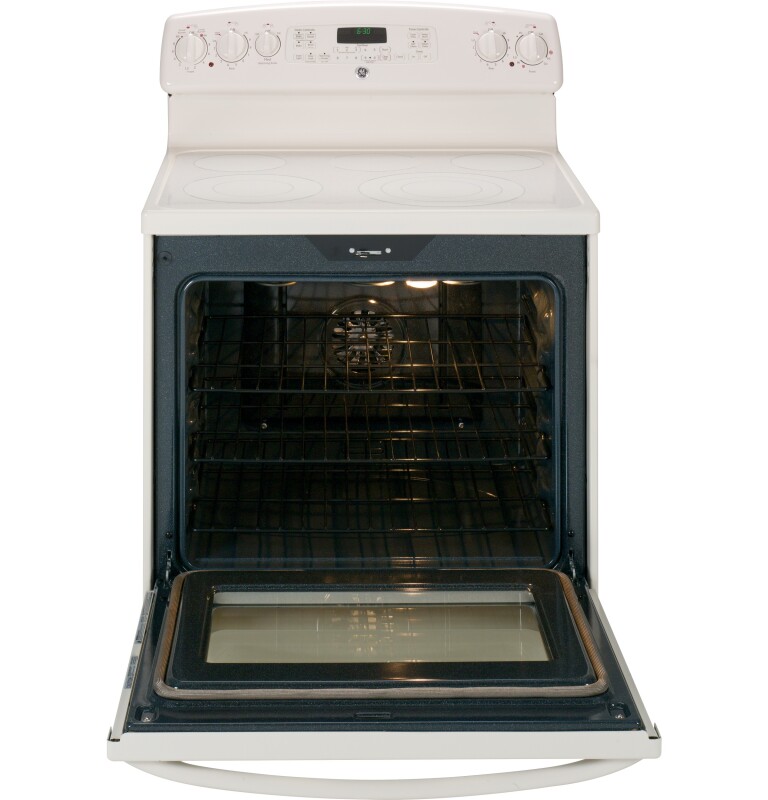

Oven Rack Features3 Self-Clean Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Hot Surface Indicator Lights1, Cooktop
6"/9"/12" Tri-Ring Element1 Ribbon (3,000W)
Heating Element "ON" Indicator Light2

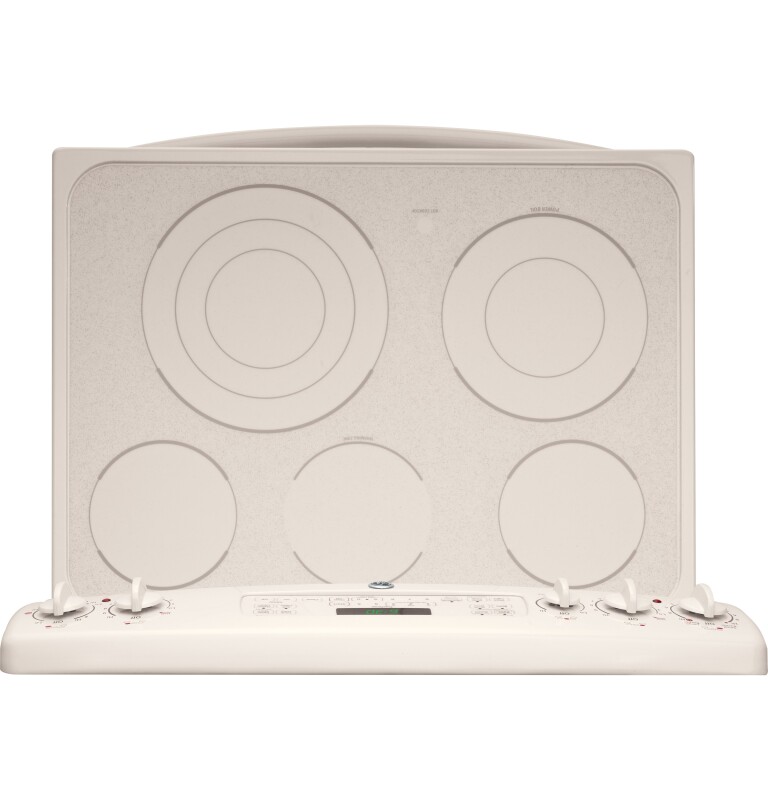

Cooktop SurfacePatterned True Bisque Glass Ceramic
Control LocationBacksplash

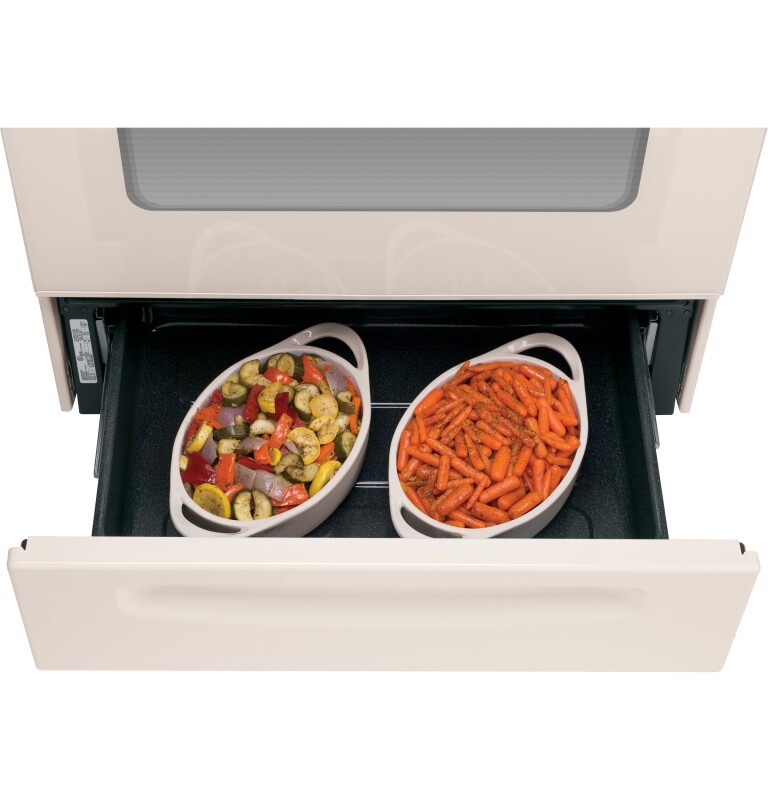

Warming Drawer FeaturesRemovable Liner
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)6

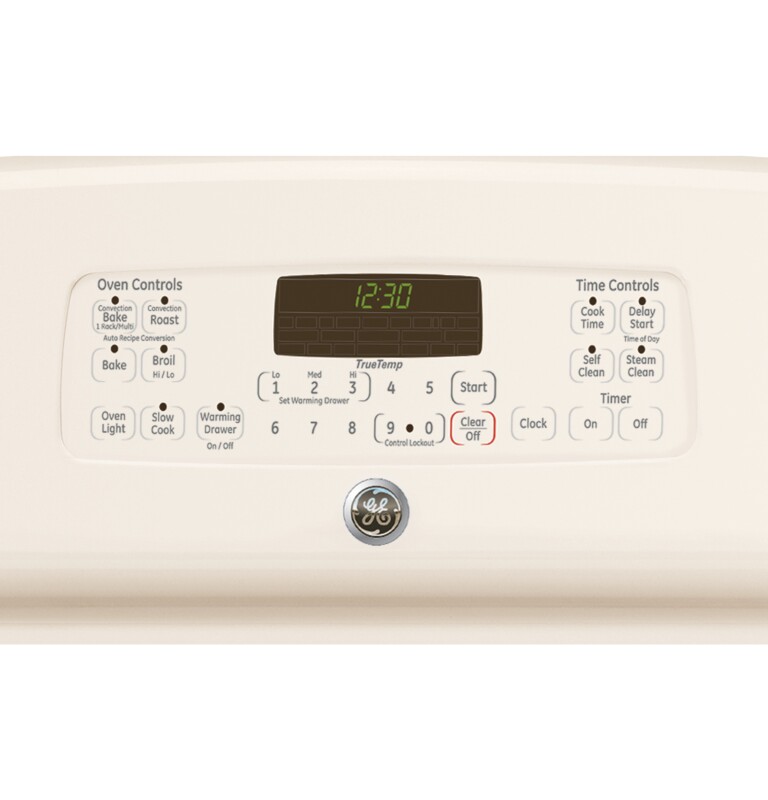

Control TypeTouchpads
Self-Clean Oven Door LockAutomatic
Cooking TechnologyConvection
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Cooking ModesConvection Roast
Oven Control FeaturesVariable Broil
Oven Cooking ModesThermal Bake / Thermal Roast
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOven Function Icons
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Cooking ModesConvection Bake Multi/Single Rack
Oven Cooking ModesSlow Cook
Oven Features6-Pass Broil Element
Oven InteriorHidden Bake

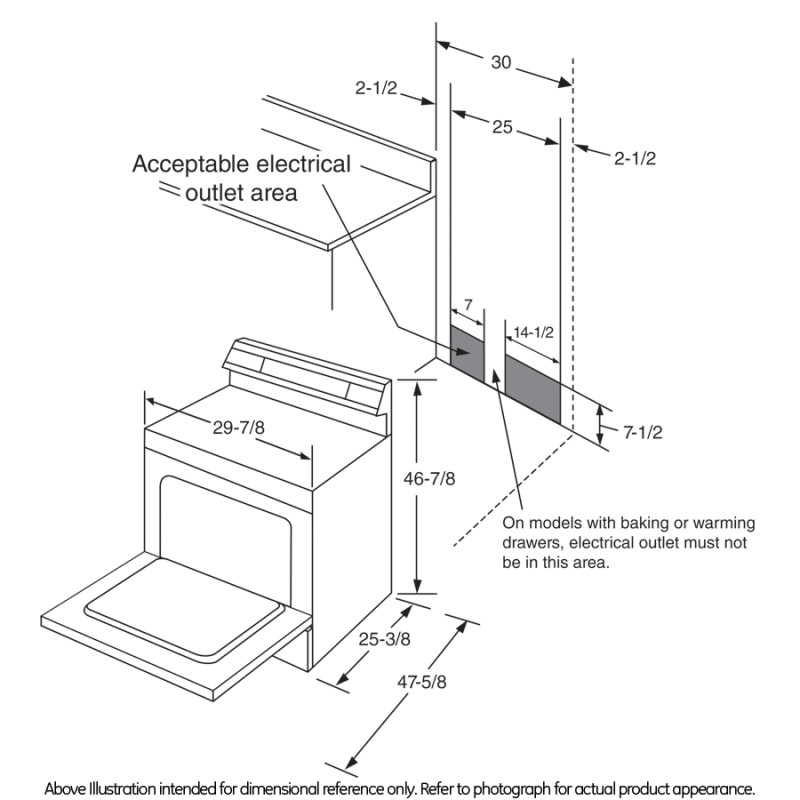

WEIGHTS & DIMENSIONS

Net Weight160 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight180 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V13.8
Bake Wattage2850W
Amp Rating at 208V40
Broiler Wattage3800W
KW Rating at 208V10.4
Amp Rating at 240V40

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

APPEARANCE

Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBisque
Oven Door FeaturesBisque Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBig Hearth Oven Window

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
