30" Free-Standing Electric Range - JB650DNBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

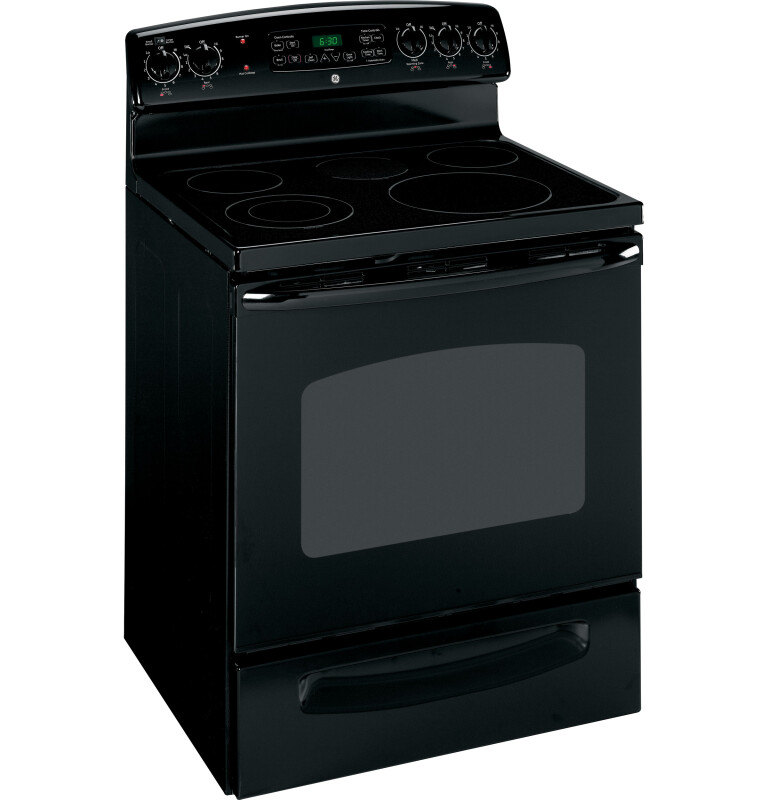

30" Free-Standing Electric Range

Model: JB650DNBB

30" Free-Standing Electric Range JB650DNBB30" Free-Standing Electric Range JB650DNBB
30" Free-Standing Electric Range JB650DNBB
30" Free-Standing Electric Range JB650DNBB

Color : Black

30" Free-Standing Electric Range JB650DNBB
Black

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • TrueTemp oven system

  • Dual-size ribbon element

  • Warming zone (fifth element warming zone)

  • Big hearth window

  • QuickSet oven controls

Description

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire.46 7/8 H x 29 7/8 W x 27 3/4 D
Read More

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

Dual-size ribbon element

Two heating elements in one allows you to choose a heating area for your cookware

Warming zone (fifth element warming zone)

Simplify meals by keeping foods fresh from the oven warm and ready to serve

Big hearth window

Elegant shaped window makes it easy to monitor the progress of food

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

Certifications

California Prop 65 certification

California Prop 65

Specifications

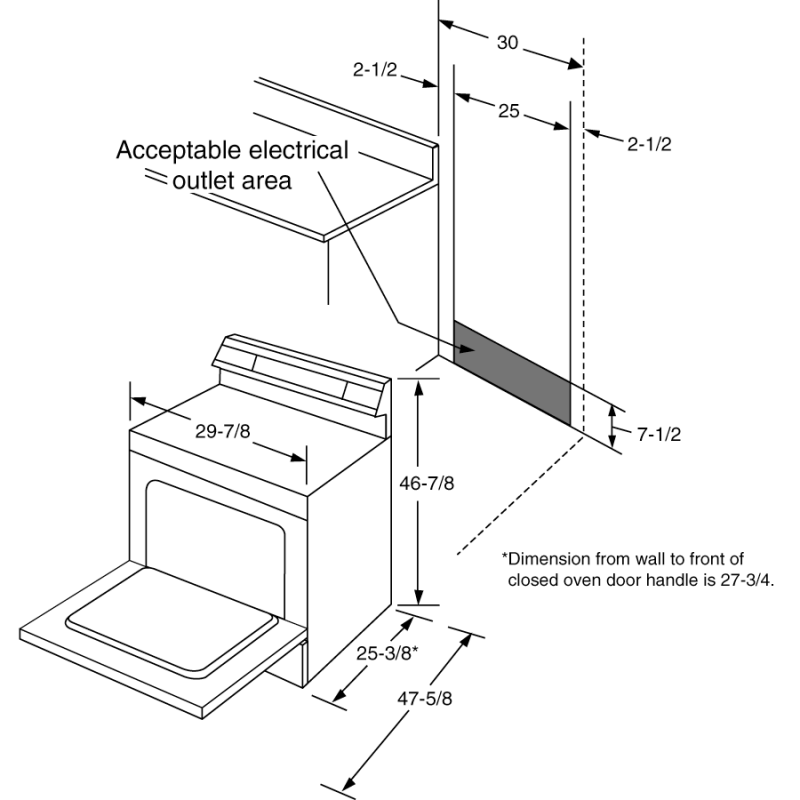

WEIGHTS & DIMENSIONS

Overall Width29.875 in
Overall Depth27.75 in
Overall Height46.875 in
Net Weight154 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight175 lb

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight154 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight194 lbs.
Total of Shipping Weight194 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Storage Drawer FeaturesRemovable Full-Width
Interior Oven LightYes
5"/8" Dual Heating Element1 Ribbon (2,400W Power Boil)
Warming Zone1 Ribbon (120W)
Oven Cooking ModesThermal Bake / Thermal Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1
StyleSmoothtop
Heating Element "ON" Indicator LightYes
Cooktop SurfacePatterned Black on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
8" Heating Element (s)2 Ribbon (2,000 watt)
Dishwasher Safe KnobsYes
12" Heating Element1 Ribbon (2,700W)
Cooking TechnologyTraditional
Control TypeQuickSet III
Oven Control FeaturesAuto Oven Shut-Off with Override

POWER / RATINGS

KW Rating at 240V10.5
Amp Rating at 208V40
KW Rating at 208V7.9
Amp Rating at 240V40

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.3 cu ft

APPEARANCE

HandleColor-Matched High-Gloss
Color AppearanceBlack on Black
Oven Door FeaturesBlack Frameless Glass Door

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

ACCESSORIES

Cooktop CleaningIncluded
