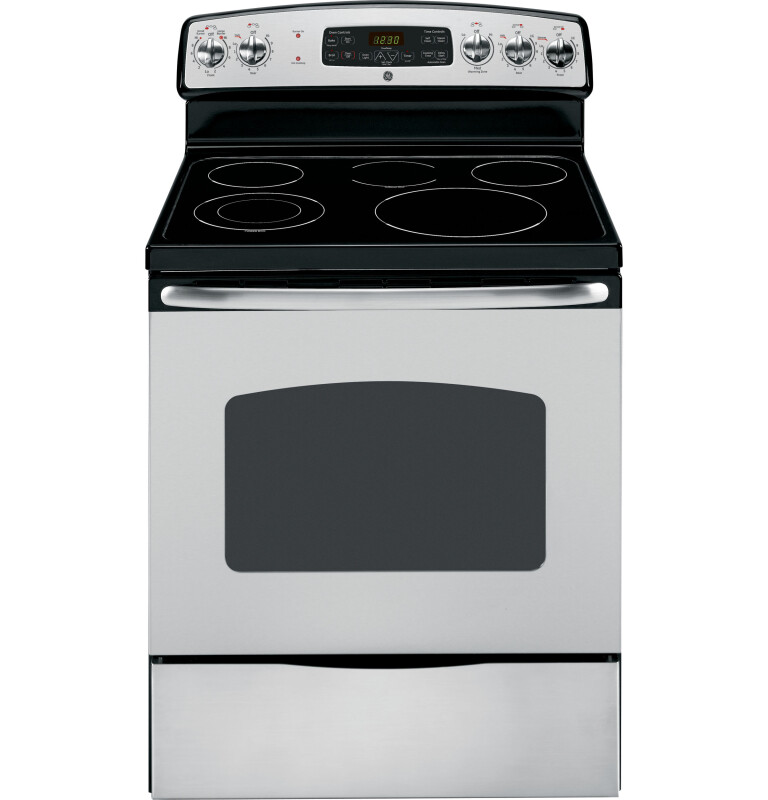

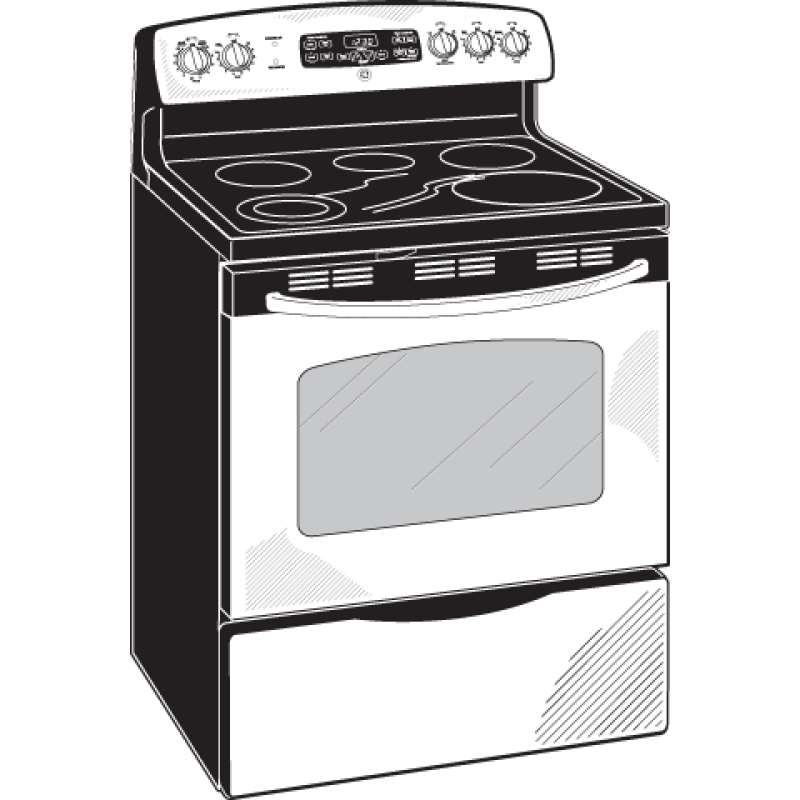

30" Free-Standing Electric Range - JB645STSS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JB645STSS

30" Free-Standing Electric Range JB645STSS30" Free-Standing Electric Range JB645STSS30" Free-Standing Electric Range JB645STSS
30" Free-Standing Electric Range JB645STSS
30" Free-Standing Electric Range JB645STSS
30" Free-Standing Electric Range JB645STSS

Color : Stainless Steel

30" Free-Standing Electric Range JB645STSS
Stainless Steel

Type : Electric

ElectricGas

Key Features

  • Self-clean with Steam Clean option

  • 5.3 cu. ft. oven capacity

  • Hidden bake oven interior

  • 8"/5" Power Boil element

  • 12" element

  • Fifth element warming zone

Description

Enough room to cook an entire meal at once.Conceals the lower oven element to simplify cleaning.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean with Steam Clean option

Gives the option of self-cleaning or steam cleaning

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

Hidden bake oven interior

Conceals the lower oven element to simplify cleaning

8"/5" Power Boil element

Produces rapid, powerful heat

12" element

Provides exceptional cooking power

Fifth element warming zone

Provides low-heat capability for foods

Certifications

California Prop 65 certification

California Prop 65

Specifications

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight159 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight199 lbs.
Total of Shipping Weight199 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Cooking SystemThermal
Storage Drawer FeaturesRemovable Full-Width
Oven InteriorInterior Oven Light
5"/8" Dual Heating Element1 Ribbon (2,400W Power Boil)
Warming Zone1-6" Ribbon (120W)
Oven Cooking ModesThermal Bake / Thermal Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Hot Surface Indicator Lights1
Heating Element "ON" Indicator LightYes
Cooktop SurfacePatterned Graphite on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
Melt/Simmer SettingYes
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)6
12" Heating Element1 Ribbon (2,700W)
Cooking TechnologyTraditional
Control TypeElectronic
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesStart Pad
Control TypeTouchpads
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Features6-Pass Broil Element
Oven InteriorHidden Bake

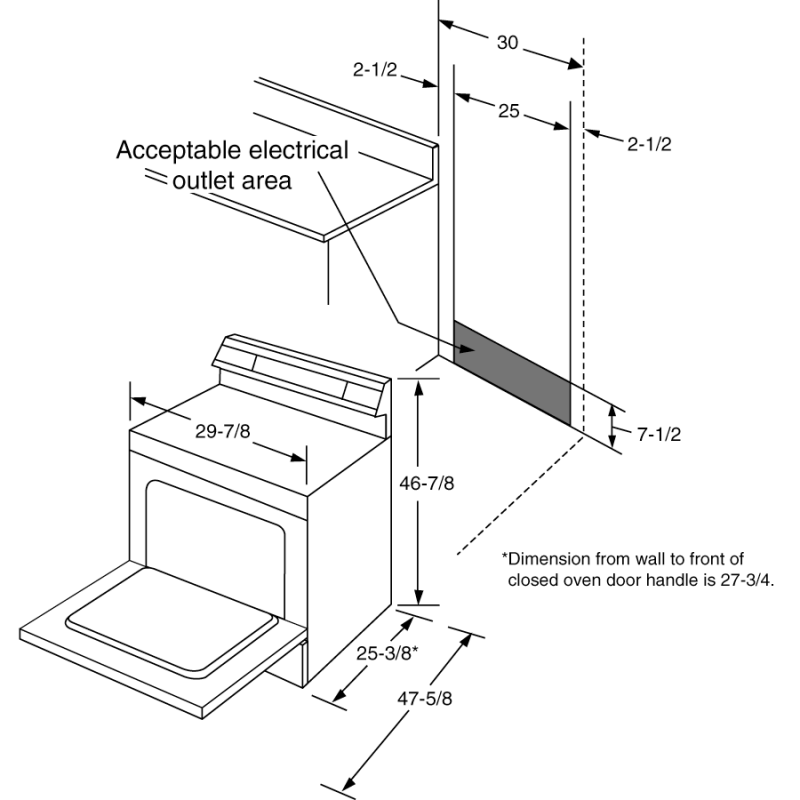

WEIGHTS & DIMENSIONS

Net Weight159 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight180 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V10.5
Bake Wattage2850W
Amp Rating at 208V40
Broiler Wattage3800W
KW Rating at 208V7.9
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesStainless Steel Frameless Lift-off Oven Door
Frameless Oven Door(s)Stainless
Textured Steel Side PanelsYes
Control KnobsStainless Steel Appearance
Handle DesignD-shaped
Handle ColorStainless Steel
Color AppearanceStainless Steel
Oven Door FeaturesClear View Oven Window

ACCESSORIES

Optional AccessoriesWB48X20881 Roller Rack
Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
