Home/Cooking/Ranges/Freestanding Ranges/JB620DRWW

30" Free-Standing CleanDesign Electric Range - JB620DRWW

GEGE brand logo
This product is discontinued and has been replaced by the model below.

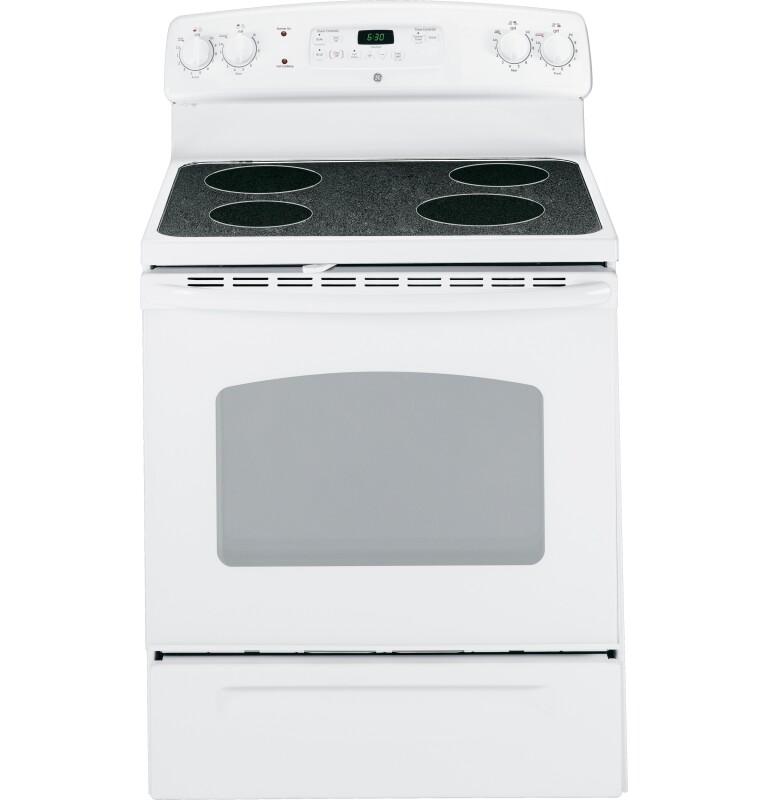

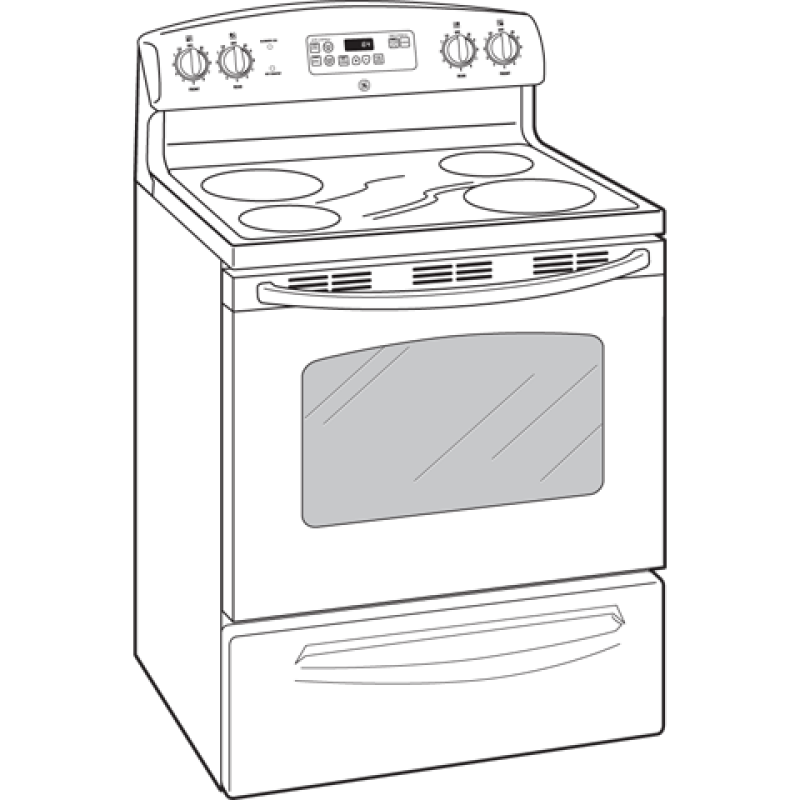

30" Free-Standing CleanDesign Electric Range

Model: JB620DRWW

30" Free-Standing CleanDesign Electric Range JB620DRWW30" Free-Standing CleanDesign Electric Range JB620DRWW30" Free-Standing CleanDesign Electric Range JB620DRWW
30" Free-Standing CleanDesign Electric Range JB620DRWW
30" Free-Standing CleanDesign Electric Range JB620DRWW
30" Free-Standing CleanDesign Electric Range JB620DRWW

Product Video

GE 30" Free-Standing CleanDesign Electric Range White JB620DRWW Picture
2 Videos

Color : White

30" Free-Standing CleanDesign Electric Range JB620DRWW
White

Type : Electric

ElectricGas
Replaced By

Ge® Energy Star® 30" Free-standing Electric Range With Crisp Mode

Model: GRF500PVWW

Product - GRF500PVWW

$692.01

Was$899.00Save $206.99 (23%)

View Product

Key Features

  • Self-clean oven

  • 5.3 cu. ft. oven capacity

  • QuickSet III oven controls

  • Ceramic glass cooktop

  • Big hearth window

  • Dual-element Bake

Description

Enough room to cook an entire meal at once.Electronic touch pads make operation simple.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

QuickSet III oven controls

Electronic touch pads make operation simple

Ceramic glass cooktop

Smooth cooktop easily wipes clean

Big hearth window

Makes monitoring of foods easy

Dual-element Bake

Upper and lower elements produce even heat and great results

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/4 x 19-1/2

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight153 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight193 lbs.
Total of Shipping Weight193 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Element - Right Front8" 2000W
Oven FeaturesDual-Element Bake
Storage Drawer FeaturesRemovable Full-Width
Oven InteriorInterior Oven Light
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Element - Left Front6" 1500W
Infinite Heat ControlsYes
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1
Heating Element "ON" Indicator LightYes
Element - Left Rear8" 2000W
Element - Right Rear6" 1500W
Cooktop SurfacePatterned White on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
Melt/Simmer SettingYes
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)6
Control TypeTouchpads
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesStart Pad
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesOven "ON" Light

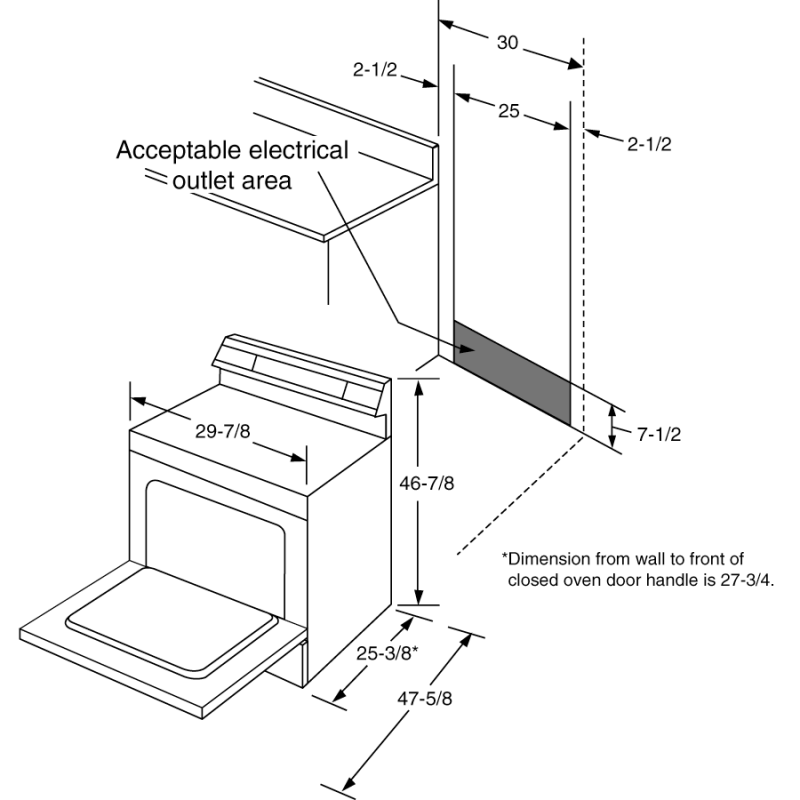

WEIGHTS & DIMENSIONS

Net Weight153 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/4 x 19-1/2
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight174 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V10.5
Bake Wattage2585W
Amp Rating at 208V40
Broiler Wattage3410W
KW Rating at 208V7.9
Amp Rating at 240V40

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

APPEARANCE

Textured Steel Side PanelsYes
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceWhite
Oven Door FeaturesHearth Oven Window
Oven Door FeaturesWhite Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
