Name: GE Artistry Series 30" Free-Standing Electric Range
Brand: GE
SKU: ABS45DFBS
Availability: BackOrder

GE Artistry Series 30" Free-Standing Electric Range

Model : #ABS45DFBS

This product has been discontinued by the manufacture and is no longer available.

GE Artistry Series 30" Free-Standing Electric Range

Model: ABS45DFBS

+6more

This product has been discontinued by the manufacture and is no longer available.

GE Artistry Series 30" Free-Standing Electric Range

Model: ABS45DFBS

Color : Black

Type : Electric

Electric Gas

Key Features

8" Power Boil element
5.0 cu. ft. oven capacity

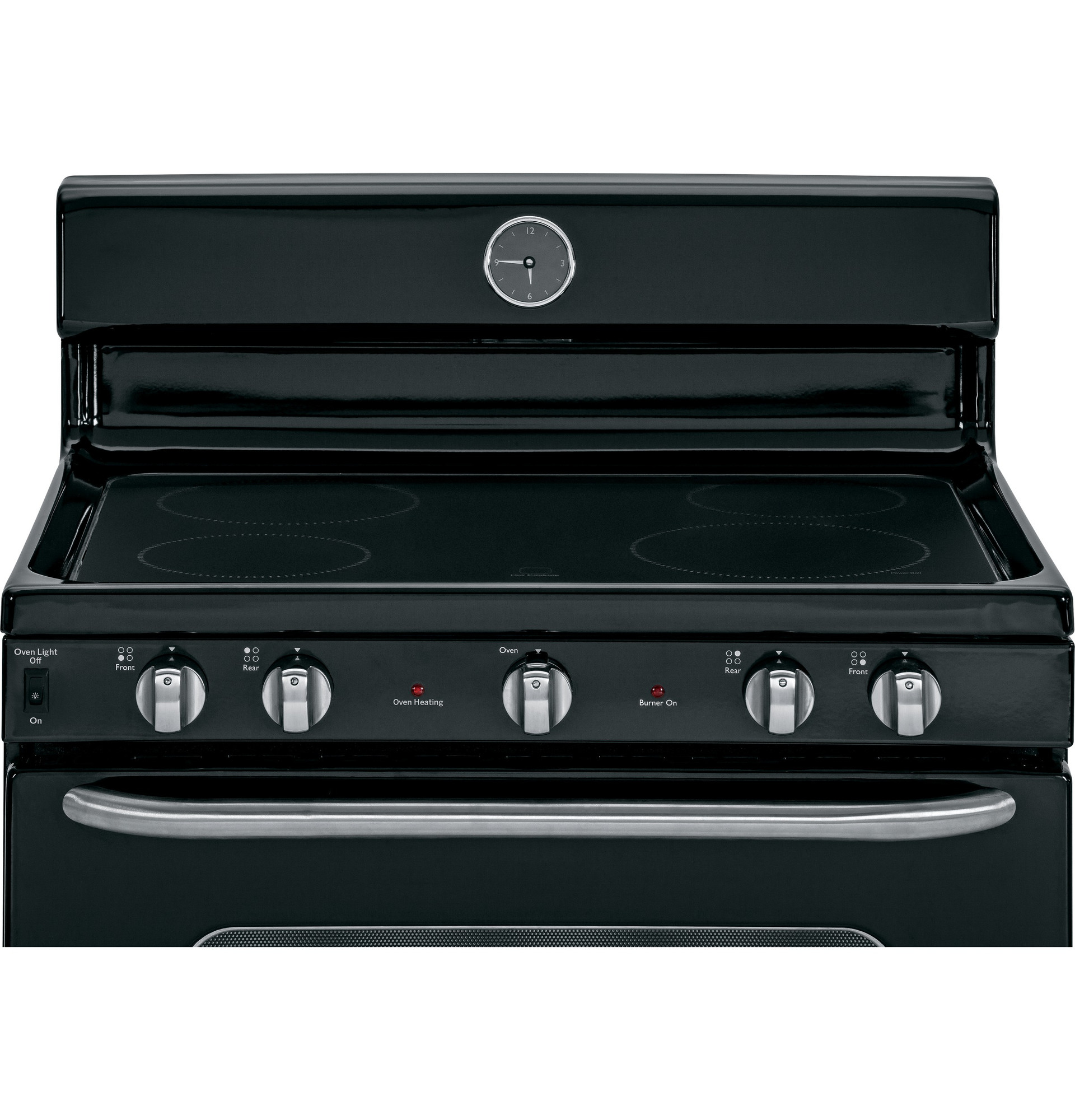

Upfront controls
Ceramic glass cooktop
Analog clock
Removable full-width storage drawer
Standard clean oven

Description

Cook more dishes at once.Minimize need to reach.44 1/2 H x 30 W x 29 D

Documents

Quick Specs

View | Download

PDF, 240.31 KB

Installation Instructions

View | Download

PDF, 482.51 KB

Use and Care Manual

View | Download

PDF, 627.96 KB

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features

Specifications

Certifications

Features

8" Power Boil element

2,500 Watts produce quick, vigorous heat

5.0 cu. ft. oven capacity

Cook more dishes at once

Upfront controls

Minimize need to reach

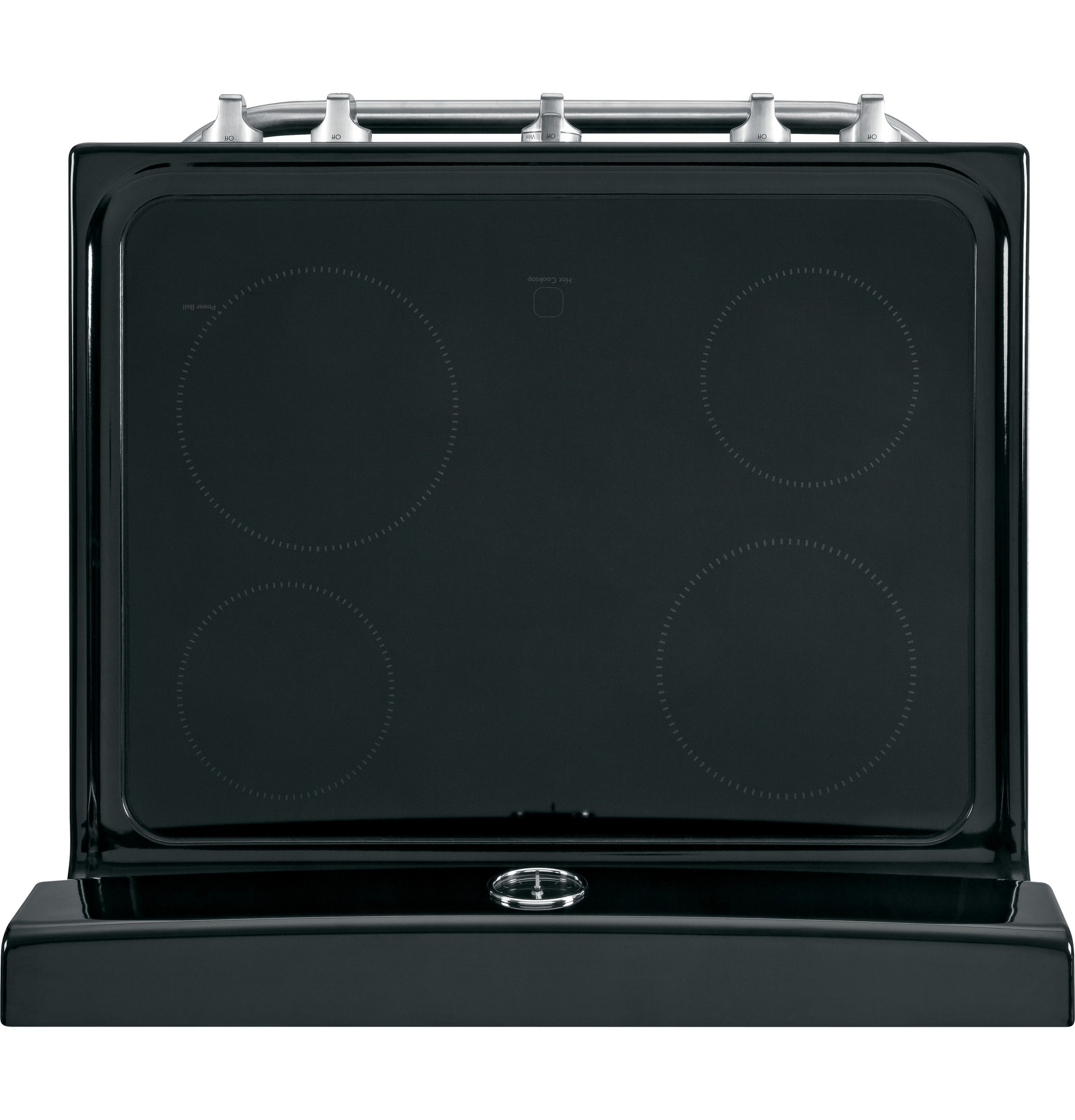

Ceramic glass cooktop

Smooth cooktop easily wipes clean

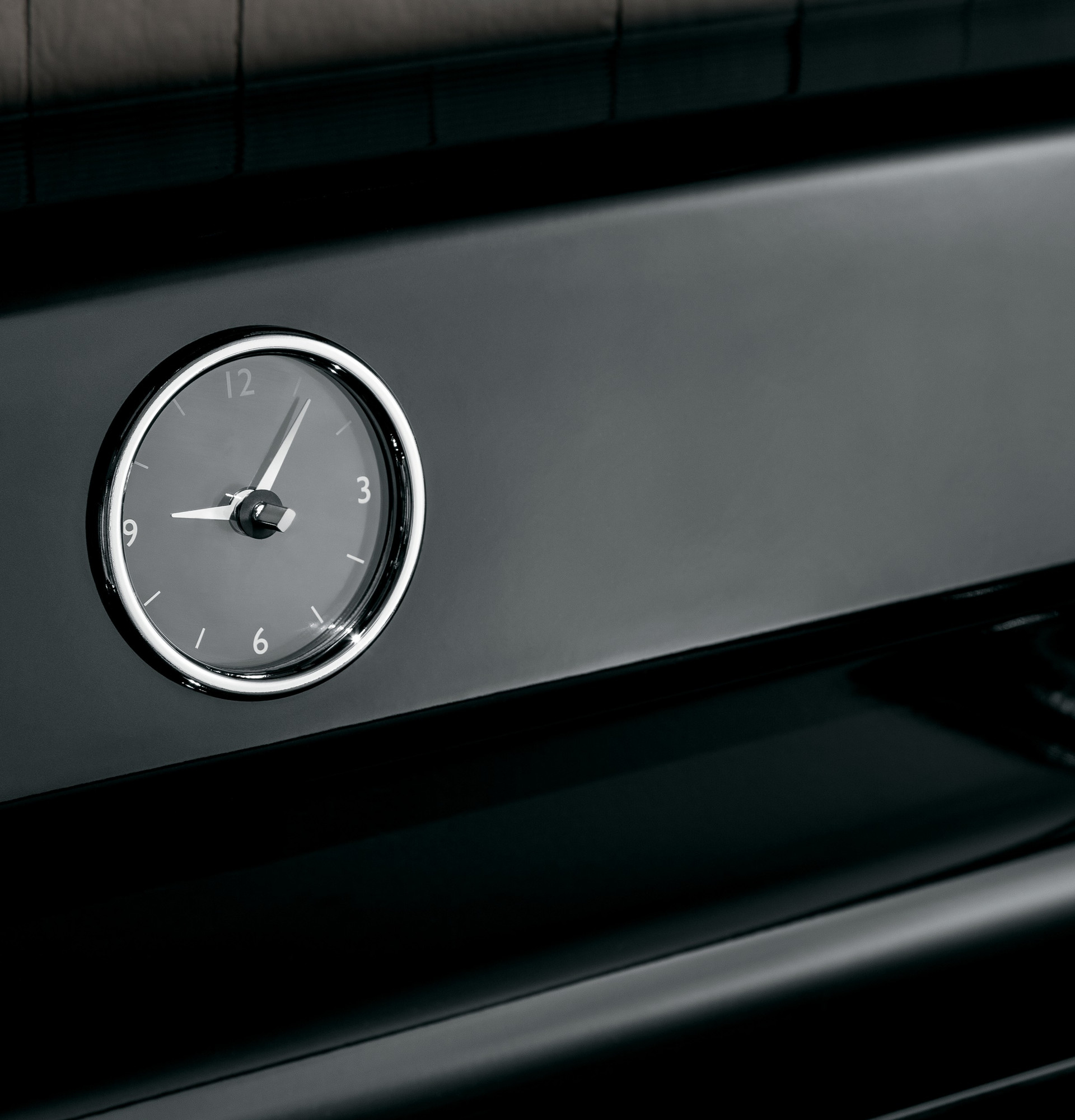

Analog clock

Refreshingly simple and easy to read

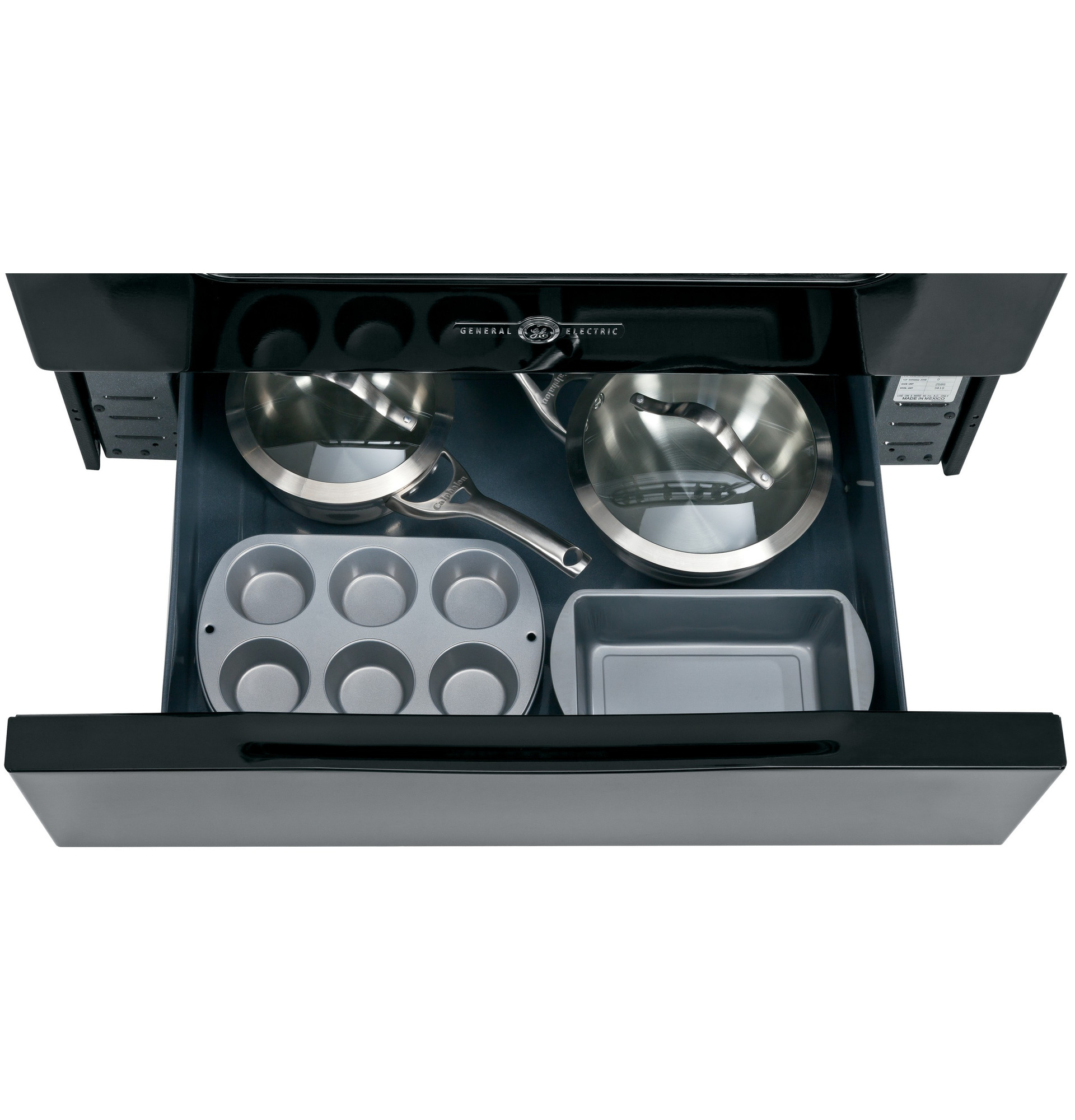

Removable full-width storage drawer

Store cookware or kitchen accessories

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

Certifications

ADA Compliant

California Prop 65

Specifications

WARRANTY

Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

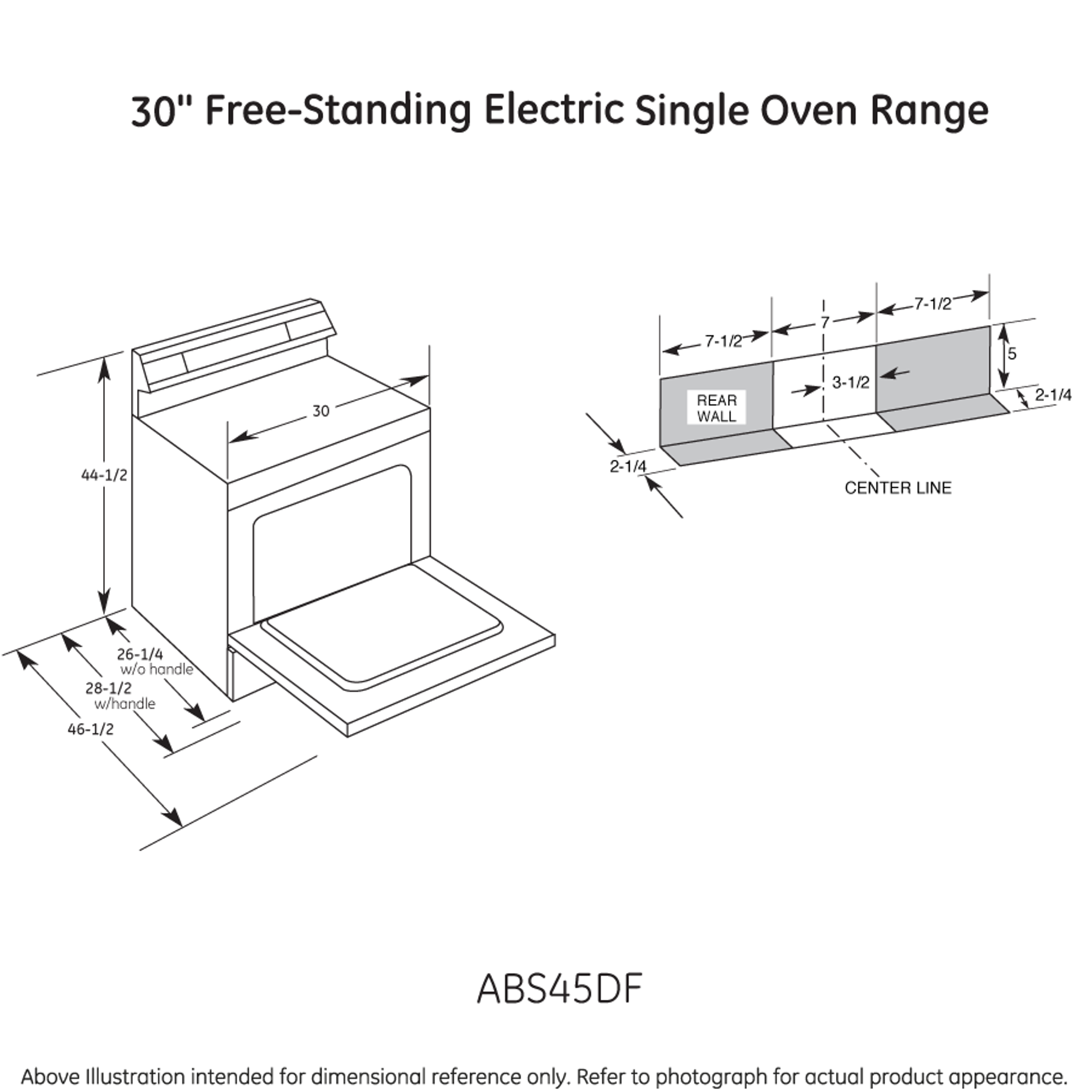

WEIGHTS & DIMENSIONS

Overall Width	30 in
Overall Depth	29 in
Net Weight	130 lb
Depth Without Handle	26.25 in
Oven Interior Dimensions (W x H x D) (in.)	23-3/4 x 19 x 18-1/2
Depth with Door Open	46.75 in
Cabinet Width	30 in
Approximate Shipping Weight	150 lb
Overall Height	44 1/2 in
Height to Cooking Surface (in.)	36 - 36.5

Warranty

Parts	1 Year
Labor	1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)

23-3/4 x 19 x 18-1/2

FEATURES

Configuration	Range with Storage Drawer
Oven Features	Dual-Element Bake
Element - Right Front	8" 2500W Power Boil
Storage Drawer Features	Removable Full-Width

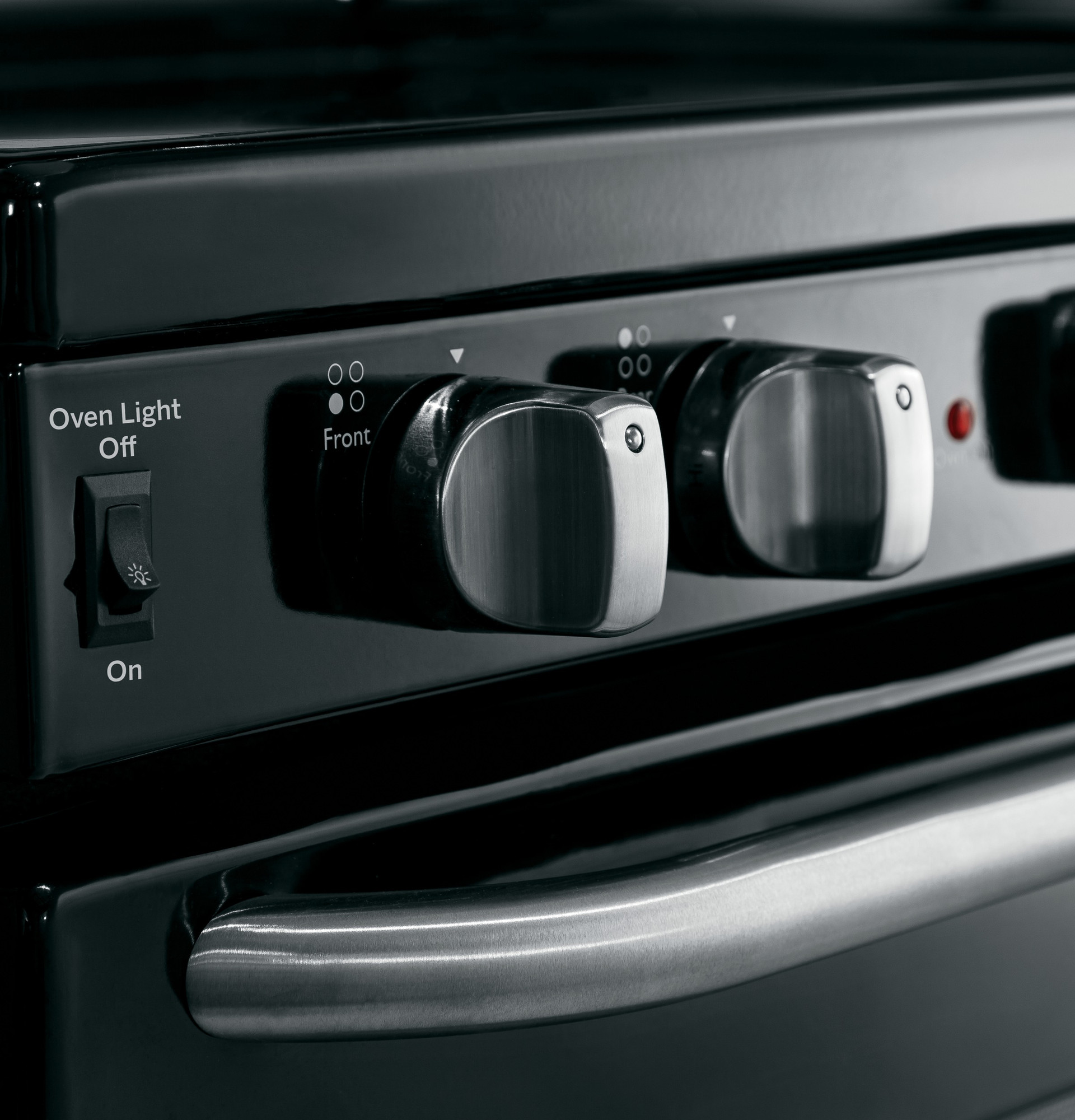

Interior Oven Light	Switch
Oven Control Features	Oven Heating Light
Cooktop Burner Type	Radiant
Oven Rack Features	2 Oven Racks
Element - Left Front	6" 1500W
Infinite Heat Controls	Yes
Oven Cleaning Type	Standard Clean
Hot Surface Indicator Lights	1
Product Type	Free-Standing Single Oven
Heating Element "ON" Indicator Light	1
Element - Left Rear	8" 2000W
Element - Right Rear	6" 1500W
Cooktop Surface	Porcelain-Enamel
Drawer Type	Storage
Oven Rack Positions (Single or Upper/Lower)	6
Cooking Technology	Traditional
Cooktop Surface	One-Piece Upswept
Interior Oven Light	1 Incandescent
Oven Features	6-Pass Bake Element
Oven Features	6-Pass Broil Element

POWER / RATINGS

KW Rating at 240V	11.0
Bake Wattage	2585W
Amp Rating at 208V	31.9
Broiler Wattage	3410W
KW Rating at 208V	8.3
Amp Rating at 240V	33.3

APPEARANCE

Oven Door Features	Oven Window
Handle	Stainless Steel
Textured Steel Side Panels	Yes
Control Knobs	Brushed Stainless
Color Appearance	Black

ACCESSORIES

Cooktop Cleaning	Included
Cooktop Cleaning	Cream

Dimensions & Weight

Width	30 in.
Height	44.5 in.
Length	29 in.
Weight	130 lbs.
Net Weight	130 lb
Depth Without Handle	26.25 in
Oven Interior Dimensions (W x H x D) (in.)	23-3/4 x 19 x 18-1/2
Height to Cooking Surface (in.)	36 - 36 1/2
Depth with Door Open	46.75 in
Cabinet Width	30 in
Approximate Shipping Weight	150 lb

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	49.5 in.
Shipping Length	34 in.
Shipping Weight	170 lbs.
Total of Shipping Weight	170 lbs.
Source	Calculation
