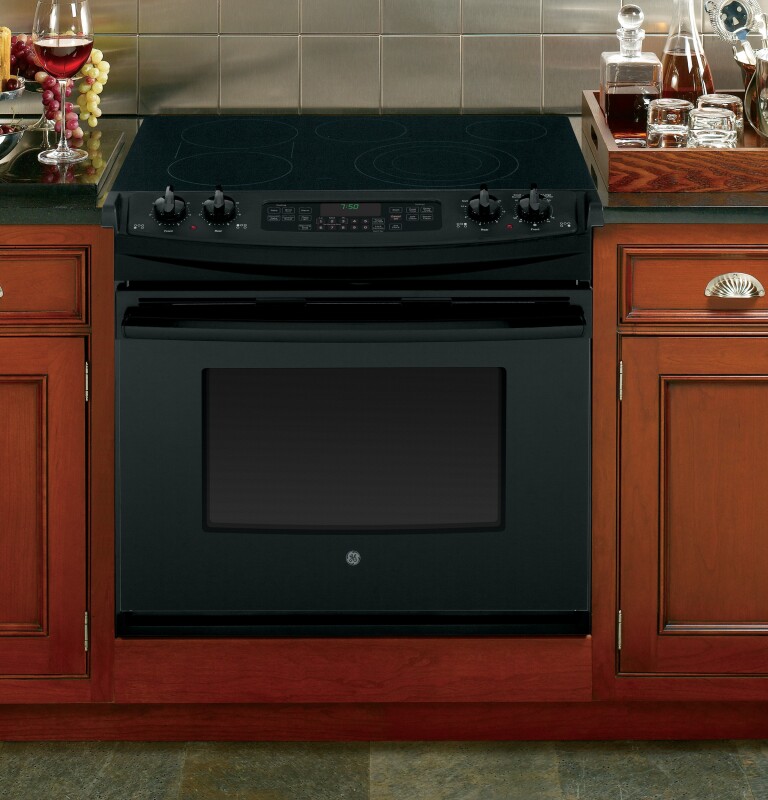

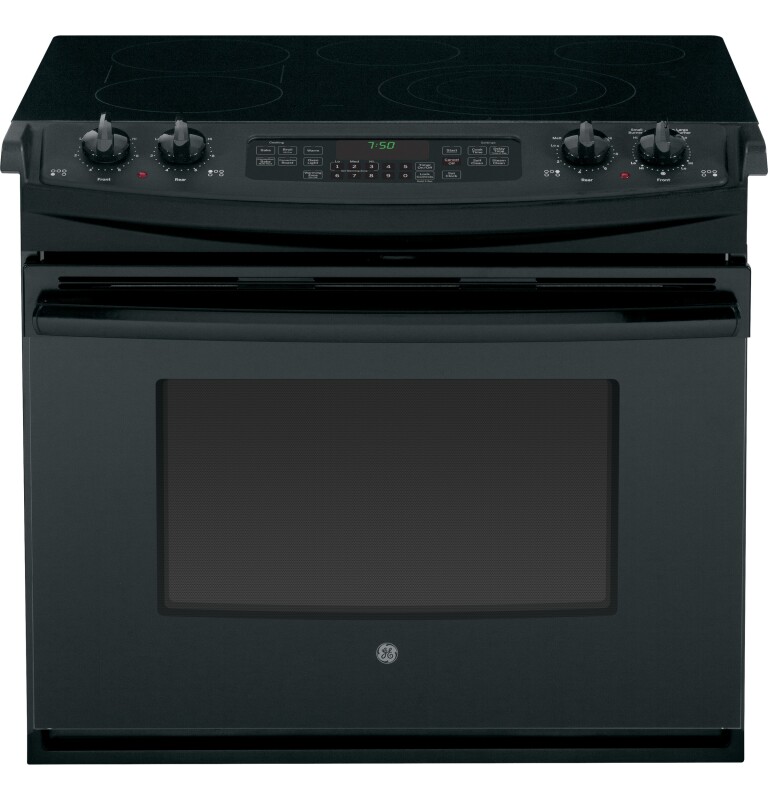

30" Drop-In Electric Convection Range - JD750DFBB
30" Drop-In Electric Convection Range
Model: JD750DFBB












Product Video

30" Drop-In Electric Convection Range
Model: JD750DFBB
Key Features
True Convection with Precise Air
12"/9"/6" 3,600W Power Boil
Bridge zone
Fifth element warming zone
Heavy-duty oven racks
Self-clean with Steam Clean option
Black gloss oven interior
Fast preheat
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
True Convection with Precise Air
Enjoy perfectly even results without turning the pan

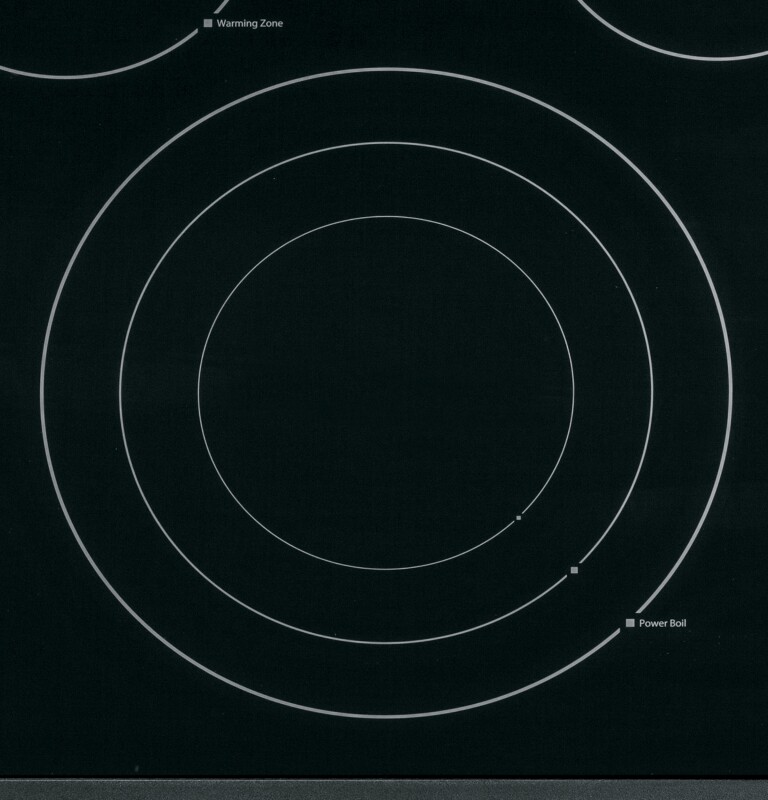

12"/9"/6" 3,600W Power Boil
Pots and pans fit perfectly on the flexible heating element

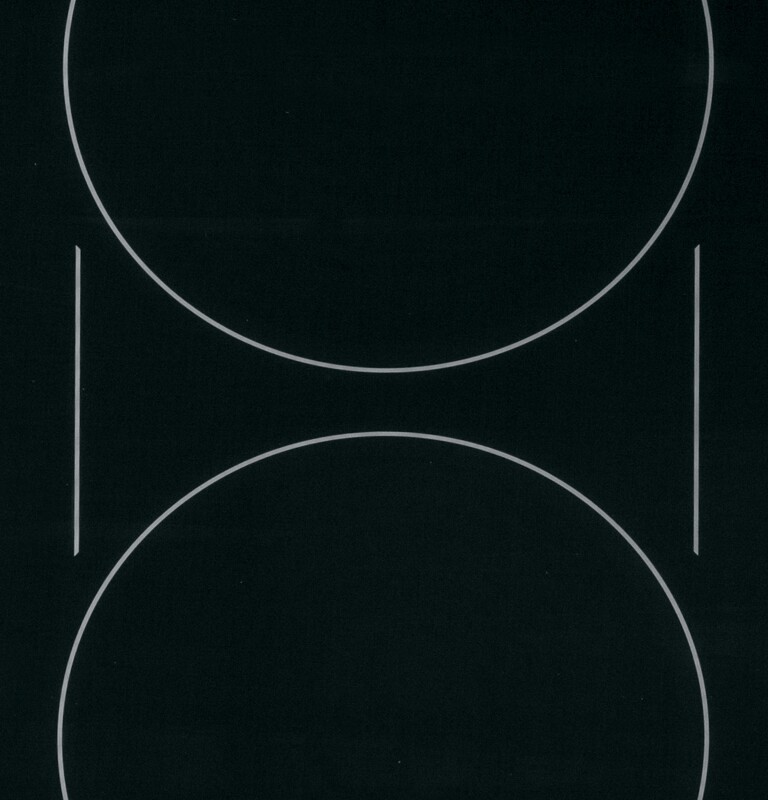

Bridge zone
Cook griddle favorites from the convenience of your range

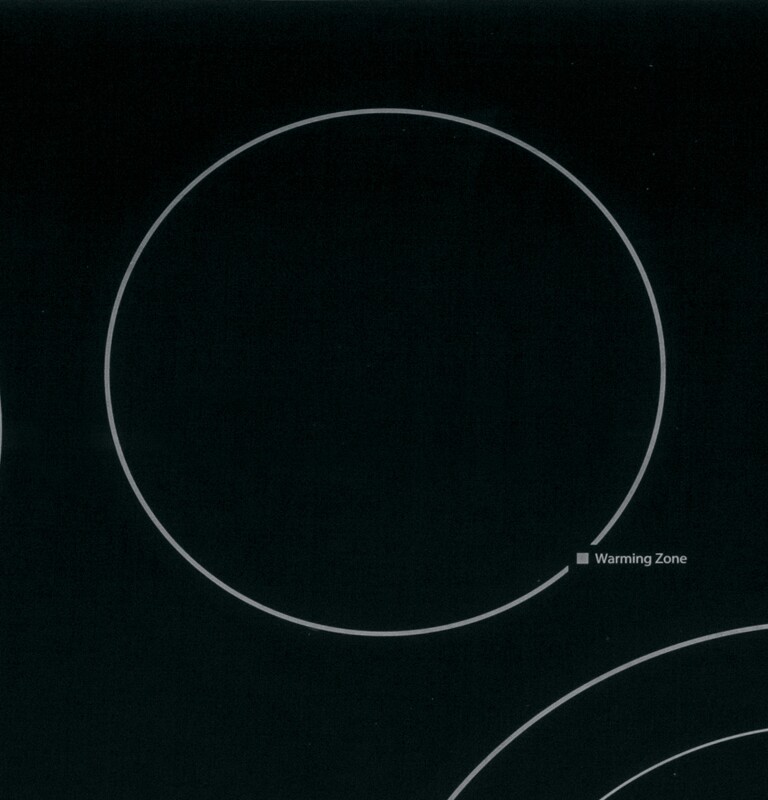

Fifth element warming zone
Provides low heat capability for foods
Heavy-duty oven racks
Thicker racks offer additional strength
Self-clean with Steam Clean option
Clean your oven the way you want
Black gloss oven interior
Enjoy a clean and sleek appearance
Fast preheat
Make hot meals in a hurry with less time preheating
Hidden bake oven interior
Make cleanup easy by eliminating hard-to-reach areas
Certifications
ADA Compliant
California Prop 65
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

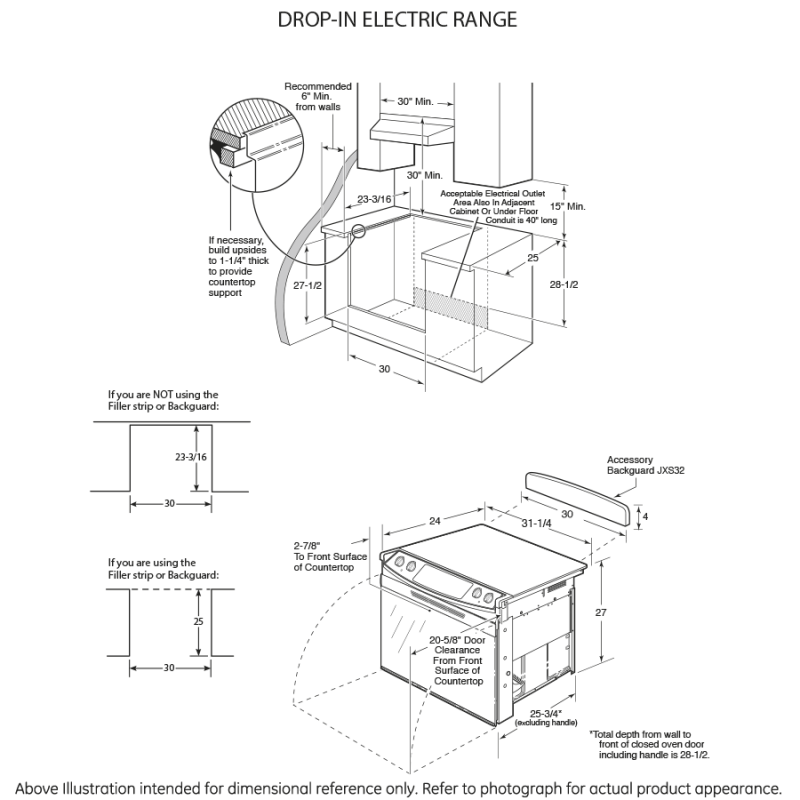

WEIGHTS & DIMENSIONS
| Overall Height | 27 in |
| Net Weight | 148 lb |
| Depth Without Handle | 25.75 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Cooktop Width | 31.25 in |
| Depth with Door Open | 44.625 in |
| Cabinet Opening | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 168 lb |
| Overall Depth | 28 1/2 in |
| Overall Width | 31 1/4 in |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Cabinet Opening | 30 in |
Dimensions & Weight
| Width | 31.25 in. |
| Height | 27 in. |
| Length | 28.5 in. |
| Weight | 148 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36.25 in. |
| Shipping Height | 32 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 188 lbs. |
| Total of Shipping Weight | 188 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.92 ft³ |
| Dimensional Weight | 173 lbs. |
| Total of Cubes | 13.92 ft³ |
| Total of Dimensional Weight | 173 lbs. |
POWER / RATINGS
| KW Rating at 240V | 12.6 |
| Bake Wattage | 2650W |
| Convection Wattage | 2500W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3600W |
| KW Rating at 208V | 9.5 |
| Amp Rating at 240V | 40 |
FEATURES
| Oven Features | Hidden Bake |
| Element - Right Front | 12”/9”/6” 3600W Power Boil |
| Cooking System | True European Convection with Precise Air |
| Interior Oven Light | 1 Halogen |
| Melt Setting | Yes |
| Element - Center | 6" Warming Zone |
| Oven Cooking Modes | Convection Bake |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 3 Heavy-Duty Oven Racks |
| Element - Left Front | 8" 2000W |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Hot Surface Indicator Lights | 4 |
| Heating Element "ON" Indicator Light | 2 |
| Element - Left Rear | 8" 2000W |
| Element - Right Rear | 6" 1200W |
| Cooktop Surface | Overhanging Cooktop |
| Control Location | Front |
| Oven Rack Positions (Single or Upper/Lower) | 7 |
| Cooking Technology | Convection |
| Control Type | Electronic |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Warm Mode |
| Control Type | Touchpads |
| Control Type | Digital Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | Black Ceramic Glass |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Recipe Conversion |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Convection Roast |
| Oven Control Features | Delay Bake Option (Time Cook) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Fast Preheat |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Steam Clean |
| Oven Features | 8-Pass Broil Element |
APPEARANCE
| Oven Door Features | Glass Door |
| Handle | Designer Style |
| Installation | Flush Appearance |
| Control Knobs | Weighted |
| Color Appearance | Black on Black |
| Control Knobs | Color-Matched |
| Handle | Color-Matched |
| Oven Door Features | Big View Oven Window |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| Cooktop Cleaning | Included |
| Optional Backguard | JXS32SS (Stainless Steel) |
| Optional Backguard | JXS32WW (White) |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
| Optional Backguard | JXS32BB (Black) |
CAPACITY
| Total Capacity (cubic feet) | 4.40 cu ft |
