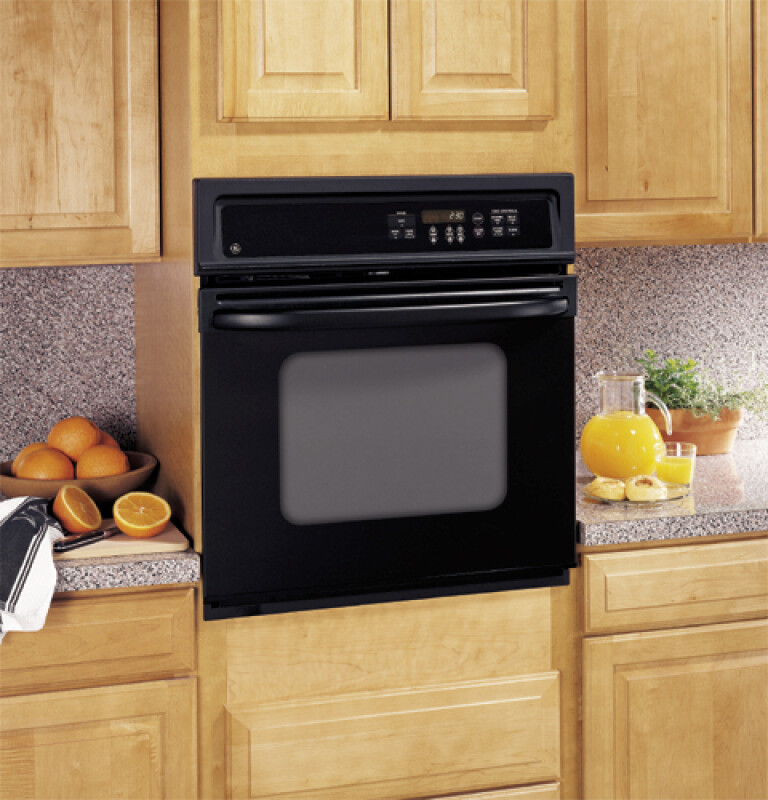

27" Built-In Single Wall Oven - JKS05BDBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

27" Built-In Single Wall Oven

Model: JKS05BDBB

27" Built-In Single Wall Oven JKS05BDBB
27" Built-In Single Wall Oven JKS05BDBB

Color : Black

27" Built-In Single Wall Oven JKS05BDBB
Black

Key Features

  • Extra-large 3.9 cu. ft. capacity standard clean oven

  • SmartSet electronic oven-controls

  • Certified sabbath mode

  • Variable broil

  • 2 racks with 4 embossed positions

  • Installation flexibility

Description

29 H x 26 5/8 W x 23 5/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Extra-large 3.9 cu. ft. capacity standard clean oven

SmartSet electronic oven-controls

Certified sabbath mode

Variable broil

2 racks with 4 embossed positions

Installation flexibility

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width26.625 in
Overall Depth23.625 in
Overall Height29 in
Approximate Shipping Weight93 lb
Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Cabinet Width27 in
Net Weight88 lb
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4

Other

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4

Dimensions & Weight

Width26.63 in.
Height29 in.
Length23.63 in.
Weight88 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.63 in.
Shipping Height34 in.
Shipping Length28.63 in.
Shipping Weight128 lbs.
Total of Shipping Weight128 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.56 ft³
Dimensional Weight131.23 lbs.
Total of Cubes10.56 ft³
Total of Dimensional Weight131.23 lbs.

FEATURES

ConfigurationSingle Oven
Broiler Pan and GridYes
Control TypeSmartSet
Oven Cleaning TypeStandard Clean
Cooking TechnologyTraditional
Oven Rack Features2 Oven Racks
Interior Oven LightYes
Oven Control FeaturesAuto Oven Shut-Off with Override

APPEARANCE

Frameless Oven Door(s)Black
HandleDesigner Style
Oven Door FeaturesBig Clear View Oven Window
InstallationUndercounter
Color AppearanceBlack on Black

POWER / RATINGS

Broiler Wattage3400W
Amp Rating at 208V20
KW Rating at 208V2.6
Amp Rating at 240V20
Bake Wattage2000W
KW Rating at 240V3.4

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

FILTER

App Filter - Cabinet WidthCooking 27 in.
App Filter - Product TypeWall Oven Single
App Filter - Fuel TypeElectric

CAPACITY

Total Capacity (cubic feet)3.9 cu ft
