27" Built-In Single Convection Wall Oven - JKP70WMWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

27" Built-In Single Convection Wall Oven

Model: JKP70WMWW

27" Built-In Single Convection Wall Oven JKP70WMWW27" Built-In Single Convection Wall Oven JKP70WMWW27" Built-In Single Convection Wall Oven JKP70WMWW27" Built-In Single Convection Wall Oven JKP70WMWW
27" Built-In Single Convection Wall Oven JKP70WMWW
27" Built-In Single Convection Wall Oven JKP70WMWW
27" Built-In Single Convection Wall Oven JKP70WMWW
27" Built-In Single Convection Wall Oven JKP70WMWW

Color : White

27" Built-In Single Convection Wall Oven JKP70WMWW
White

Key Features

  • True European Convection with Precise Air

  • Flat back convection

  • Convection Bake multi-rack

  • Eight-pass bake element

  • Six-pass broil element

  • Electronic oven controls

  • Interior oven light(s)

  • Heavy-duty oven racks

Read More

Description

Convection fan system is only 1" deep to provide additional room for cookware.The reversing fan and third, 2500-watt element surrounding a fan provides even browning on every rack.29 H x 26 5/8 W x 23 5/8 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

True European Convection with Precise Air

A reversing fan circulates heat and air for evenly browned and baked foods

Flat back convection

Convection fan system is only 1" deep to provide additional room for cookware

Convection Bake multi-rack

The reversing fan and third, 2500-watt element surrounding a fan provides even browning on every rack

Eight-pass bake element

Interior heating element loops eight times to distribute heat quickly and evenly for optimal baking results

Six-pass broil element

Provides a more even coverage of the food on the broiler pan

Electronic oven controls

Electronic pads on the control panel are easy to operate with just a touch

Interior oven light(s)

Bright interior light helps you check on the progress of your cooking

Heavy-duty oven racks

Tough, durable racks include 50% thicker crossbars for extra strength

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Height29 in
Approximate Shipping Weight120 lb

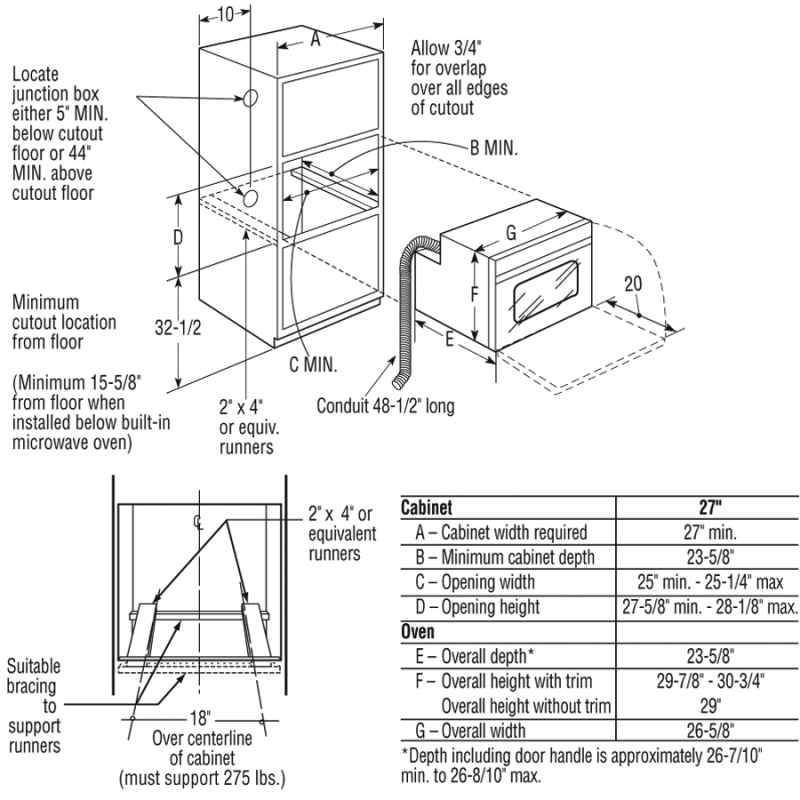

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Cabinet Width27 in
Net Weight108 lb
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4
Overall Depth23 5/8 in
Overall Width26 5/8 in

Other

Cutout Dimensions (w x h x d) (in.)25 x 27-5/8 x 23-5/8
Oven Interior Dimensions (W x H x D) (in.)21-1/2 x 17 x 18-1/4

Dimensions & Weight

Width26.63 in.
Height29 in.
Length23.63 in.
Weight108 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.63 in.
Shipping Height34 in.
Shipping Length28.63 in.
Shipping Weight148 lbs.
Total of Shipping Weight148 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.56 ft³
Dimensional Weight131.23 lbs.
Total of Cubes10.56 ft³
Total of Dimensional Weight131.23 lbs.

FEATURES

Cleaning TimeVariable with Delay Clean Option
ConfigurationSingle Oven
Cooking SystemTrue European Convection with Precise Air
Temperature Management SystemTrue Temp System
Oven InteriorHidden Bake
StyleBuilt-In
Self-Clean Oven Door LockAutomatic
Control TypeSmartSet
Oven Rack Positions (Single or Upper/Lower)4
Oven Cleaning TypeSelf-Clean
Cooking TechnologyConvection
Oven Rack FeaturesEmbossed Rack Positions
Interior Oven LightYes
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Cooking ModesConvection Roast
Oven Features8-Pass Bake Element
Oven Cooking ModesThermal Bake / Thermal Roast
Oven Control FeaturesVariable Broil
Oven FeaturesClosed Door Broiling
Oven Control FeaturesAuto Recipe Conversion
Oven Control FeaturesConvection Conversion
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesOven Light Pad
Oven Control FeaturesStart Pad
Oven Control FeaturesLight Self Clean Mode
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesOptional Clock Display
Oven Control FeaturesTemperature Display
Oven Cooking ModesConvection Bake
Oven Features4-Pass Broil Element
Oven Rack Features3 Heavy-Duty Oven Racks

APPEARANCE

Frameless Oven Door(s)Color-Matched
HandleColor-Matched Premium
Oven Door FeaturesBig Clear View Oven Window
Color AppearanceWhite on White
InstallationUnder Cooktop
InstallationUndercounter
InstallationFlush Appearance

POWER / RATINGS

Broiler Wattage3400W
Amp Rating at 208V20
Convection Wattage2500W
KW Rating at 208V2.6
Amp Rating at 240V20
Bake Wattage2100W
KW Rating at 240V3.4

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

CAPACITY

Total Capacity (cubic feet)3.90 cu ft
