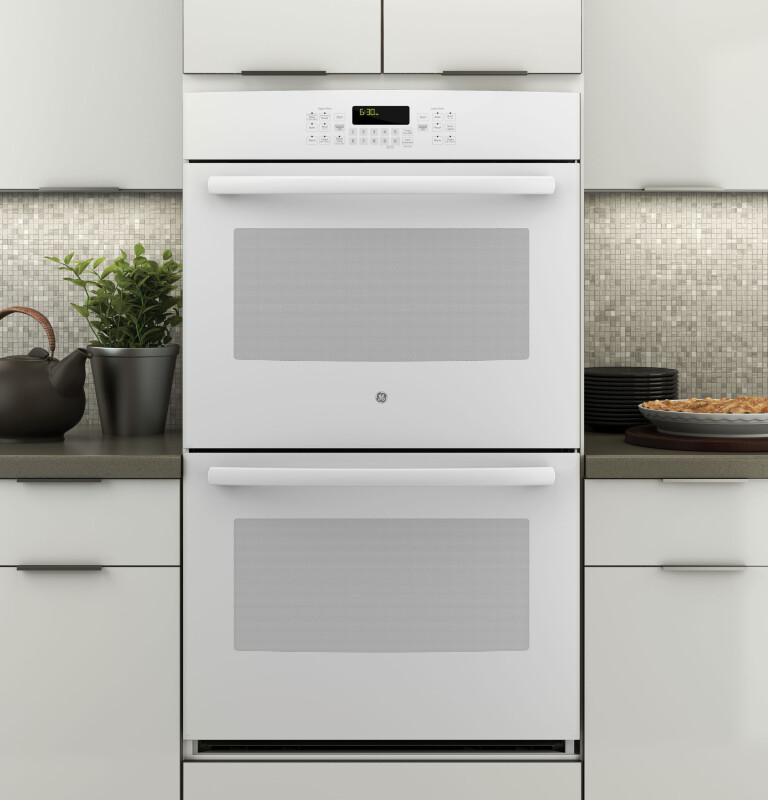

30" Built-In Double Wall Oven with Convection - JT5500DFWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Built-In Double Wall Oven with Convection

Model: JT5500DFWW

30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW30" Built-In Double Wall Oven with Convection JT5500DFWW
30" Built-In Double Wall Oven with Convection JT5500DFWW
30" Built-In Double Wall Oven with Convection JT5500DFWW
30" Built-In Double Wall Oven with Convection JT5500DFWW
30" Built-In Double Wall Oven with Convection JT5500DFWW
30" Built-In Double Wall Oven with Convection JT5500DFWW
+4more

Product Video

GE 30" Built-In Double Wall Oven with Convection White JT5500DFWW Picture
4 Videos

Color : White

30" Built-In Double Wall Oven with Convection JT5500DFWW
White

Key Features

  • Fit Guarantee

  • True European Convection (upper oven)

  • Self-clean with Steam Clean option (both ovens)

  • Self-clean, heavy-duty oven racks

  • Glass touch controls

  • Halogen oven lighting

  • Ten-pass bake element

  • Eight-pass broil element

Read More

Description

Achieve delicious results from a third heating element and fan combination.Clean your oven the way you want.53 H x 29 3/4 W x 26 3/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

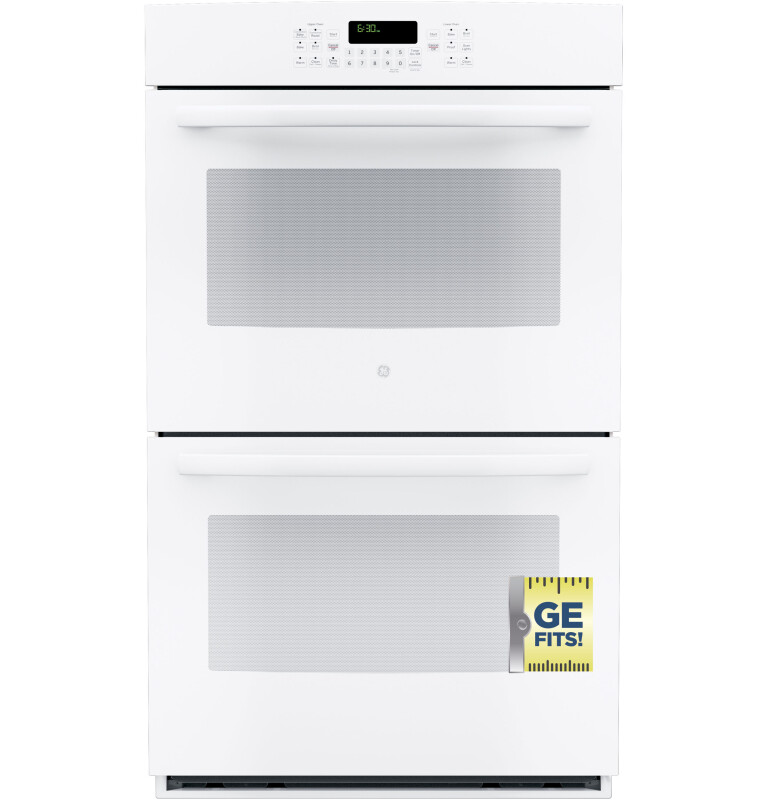

Fit Guarantee

Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

True European Convection (upper oven)

Achieve delicious results from a third heating element and fan combination

Self-clean with Steam Clean option (both ovens)

Clean your oven the way you want

Self-clean, heavy-duty oven racks

Conveniently clean your oven and racks together

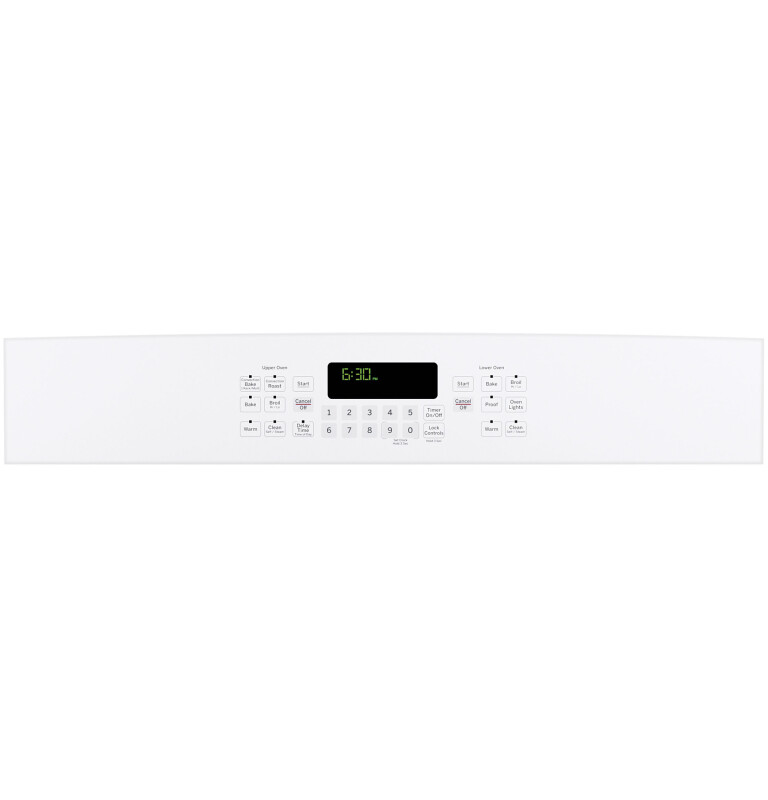

Glass touch controls

Set temperatures quickly and clean with little effort

Halogen oven lighting

Easily see how your food is baking

Ten-pass bake element

Even baking is assured with heat that covers more surface area

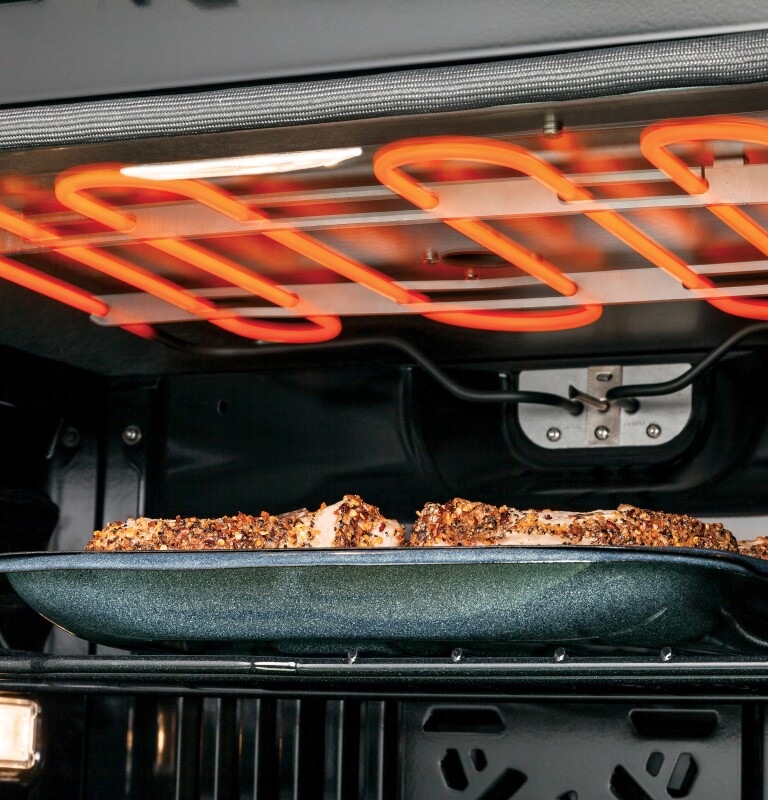

Eight-pass broil element

Get full broil coverage and even browning from edge to edge

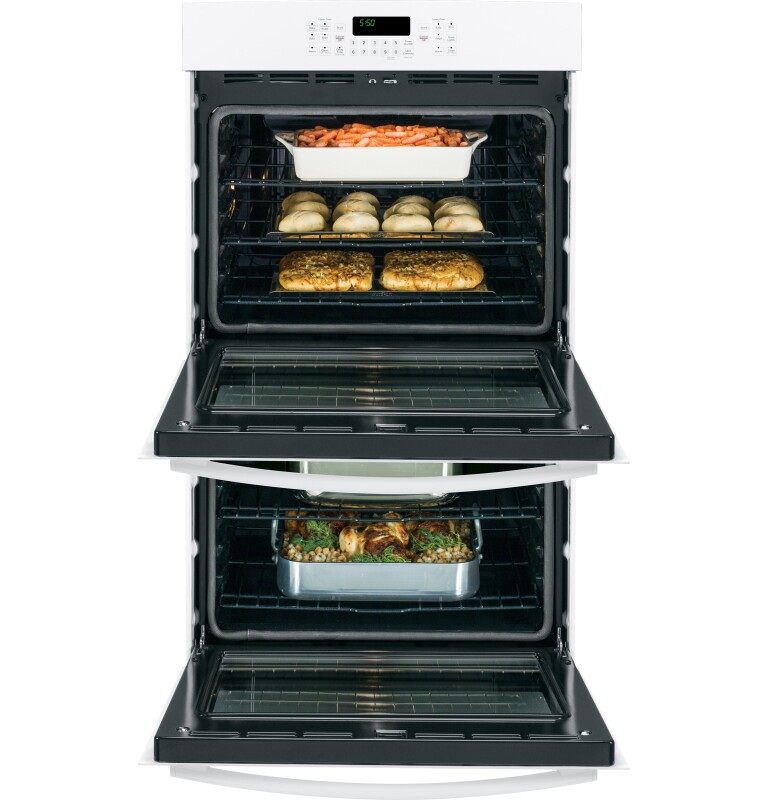

Double oven 10.0 cu. ft. total oven capacity (5.0 cu. ft. both ovens)

Large meals are easy with capacity that fits more at one time

Black gloss oven interior

Enjoy a clean and sleek appearance

Hidden bake oven interior

Make cleanup easy by eliminating hard-to-reach areas

Certifications

California Prop 65 certification

California Prop 65

MADE IN AMERICA: 70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

UL certification

UL

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Height53 in
Cabinet Width30 in
Net Weight254 lb
Oven Interior Dimensions (upper)25 x 17-3/8 x 20-1/4

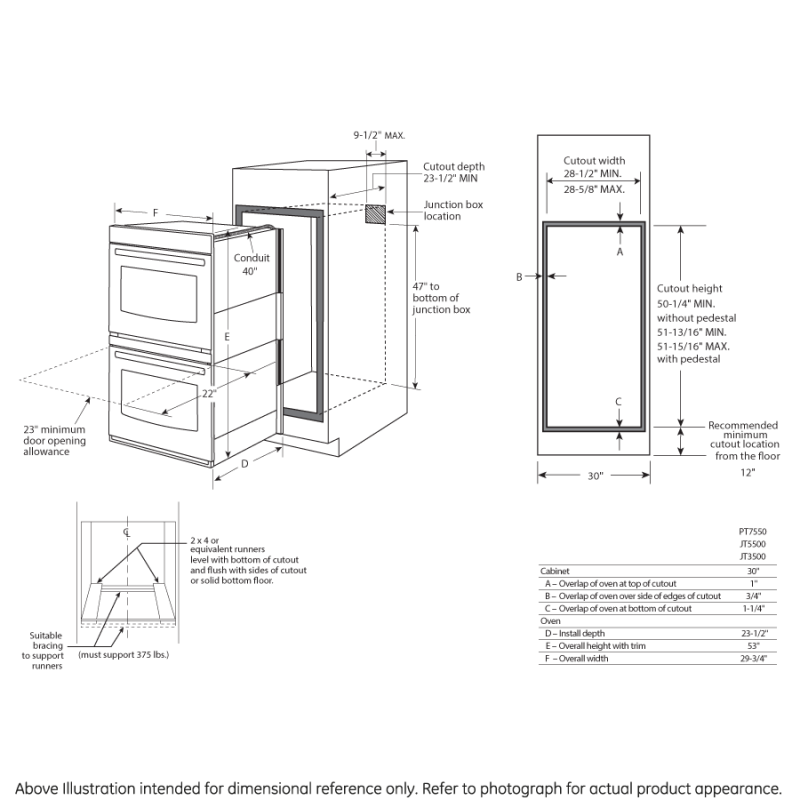

Cutout Dimensions (w x h x d) (in.)28-1/2 x 51-13/16 x 23-1/2
Oven Interior Dimensions (lower)25 x 17-3/8 x 20-1/4
Approximate Shipping Weight280 lb
Overall Depth26 3/4 in
Overall Width29 3/4 in

Other

Oven Interior Dimensions (upper)25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.)28-1/2 x 51-13/16 x 23-1/2

Dimensions & Weight

Width29.75 in.
Height53 in.
Length26.75 in.
Weight254 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.75 in.
Shipping Height58 in.
Shipping Length31.75 in.
Shipping Weight294 lbs.
Total of Shipping Weight294 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement24.41 ft³
Dimensional Weight303.44 lbs.
Total of Cubes24.41 ft³
Total of Dimensional Weight303.44 lbs.

POWER / RATINGS

Bake Wattage2850W
Convection Wattage2400W
KW Rating at 240V8.4
Amp Rating at 208V40
Broiler Wattage4000W
Amp Rating at 240V40
KW Rating at 208V6.3

APPEARANCE

Frameless Oven Door(s)White Glass
Oven Door FeaturesBig View Oven Window
Color AppearanceWhite
InstallationAbove Warming Drawer
HandleHigh-Gloss Color-Matched
HandleDesigner Style

FEATURES

Cooking TechnologyConvection Upper; Traditional Lower
Cleaning TimeVariable with Delay Clean Option
ConfigurationDouble Oven
Oven Rack Positions (Single or Upper/Lower)6 / 6
Oven Rack FeaturesEmbossed Rack Positions (Both Ovens)
Self-Clean Oven Door LockAutomatic
Cooking SystemTrue European Convection (Upper)
Control TypeLED
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Cooking ModesConvection Roast (Upper)
Oven Features8-Pass Broil Element
Oven Interior2 Halogen Interior Oven Lights (Upper)
Oven Cooking ModesThermal Broil (Both Ovens)
Oven InteriorHidden Bake (Both Ovens)
Oven FeaturesClosed Door Broiling
Oven Control FeaturesWarm Mode (Both Ovens)
Control TypeGlass Touch
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Recipe Conversion (Upper)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Time
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesLight Self Clean Mode (Both Ovens)
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOptional Clock Display
Oven Control FeaturesProof Mode (Lower)
Oven Cooking ModesConvection Bake Multi-Rack (Upper Oven)
Oven Cooking ModesThermal Bake (Both Ovens)
Oven Features10-Pass Bake Element
Oven Interior1 Halogen Interior Oven Light (Lower)
Oven InteriorBlack Gloss Finish
Oven Rack Features3 Self-Clean Heavy-Duty Oven Racks (Upper) / 2 Self-Clean Heavy-Duty Oven Racks (Lower)

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

CAPACITY

Capacity (Cu. Ft.)5.0 Upper / 5.0 Lower
