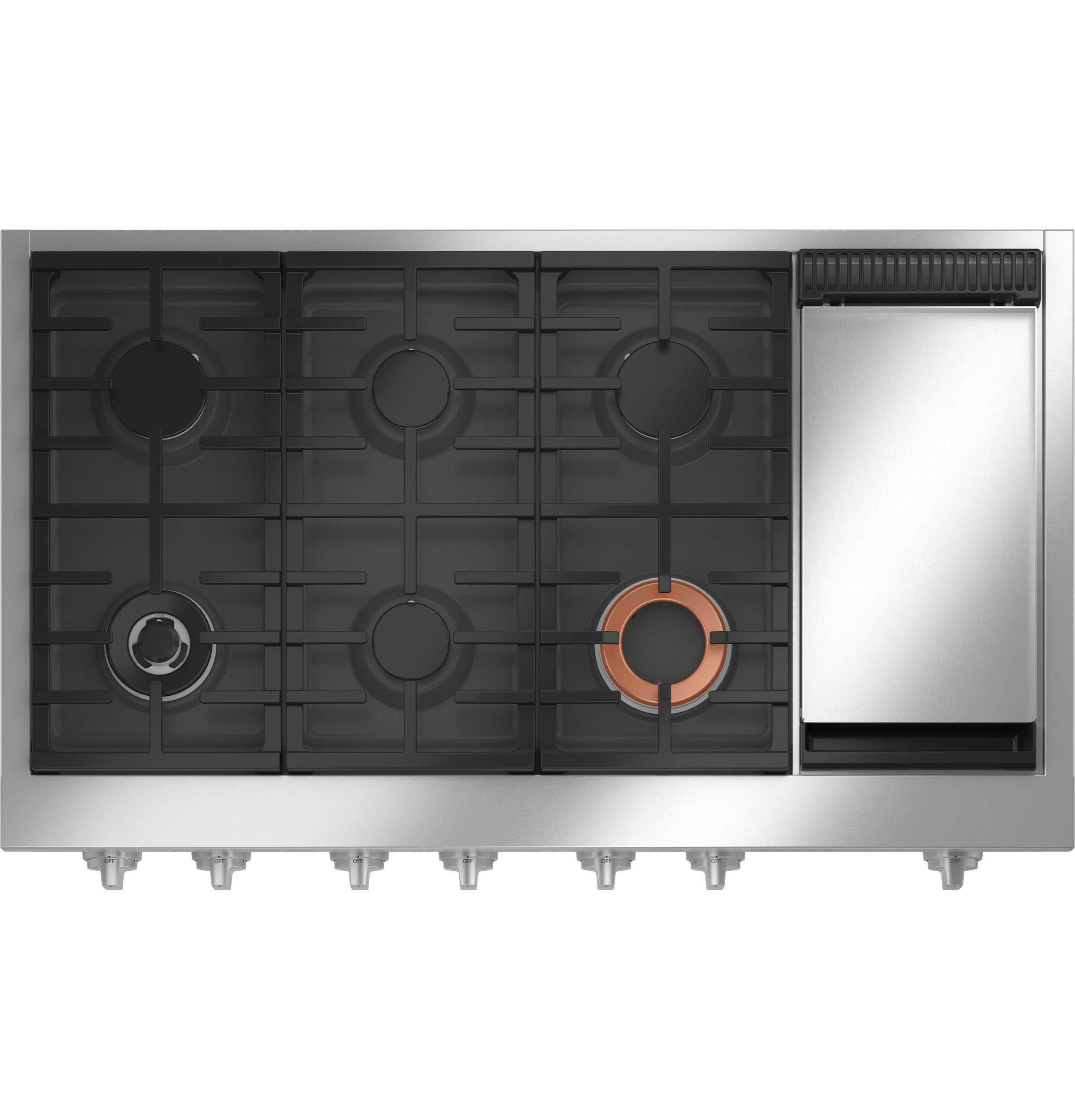

CAFÉ™ 48" Commercial-Style Gas Rangetop with 6 Burners and Integrated Griddle (Natural Gas) - CGU486P3TD1
CAFÉ™ 48" Commercial-Style Gas Rangetop with 6 Burners and Integrated Griddle (Natural Gas)
Model: CGU486P3TD1









































Product Video

360 View
CAFÉ™ 48" Commercial-Style Gas Rangetop with 6 Burners and Integrated Griddle (Natural Gas)
Model: CGU486P3TD1
Current Rebates
Key Features
Two Griddle Burners
Built-in Griddle with Thermostat
Reversible Stove Top Grill/Griddle Accessory
Sealed Burner Cooktop
Continuous Gas Stove Grates
Electric Ignition Stove with Automatic Reignition
Versatile Cooktop

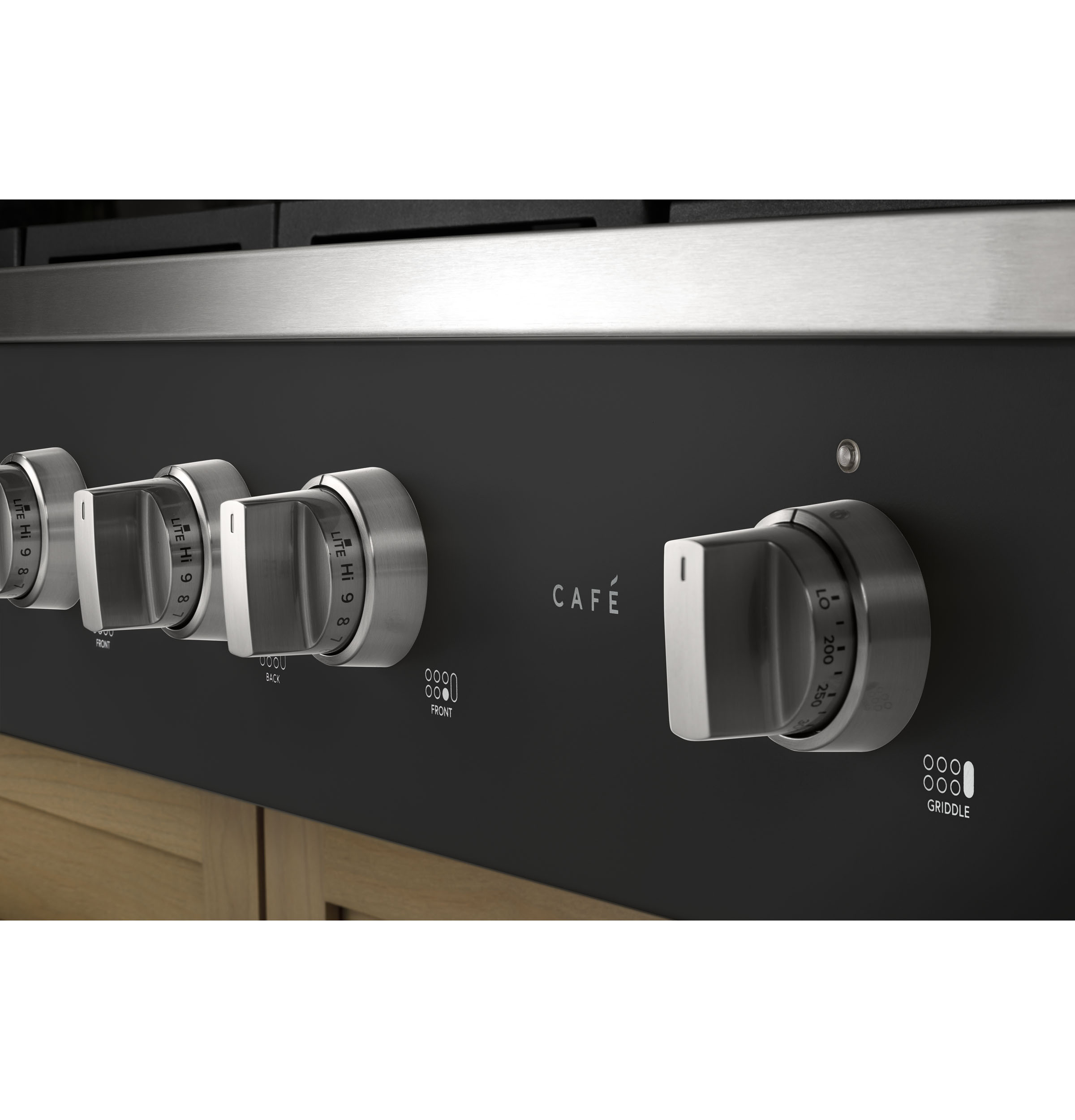

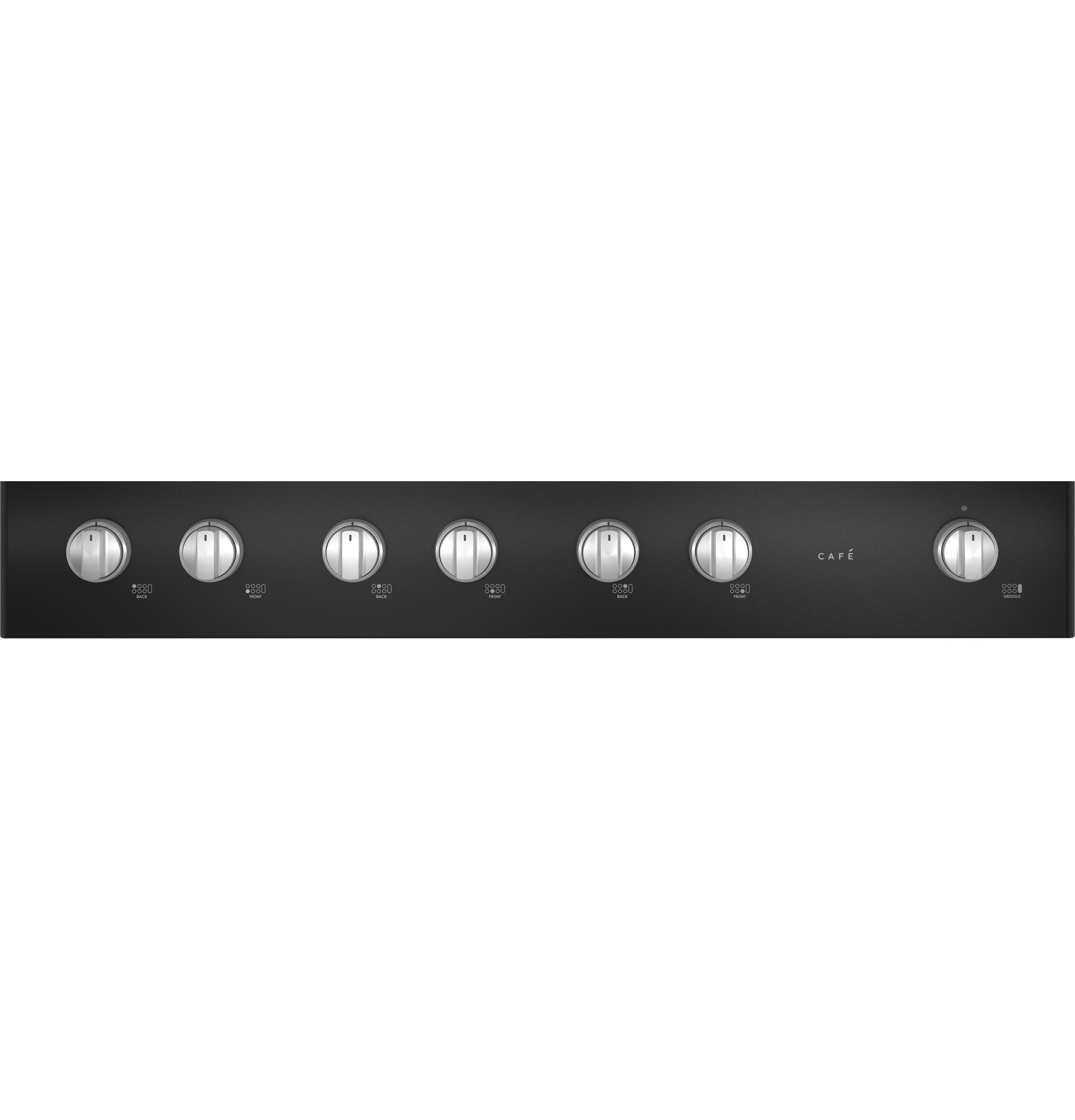

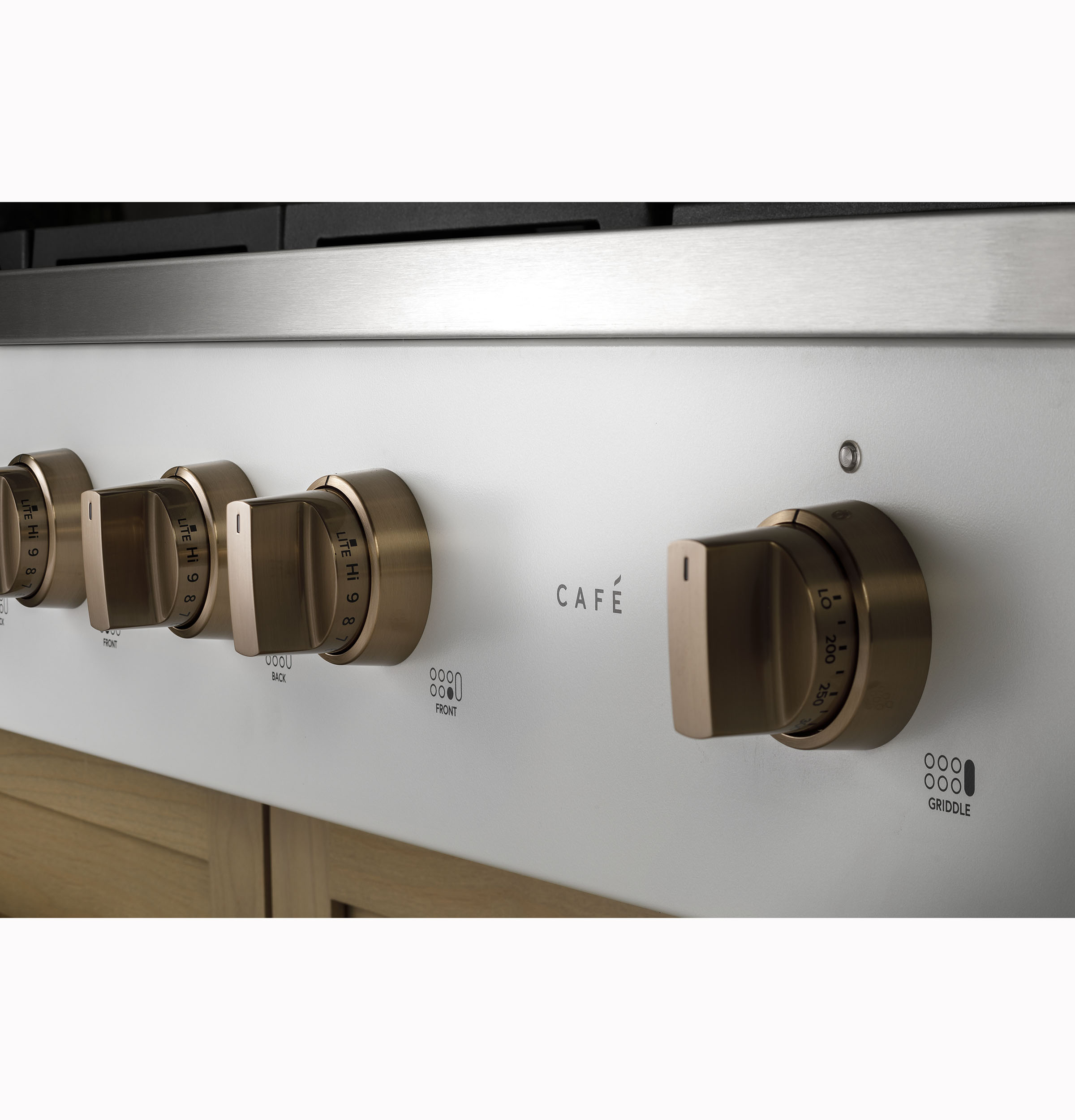

Color-Matched Manifold
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Two Griddle Burners
Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory

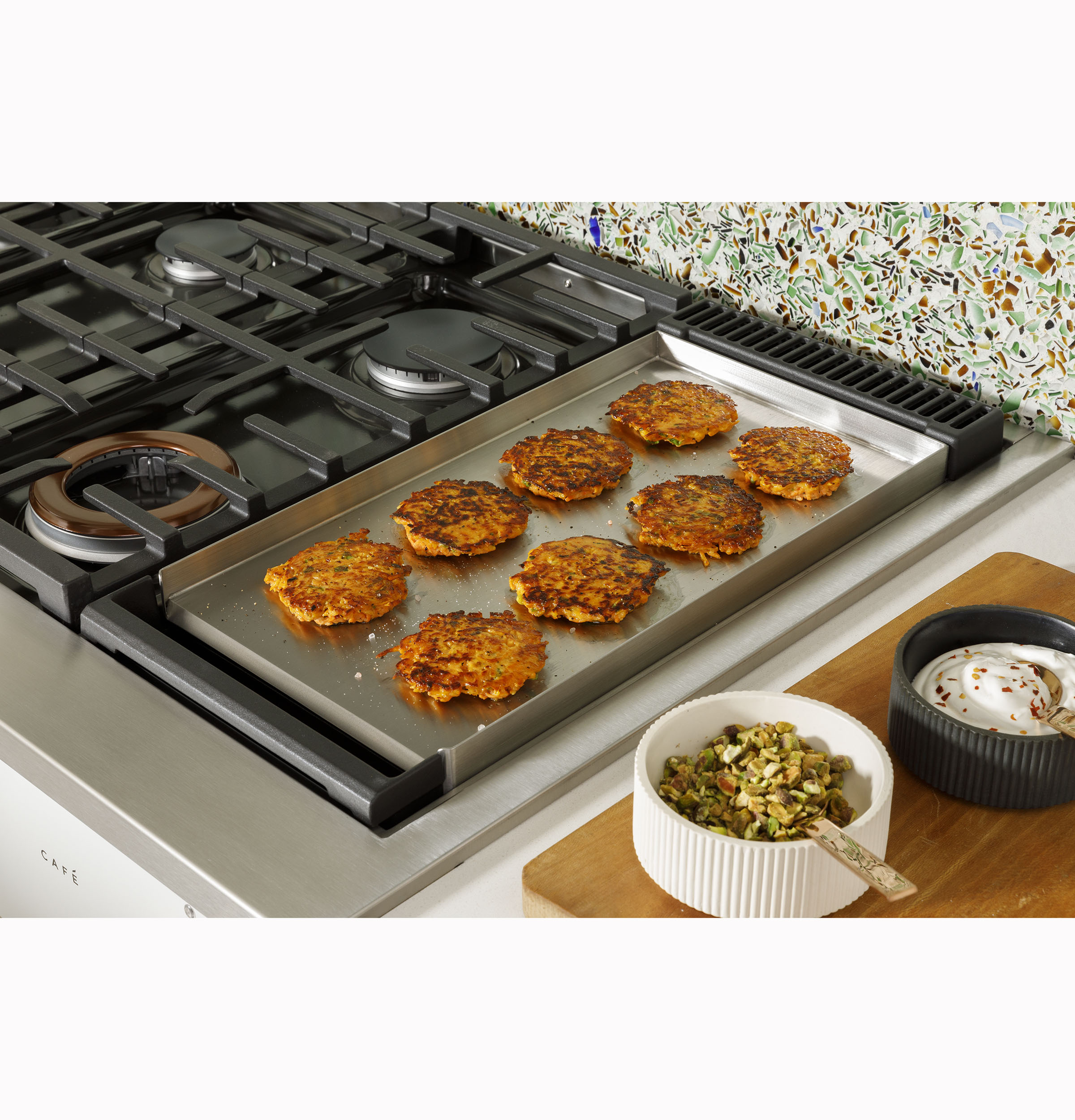

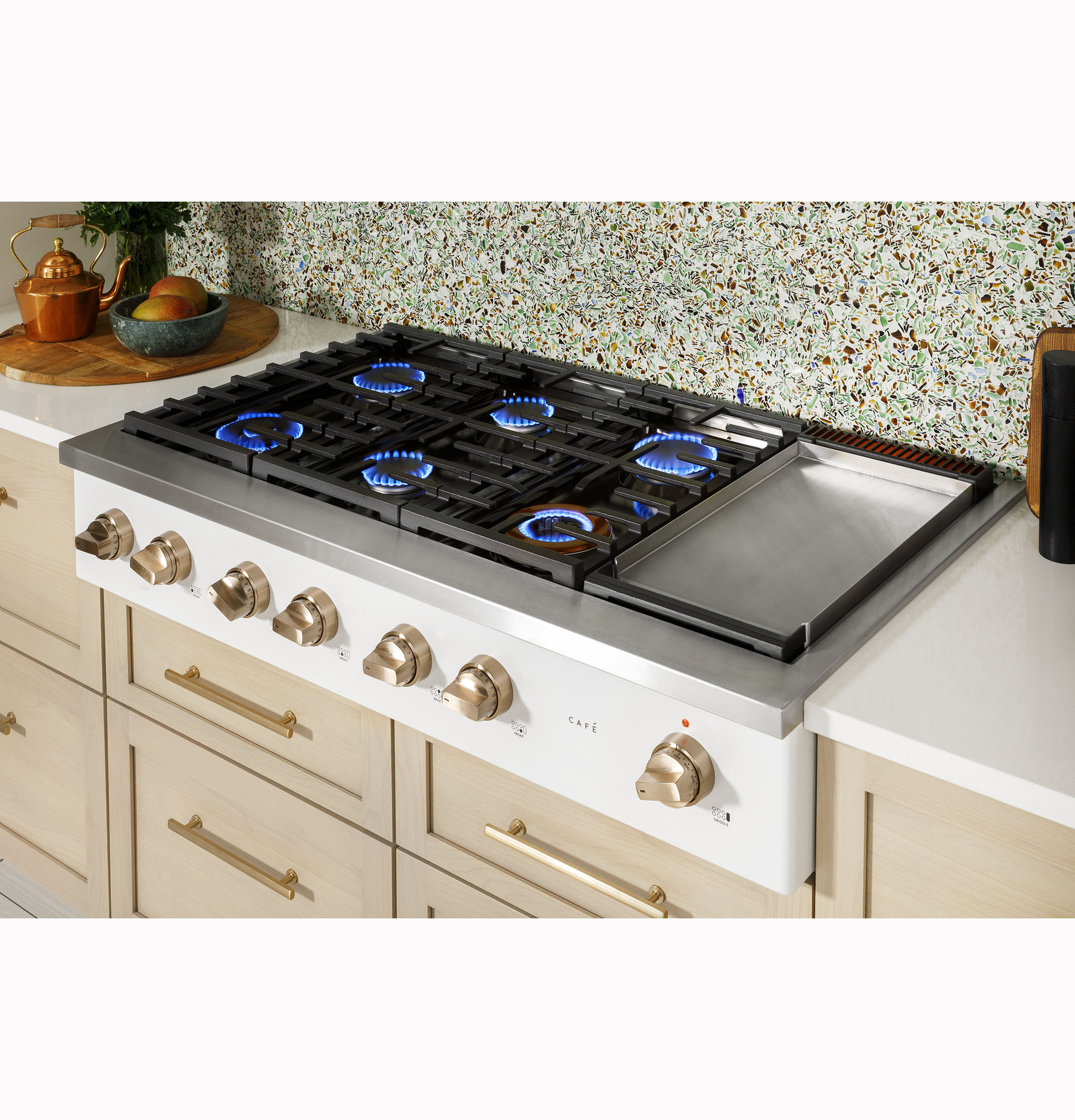

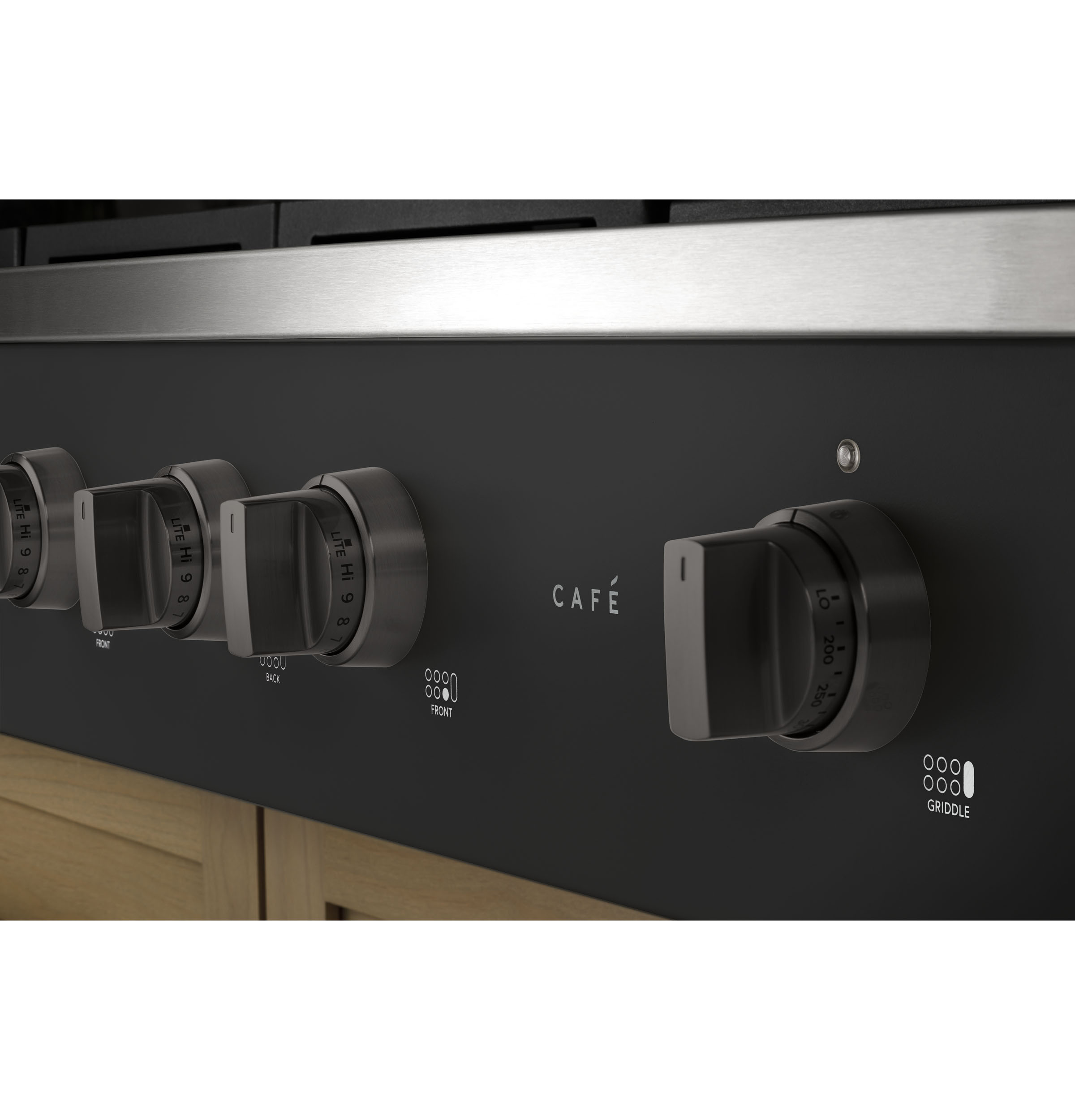

Built-in Griddle with Thermostat
An 18,000-BTU, Stainless Steel and Aluminum clad griddle features an integrated thermostat, which automatically adjusts heat to hold your set temperature

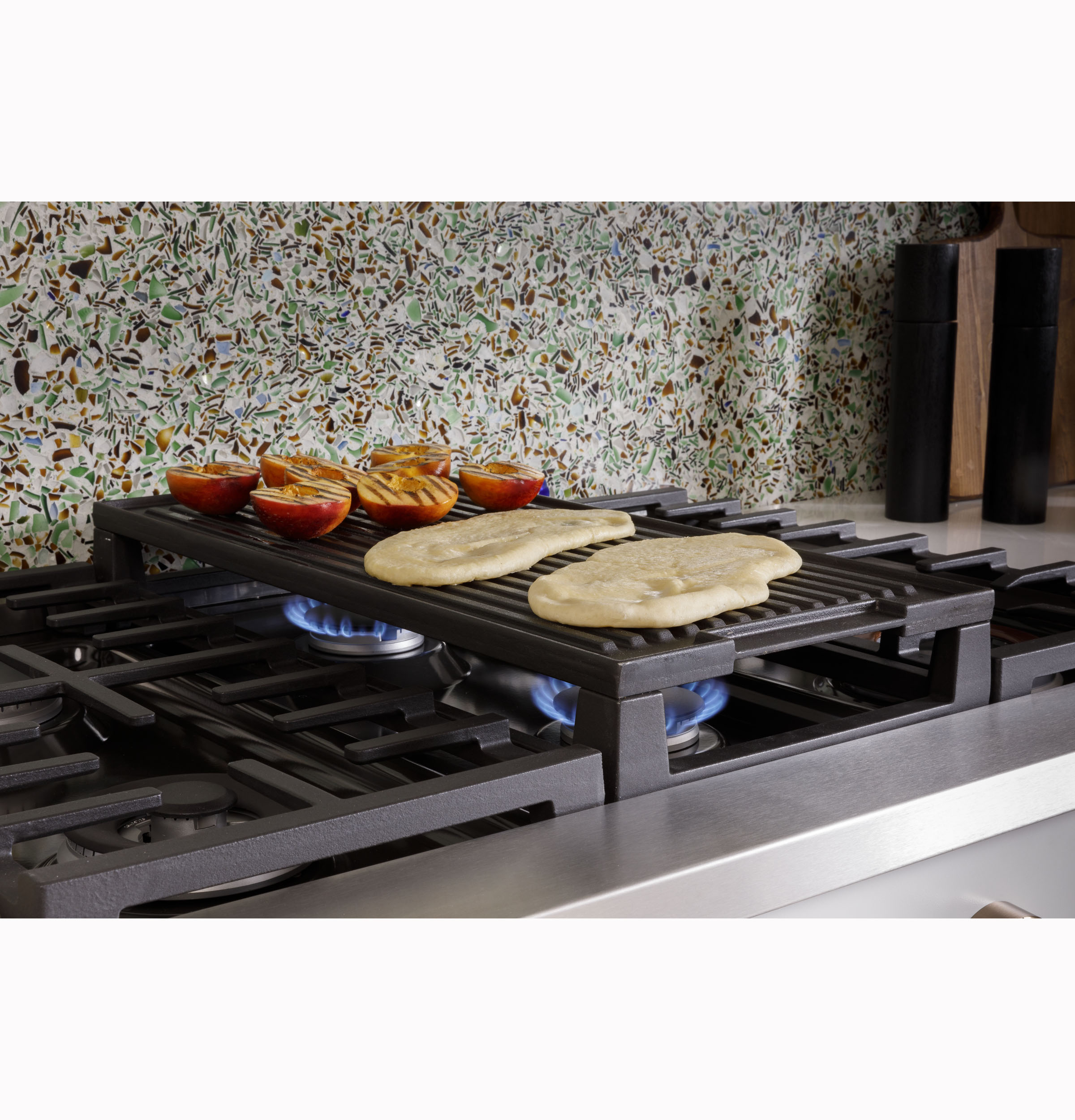

Reversible Stove Top Grill/Griddle Accessory
Optional, reversible stove top grill/griddle is available for purchase at an additional cost, the part number is UXPRRGG.

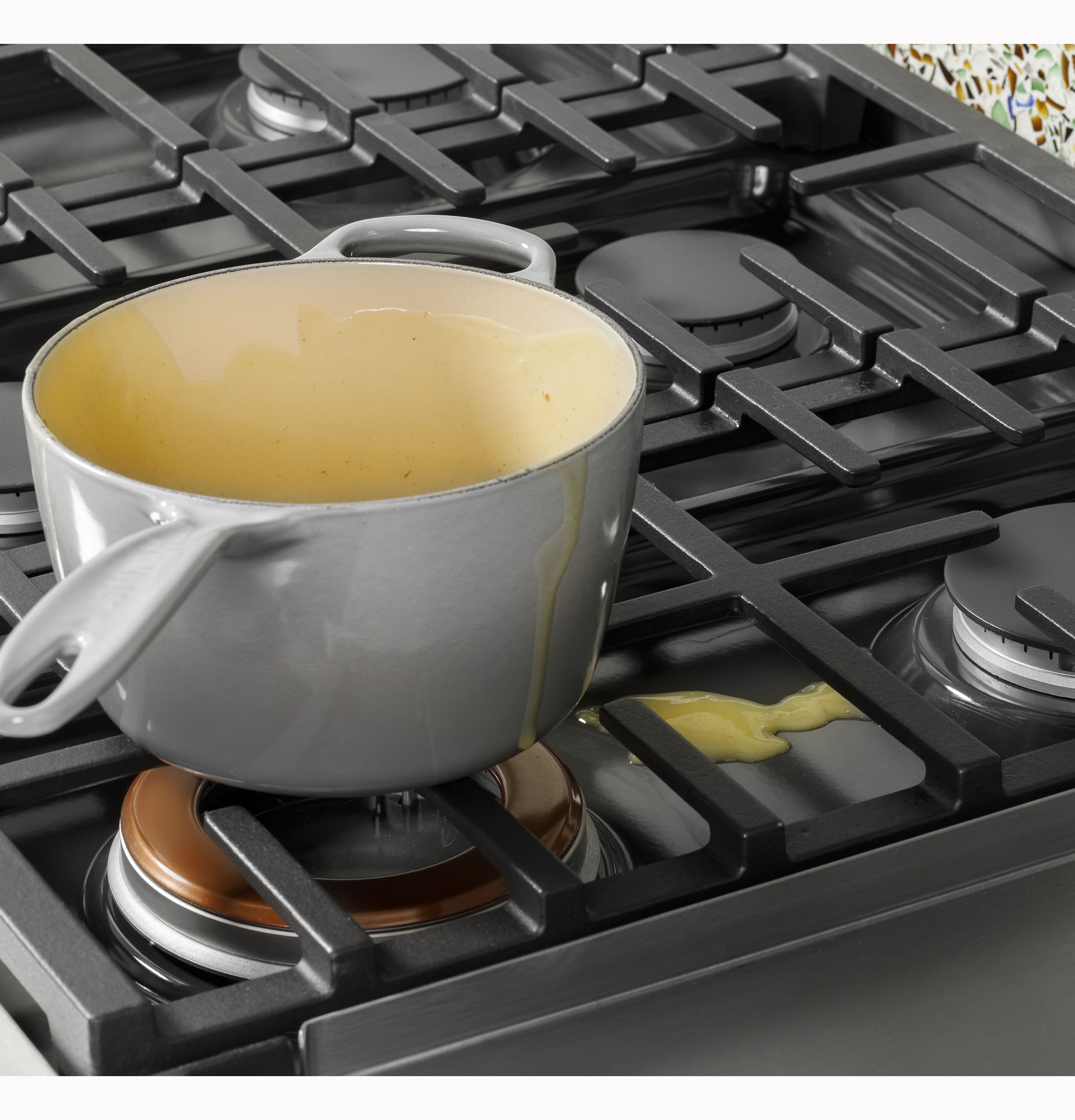

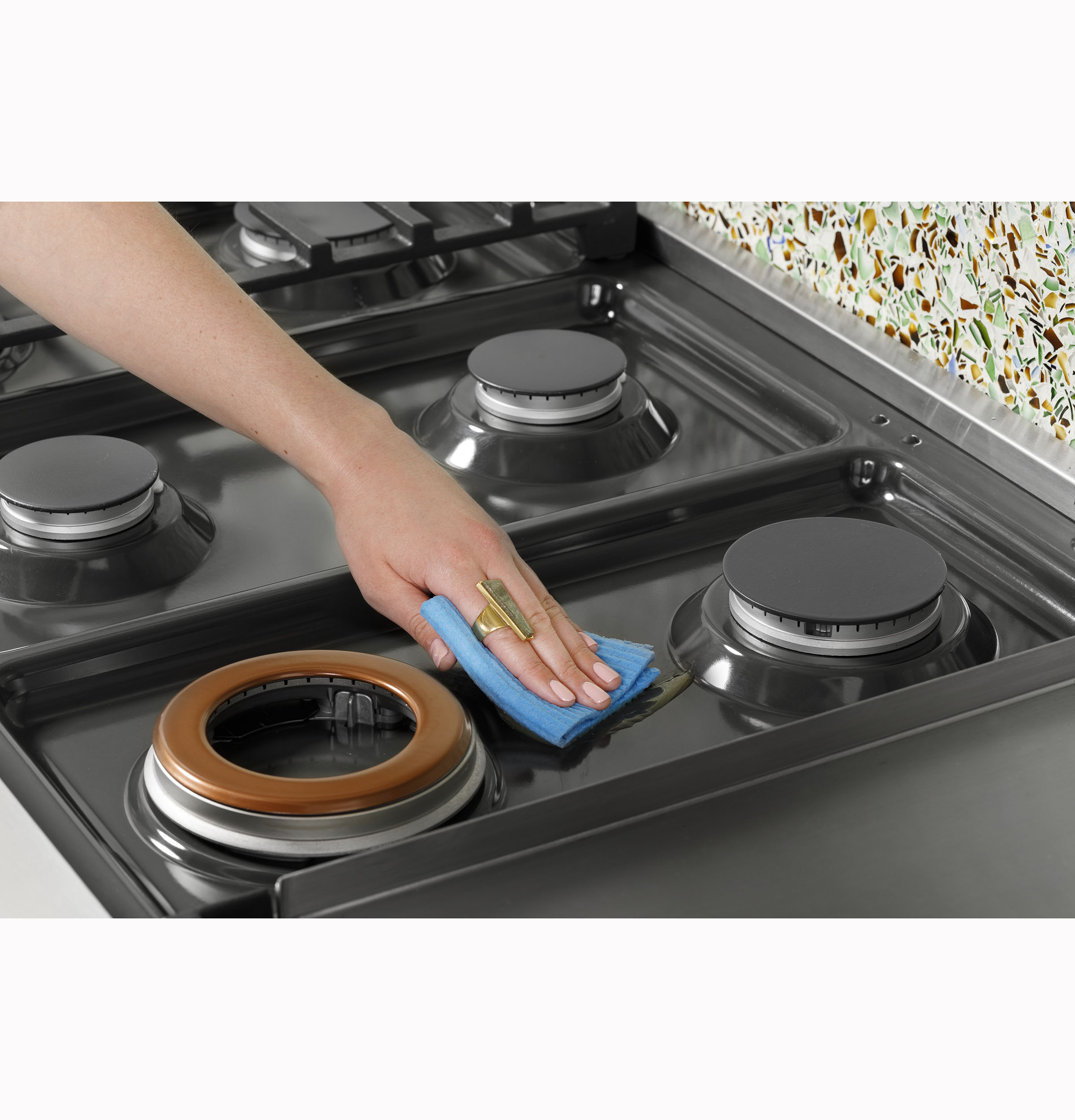

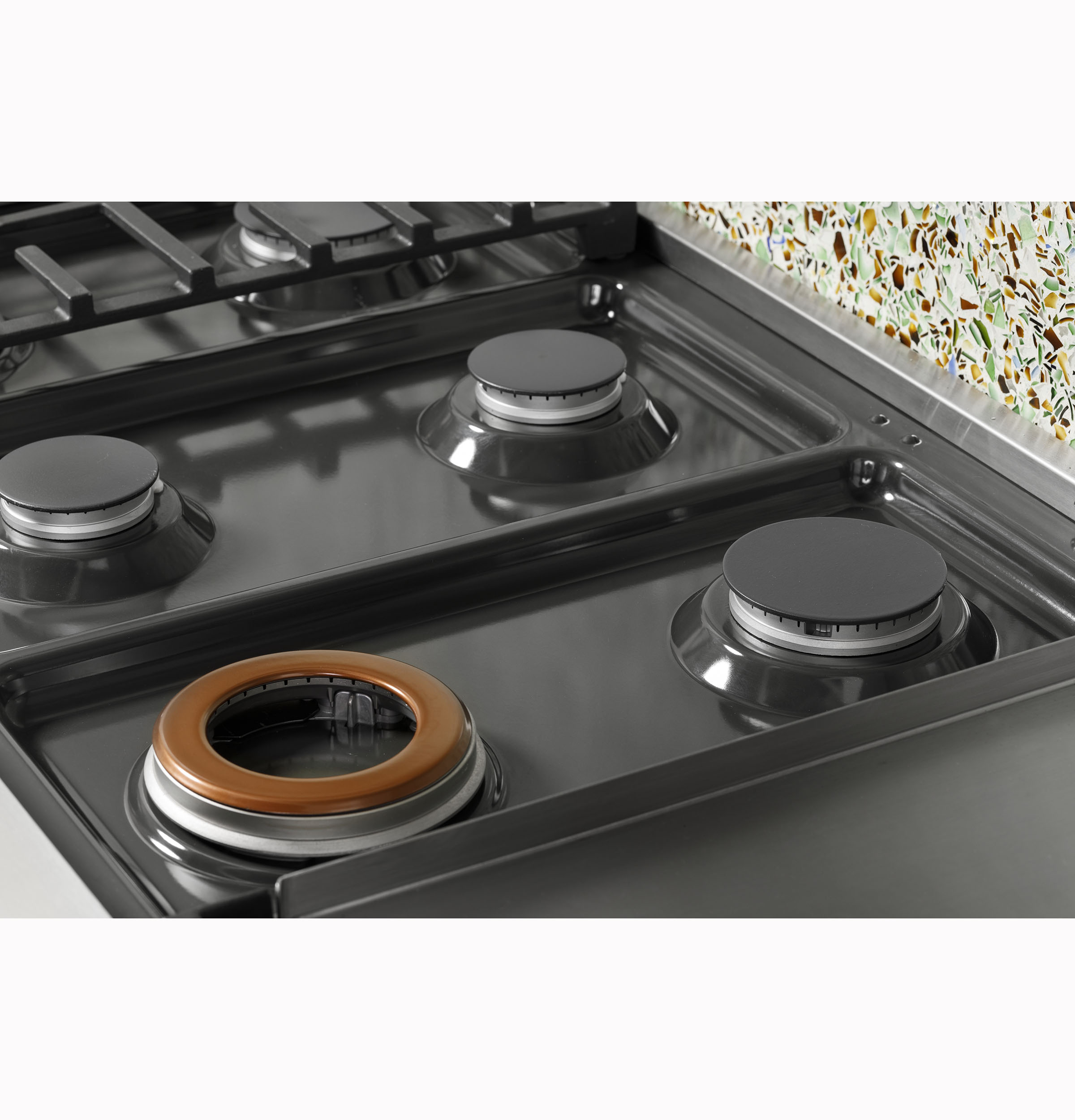

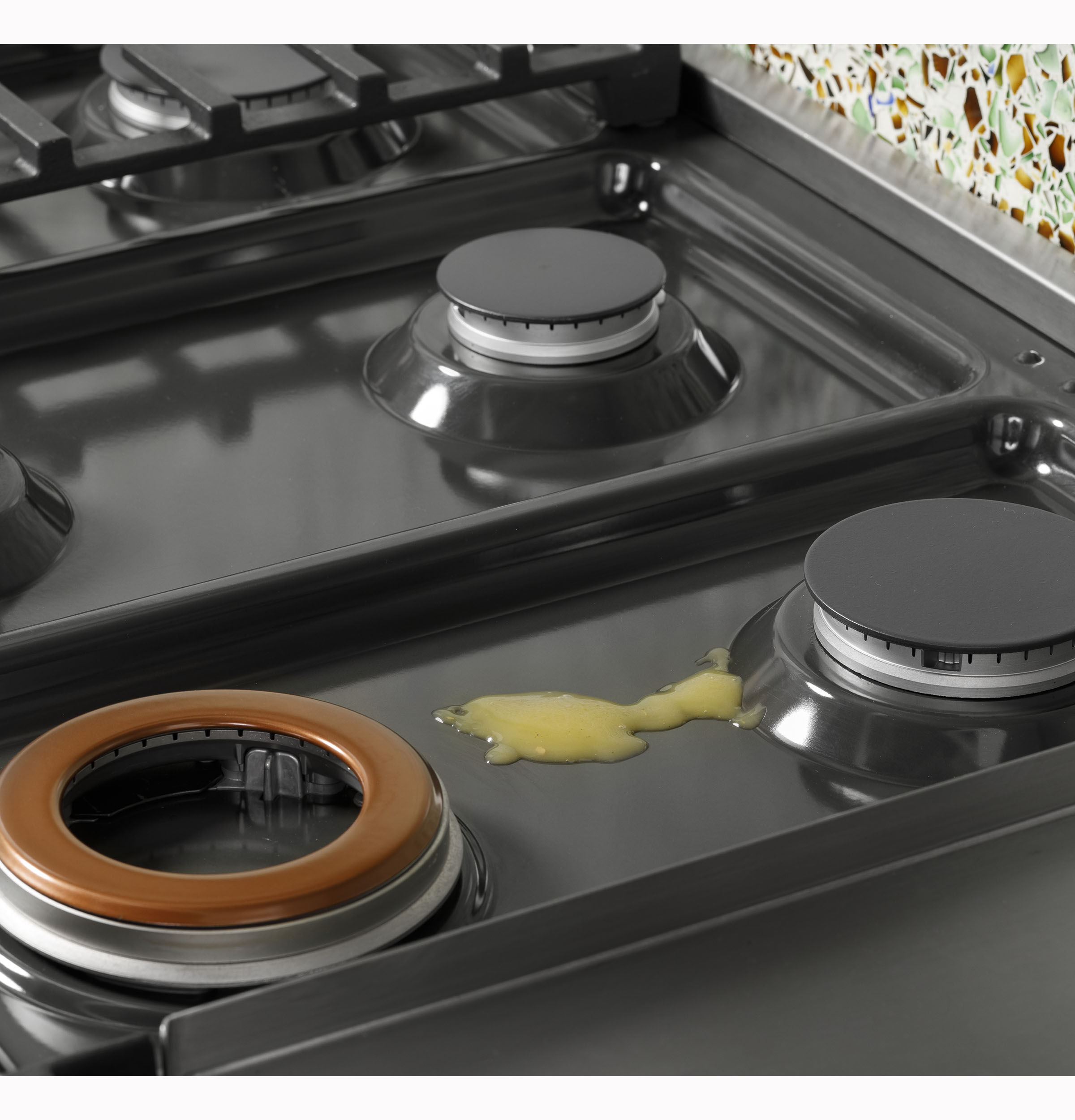

Sealed Burner Cooktop
Keep your kitchen sparkling, even when there's a spill, with a sealed burner cooktop design that contains messes for easy cleanup, every time.

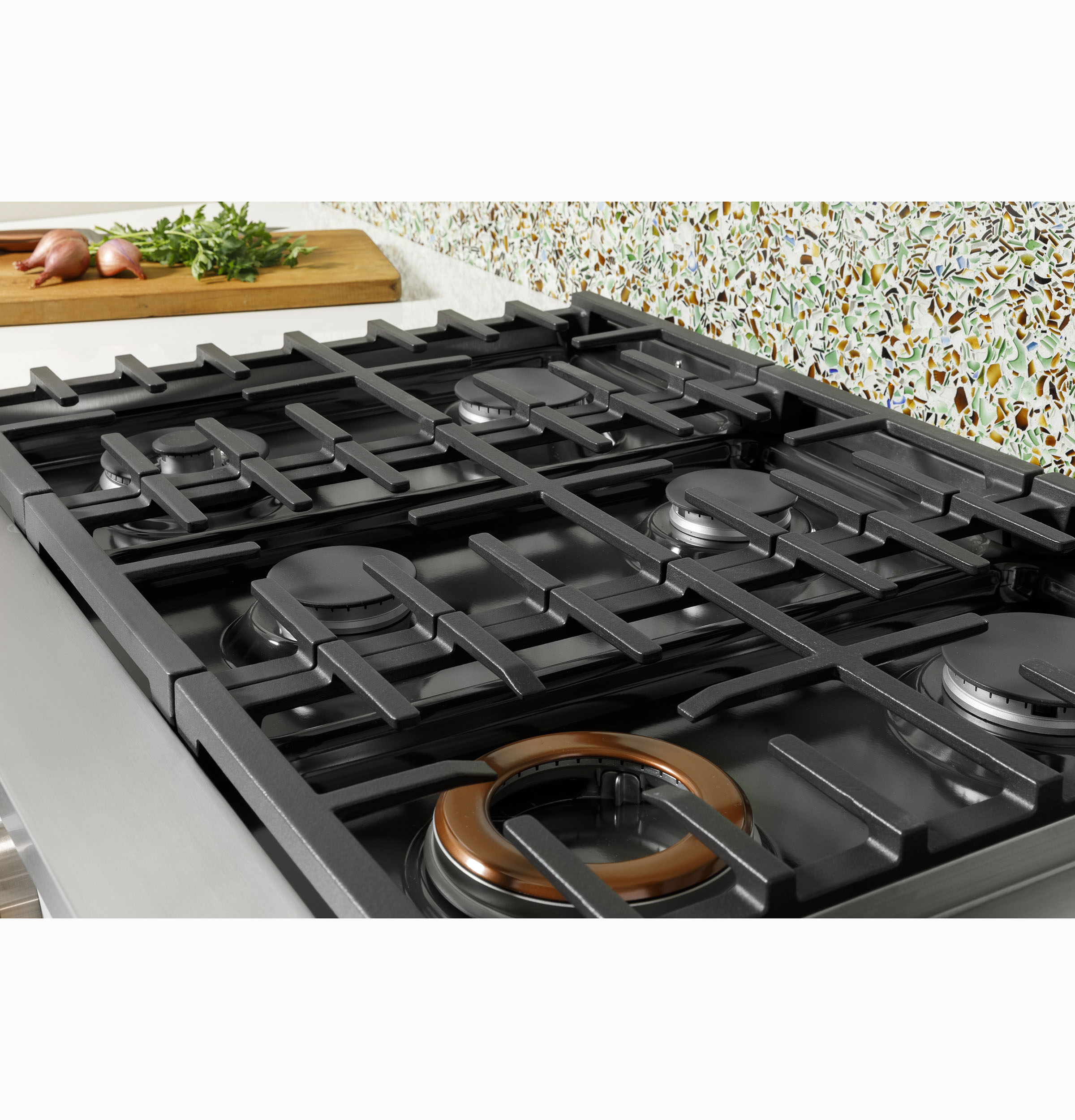

Continuous Gas Stove Grates
Continuous, cast-iron gas stove grates allow you to easily move heavy cookware across the cooktop surface for a more streamlined cooking experience

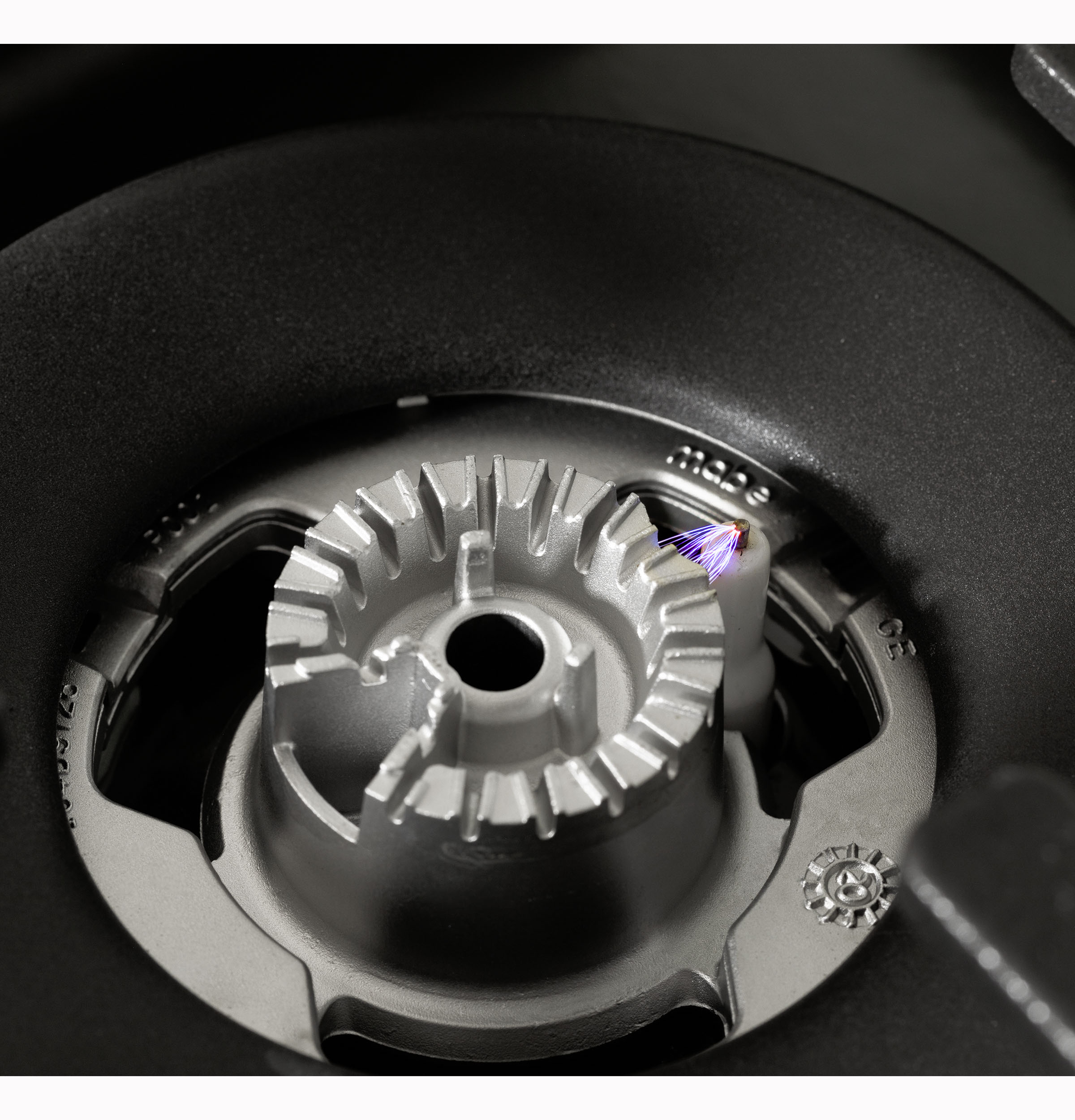

Electric Ignition Stove with Automatic Reignition
Confidently cook over a steady gas flame with this electric ignition stove, its automatic reignition feature instantly revives any accidentally extinguished flames

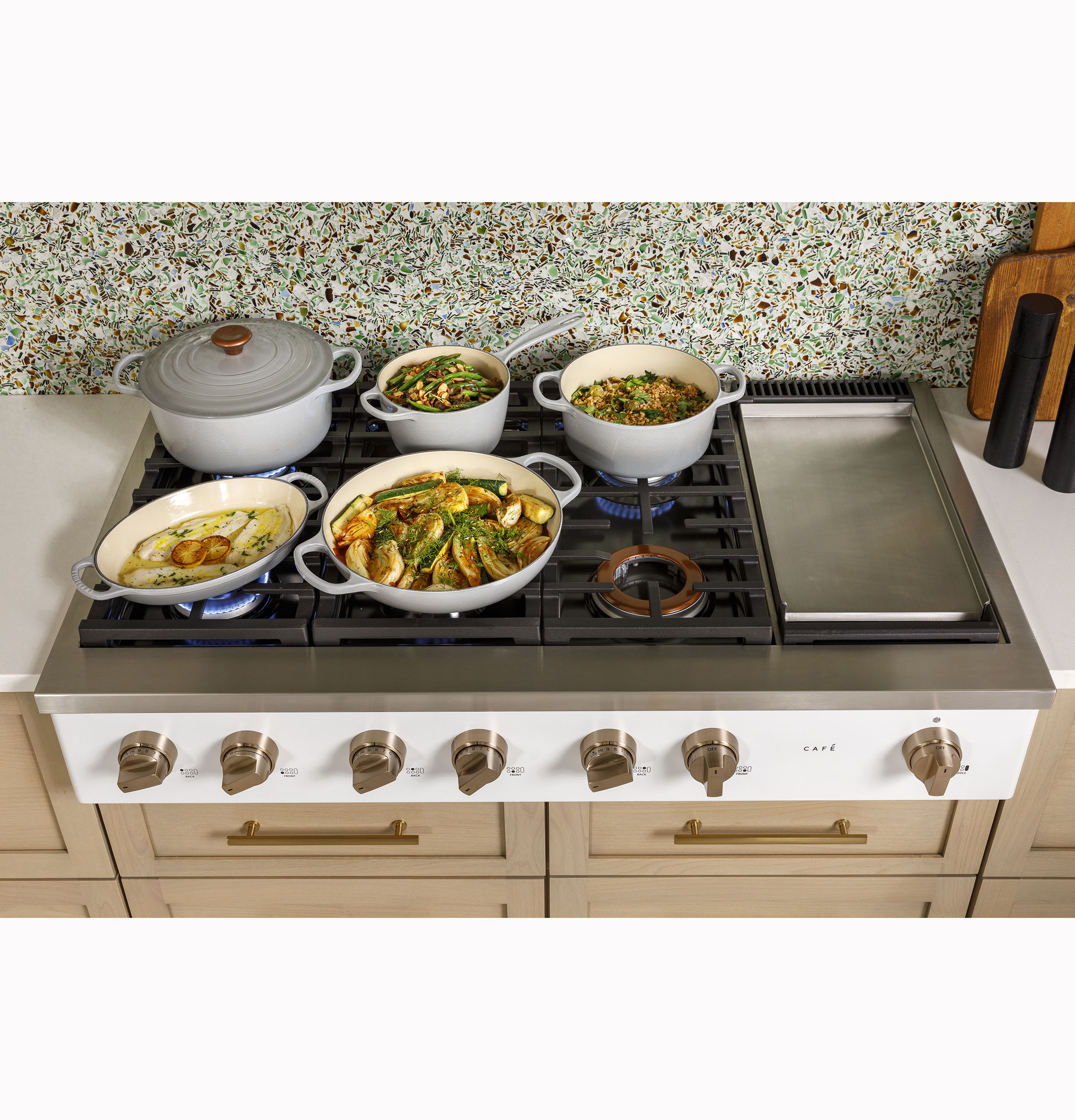

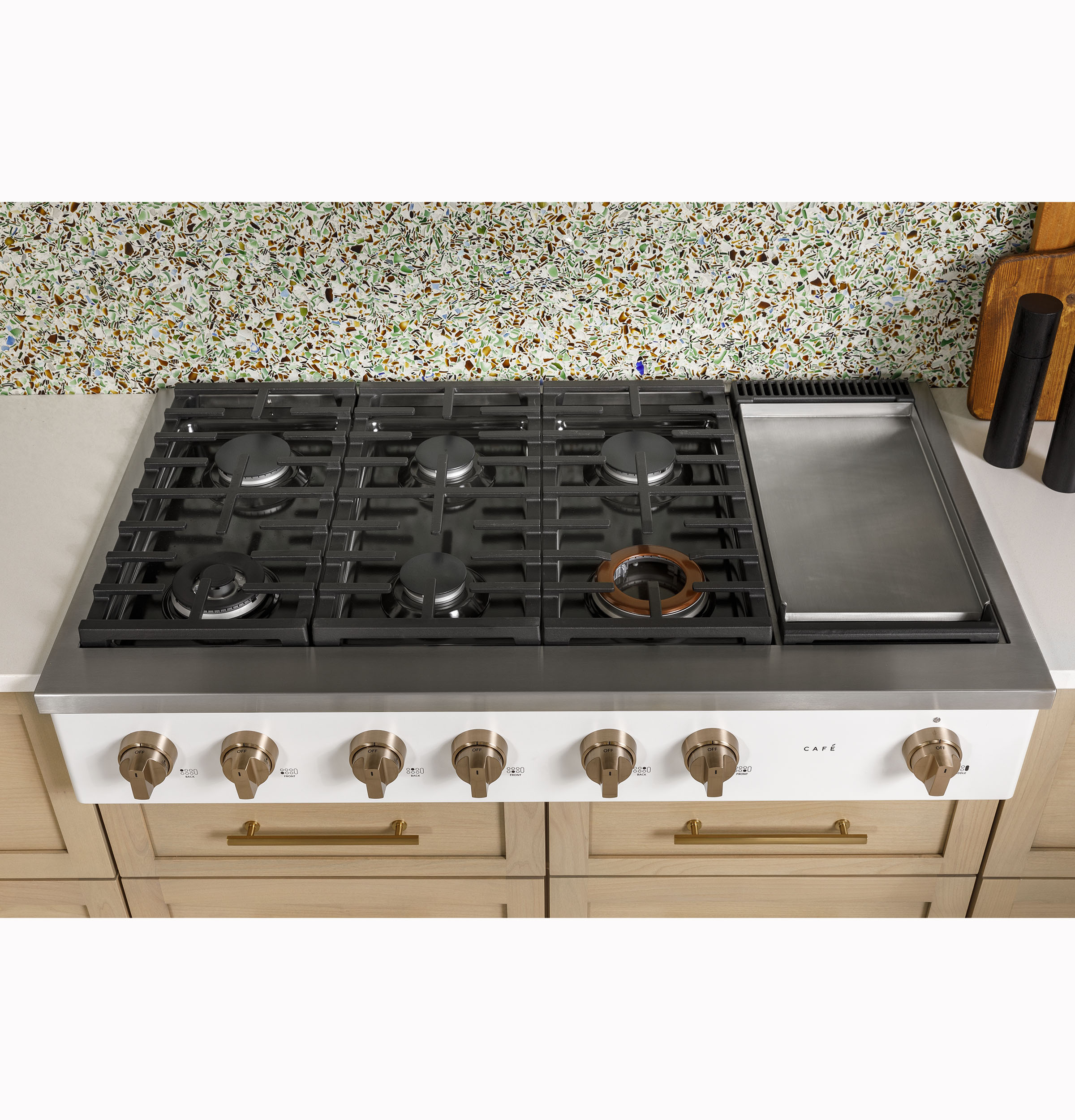

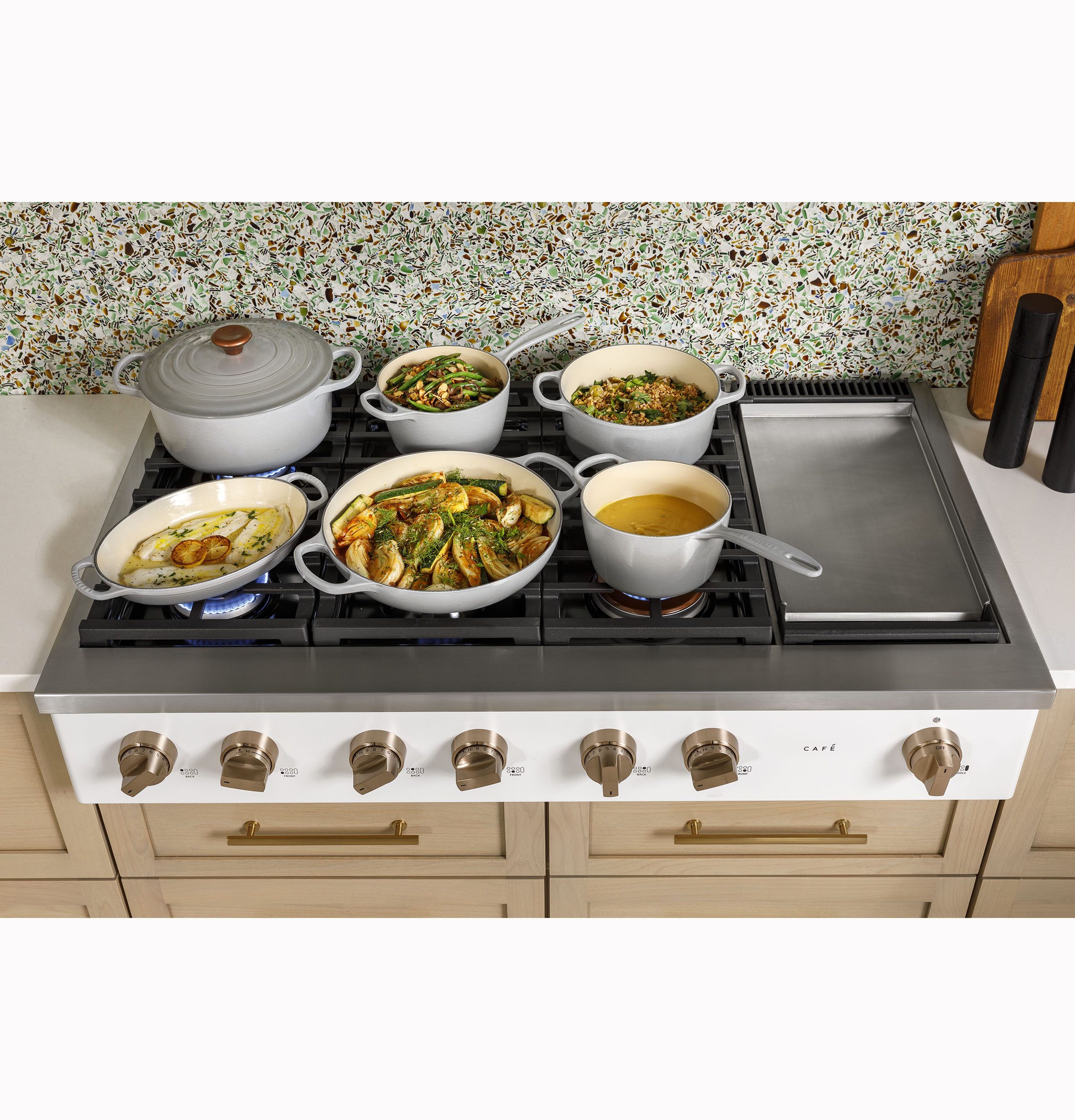

Versatile Cooktop
The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.
Color-Matched Manifold
Get a coordinated look with a manifold that matches the rangetop's finish

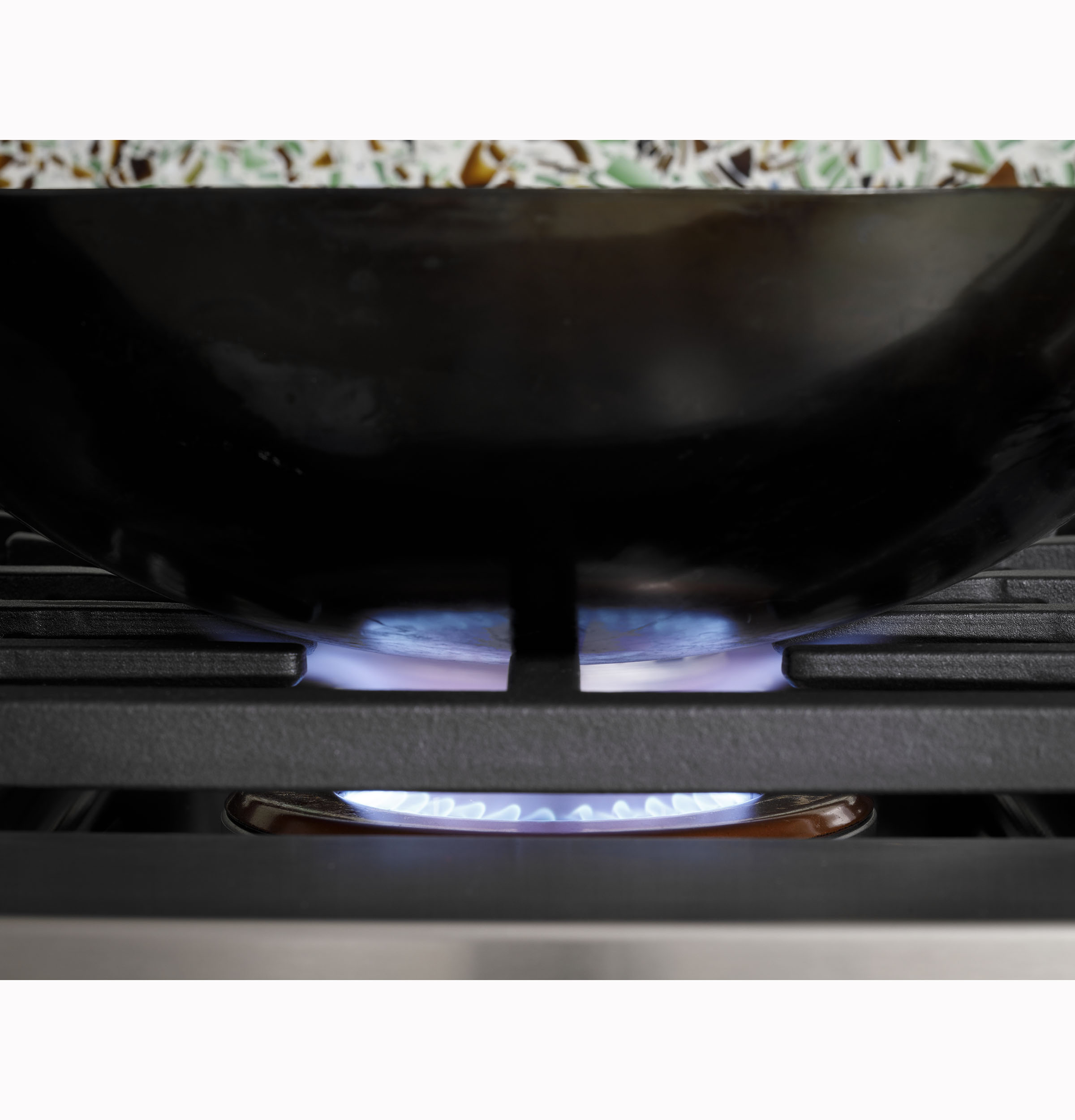

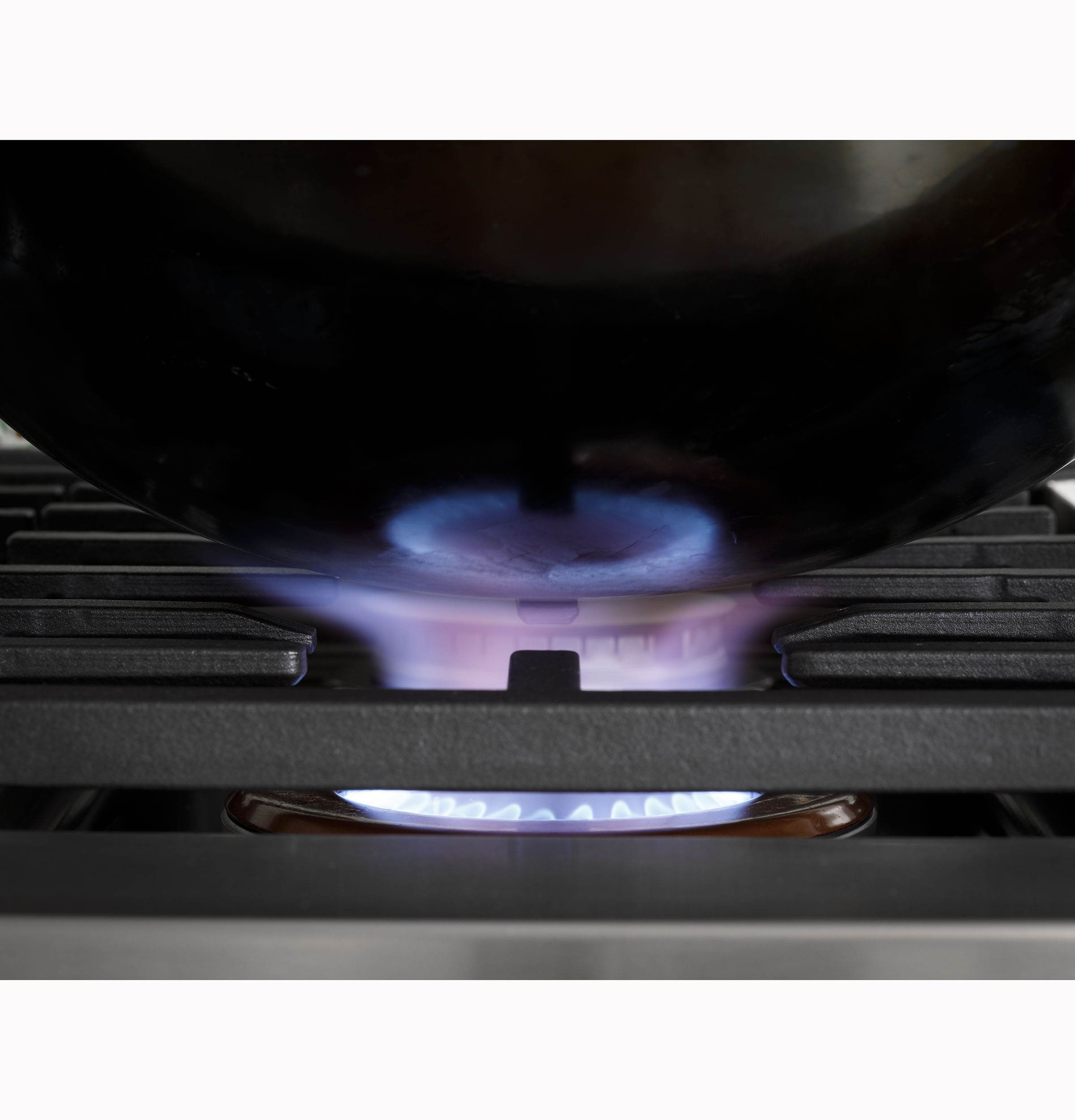

Superior Heat Distribution
The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
Multi-Ring Burner
A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one
Two High-Heat Burners
Boil water quickly with two 18,000-BTU Power Boil burners that give you more cooking power

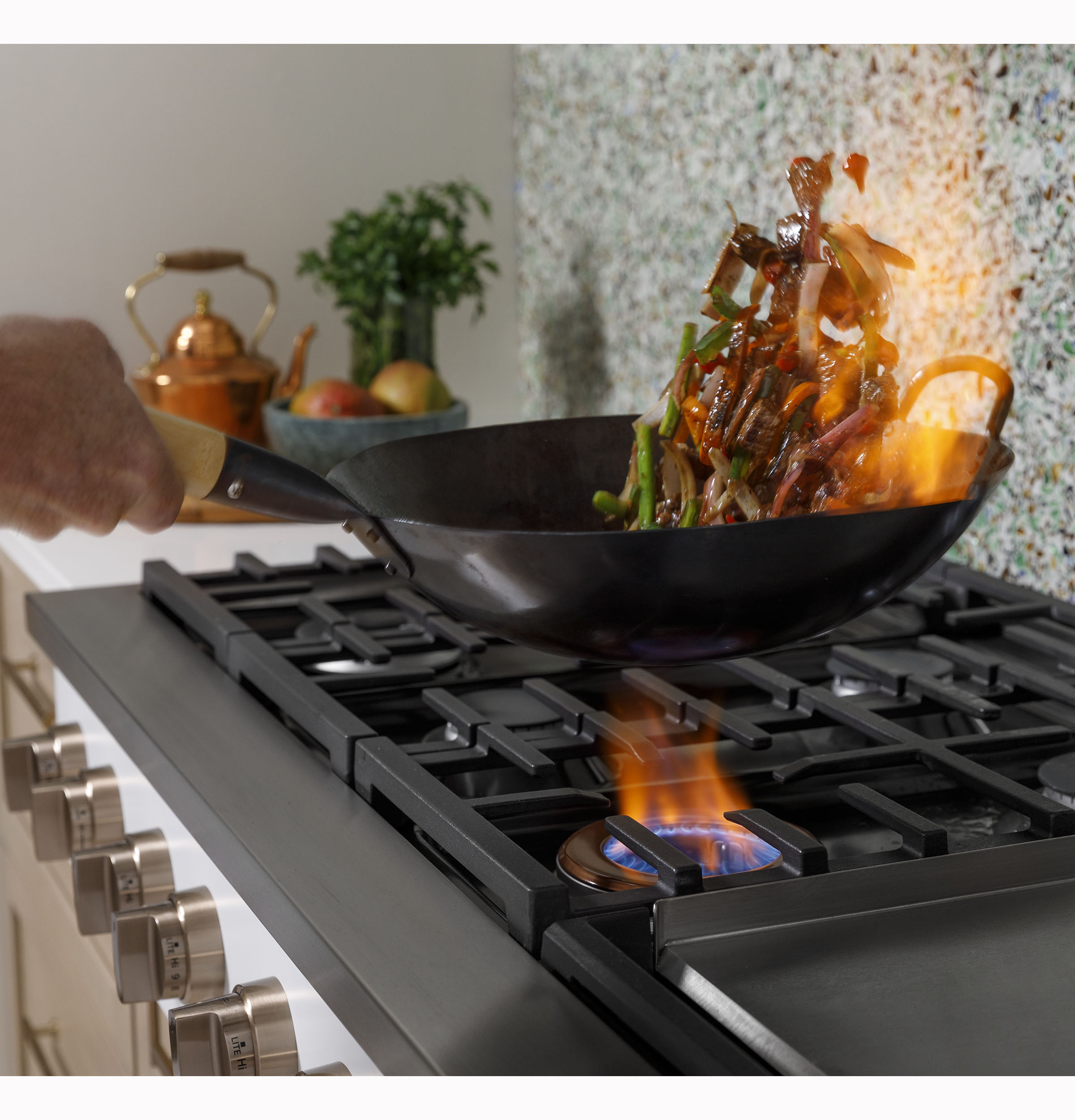

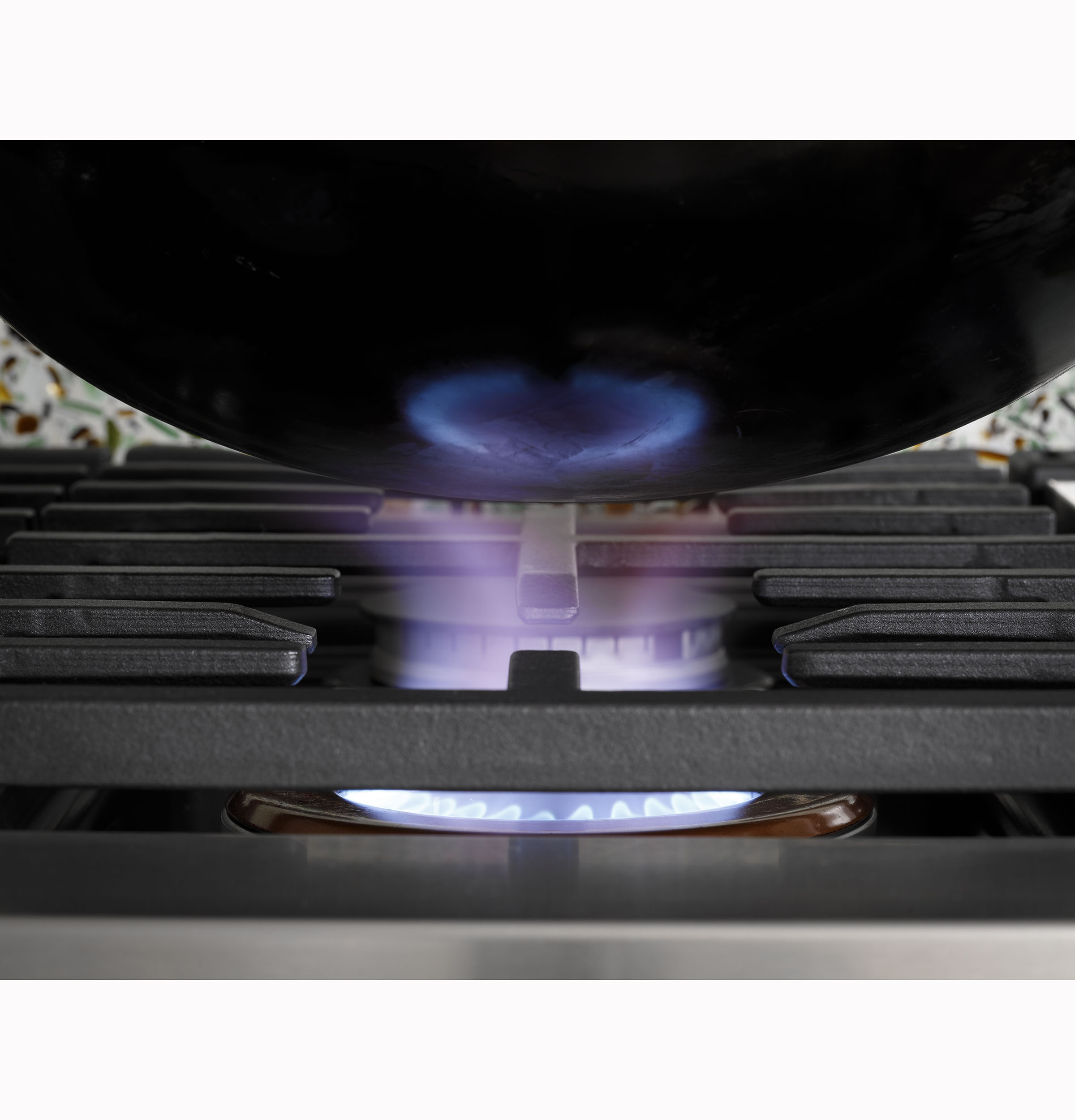

Inspiral Wok Grate
Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.
Inspiral™ Wok Grate
Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Height | 8.5 in |
| Overall Depth | 27.5 in |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 227 lb |
| Overall Width | 47.875 in |
| Net Weight | 171 lb |
| Cutout Height (in) | 8 |
| Cutout Depth (in) | 25.25 |
| Cutout Width (in) | 46.25 |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 18,000 BTU |
| Burner - Right Front | 10,000 BTU |
| Fuel Type | Natural Gas |
| Control Location | Upfront |
| Ignition System | Electronic w/Auto Reignition |
| Cooktop Type | Continuous Grates |
| Burner - Center | 12,000 BTU Front / 12,000 BTU Rear |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Rear | 18,000 BTU |
| Extra Low Simmer | All Burners - Adjustable |
| Automatic Re-Ignition | Yes |
| Control Type | Simmer (1-9) Hi |
| Cooktop Burner Grate Material | Heavy Cast |
| Griddle Indicator | Yes |
| Cooktop Burner Grate Features | Porcelainized Cast Iron |
| Griddle | Thermostatically Controlled |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Configuration | 6 Burners |
| Product Type | Rangetop |
| Burner - Left Front | 21,000 BTU Multi-ring Burner |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Griddle | Stainless Steel and Aluminum Clad |
| Control Type | Manual |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Features | Matte Black |
| Cooktop Surface | Gray |
| Griddle | 18,000-BTU |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Hertz | 60 |
| Electrical Requirements | 120V |
APPEARANCE
| Design Style | Professional |
| Color Appearance | Matte Black |
| Control Knobs | Stainless Steel Appearance |
| Control Knobs | Professional-Style |
| Control Knobs | Dishwasher Safe |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES
| High Altitude Kit | Natural Gas: WB28X39728; LP: WB28X39729 |
| Conversion Kit | Included - Nat. Gas to LP |
| Factory-installed island backguard | Yes |
| Optional Kits | CXPR8HKPTSS Brushed Stainless |
| Griddle Cover | WB34X39889 |
| Optional Backguard | 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| Optional Kits | CXPR8HKPTBZ Brushed Bronze |
| Optional Backguard | 12" stainless steel backsplash (UX12BS48PSS) |
| Optional Kits | CXPR8HKPTBT Brushed Black |
| Optional Kits | CXPR8HKPTCU Brushed Copper |
| Optional Kits | CXPR8HKPTCG Brushed Brass |
| Optional Kits | CXPR8HKPTFB Flat Black |
Dimensions & Weight
| Width | 47.88 in. |
| Height | 8.5 in. |
| Length | 27.5 in. |
| Weight | 171 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 13.5 in. |
| Shipping Length | 32.5 in. |
| Shipping Weight | 227 lbs. |
| Total of Shipping Weight | 227 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.48 ft³ |
| Dimensional Weight | 80.51 lbs. |
| Total of Cubes | 6.48 ft³ |
| Total of Dimensional Weight | 80.51 lbs. |
